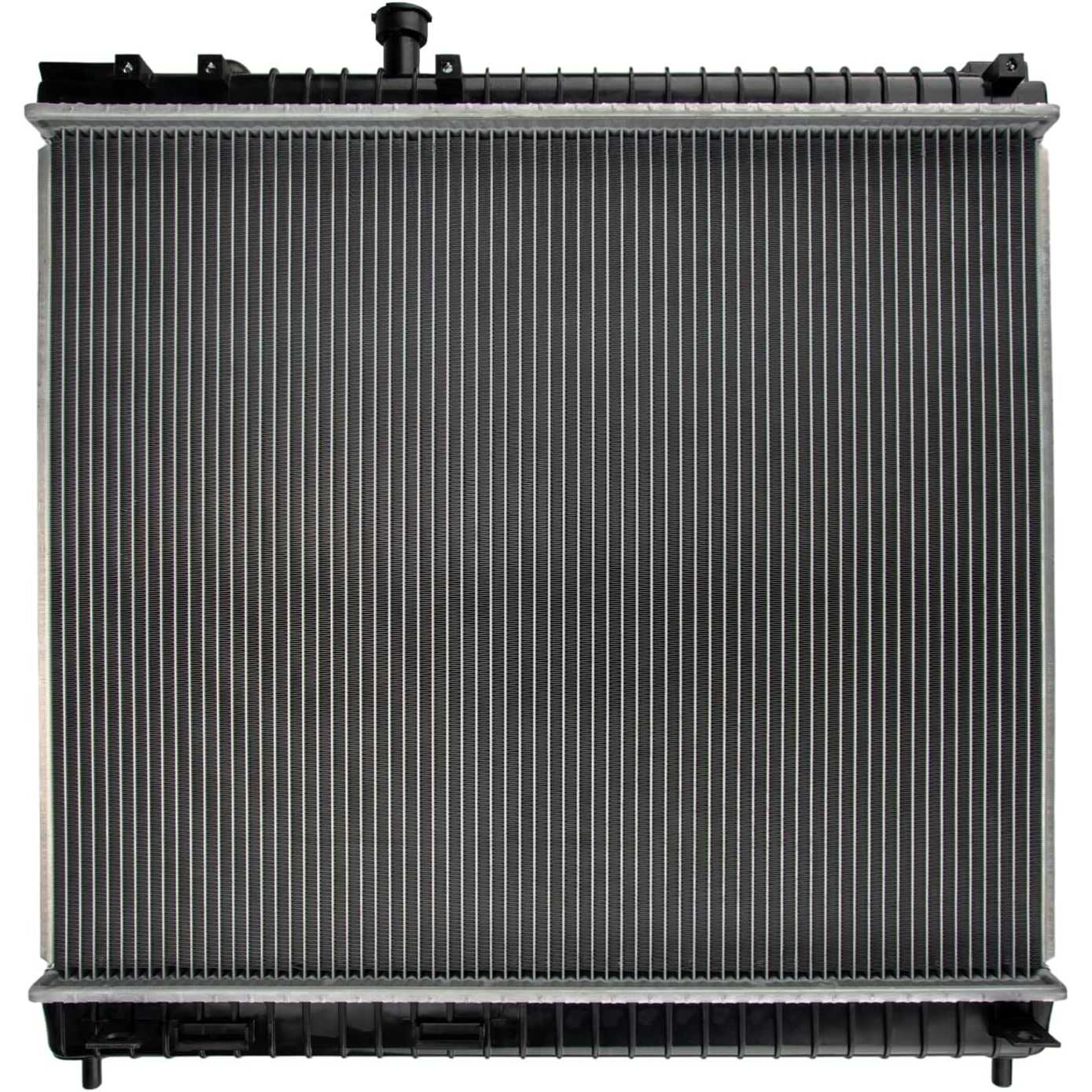

2004-2010 INFINITI QX56 5.6L V8 | Aluminum 1" Radiator | OE#21460ZZ90A/CU2691 - PHILTOP

2004-2010 INFINITI QX56 5.6L V8 | Aluminum 1" Radiator | OE#21460ZZ90A/CU2691 - PHILTOP

Leak-Resistant

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5415CFK052RUS

Specifications

Brand
PHILTOP

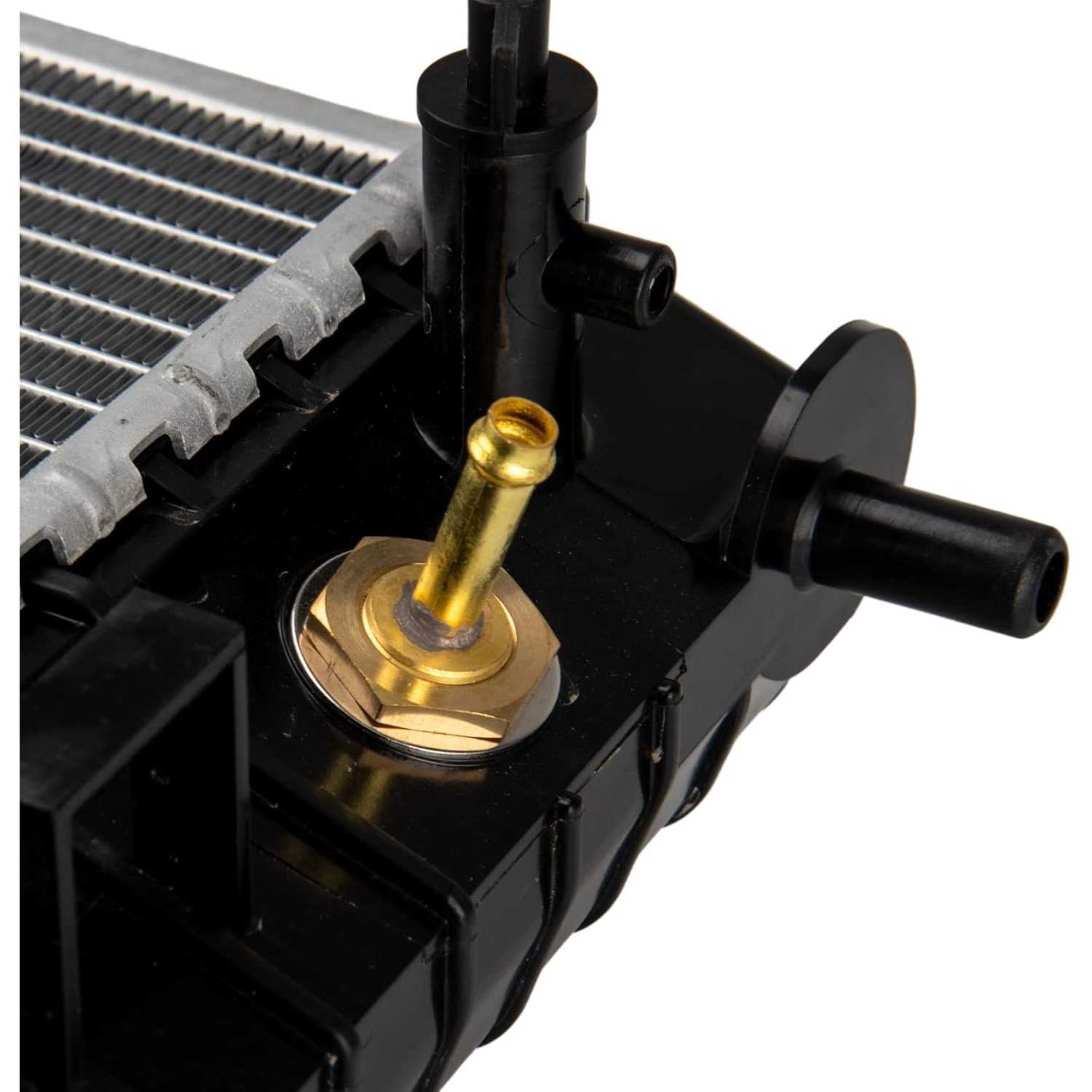

Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
26-5/16 in
Core Height
23-1/2 in
Radiator Cap Included
No
Inlet Diameter
1-3/8 in
Outlet Diameter
1-3/8 in
Items Included

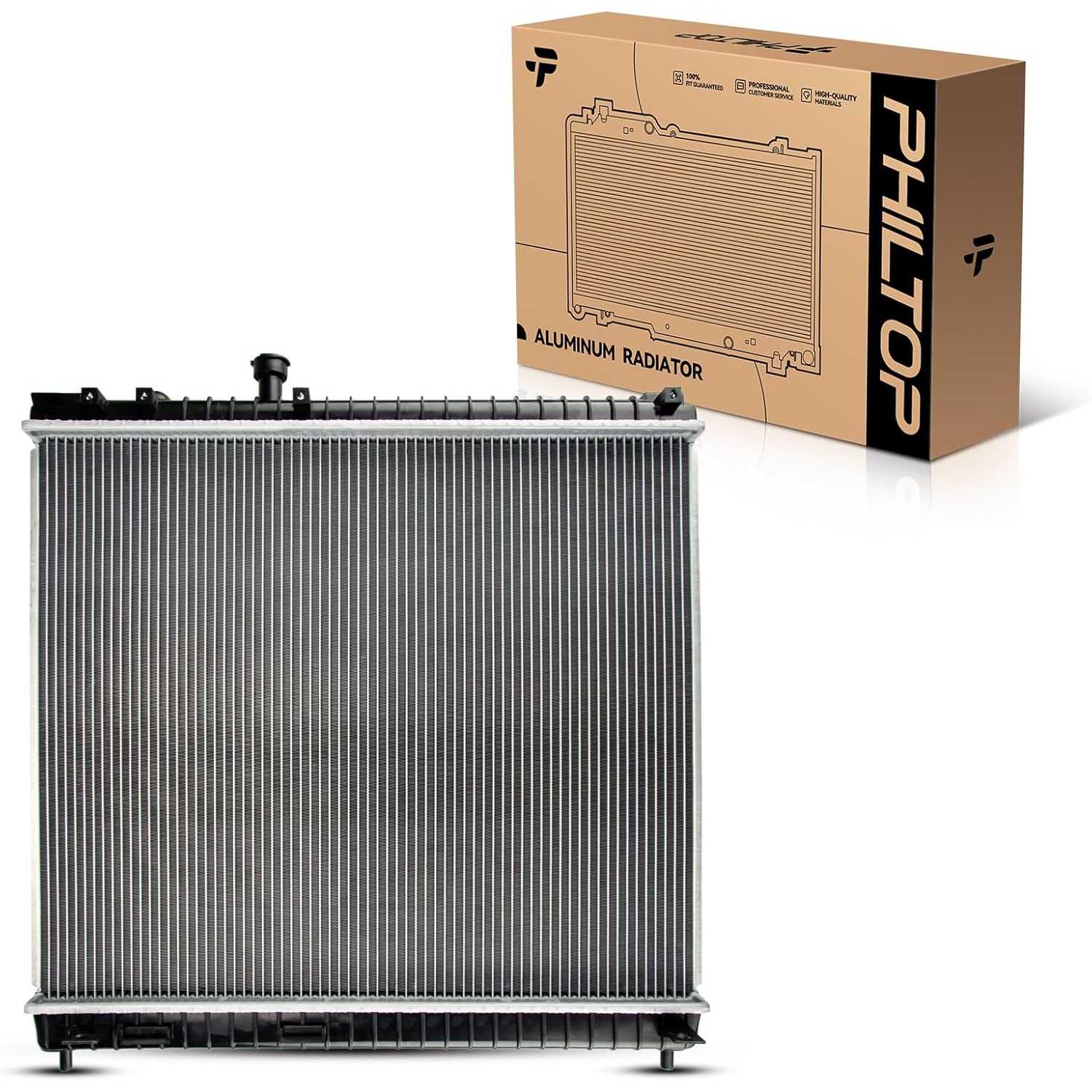

1x Radiator - CU2691, 1x Instruction Manual
Mounting Type
Top Saddle / Bottom Pin
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
21460ZZ90A,214607S00A,214609FD0A,214609FD0B,214609FD1B,21460ZV00A,21460ZC00A,21460ZQ00A,214607S000,21460ZC00B
Part Number
CU2691,2213406,412691,2691C,2691,NI3010202,2864,RAD2691,3248,3190,A2691,KLI2691,OR2691,SBR2691,0ANS5590,PR2691A,432689,RA2691C,C2691,69484,9894,103024,17788000045933952,A269144C,1981202061,RA2691,56082,CR2691,NR2691C,AM2691,0R002691A3CM,BES2691

Highlights

  • Compatible with: 2004-2015 TITAN, 2005-2015 Armada, 2004-2010 QX56, 2004 Pathfinder Armada
  • OEM Replacement: 214607S000, 214607S00A, 214609FD0A, 214609FD0B, 214609FD1B, 21460ZC00A, 21460ZC00B, 21460ZQ00A, 21460ZV00A, 21460ZZ90A
  • IATF16950 Certification: Designed with outstanding durability, in compliance with the original specifications, and suitable for direct replacement.
  • High-Efficiency Cooling: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • Easy and Quick to Install - Direct bolt-on OE fitment or replacement for factory unit, fast and easy installation without any drilling or modification.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 20102005 - 20092010 - 20152005 - 20102005 - 20062011 - 20152011 - 2015201020042005 - 20102008 - 20152011 - 201520042005 - 20102011 - 20152011 - 201520042005 - 2010
MakeINFINITINissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissan
ModelQX56ArmadaArmadaArmadaArmadaArmadaArmadaArmadaTITANTITANTITANTITANTITANTITANTITANTITANTITANTITAN
TrimBaseLEPlatinumSESE Off-RoadSLSVTitaniumLELEPRO-4XSSESESLSVXEXE
Engine5.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V8
Note
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
-
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
-
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
-
Radiator Cap Is Required

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

radiatorradiator

Reviews

4.4/5

Based on 7 reviews

557%
429%
314%
20%
10%

Nancy_FirstCar_496

12/27/2025

Solid construction and a great price point. This radiator feels very durable and does an excellent job cooling. Highly recommend.

Chris_GearHead_571

11/24/2025

Came in super fast and fit my Armada like a glove. The installation process was straightforward. Couldn't have asked for better.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Many cooling systems require bleeding after refilling to remove trapped air. Follow the procedure specified for the vehicle.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.
