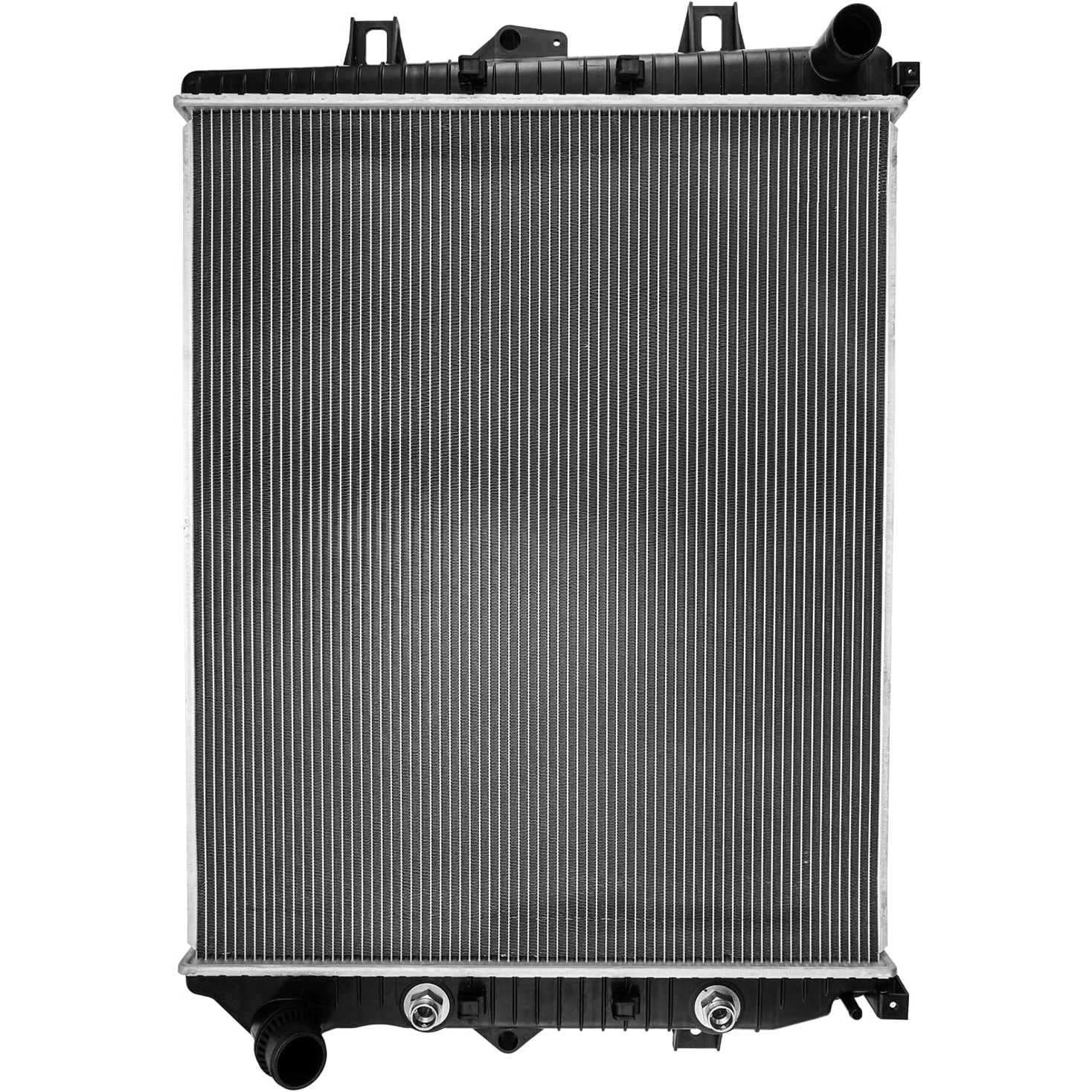

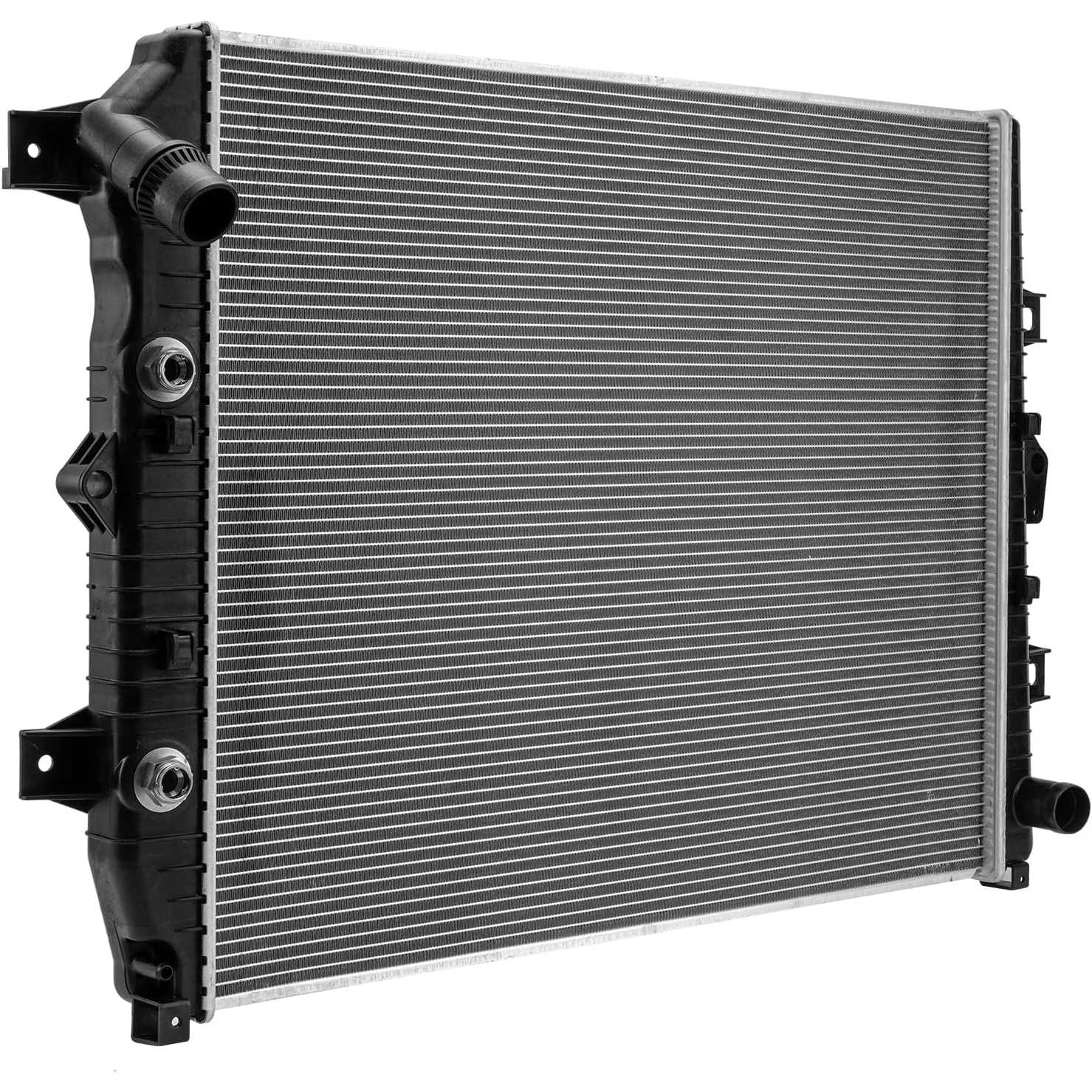

2011-2016 GMC Sierra 2500 HD 6.6L V8 | Aluminum 1" Radiator | OE#23172440/CU13244 - PHILTOP

2011-2016 GMC Sierra 2500 HD 6.6L V8 | Aluminum 1" Radiator | OE#23172440/CU13244 - PHILTOP

Leak-Resistant

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6162RAD0280US

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
27-11/16 in
Core Height
33-7/16 in
Radiator Cap Included
No

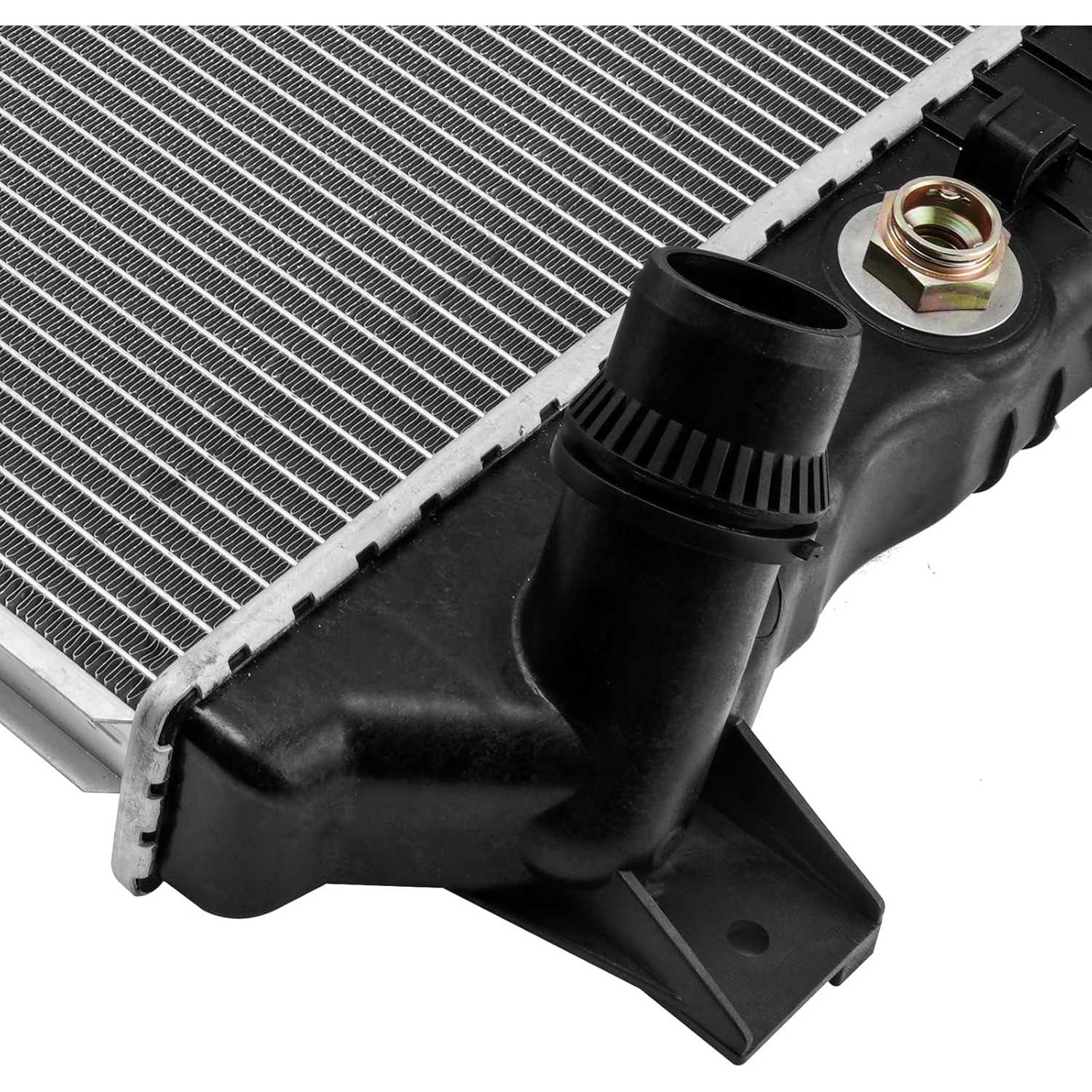

Inlet Diameter
1-13/16 in
Outlet Diameter
2 in
Items Included
1x Radiator - CU13244, 1x Instruction Manual
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
23172440,25838892,22828190
Part Number
CU13244,2219429,4113244,13244C,13399,8013244,SBR13244,PR13244A,CR13244,NR13244C,C13244,813244

Highlights

  • Vehicle Fitment For: 2011-2016 Silverado 2500 HD 6.6T, 2011-2016 Sierra 2500 HD 6.6T, 2011-2016 Silverado 3500 HD 6.6T, 2011-2016 Sierra 3500 HD 6.6T
  • Reference Number:CU13244, 13244C, 2219429, 4113244, 25838892, 23172440, 22828190, 13244, NR13244C, CR13244, 13399, GM3010576, PR13244A, SBR13244

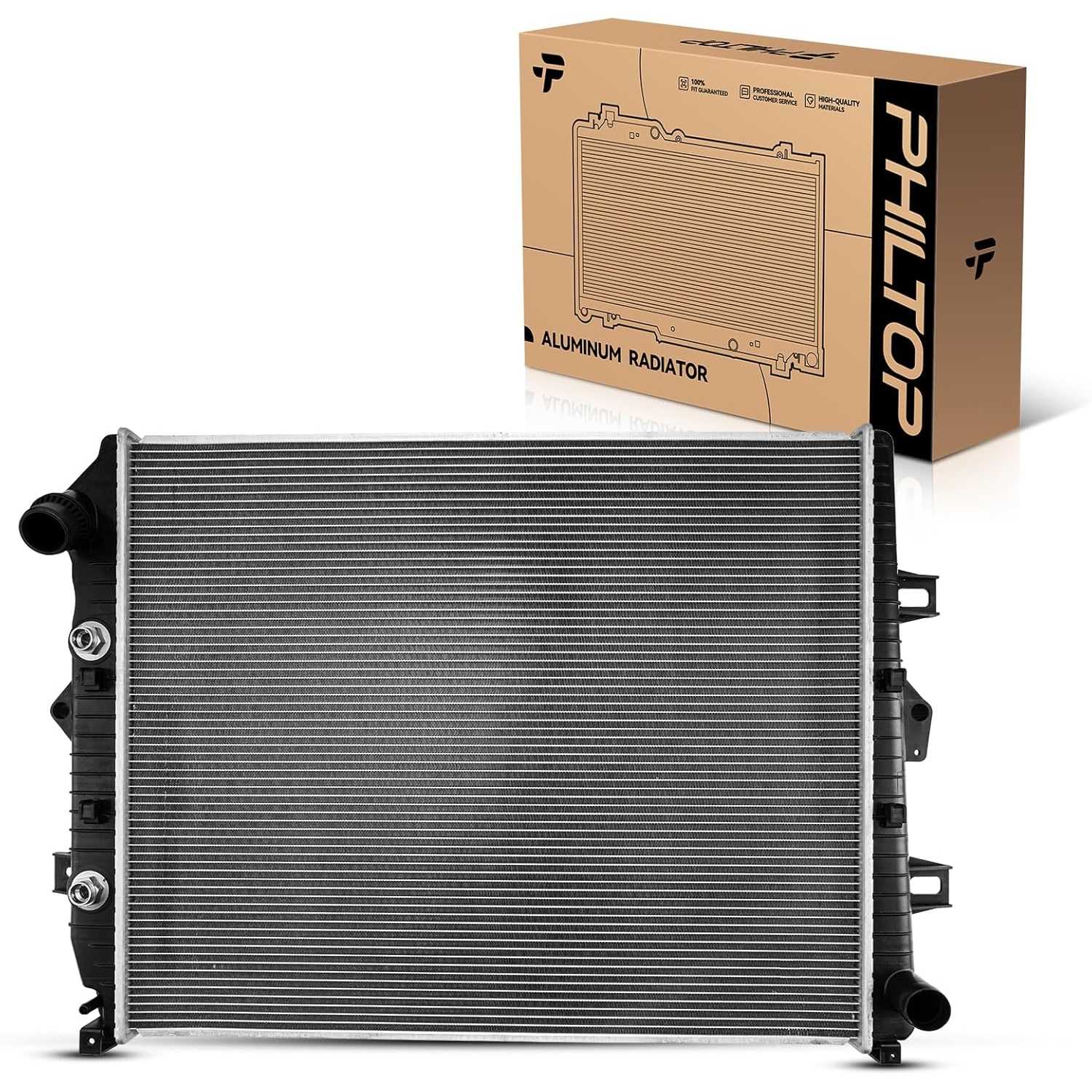

  • Enhanced Package: Package come with 1x PHILTOP Radiator Complete Radiator and. Fixed foam in four corners for the purpose of fixing the radiator, no bending and no damage.
  • High-Efficiency Cooling: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16952 Certification: Authoritative certification, quality assurance

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2015 - 20162011 - 20162011 - 20162011 - 20162015 - 20162011 - 20162011 - 20162011 - 20162015 - 20162011 - 20162011 - 20162011 - 20162011 - 20142015 - 20162011 - 20162011 - 20162011 - 20162011 - 2014
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMC
ModelSilverado 2500 HDSilverado 2500 HDSilverado 2500 HDSilverado 2500 HDSilverado 3500 HDSilverado 3500 HDSilverado 3500 HDSilverado 3500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 3500 HDSierra 3500 HDSierra 3500 HDSierra 3500 HDSierra 3500 HD
TrimHigh CountryLTLTZWTHigh CountryLTLTZWTBaseDenaliSLESLTWTBaseDenaliSLESLTWT
Engine6.6L V86.6L V86.6L V86.6L V86.6L V86.6L V86.6L V86.6L V86.6L V86.6L V86.6L V86.6L V86.6L V86.6L V86.6L V86.6L V86.6L V86.6L V8
Note------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

guy bass

09/27/2026

Verified buyer

Mounted and fit just like the original. The connection for the coolant reservoir hose is slightly smaller. Had to get an adapter from the parts store to change hose size to next size smaller, but that's just a minor change. It's a little difficult to install, but that was not due to the radiator. It was due to the way the factory designed the way it mounted to the vehicle.

Cisco

09/27/2026

Verified buyer

Fit perfect was well packaged no leaks so far

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.

A flush may help remove old coolant and debris when contamination is present. Follow the vehicle manufacturer’s service procedure.
