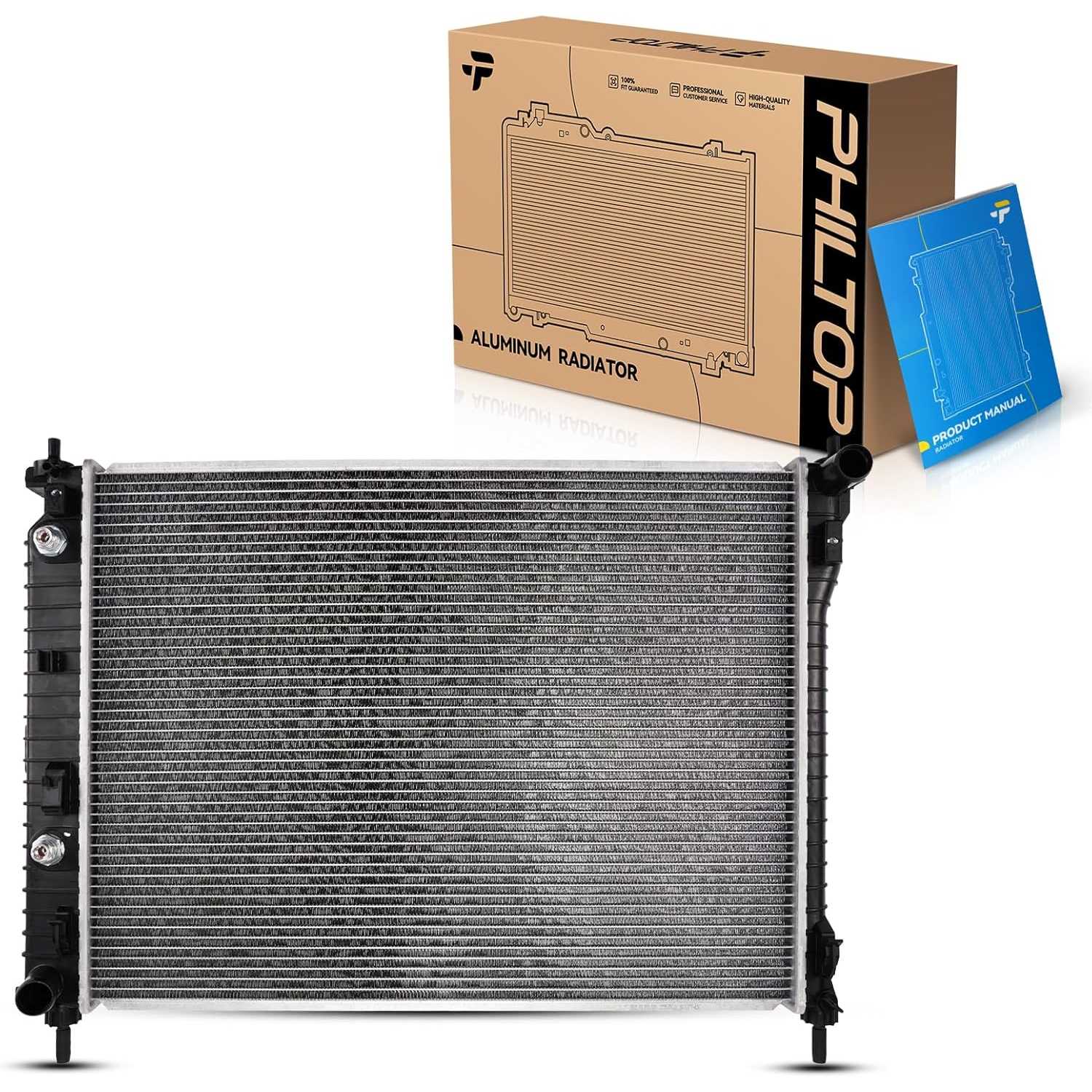

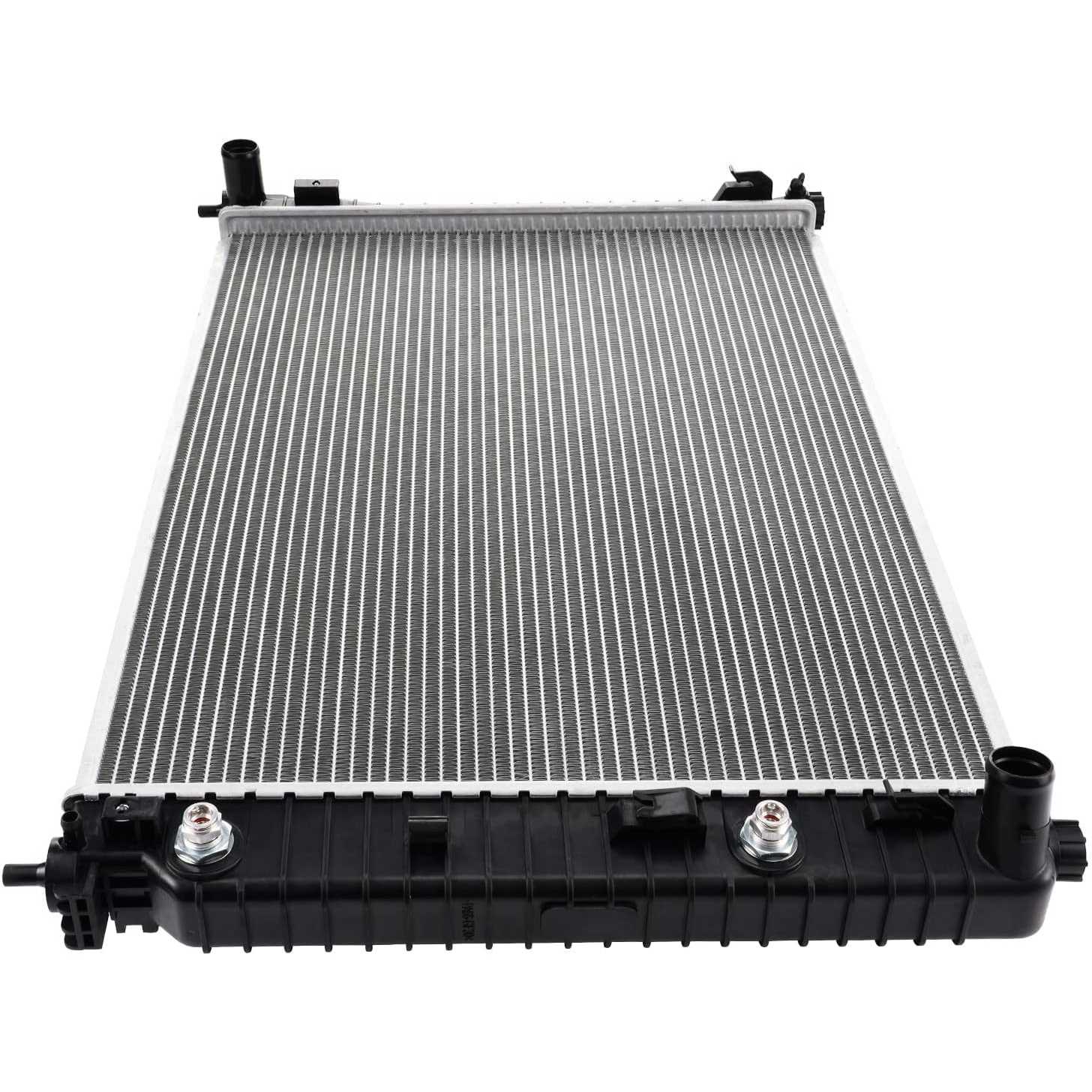

2012-2015 Chevrolet Captiva Sport 2.4L L4/3.0L V6 | Aluminum 1" Radiator | OE#96800739/CU13057 - PHILTOP

2012-2015 Chevrolet Captiva Sport 2.4L L4/3.0L V6 | Aluminum 1" Radiator | OE#96800739/CU13057 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6536CFK234SUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
No

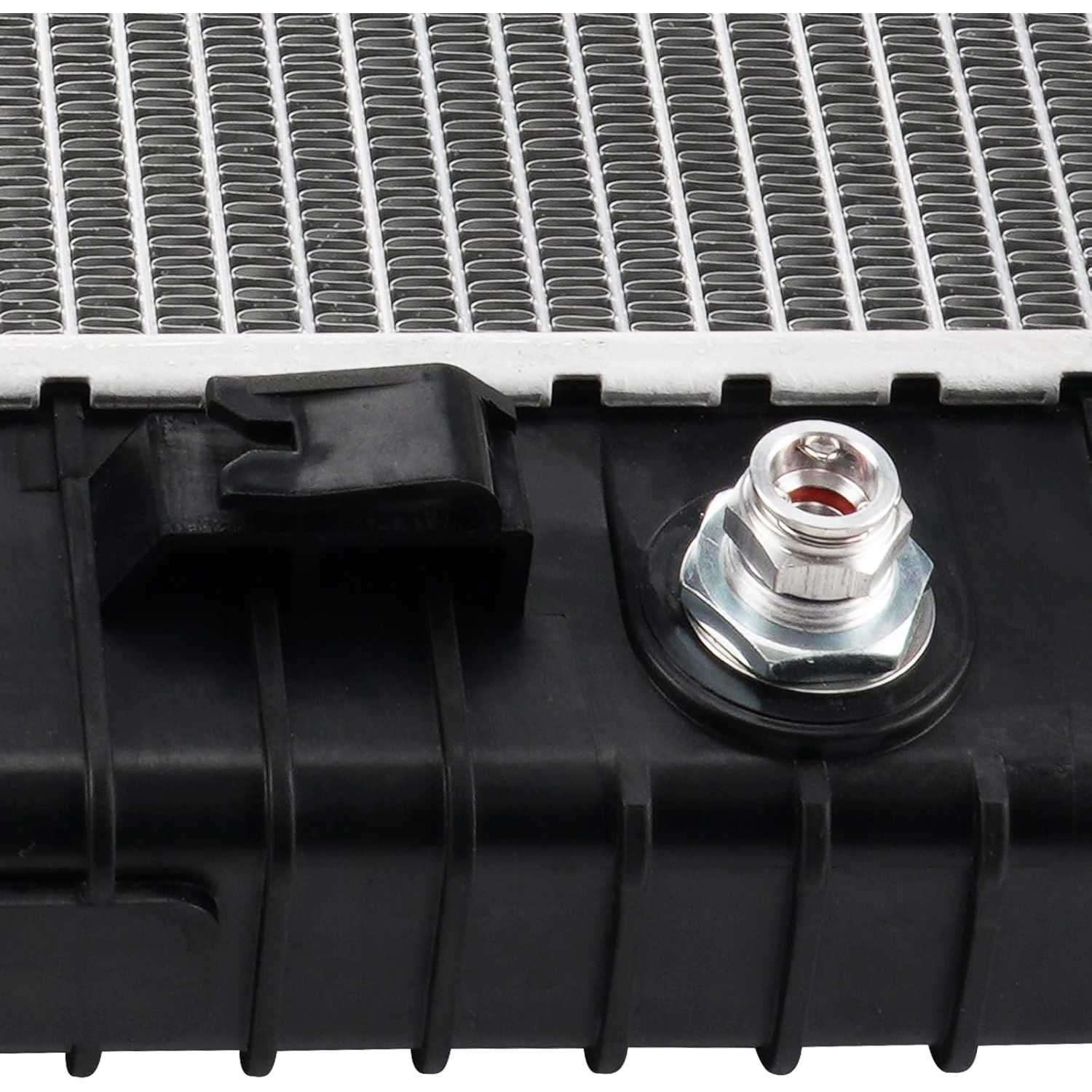

Engine Oil Cooler Included
Yes
Core Thickness
1 in
Core Width
26-1/2 in
Core Height
20 in
Radiator Cap Included
No
Inlet Diameter
1-5/16 in
Outlet Diameter
1-5/16 in
Items Included
1x Radiator - CU13057, 1x Instruction Manual
Mounting Type
Top / Bottom Post
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
96800739,20777042,2480936
Part Number
CU13057,13057C,4113057,2219098,GM3010523,8193,KLI13057,SBR13057,438143,PR13057A,CR13057,NR13057C,AM13057,0R013057A2CM,BES13057,C13057,1981201107

Highlights

  • Vehicle Fitment: 2012-2015 Captiva Sport, 2008-2010 Vue
  • Reference Number: 20777042, 4803042, 4817661, 4818240, 96629057, 96800739
  • Product Dimension - Core Width: 26-1/2 in ,Core Height: 20 in ,Core Thickness: 1 in ,Inlet Diameter: 1-5/16 in ,Outlet Diameter: 1-5/16 in
  • IATF17034 Certification: Authoritative certification, quality assurance
  • Feature: Built with high density multi-Lowered fins for maximum cooling efficiency

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20152013 - 201520122013 - 20152012200820092008 - 20092008 - 20102008 - 20102009 - 20102008 - 2010
MakeChevroletChevroletChevroletChevroletChevroletSaturnSaturnSaturnSaturnSaturnSaturnSaturn
ModelCaptiva SportCaptiva SportCaptiva SportCaptiva SportCaptiva SportVueVueVueVueVueVueVue
TrimLSLTLTLTZLTZGreen LineHybridRed LineXEXEXRXR
Engine2.4L L42.4L L43.0L V62.4L L43.0L V62.4L L42.4L L43.6L V62.4L L43.5L V62.4L L43.6L V6
Note------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.8/5

Based on 6 reviews

583%
417%
30%
20%
10%

Jeri Alderson

10/08/2026

Verified buyer

Great to deal with shipping on time no problems at all will buy again

Mike

10/05/2026

Verified buyer

So far it’s good. Installed 6 months ago. Fit well, just like OEM. 2011 Dodge Journey 6 cyl.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

A flush may help remove old coolant and debris when contamination is present. Follow the vehicle manufacturer’s service procedure.

Minor fin movement can occur during handling and may not affect normal operation. Do not install the radiator if the tubes, tanks, or mounting points are damaged.
