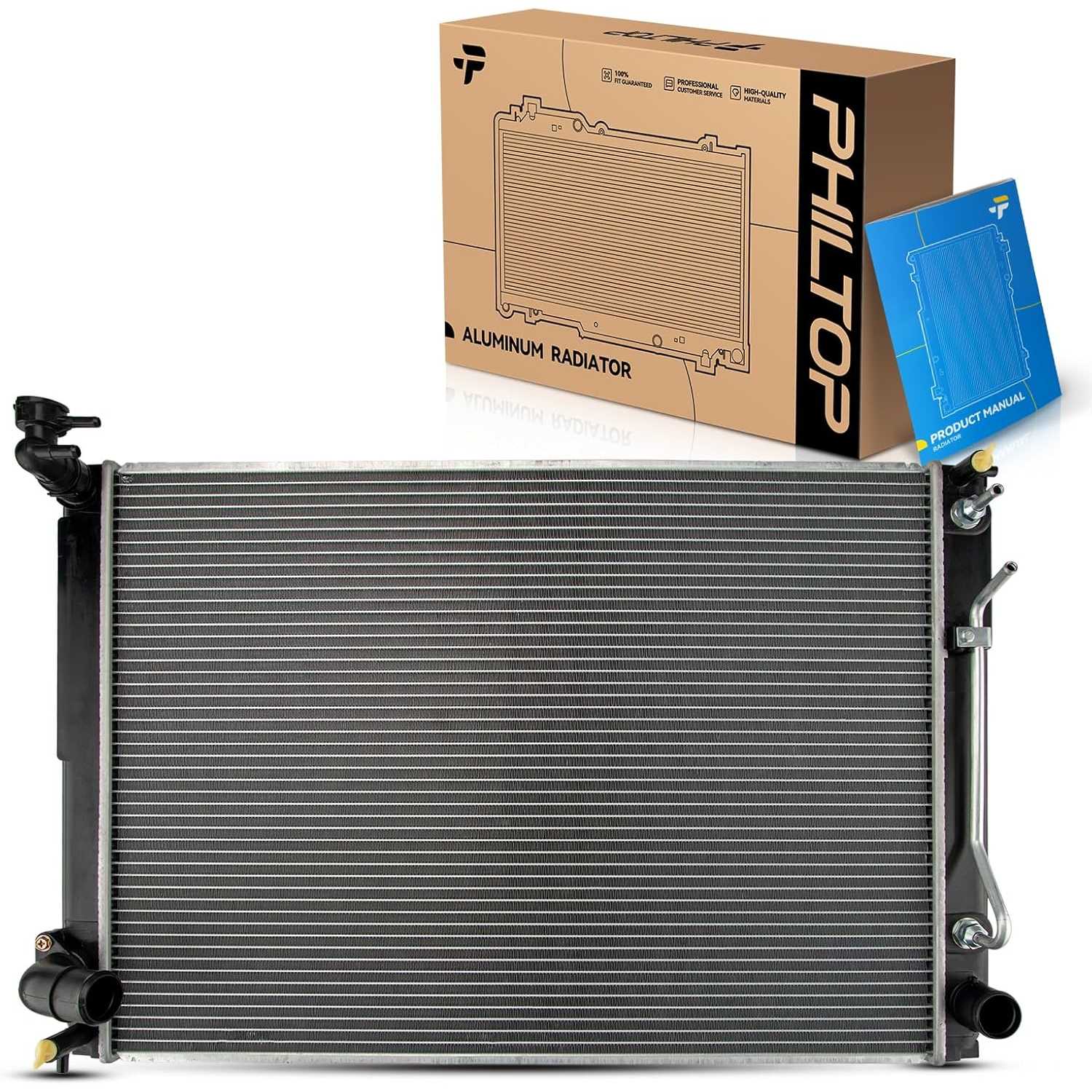

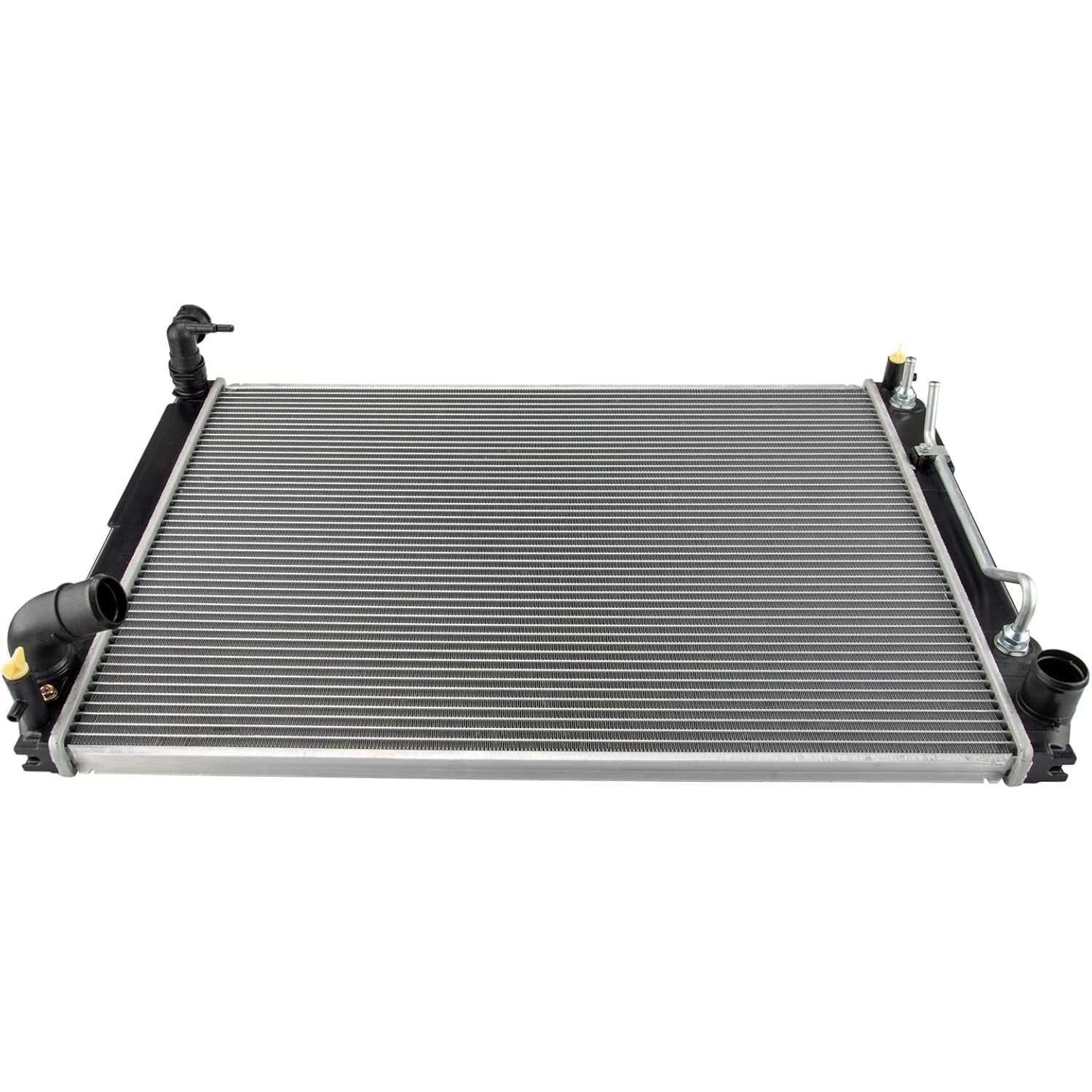

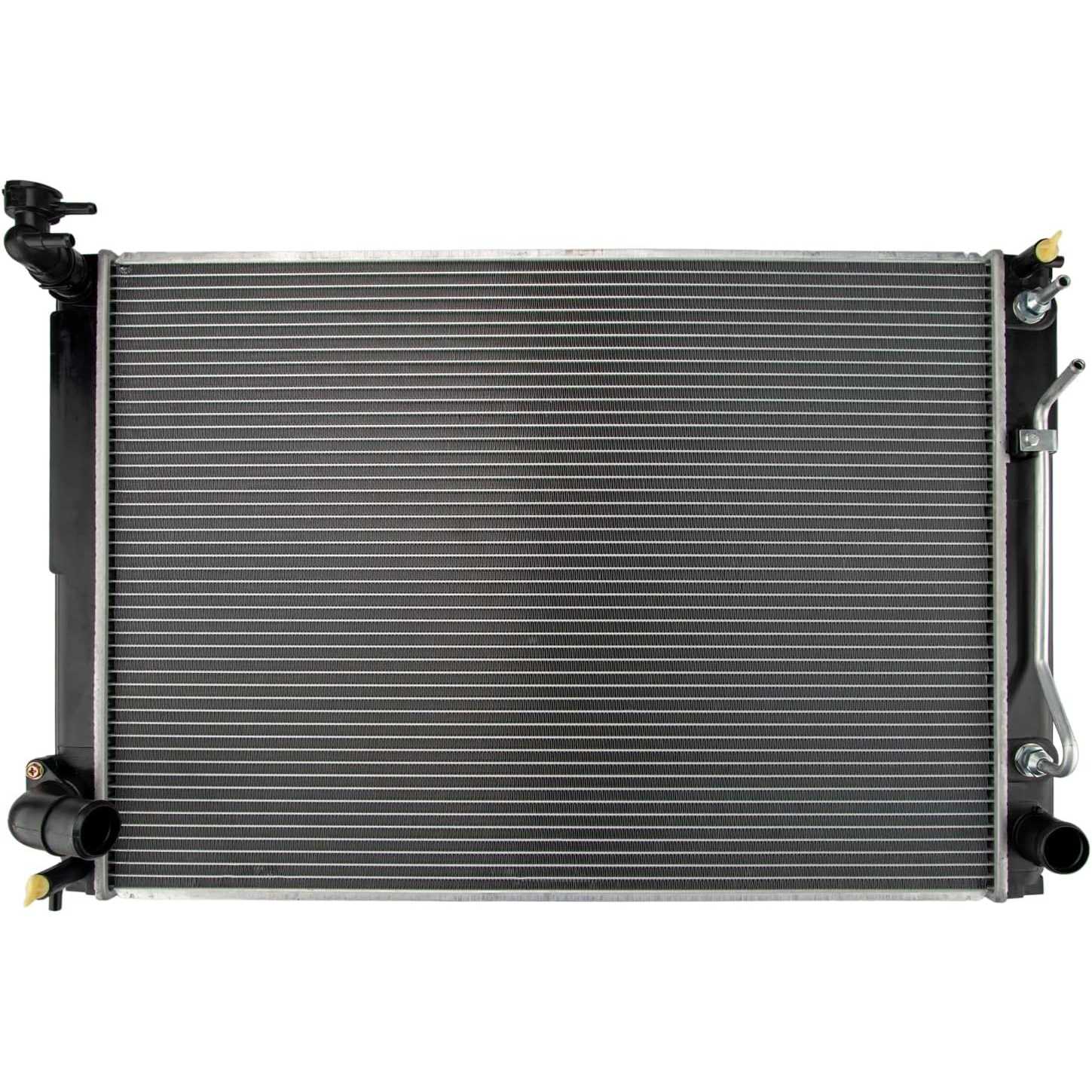

2007-2010 Toyota Sienna 3.5L V6 | Aluminum 3/4" Radiator | OE#160410P201/CU13076 - PHILTOP

2007-2010 Toyota Sienna 3.5L V6 | Aluminum 3/4" Radiator | OE#160410P201/CU13076 - PHILTOP

Leak-Resistant

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5862CFK087FUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
26-3/8 in
Core Height
19-1/8 in
Radiator Cap Included
No
Inlet Diameter
1-1/2 in
Outlet Diameter
1-1/2 in
Items Included
1x Radiator - CU13076, 1x Instruction Manual
Mounting Type
Saddle
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
160410P201,160410P200,164100P161,164100P160,2481041
Part Number
CU13076,2213141,4113076,4113128,13076C,TO3010322,13128,8013076,3350,KLI13076,3141,SBR13076,433861,SBR13128,RA13076C,PR13076A,813076,1981202495,B13076,BES13076,0R013076A2CM,AM13076,438413,NR13076A,CR13076,CR13128,56622

Highlights

  • Vehicle Fitment For: 2007-2010 Sienna
  • Direct Replacement OE NO.:CU13076、TO3010322、160410P201、160410P200、2213141、164100P161、13128、8013076、3350、KLI13076、3141、164100P160、4113076、SBR13076、433861、SBR13128、4113128、13076C、RA13076C、PR13076A、56622、2481041、CR13128、CR13076、NR13076A、438413、AM13076、0R013076A2CM、BES13076、B13076、1981202495、813076
  • Excellent Heatsink Performance: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16957 Certification: Authoritative certification, quality assurance
  • Easy and Quick to Install - Direct bolt-on OE fitment or replacement for factory unit, fast and easy installation without any drilling or modification.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20102007 - 20102007 - 20082007 - 2010
MakeToyotaToyotaToyotaToyota
ModelSiennaSiennaSiennaSienna
TrimCELELimitedXLE
Engine3.5L V63.5L V63.5L V63.5L V6
Note
Radiator Cap Is Required;Replaces OEM Radiator w/ Aluminum Tanks & Core
Radiator Cap Is Required;Replaces OEM Radiator w/ Aluminum Tanks & Core
Radiator Cap Is Required;Replaces OEM Radiator w/ Aluminum Tanks & Core
Radiator Cap Is Required;Replaces OEM Radiator w/ Aluminum Tanks & Core

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.9/5

Based on 7 reviews

586%
414%
30%
20%
10%

Customer photos and videos

RubenRuben

08/28/2026

Verified buyer

Worked great. Installed on 2009 Toyota Sienna. See photo for new on left and old on right to compare. This installed just like OEM. It is lighter than OEM, but it installed correctly, allowed me to fill with coolant, and is now cooling the system effectively with no leaks. I recommend .

Omar G.

09/20/2026

Verified buyer

Great fit !!!

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Many cooling systems require bleeding after refilling to remove trapped air. Follow the procedure specified for the vehicle.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.
