2014-2016 Chevrolet Impala Limited 3.6L V6 | Aluminum 3/4" Radiator | OE#23453634/CU13146 - PHILTOP

2014-2016 Chevrolet Impala Limited 3.6L V6 | Aluminum 3/4" Radiator | OE#23453634/CU13146 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5522CFK283CUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
26-11/16 in
Core Height
15-3/4 in
Radiator Cap Included
No
Inlet Diameter
1-3/8 in
Outlet Diameter
1-3/8 in
Items Included

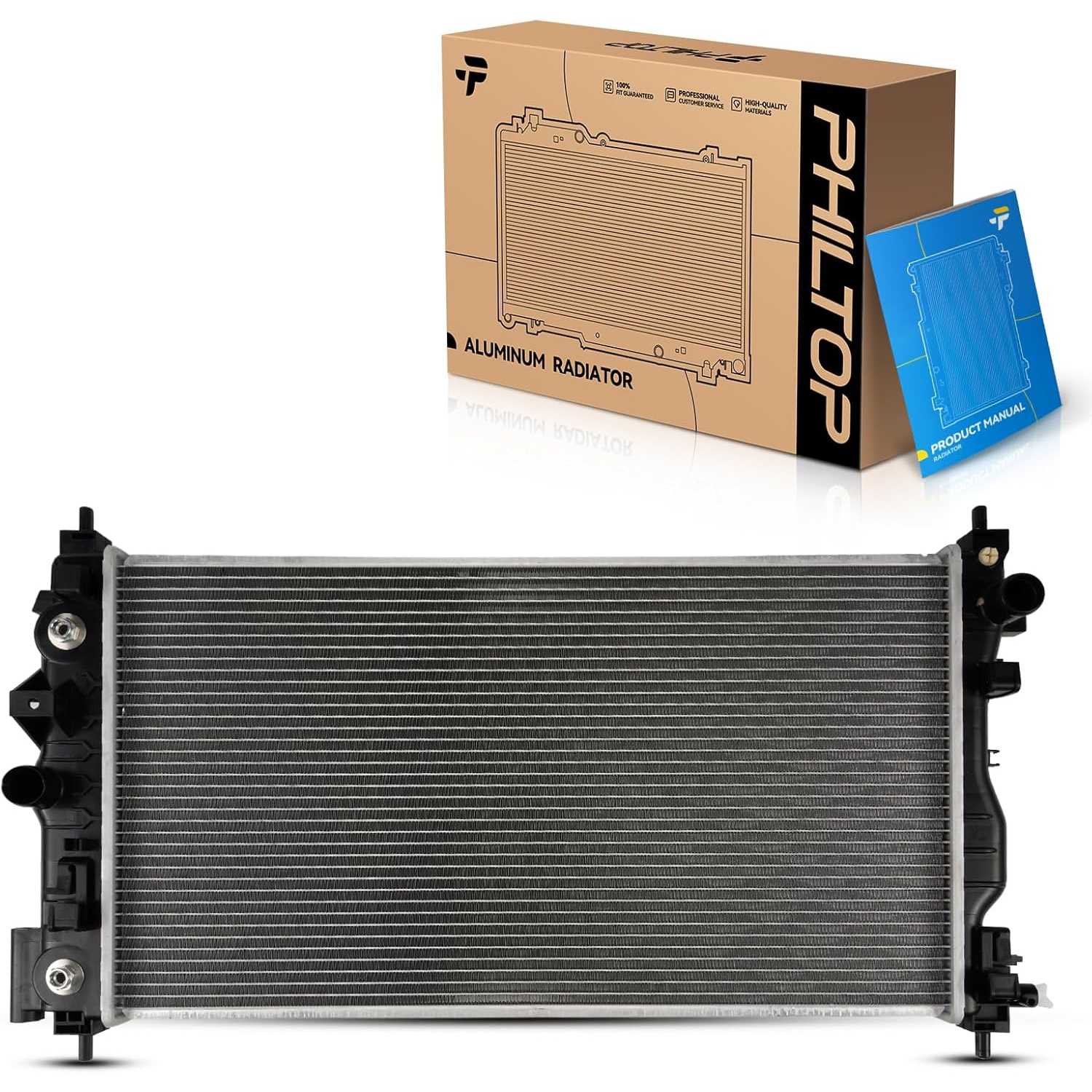

1x Radiator - CU13146, 1x Instruction Manual
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
23453634,22809025,13300193
Part Number
CU13146,4113146,13146C,GM3010538,A13146,1765,8013146,SBR13146,PR13146A,CR13146,NR13146A,AM13146,0R013146A2CM,1981201122,813146

Highlights

  • Vehicle Fitment For: 2010-2011 LaCrosse 2012-2016 LaCrosse 2.4/3.6L(Main Unit) 2011,2013-2014 Regal 2.4L(Main Unit) 2012-2012 Regal 2.4L FLEX/MHEV 2015-2017 Regal FLEX/MHEV 2014-2020 Impala 2.4/3.6L(w/o Hot Weather Package) 2014-2016 Impala Limited(w/ Police Package) 2013-2014 Malibu 2.4L(Main Unit) (w/o Hot Weather Package)
  • Direct Replacement OE NO.:23453634、GM3010538、CU13146、22809025、13300193、A13146、1765、8013146、4113146、SBR13146、13146C、PR13146A、CR13146、NR13146A、AM13146、0R013146A2CM、1981201122、813146
  • Excellent Heatsink Performance: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16957 Certification: Authoritative certification, quality assurance
  • Easy and Quick to Install - Direct bolt-on OE fitment or replacement for factory unit, fast and easy installation without any drilling or modification.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20162012 - 20162010 - 2011201020112011201020112010 - 2011201220122012 - 20162012 - 201620122012 - 201620162012 - 20132012 - 2016201720112012 - 20162014201520162017 - 20192014201520162017 - 20202014201520162017 - 20202014 - 20162014 - 20162014 - 20162014 - 20162013 - 2014
MakeBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevrolet
ModelLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseRegalRegalRegalRegalImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpala LimitedImpala LimitedImpala LimitedImpala LimitedMalibu
TrimBaseBaseCXCXCXCXLCXLCXLCXSConvenienceConvenienceLeatherLeatherPremiumPremiumSport TouringTouringBaseBaseCXLPremiumEcoLSLSLSLTLTLTLTLTZLTZLTZPremierLSLTLTZPoliceEco
Engine2.4L L43.6L V62.4L L43.0L V63.6L V62.4L L43.0L V63.6L V63.6L V62.4L L43.6L V62.4L L43.6L V62.4L L43.6L V63.6L V63.6L V62.4L L42.4L L42.4L L42.4L L42.4L L43.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V62.4L L4
Note
Main Unit
Main Unit
-------
Main Unit
Main Unit
Main Unit
Main Unit
Main Unit
Main Unit
Main Unit
Main Unit
Main Unit
--
Main Unit
Main Unit;w/o Hot Weater Package
w/o Hot Weater Package
w/ Police Package
w/o Hot Weather Package
Main Unit;w/o Hot Weater Package
w/o Hot Weater Package
w/ Police Package
w/o Hot Weather Package
Main Unit;w/o Hot Weater Package
w/o Hot Weater Package
w/ Police Package
w/o Hot Weather Package
w/ Police Package
w/ Police Package
w/ Police Package
w/ Police Package
Main Unit

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.8/5

Based on 9 reviews

578%
422%
30%
20%
10%

Customer

11/15/2024

Verified buyer

Fit my 2014 Impala perfectly

Customer

11/15/2024

Verified buyer

Fit my 2014 Impala perfectly Read more

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.

A flush may help remove old coolant and debris when contamination is present. Follow the vehicle manufacturer’s service procedure.
