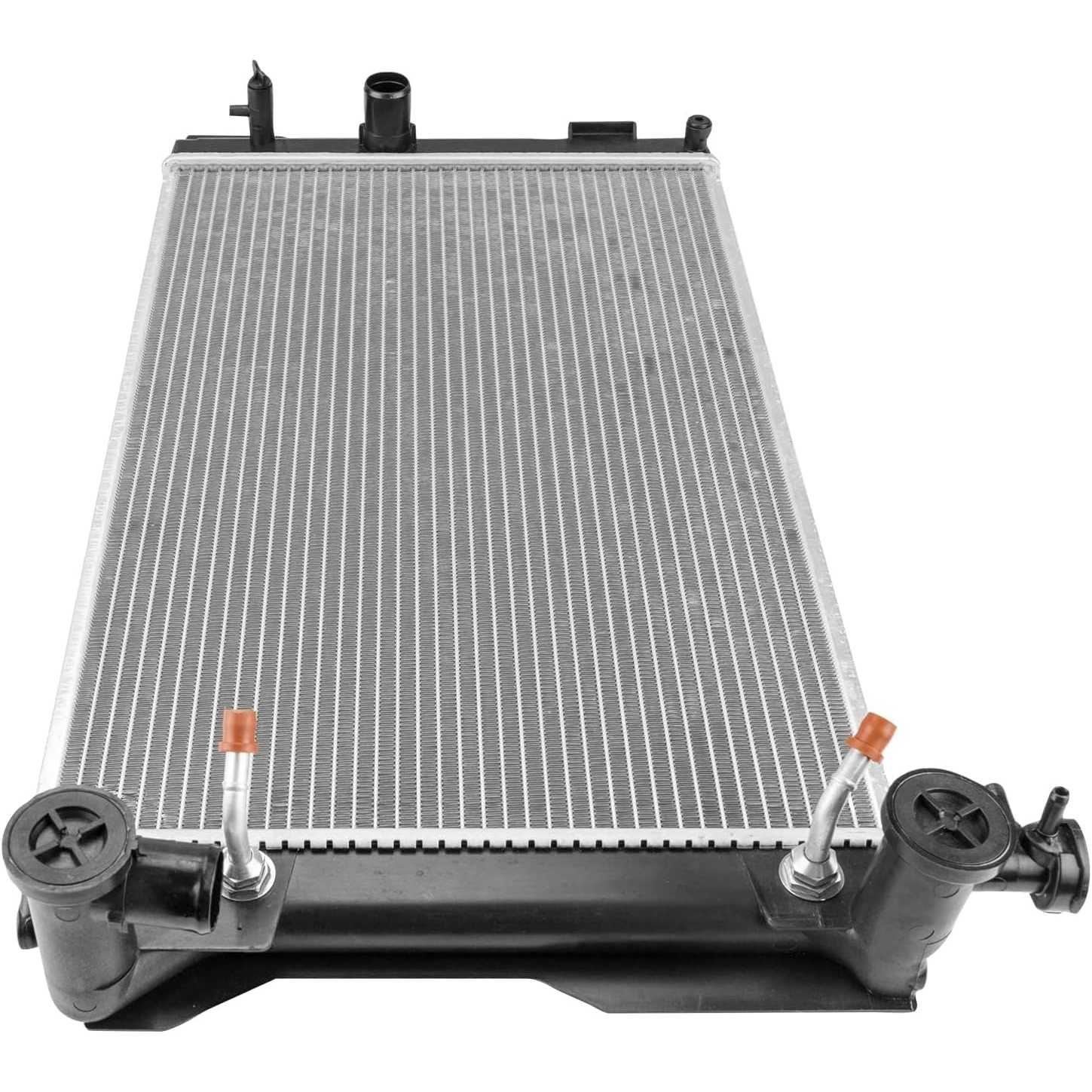

2009-2013 Toyota Corolla 1.8L | Aluminum 3/4" Radiator | OE#1641022160/CU13152 - PHILTOP

2009-2013 Toyota Corolla 1.8L | Aluminum 3/4" Radiator | OE#1641022160/CU13152 - PHILTOP

Leak-Resistant

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5194CFK183AUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
23-5/8 in
Core Height
14-5/8 in
Radiator Cap Included
No
Inlet Diameter
1-3/8 in
Outlet Diameter
1-3/8 in
Items Included

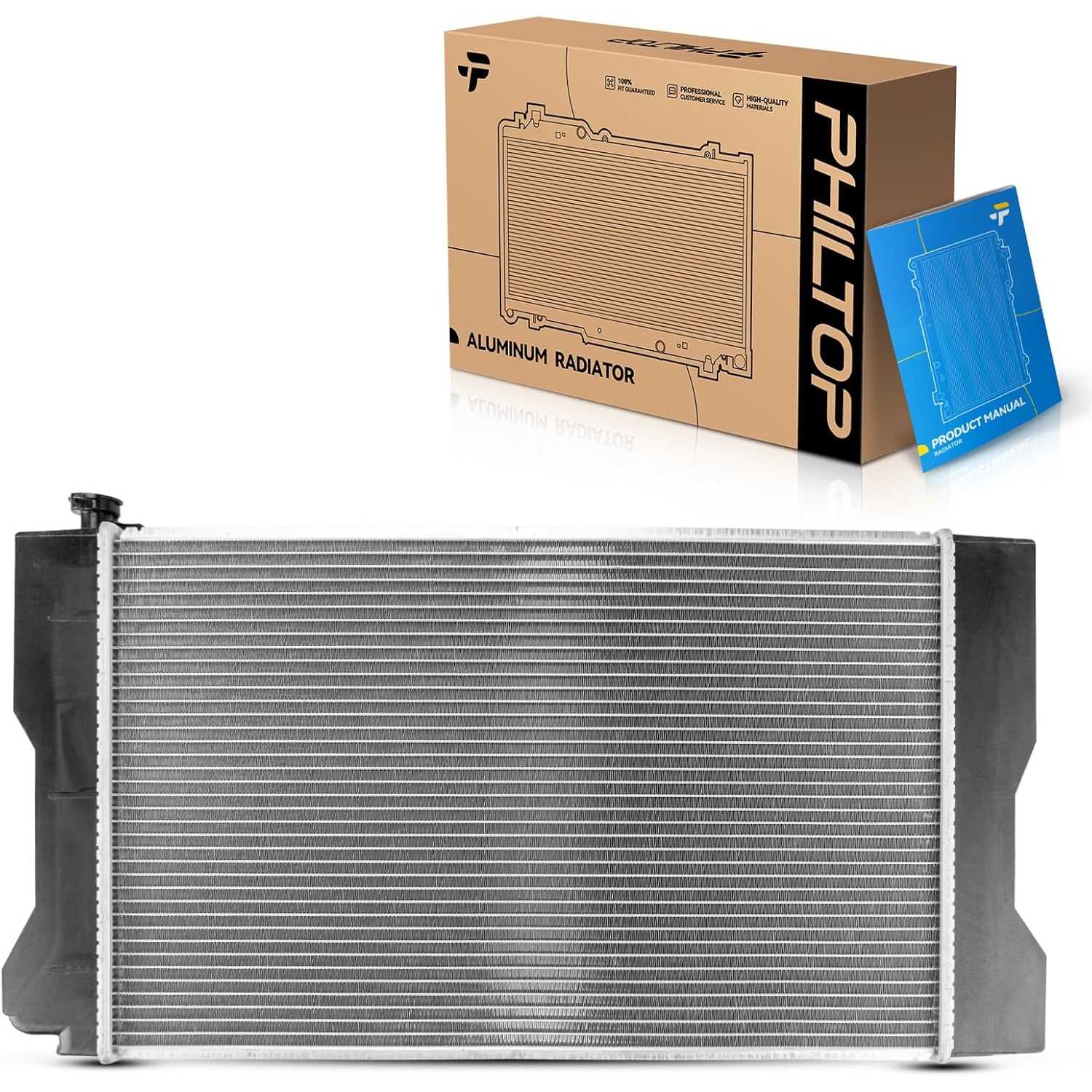

1x Radiator - CU13152, 1x Instruction Manual
Mounting Type
Cradle / Saddle Mount
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
1641022160
Part Number
CU13152,2219249,4113152,13152C,KLI13152,8013152,BES13152,SBR13152,PR13152A,0R013152H1CM,NR13152B,AM13152,B13152,1981202507,813152

Highlights

  • Vehicle Fitment For: 2009-2013 Corolla 1.8L(Japan Built)
  • Direct Replacement OE NO.:1641022160、CU13152、2219249、KLI13152、8013152、BES13152、4113152、13152C、SBR13152、PR13152A、0R013152H1CM、NR13152B、AM13152、B13152、1981202507、813152
  • Excellent Heatsink Performance: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16957 Certification: Authoritative certification, quality assurance
  • Easy and Quick to Install - Direct bolt-on OE fitment or replacement for factory unit, fast and easy installation without any drilling or modification.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20112012 - 20132009 - 20132009 - 20132009 - 2010
MakeToyotaToyotaToyotaToyotaToyota
ModelCorollaCorollaCorollaCorollaCorolla
TrimBaseLLESXLE
Engine1.8L L41.8L L41.8L L41.8L L41.8L L4
Note
Japan Built;Radiator Cap Is Required
Japan Built;Radiator Cap Is Required
Japan Built;Radiator Cap Is Required
Japan Built;Radiator Cap Is Required
Japan Built;Radiator Cap Is Required

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

Reviews

5.0/5

Based on 4 reviews

5100%
40%
30%
20%
10%

Reid Iford

09/17/2026

Verified buyer

Perfect fit and went in without a snag! Exactly like the Toyota original. NO LEAKS, which is one reason I chose this one. I installed it myself using mostly a No. 10 socket, and I did the entire job for $75. The last time I paid a mechanic to replace a similar radiator it cost me $500.

ERNESTO

04/09/2026

Verified buyer

It works perfectly. It's a good purchase—I'm satisfied.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

A flush may help remove old coolant and debris when contamination is present. Follow the vehicle manufacturer’s service procedure.

Minor fin movement can occur during handling and may not affect normal operation. Do not install the radiator if the tubes, tanks, or mounting points are damaged.
