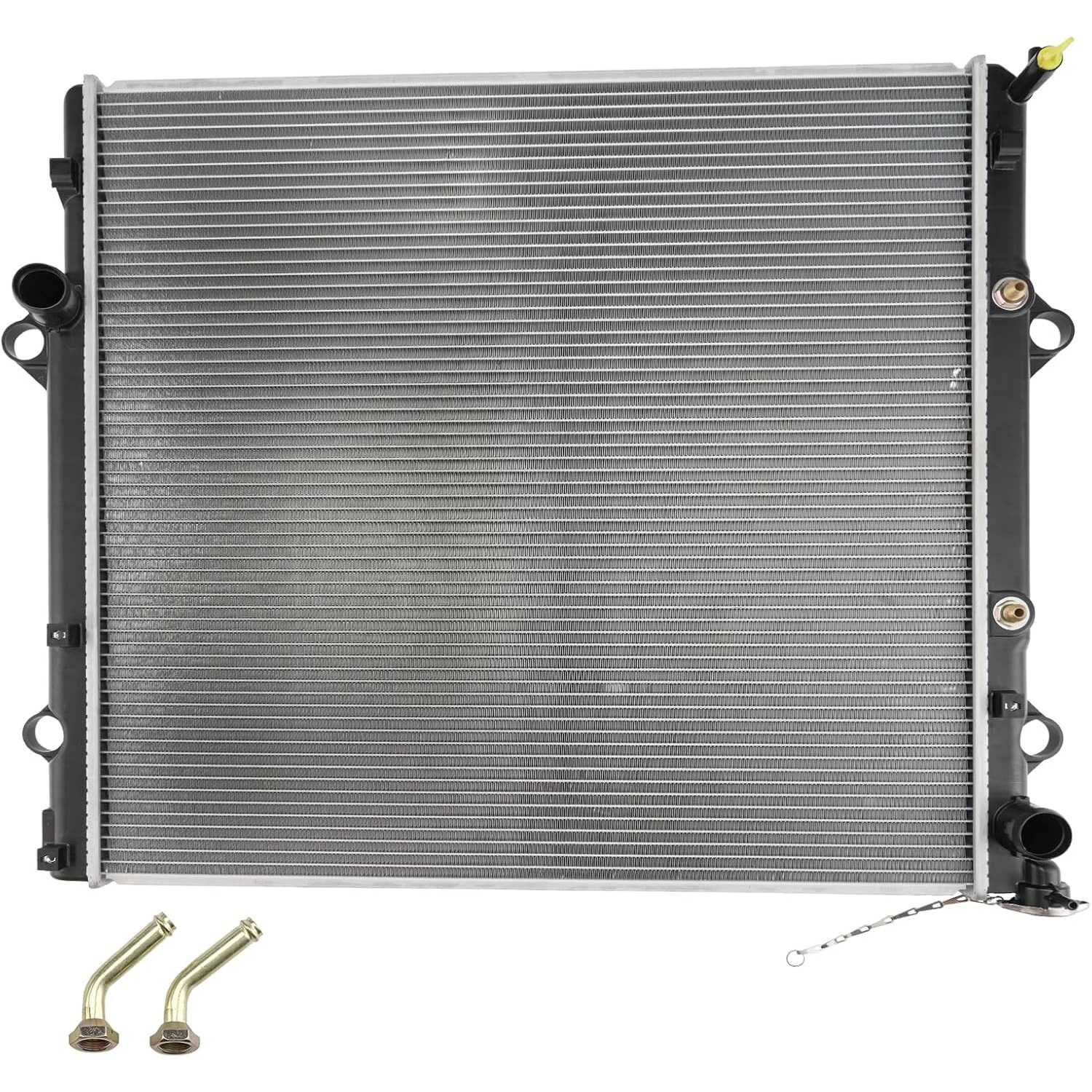

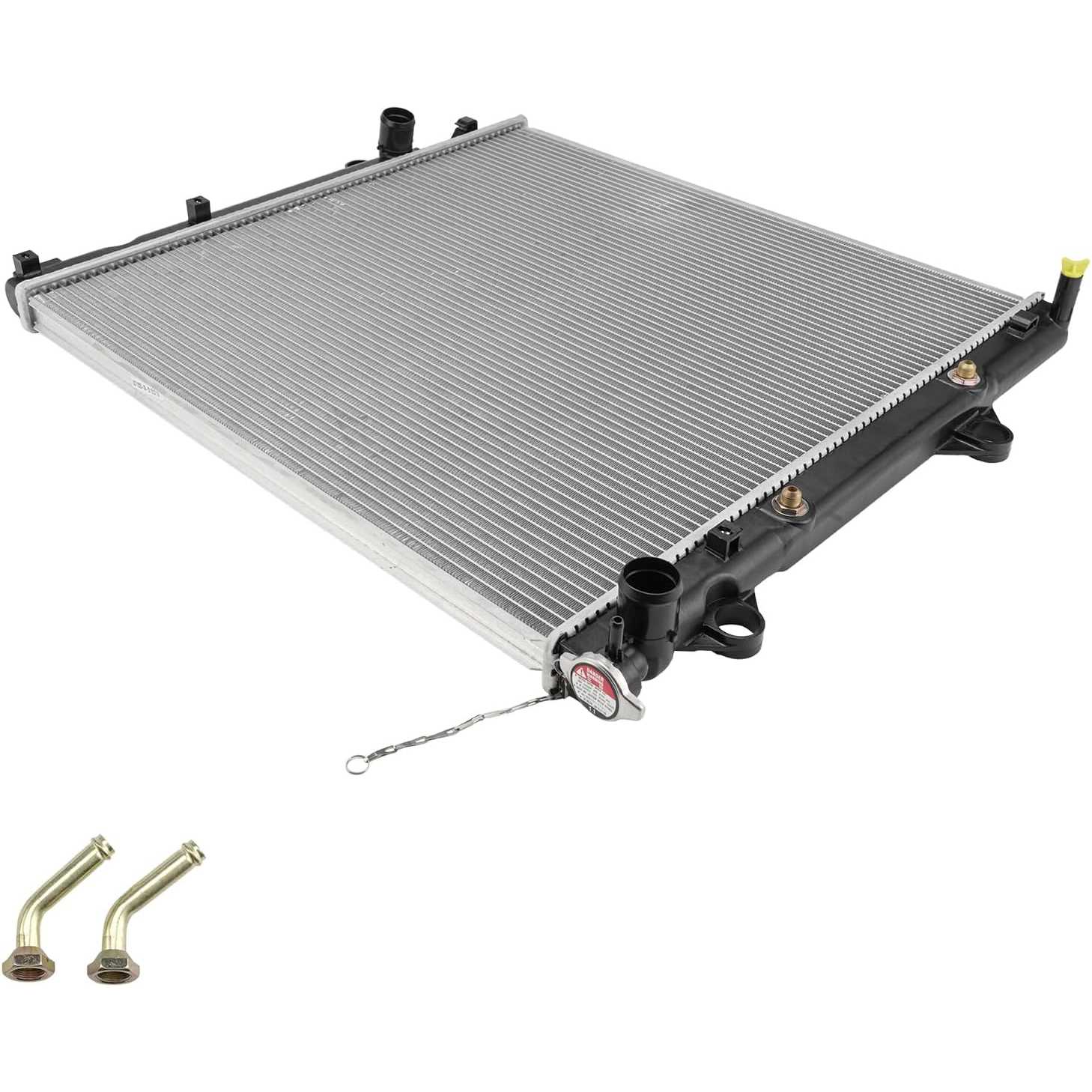

2010-2023 Lexus GX460 4.6L V8 | Aluminum 1" Radiator | OE#1640038253/2219263 - PHILTOP

2010-2023 Lexus GX460 4.6L V8 | Aluminum 1" Radiator | OE#1640038253/2219263 - PHILTOP

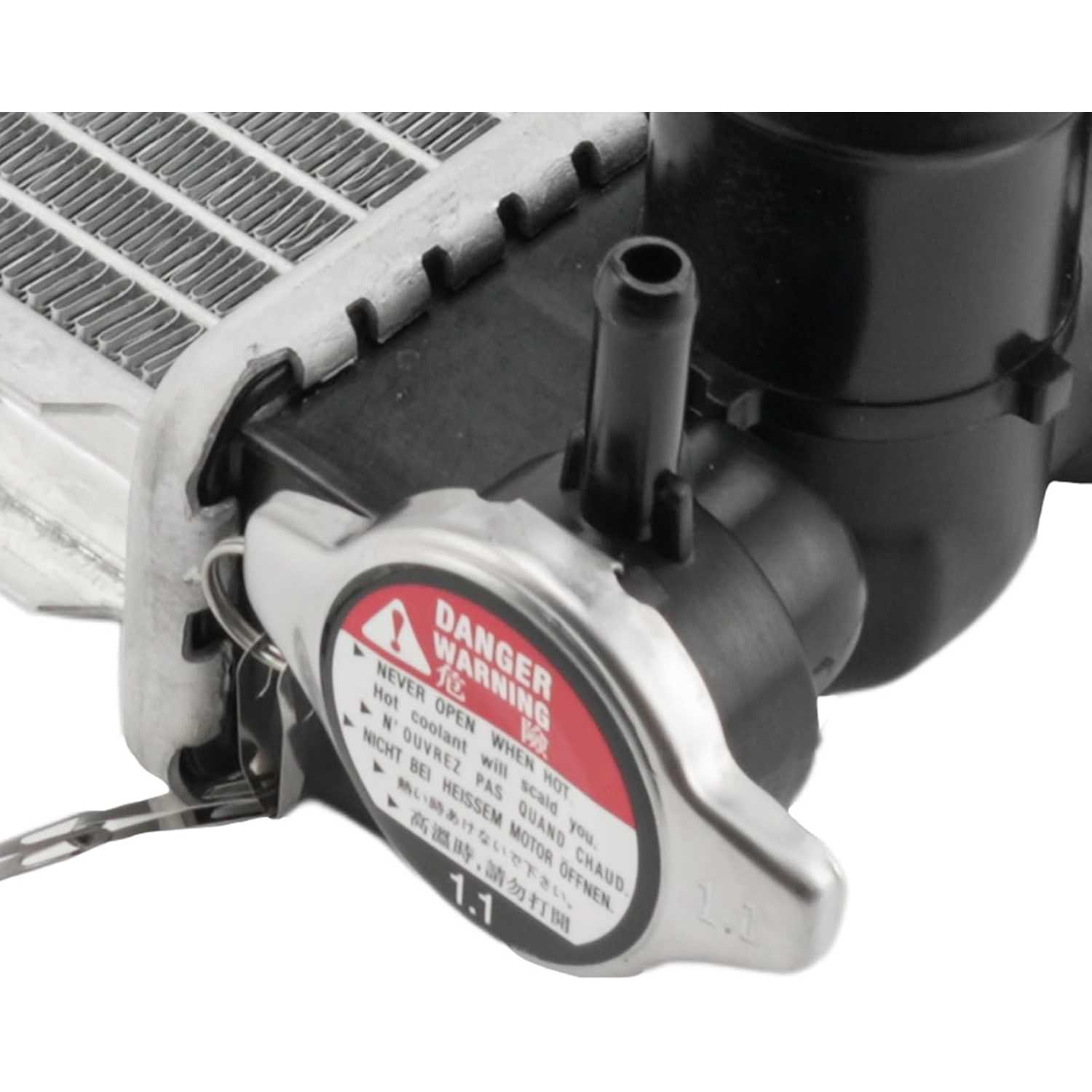

Cap Included

Leak-Resistant

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5611RAD186AUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
24-7/8 in
Core Height
25-9/16 in
Radiator Cap Included
Yes
Inlet Diameter
1-1/2 in
Outlet Diameter
1-1/2 in
Items Included
1x Radiator - CU13210, 1x Instruction Manual
Mounting Type
Cradle / Saddle Mount
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
1640038253,1640038250,1640038251,1640038252,1640038290
Part Number
2219263,CU13210,4113210,13210C,8013210,NR13210C,0R013210A2CM,C13210,813210

Highlights

  • Vehicle Fitment For: 2010-2023 GX460
  • Reference Number: CU13210, 4113210, 2219263, 13210C, 1640038290, 1640038253, 1640038252, 1640038251, 1640038250, C13210, 10182343109171045, 813210, 8013210, 13210, 0ATY6344
  • Enhanced Package: Package come with 1x PHILTOP Radiator Complete Radiator and. Fixed foam in four corners for the purpose of fixing the radiator, no bending and no damage.
  • High-Efficiency Cooling: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16952 Certification: Authoritative certification, quality assurance

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2010 - 20202021 - 202320232014 - 20202021 - 20232010 - 20202021 - 2023
MakeLexusLexusLexusLexusLexusLexusLexus
ModelGX460GX460GX460GX460GX460GX460GX460
TrimBaseBaseBlack Line EditionLuxuryLuxuryPremiumPremium
Engine4.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V8
Note
Radiator Cap Is Required
--
Radiator Cap Is Required
-
Radiator Cap Is Required
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

Nancy_FirstCar_320

02/11/2026

My GX460 was overheating constantly, but this radiator fixed it right up. The temperature stays way lower now, and I feel a lot more confident driving it. Big improvement.

Rob_HomeGarage_294

04/23/2026

The delivery was super fast, got here quicker than I expected. Installation was pretty straightforward, no major headaches. The box was a little banged up, but the radiator itself was fine.

FAQS

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.
