2014-2016 Chevrolet Impala Limited 3.6L | Aluminum 1" Radiator | OE#22809024/CU13326 - PHILTOP

2014-2016 Chevrolet Impala Limited 3.6L | Aluminum 1" Radiator | OE#22809024/CU13326 - PHILTOP

Leak-Resistant

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5577CFK245PUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
29-3/8 in
Core Height
14-1/2 in
Radiator Cap Included
No
Inlet Diameter
1-5/16 in
Outlet Diameter
1-9/16 in
Items Included
1x Radiator - CU13326, 1x Instruction Manual
Mounting Type
Cradle / Bottom Post
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
22809024
Part Number
CU13326,2219308,4113326,13326C,8013326,SBR13326,PR13326A,NR13326B,AM13326,B13326,1981201132,813326

Highlights

  • Radiator Compatible with: 2013-2016 Impala 3.6L, 2012 Impala, 2014-2016 Impala Limited
  • Replacement OEM Part Number: 22809024

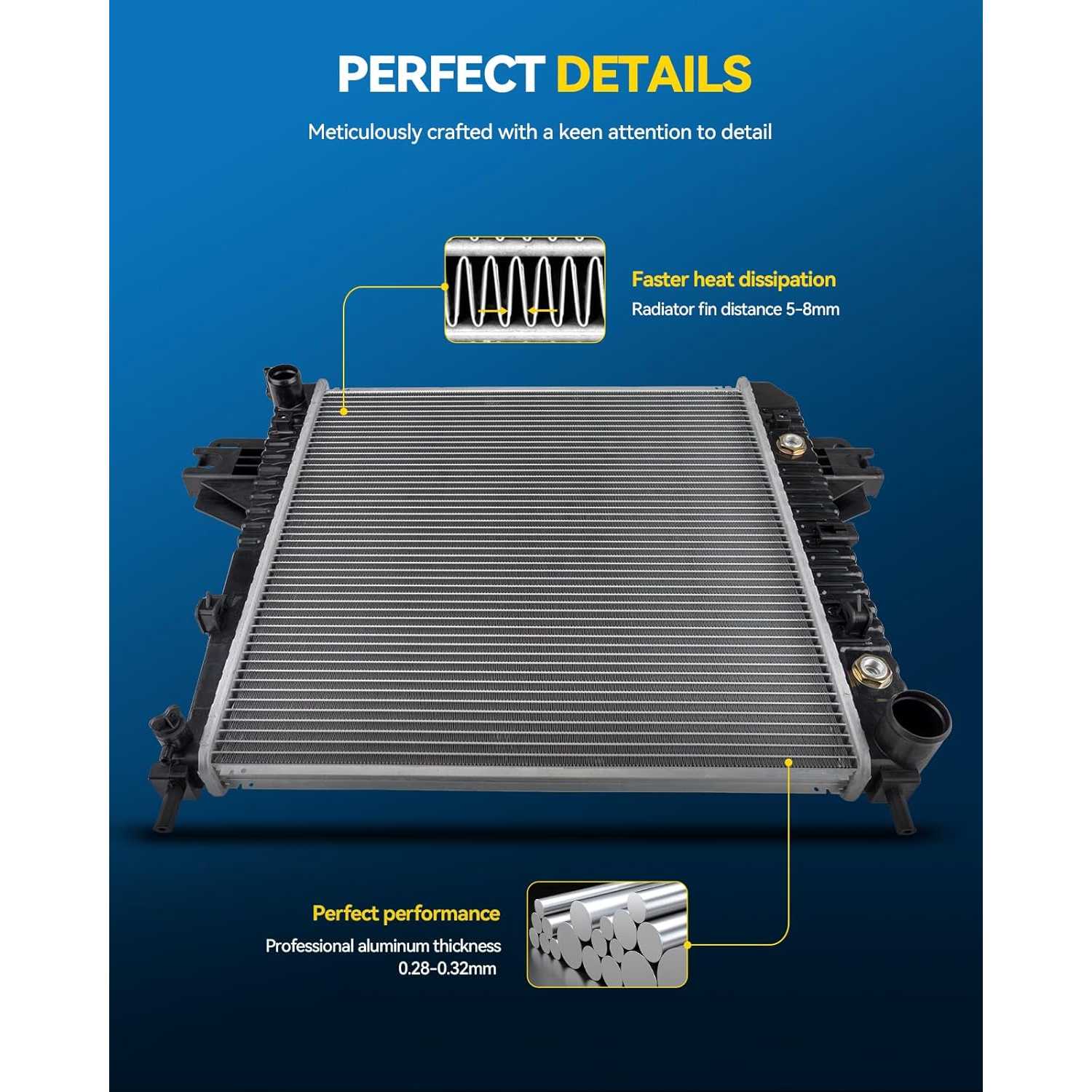

  • Replacement Radiator Specification: Core Width: 29-3/8 in Core Height: 14-1/2 in Core Thickness: 7/8 in
  • IATF 16949 Certified: Complies with the Quality Management System of IATF16949. Durability to meet original specifications. All radiators have undergone rigorous pressure testing. Ensure that stable, durable and leak-free
  • LEAKPROOF MATERIAL: All products are subjected to leak tests, as the high-grade plastic tank & aluminum core are used in our radiators, which help ensure radiators' longevity

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year201220132015 - 2016201220132014 - 2016201220132014 - 201620122014 - 20162014 - 20162014 - 20162014 - 2016
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevrolet
ModelImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpala LimitedImpala LimitedImpala LimitedImpala Limited
TrimLSLSLSLTLTLTLTZLTZLTZPoliceLSLTLTZPolice
Engine3.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V6
Note
w/o Police Package
-
w/o Police Package
w/o Police Package
-
w/o Police Package
w/o Police Package
-
w/o Police Package
w/o Police Package
w/o Police Package
w/o Police Package
w/o Police Package
w/o Police Package

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.
