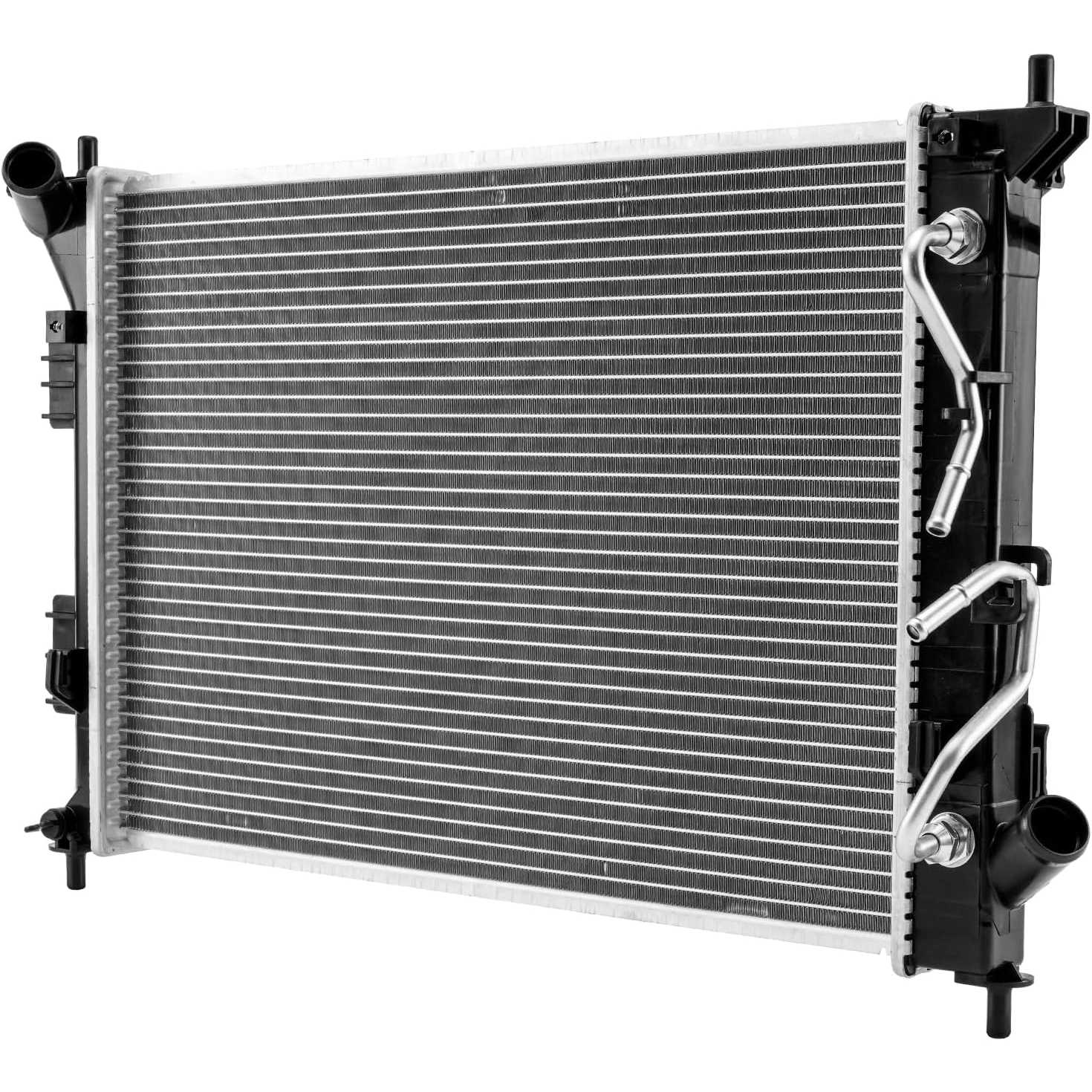

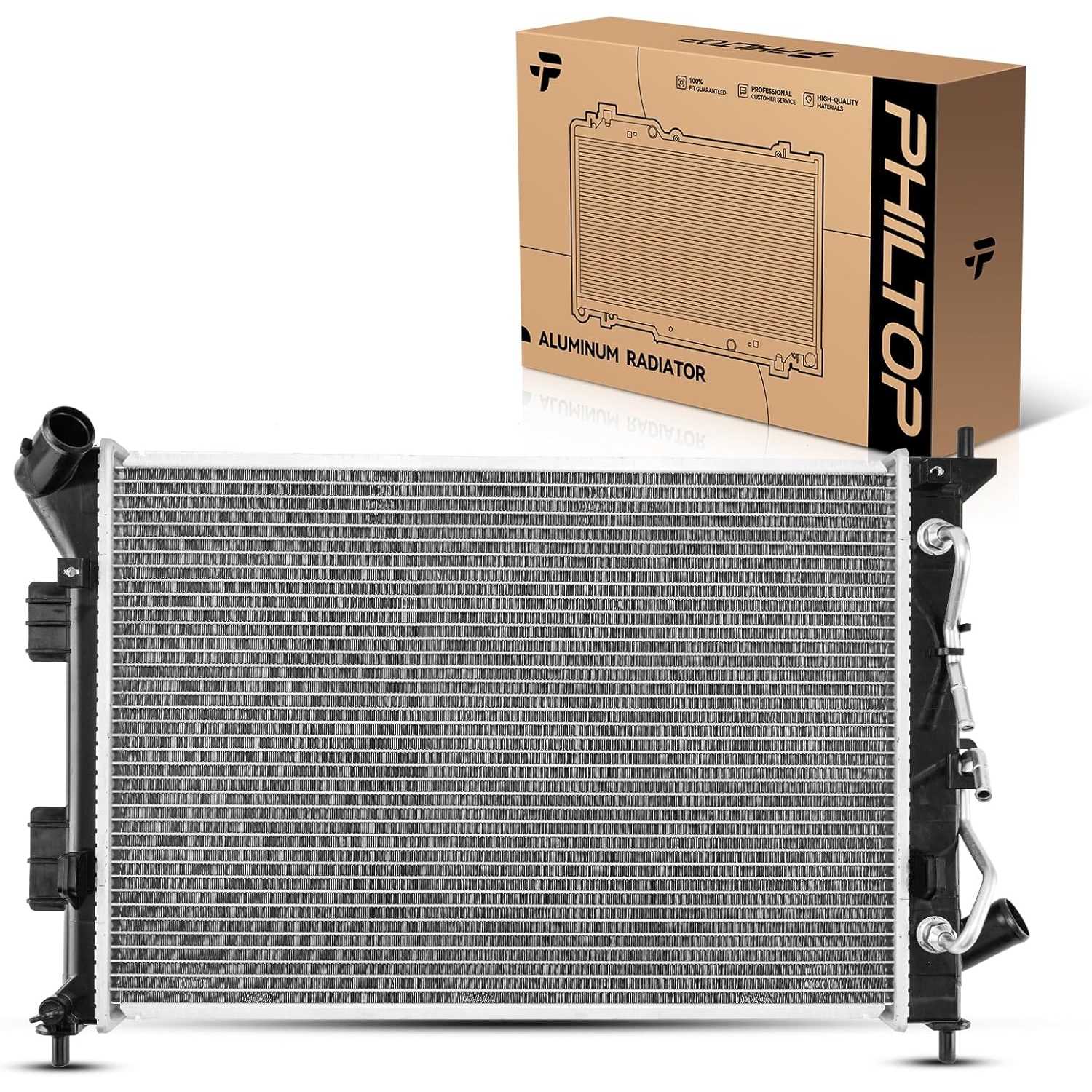

2014-2017 Kia Soul 2.0L/1.6L | Aluminum 3/4" Radiator | OE#25310B2050/CU13414 - PHILTOP

2014-2017 Kia Soul 2.0L/1.6L | Aluminum 3/4" Radiator | OE#25310B2050/CU13414 - PHILTOP

Leak-Resistant

4.2

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1120RAD0529US

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
15-1/2 in
Core Height
21-3/4 in
Radiator Cap Included
No
Inlet Diameter
1-5/16 in
Outlet Diameter
1-5/16 in
Items Included
1x Radiator - CU13414, 1x Instruction Manual
Mounting Type
Top / Bottom Post
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
25310B2050,25310B2000
Part Number
CU13414,2219338,13414C,4113414,4113413,2219552,13413,SBR13414,8013414,PR13414A,NR13414A,0R013414H1CM,A13414,1981201561,813414

Highlights

  • Vehicle Fitment: 2014-2016 Soul, 2017 Soul 1.6L, 2017 Soul 2.0L
  • Reference Number:CU13414, 2219552, 2219338, 13414C, 4113414, 13413C, 25310B2050, 25310B2000, 103819, 103824, 24642793620462775, 813414, 2074, CR13413, CR13414
  • Product Dimension - Core Width: 15-1/2 In. ,Core Height: 21-3/4 In. ,Core Thickness: 5/8 In. ,Inlet Diameter: 1-5/16 In. ,Outlet Diameter: 1-5/16 In.
  • IATF17100 Certification: Authoritative certification, quality assurance
  • Feature: Built with high density multi-Lowered fins for maximum cooling efficiency

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2014 - 20162014 - 20172014 - 2017
MakeKiaKiaKia
ModelSoulSoulSoul
Trim!+Base
Engine2.0L L42.0L L41.6L L4
Note---

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.2/5

Based on 6 reviews

550%
417%
333%
20%
10%

Jaime P.

01/29/2026

Verified buyer

This radiator worked out just fine it's doing good I installed it myself and everything worked out

Mike from Texas_490

01/24/2026

My car used to run way too hot, especially in traffic. This new radiator fixed that right up. The temperature is stable now, and I don't have to worry about it anymore.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.
