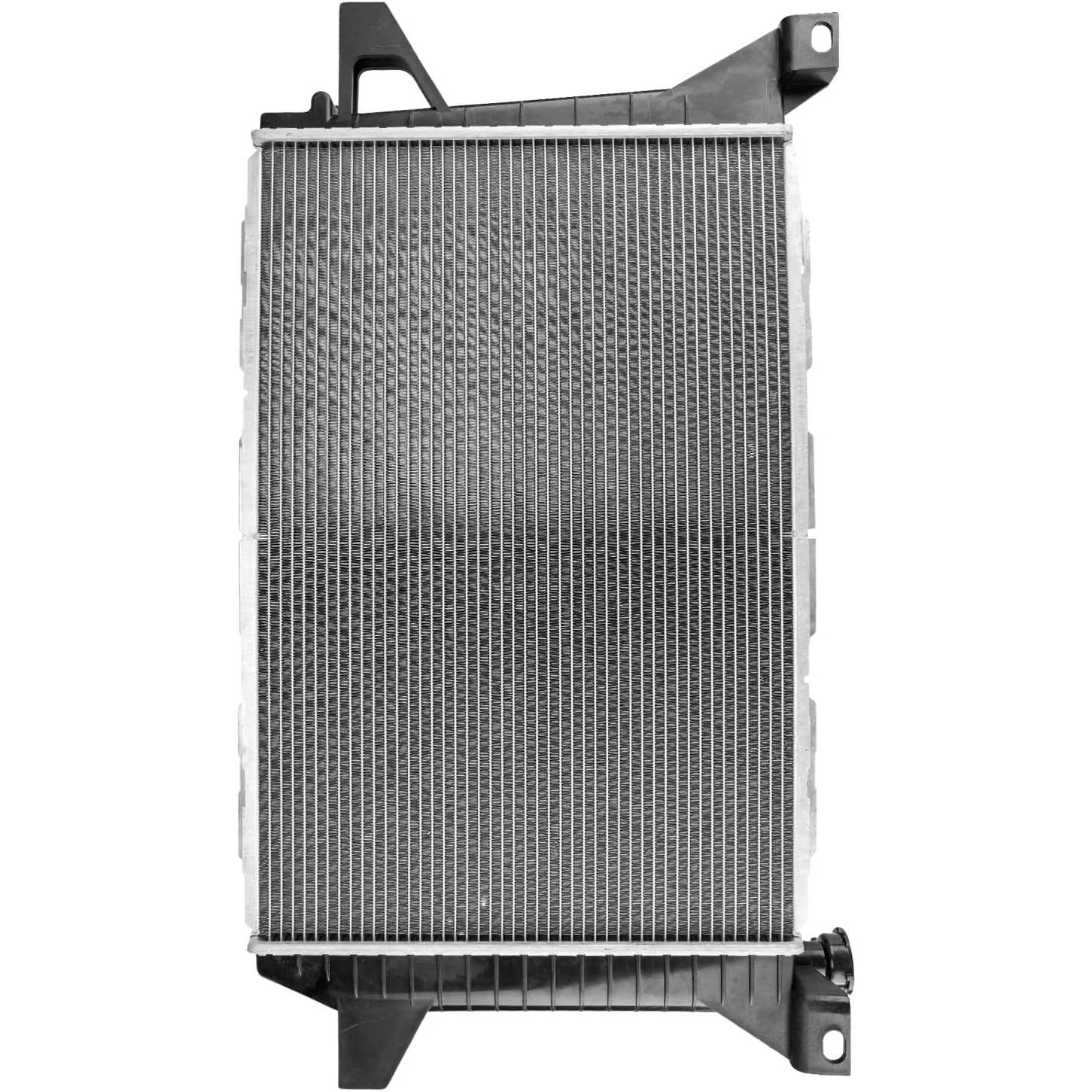

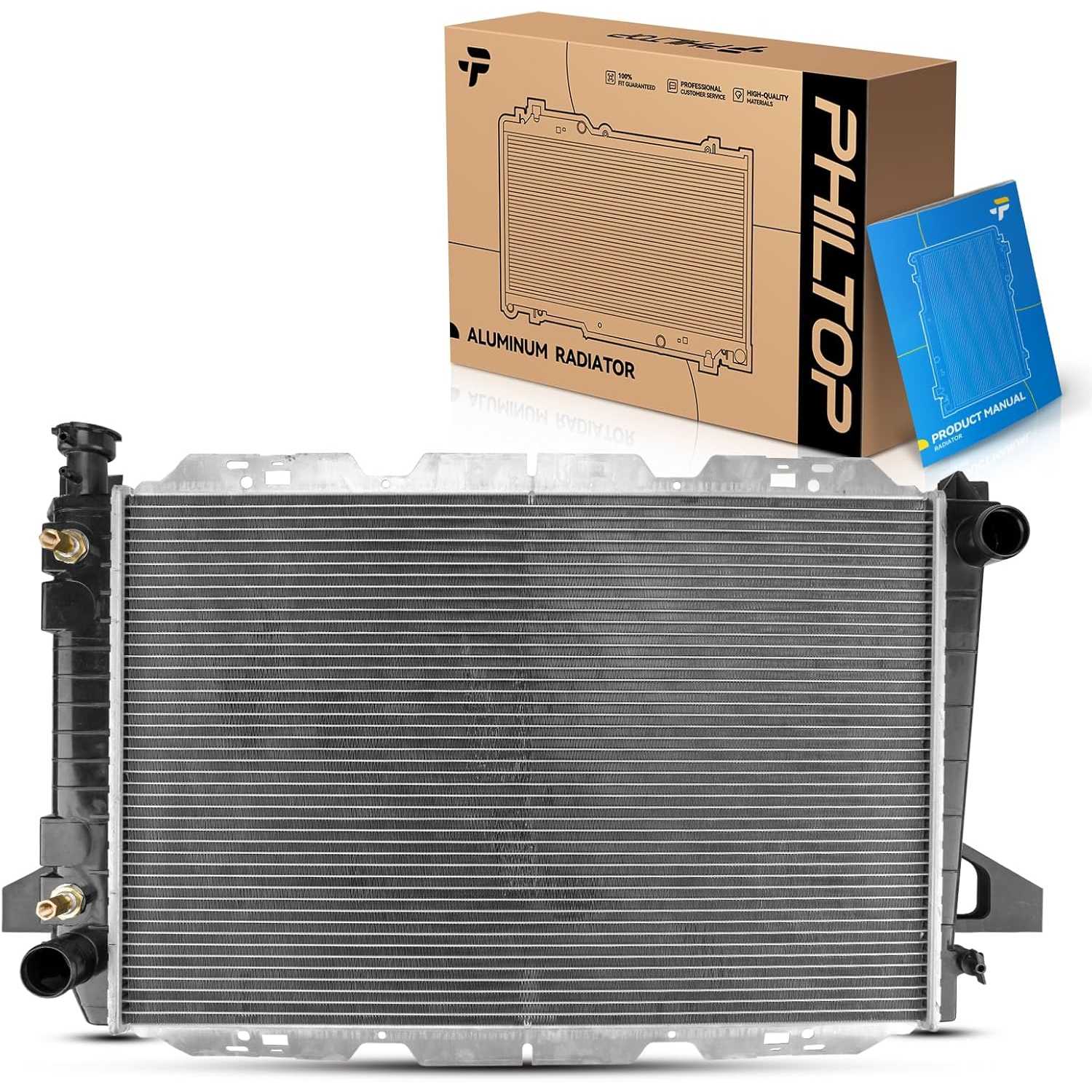

1985-1996 Ford F-150 5.0L V8/5.8L V8 | Aluminum 2-1/5" Radiator | OE#F2TZU/CU1451 - PHILTOP

1985-1996 Ford F-150 5.0L V8/5.8L V8 | Aluminum 2-1/5" Radiator | OE#F2TZU/CU1451 - PHILTOP

Leak-Resistant

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5225CFK1261US

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
2-1/5 in
Core Width
27-1/2 in
Core Height
18-1/16 in
Radiator Cap Included
No
Inlet Diameter
1-3/4 in
Outlet Diameter
1-3/4 in
Items Included
1x Radiator - CU1451, 1x Instruction Manual
Mounting Type
Flange Mount
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
F2TZU,F2TZR,F2TZT,52470841,52481612,52492959,F3THBA,F3TZC,F2TZ800KA,E9THEA,F2TZP,F3TZA,F3TZB,E5THABA,F2THYA10,F2THZA,F2THVA,F2TZ8005BACP,F3THBA10,F2TZ8005KACP,F2TZ8005DACP,F2TZ8005KA,F3TH8005AA,F3TH8005BA,E5TH8005AA,E5TH8005ABA,F32H8005BA,E5TH8005CA,E5TH8005BA,E5TH8005DA,E9TH8005EA,E9TZ8005H,F2TH8005YA,F2TH8005XA,F2TH8005VA,F2TH8005UA,E5HT8005AA,E5HT8005BA,EOTH8005BA,FOTH8005BA,F2TH8005SA,E5TZ8005G,F2TH8005TA,E9TH8005DA,E9TZ8005J,E5TH8005G,F2TH8005ZA,F2TH8005YA10,F2TZ8005U,F2TZ8005R,F2TZ8005S,F2TZ8005T,F3TZ8005A,F3TZ8005B,F2TZ8005P,F2TZ8005V,F3TH8005BA10
Part Number
CU1451,1451C,411451

Highlights

  • Vehicle Fitment: 1985-1996 Bronco 5.0/5.8L 1985-1988 F-150 5.0L 1989-1996 F-150 5.0/5.8L 1985-1996 F-250 5.0/7.5L 1989-1996 F-250 5.8L 1997 F-250 HD 5.8/7.5L 1985-1988 F-350 7.5L 1989-1997 F-350 5.8/7.5L 1988-1997 F-53 Motorhome Chassis 1988-1997 F-Super Duty 7.5L (Replaces OEM 2 Row Core; w/ 2-3/8 in. Thick Core
  • Reference Number: E5HT8005AA, E5HT8005BA, E5TH8005AA, E5TH8005ABA, E5TH8005BA, E5TH8005CA, E5TH8005DA, E5TH8005G, E5TZ8005G, E9TH8005DA, E9TH8005EA, E9TZ8005H, E9TZ8005J, EOTH8005BA, F2TH8005SA, F2TH8005TA, F2TH8005UA, F2TH8005VA, F2TH8005XA, F2TH8005YA, F2TH8005YA10, F2TH8005ZA, F2TZ8005KA, F2TZ8005P, F2TZ8005R, F2TZ8005S, F2TZ8005T, F2TZ8005U, F2TZ8005V, F32H8005BA, F3TH8005AA, F3TH8005BA, F3TH8005BA10, F3TZ8005A, F3TZ8005B, F3TZ8005C, FOTH8005BA, FOTZ8005G
  • Product Dimension - Core Width: 27-1/2 in ,Core Height: 18-1/16 in ,Core Thickness: 2-1/4 in ,Inlet Diameter: 1-3/4 in ,Outlet Diameter: 1-3/4 in
  • IATF16974 Certification: Authoritative certification, quality assurance
  • Feature: Built with high density multi-Lowered fins for maximum cooling efficiency

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1985 - 19931985 - 19931985 - 19961985 - 19961990 - 19961990 - 19961985 - 19921994 - 19961985 - 19921994 - 199619931993199219921995 - 19961995 - 19961985 - 19861987 - 19921989 - 19921995 - 19961995 - 19961993 - 19951995 - 19961995 - 19961985 - 19961989 - 19961993 - 19961993 - 19961985 - 19921989 - 19921985 - 19861985 - 19861987 - 19921989 - 19921987 - 19921995 - 19961995 - 19961995 - 19961995 - 19961995 - 19961995 - 19961985 - 19961989 - 19961985 - 19961993 - 19961993 - 19961993 - 19961985 - 19921989 - 19921985 - 1992199719971997199719971985 - 198619971989 - 19921987 - 1992199519951995 - 19961995 - 19961989 - 19971985 - 19971993 - 19971993 - 19971989 - 19921985 - 199219971988 - 19921988 - 19891993 - 19971988 - 198919971990 - 19921993 - 19971994 - 1997
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelBroncoBroncoBroncoBroncoBroncoBroncoBroncoBroncoBroncoBroncoBroncoBroncoBroncoBroncoBroncoBroncoF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250 HDF-250 HDF-250 HDF-250 HDF-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-53 Motorhome ChassisF-53 Motorhome ChassisF-53 Motorhome ChassisF-53 Motorhome ChassisF-Super DutyF-Super DutyF-Super DutyF-Super DutyF-Super Duty
TrimCustomCustomEddie BauerEddie BauerXLXLXLTXLTXLTXLTXLT LariatXLT LariatXLT NiteXLT NiteXLT SportXLT SportBaseCustomCustomEddie BauerEddie BauerLightningSpecialSpecialXLXLXLTXLTXLT LariatXLT LariatBaseBaseCustomCustomCustomEddie BauerEddie BauerEddie BauerSpecialSpecialSpecialXLXLXLXLTXLTXLTXLT LariatXLT LariatXLT LariatXLXLXLTXLTBaseBaseBaseCustomCustomEddie BauerEddie BauerSpecialSpecialXLXLXLTXLTXLT LariatXLT LariatBaseCustomXLXLBaseBaseCustomXLXLT
Engine5.0L V85.8L V85.0L V85.8L V85.0L V85.8L V85.0L V85.0L V85.8L V85.8L V85.0L V85.8L V85.0L V85.8L V85.0L V85.8L V85.0L V85.0L V85.8L V85.0L V85.8L V85.8L V85.0L V85.8L V85.0L V85.8L V85.0L V85.8L V85.0L V85.8L V85.0L V87.5L V85.0L V85.8L V87.5L V85.0L V85.8L V87.5L V85.0L V85.8L V87.5L V85.0L V85.8L V87.5L V85.0L V85.8L V87.5L V85.0L V85.8L V87.5L V85.8L V87.5L V85.8L V87.5L V85.8L V87.5L V87.5L V85.8L V87.5L V85.8L V87.5L V85.8L V87.5L V85.8L V87.5L V85.8L V87.5L V85.8L V87.5L V87.5L V87.5L V87.5L V87.5L V87.5L V87.5L V87.5L V87.5L V87.5L V8
Note
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core
Radiator Cap Is Required;Replaces OEM 2 Row Core;w/ 2-3/8 in. Thick Core

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.6/5

Based on 8 reviews

575%
413%
313%
20%
10%

rick knight

10/03/2026

Verified buyer

it fits like they say

Jason_Trucks_574

03/04/2026

This radiator fixed my engine running hot problem. Temperature stays right where it should now, even under load. Huge improvement over the old one.

FAQS

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.

Unused products may be eligible for return according to the Philtop return policy. Please keep the product and packaging in their original condition and contact us before sending it back.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.
