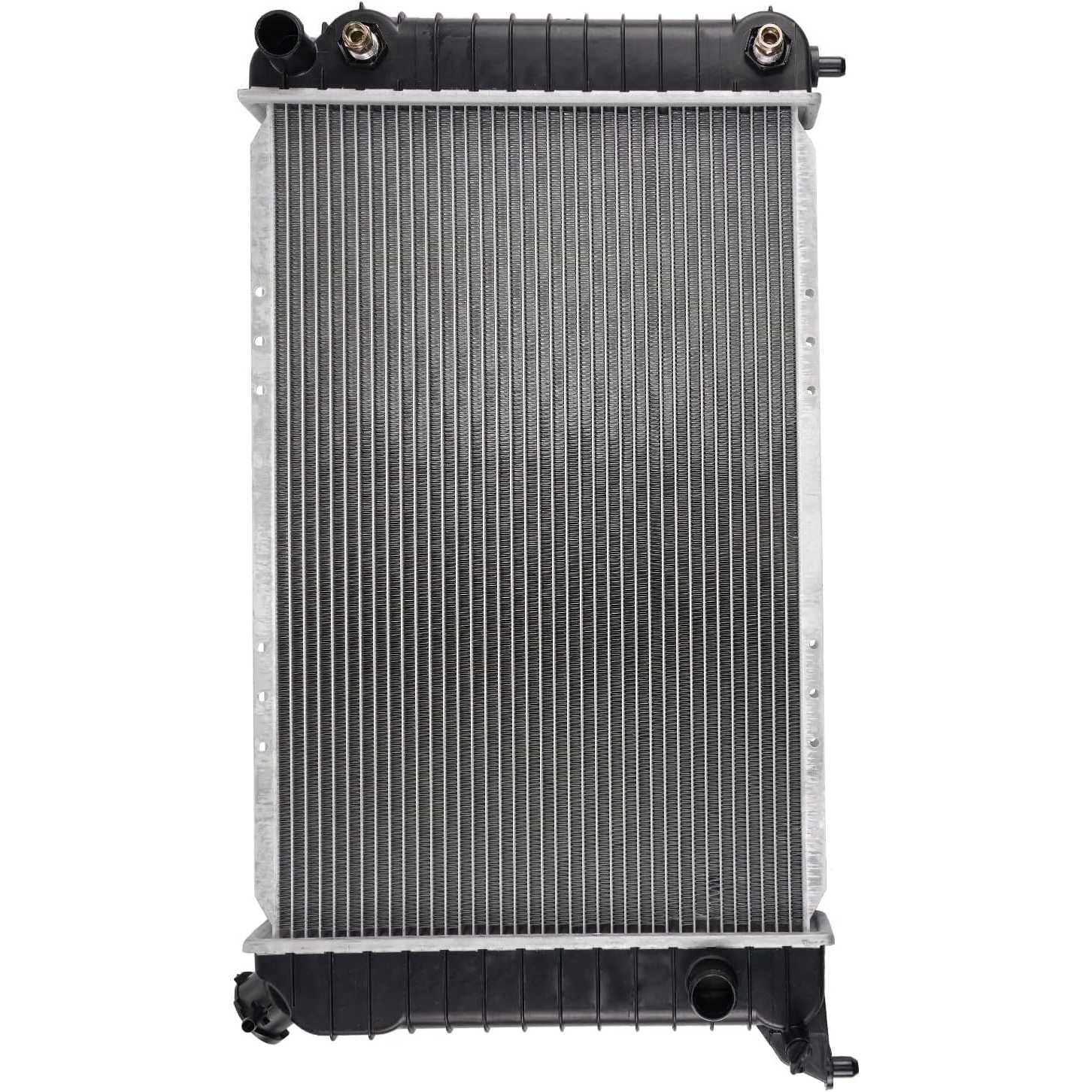

1994-2003 Chevrolet S10 2.2L L4 | Aluminum 1" Radiator | OE#RC9494/CU1531 - PHILTOP

1994-2003 Chevrolet S10 2.2L L4 | Aluminum 1" Radiator | OE#RC9494/CU1531 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5208CFK247HUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
23-9/16 in
Core Height
14-7/8 in
Radiator Cap Included
No

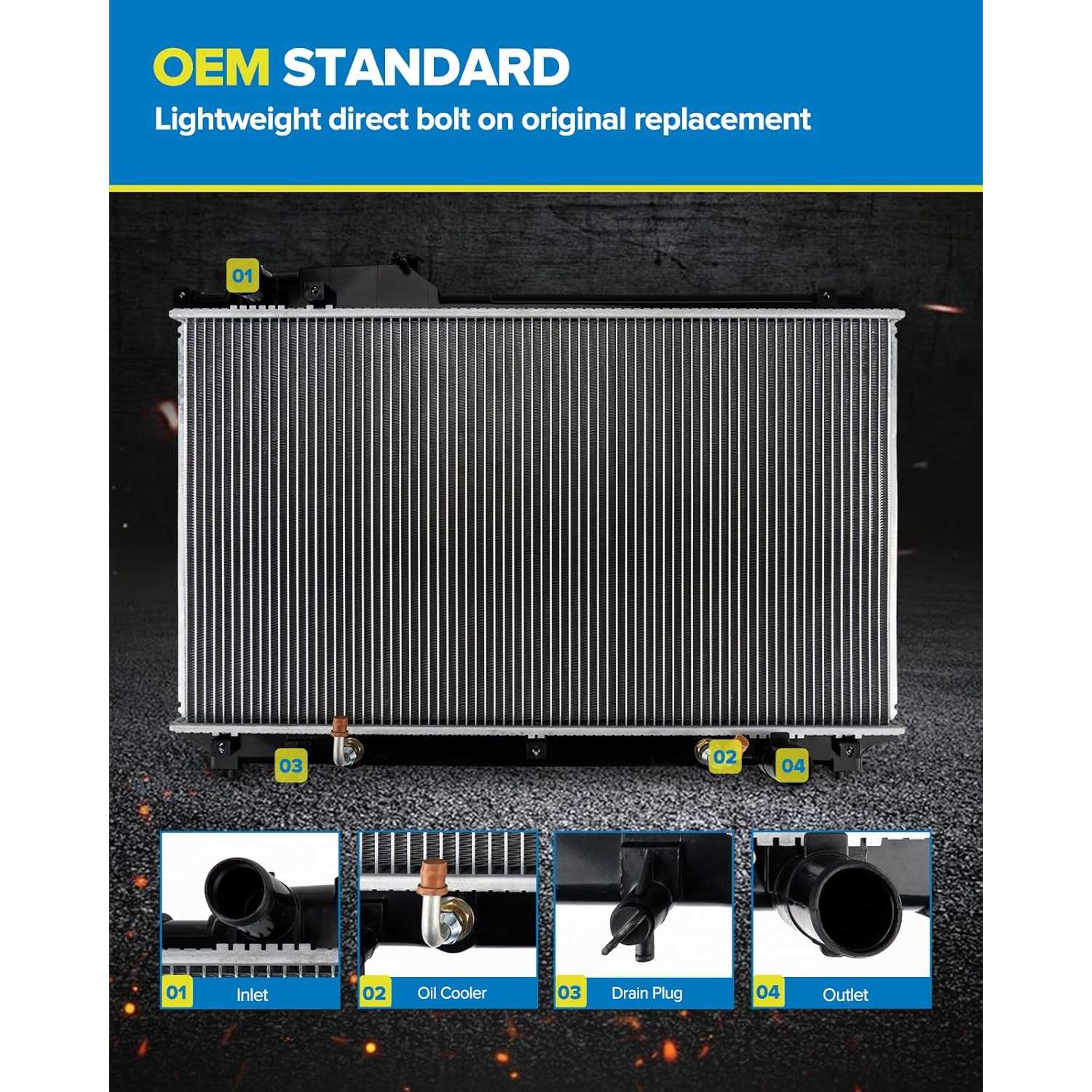

Inlet Diameter
1-5/16 in
Outlet Diameter
1-5/16 in
Items Included
1x Radiator - CU1531, 1x Instruction Manual
Mounting Type
Top Cradle / Bottom Pin
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
RC9494,RD9494,52473676,8524729630,52462545,89040307,8524776850,52477685,52462544,52452545,8524729640,8524625450,8151205480,8890403070,20677,8151205490,2480541
Part Number
CU1531,411531,1531C,412261,1531,IZ3010116,A1531,432388,IZ3010115,IZ3010114,CRS1531,REA411531A,9606,438088,PR1531A,SBR1531,KLI1531,BES1531,9617,1981201463,CUC2261,0R001531A2CM,CU2473,AM1531,AM2261,AM2473,NR1531A,60901,CR2261,CR2473,56559

Highlights

  • [Vehicle Fitment] The complete radiator compatible with 1994-2003 S10, 1994-2003 Sonoma, 1996-2000 Hombre
  • [Specifications] Core Thickness 1 in. Core Width 23-9/16 in. Core Height 14-7/8 in. Inlet Diameter 1-5/16 in. Outlet Diameter 1-5/16 in

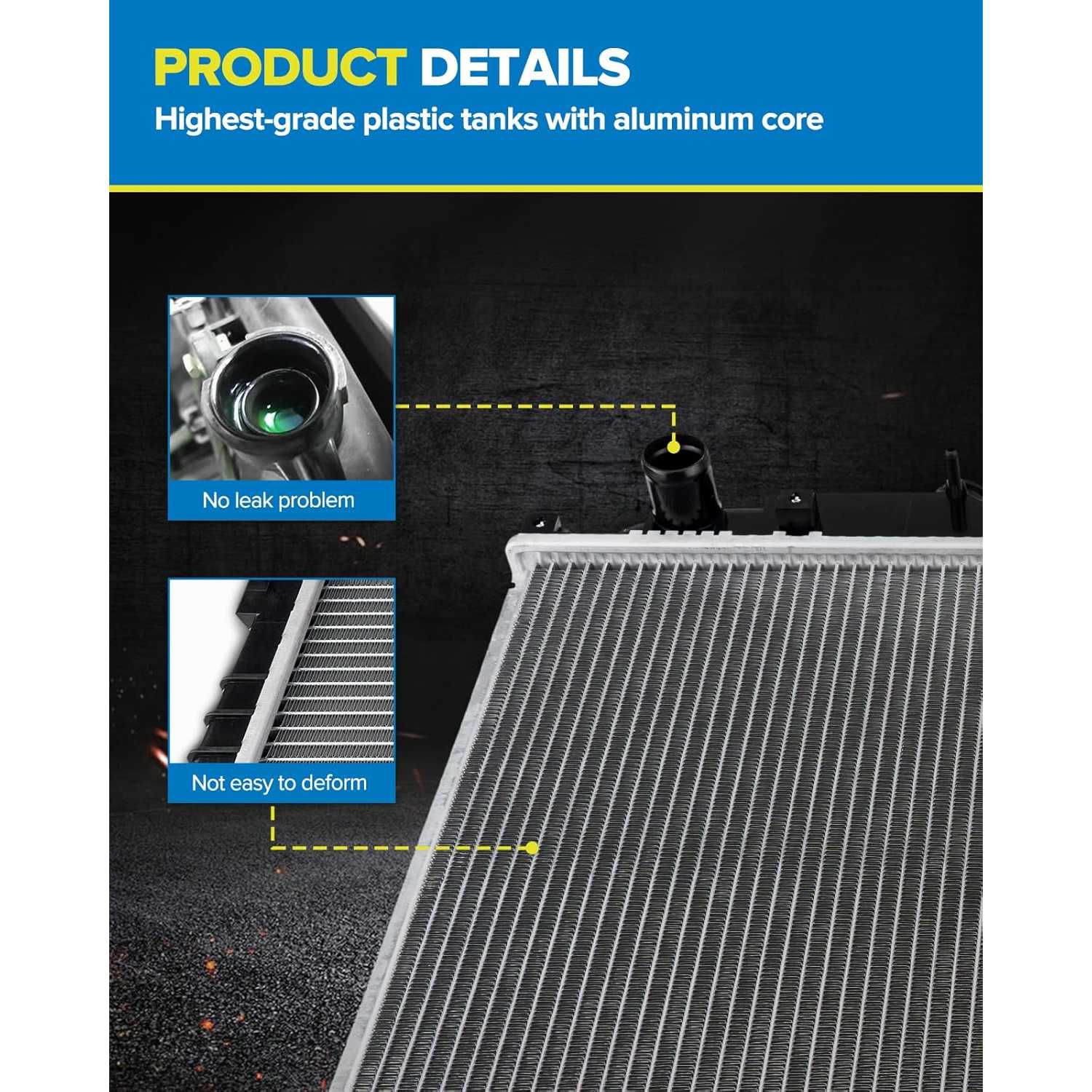

  • [High Quality Material] PHILTOP radiator housing is made of Aluminum, which can prevent corrosion and is stronger. The tank end interface is made of PA185 plastic to keep the shape of the radiator without deformation. Effectively ensure the service life

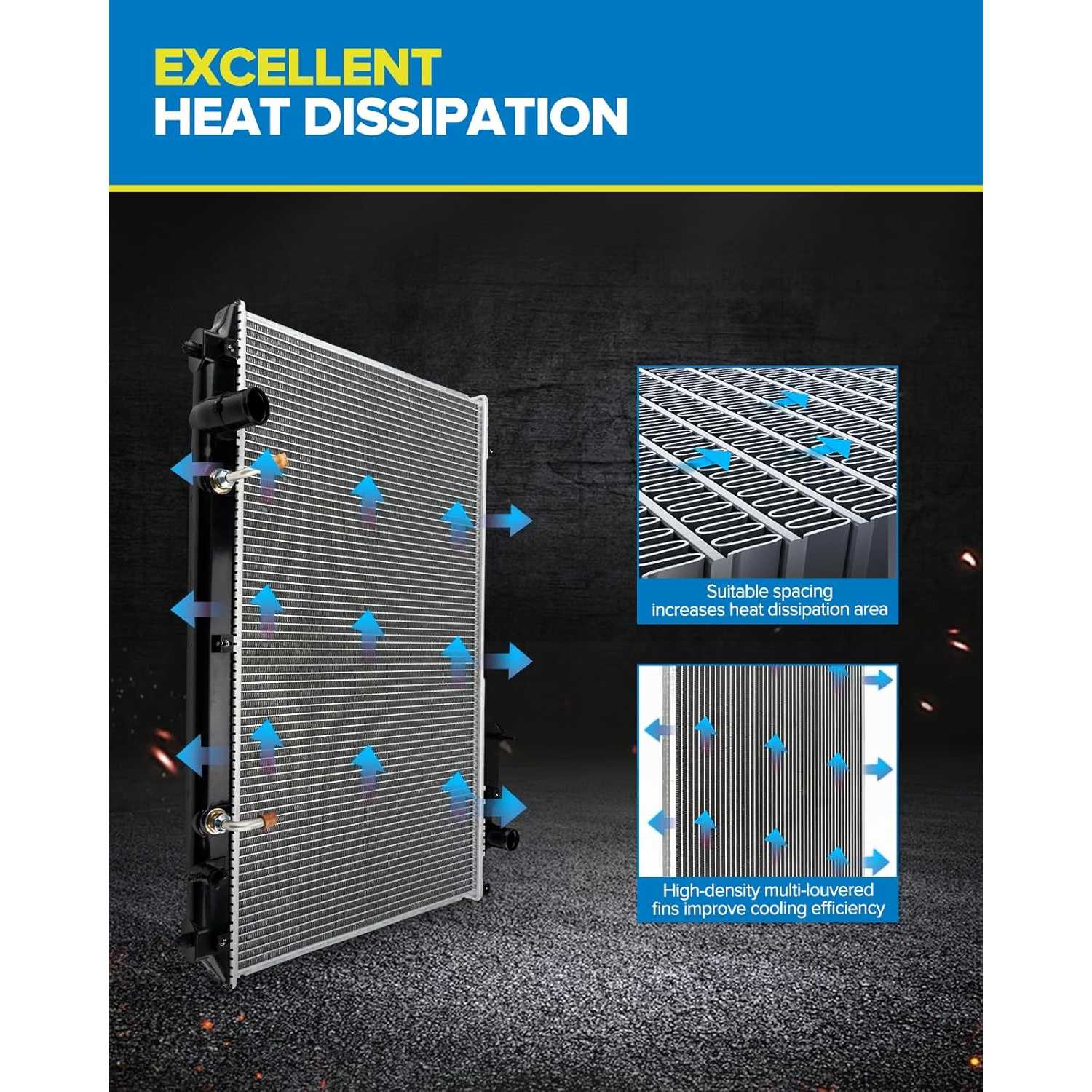

  • [Fast Heat Dissipation] The Aluminum water pipe is designed in a flat shape, and the heat sink is corrugated, focusing on heat dissipation performance. The cooling efficiency is at least 35%-164% higher than the radiators in the market. Gaskets and O-rings withstand thermal shock, ensuring durability in extreme cold weather
  • [No Leakage] PHILTOP Radiator Assembly has passed thousands of anti-leakage tests before leaving the factory, refuses to leak water

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1994 - 20031994 - 20031999 - 20031994 - 20031994 - 20011994 - 20031996 - 20001996 - 2000
MakeChevroletChevroletChevroletGMCGMCGMCIsuzuIsuzu
ModelS10S10S10SonomaSonomaSonomaHombreHombre
TrimBaseLSXtremeSLSLESLSSXS
Engine2.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.2L L4
Note
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

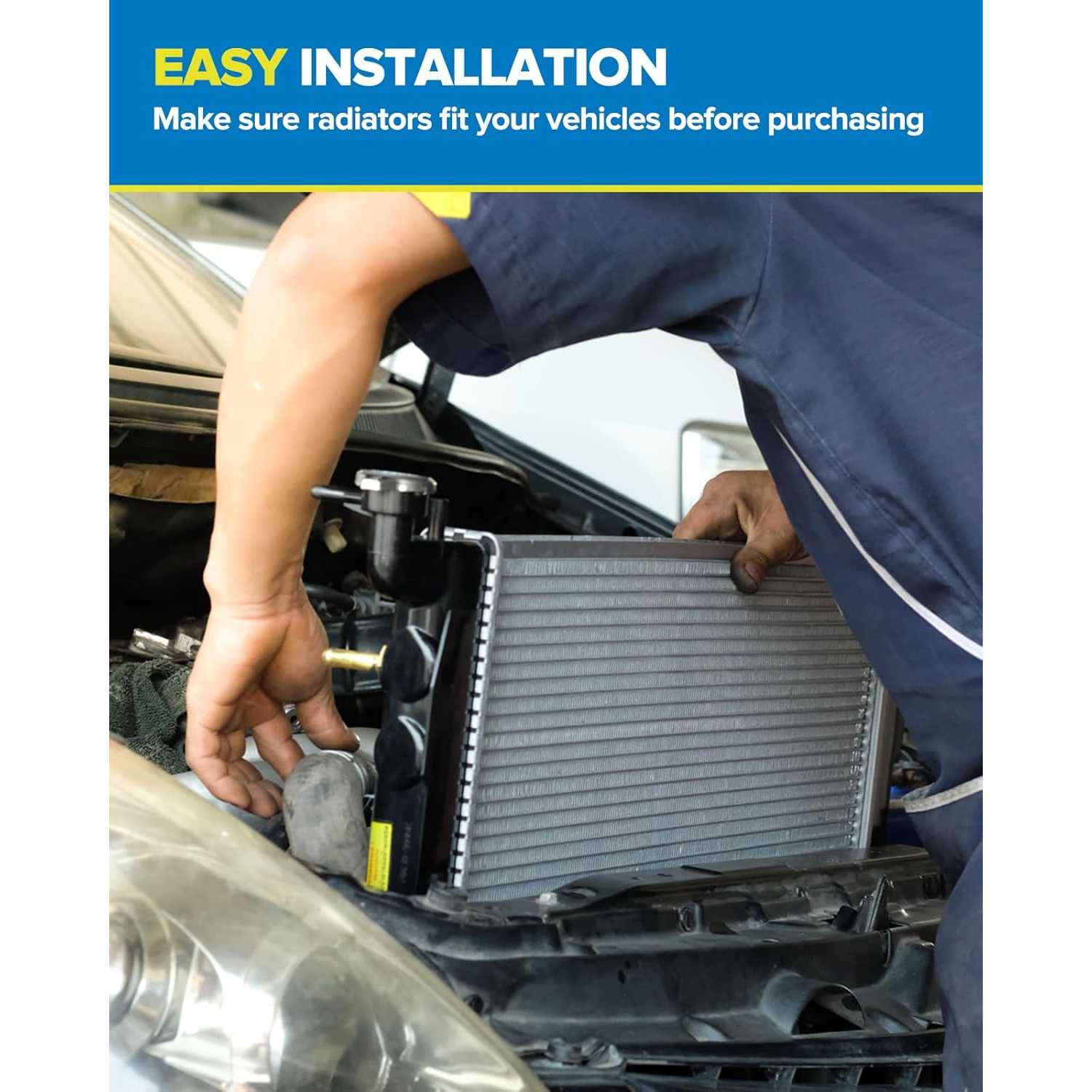

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.

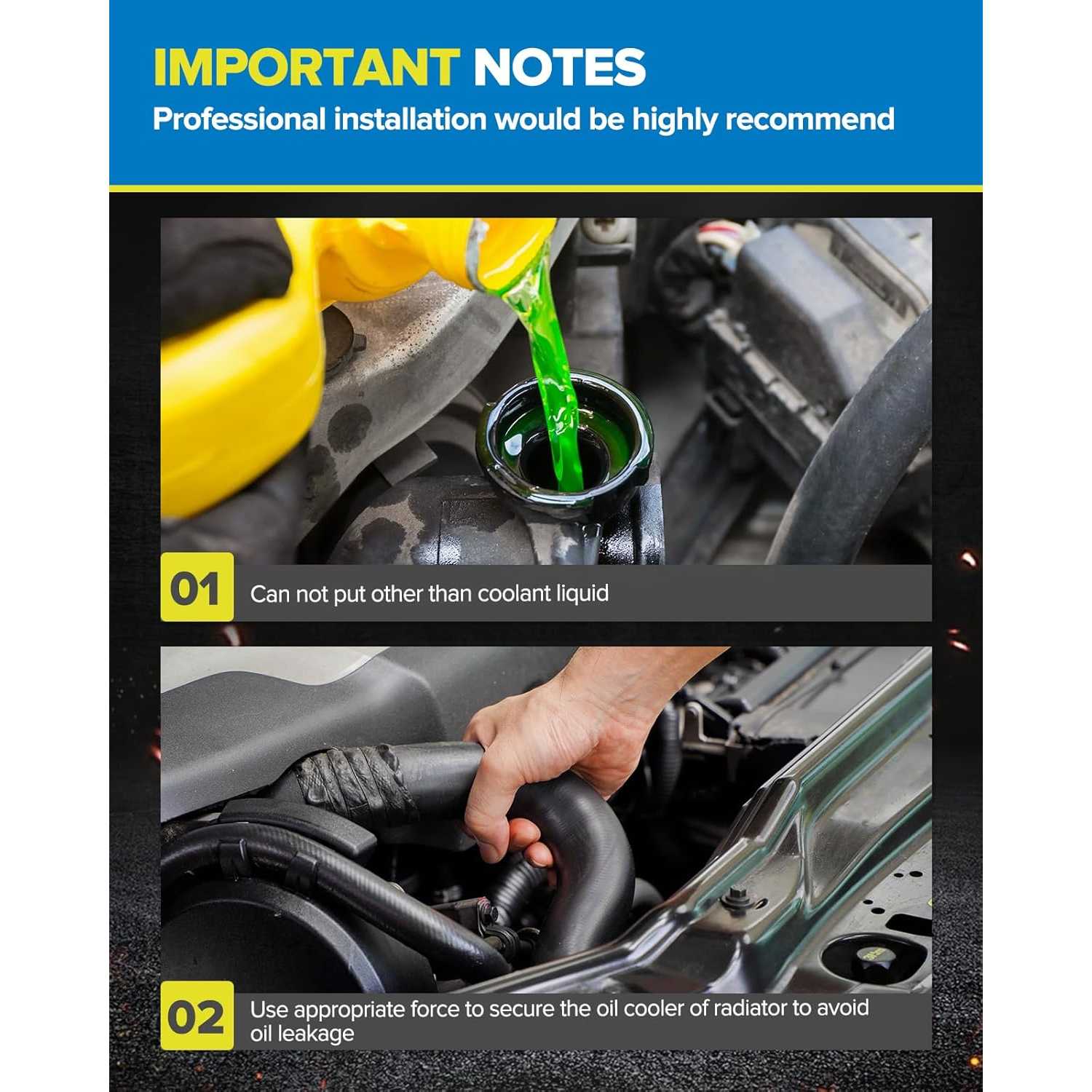

  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

excellent car radiatorsEfficient heat dissipation radiator

Reviews

4.8/5

Based on 12 reviews

575%
425%
30%
20%
10%

M Anderson

07/12/2025

Verified buyer

Perfect fit. Prompt and quick delivery. Will do business again if needed. Thanka

Kenyatta Y. Williams

11/26/2024

Verified buyer

I recently replaced my old radiator with the PHILTOP Radiator for my 1996 S10, and it's been a game-changer. The direct OEM fit was spot on, and the specifications match perfectly with my vehicle. The aluminum construction and unique design ensure faster heat dissipation, keeping my engine cool even during long drives. The 100% no leakage guarantee is a relief, and it has indeed held up without any leaks. Highly recommend for anyone needing a reliable radiator upgrade. Read more

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.
