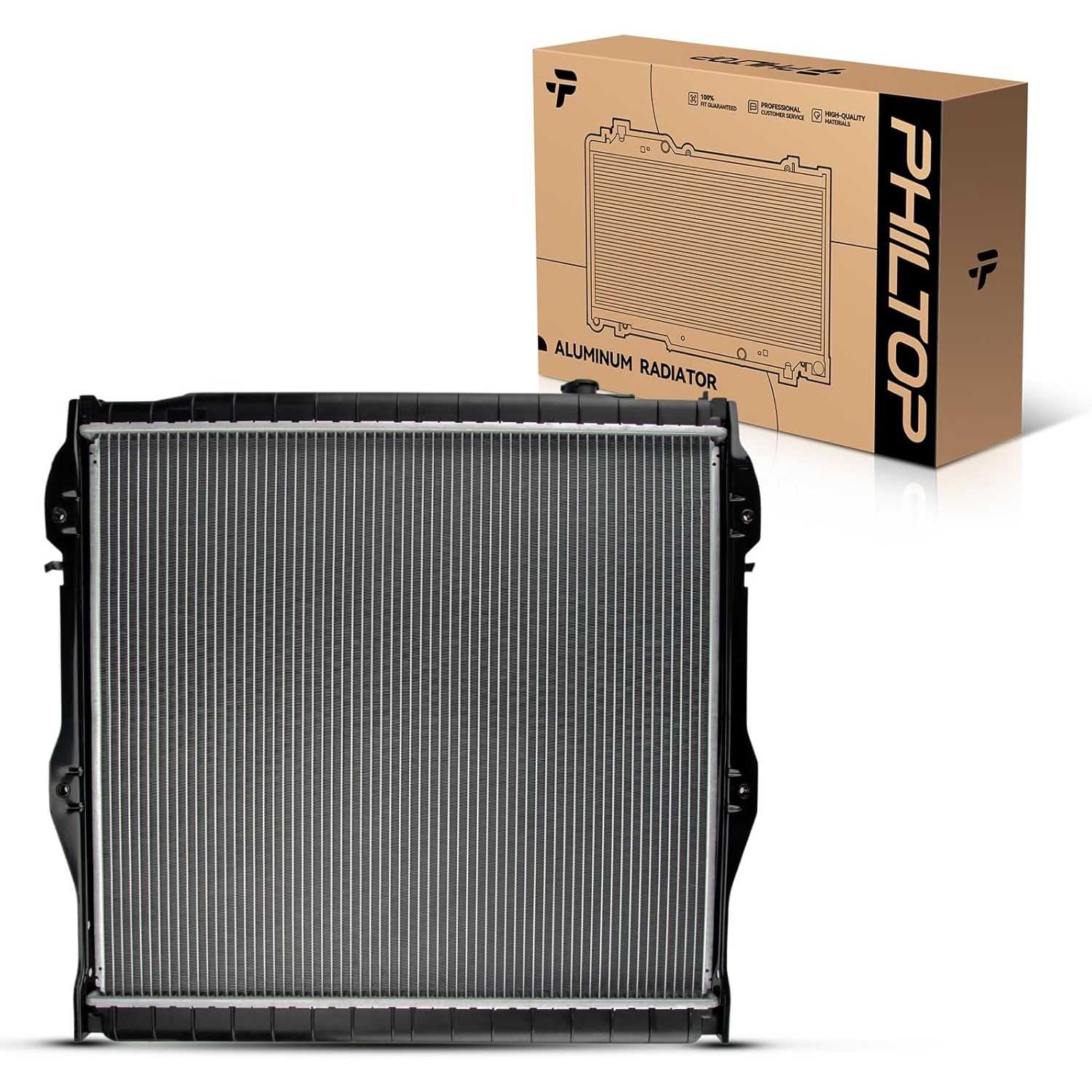

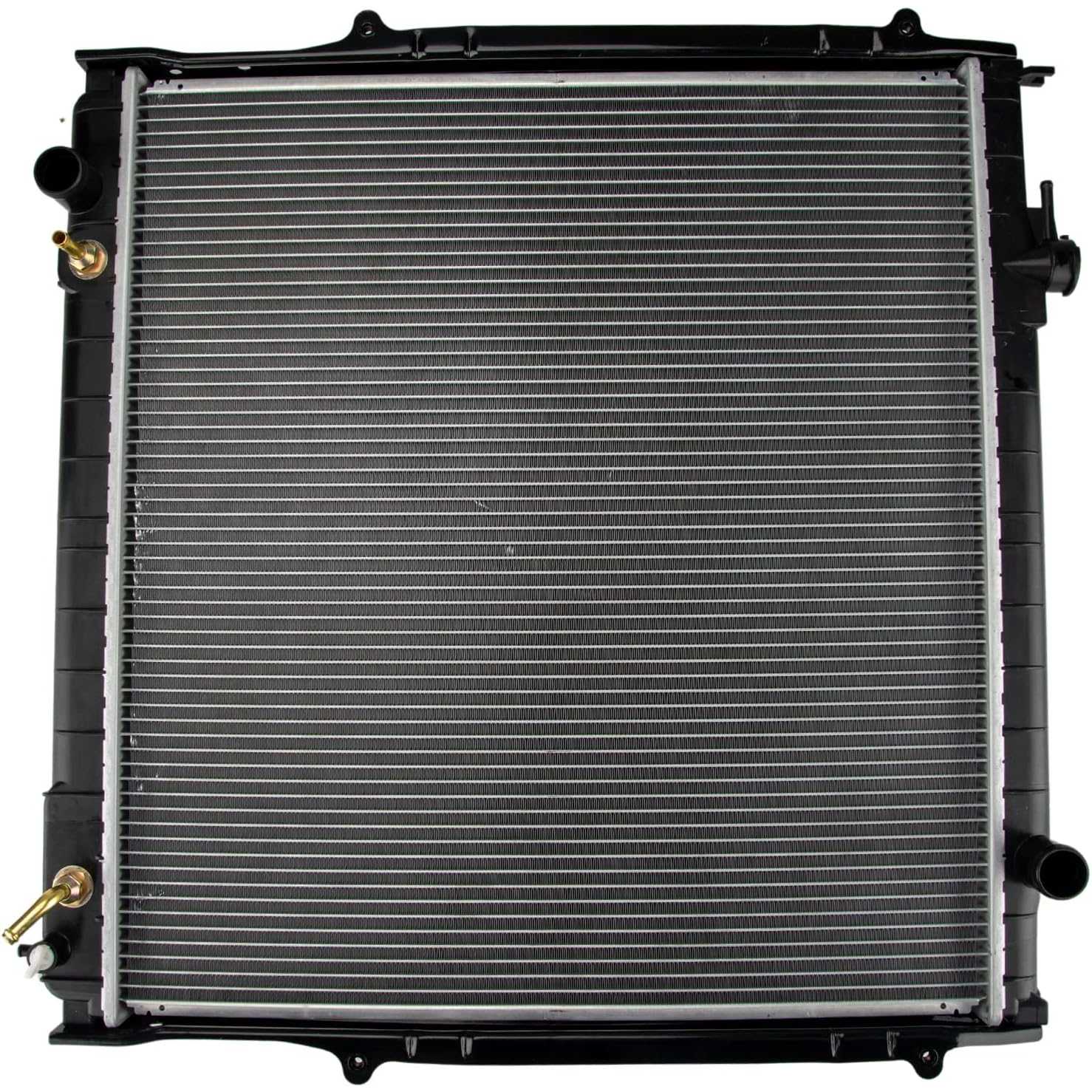

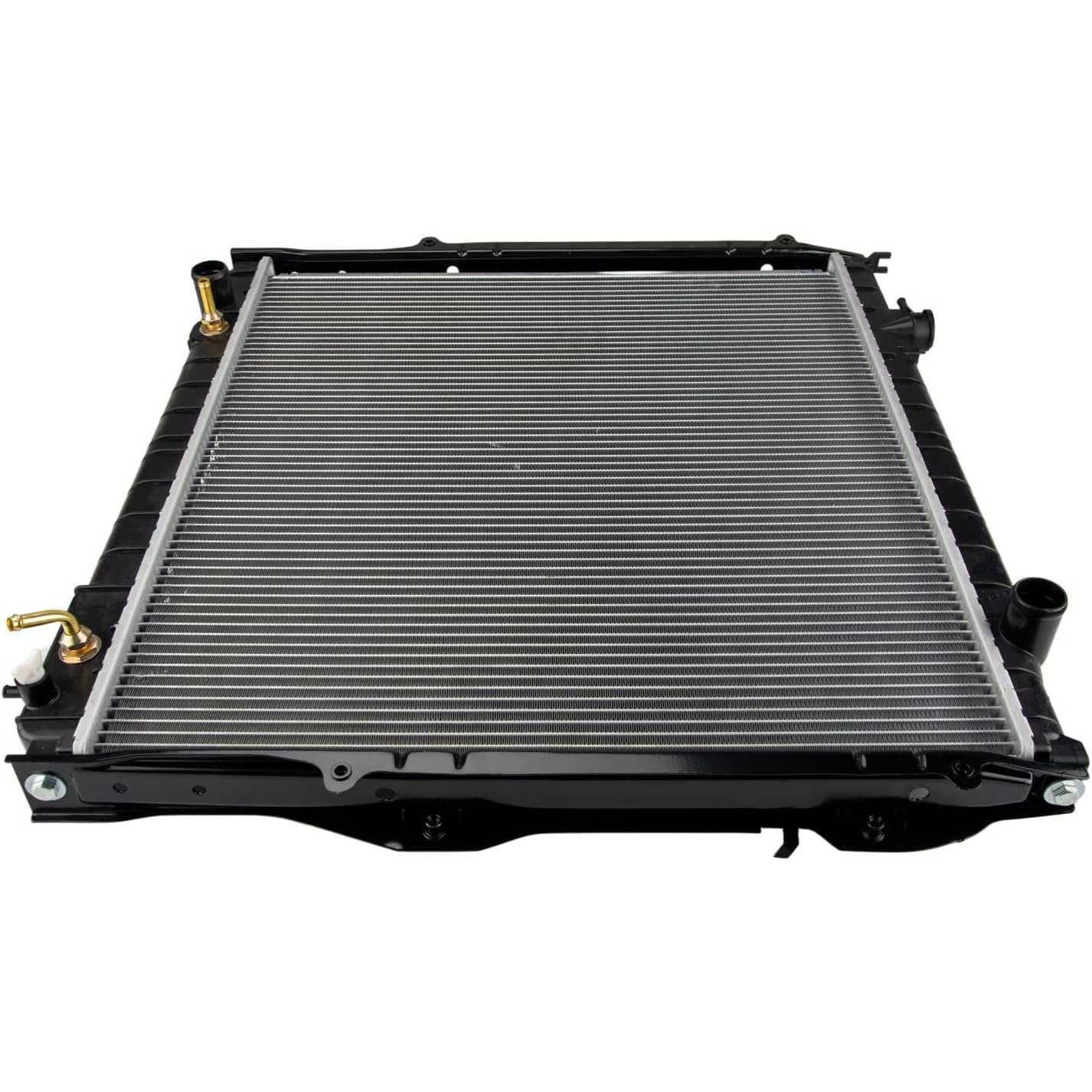

1995-2004 Toyota Tacoma 2.7L | Aluminum 3/4" Radiator | OE#52470842/CU1755 - PHILTOP

1995-2004 Toyota Tacoma 2.7L | Aluminum 3/4" Radiator | OE#52470842/CU1755 - PHILTOP

Leak-Resistant

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6364CFK081LUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
25-1/2 in
Core Height
22-5/8 in
Radiator Cap Included
No
Inlet Diameter
1-3/8 in
Outlet Diameter
1-3/8 in
Items Included
1x Radiator - CU1755, 1x Instruction Manual
Mounting Type
Flange Mount
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
52470842,0416004010,0416004011,0416004020,0416004030,0416004040,164100C041,164100C042,164100C040,164100C071,164100C070,16410AZ025,52469689,2480661
Part Number
CU1755,2213138,411755,1755C,2197,TO3010179,2713,TO3010303,431377,PR1755A,9728,431487,KLI1755,SBR1755,CR1755,NR1755B,AM1755,0R001755A3CM,BES1755,B1755,1981202359,56121,REA411755A,RA1755

Highlights

  • Vehicle Fitment For: 1995-1998 Tacoma 2.7/3.4L 1999-1999 Tacoma 2.7L, 3.4L Automatic 2000-2004 Tacoma 2.7/3.4L (22-5/8 in. Between Tanks; 1999 with Floor Shifter ONLY)
  • Direct Replacement OE NO.:CU1755、2197、164100C041、TO3010179、2213138、2713、164100C042、164100C040、164100C071、164100C070、16410AZ025、TO3010303、52469689、52470842、431377、PR1755A、9728、411755、431487、KLI1755、SBR1755、1755C、2480661、416004030、CR1755、NR1755B、AM1755、0R001755A3CM、BES1755、B1755、1981202359、416004040、416004020、416004011、416004010、0416004040、0416004030、0416004020、0416004011、0416004010、56121、REA411755A、RA1755
  • Excellent Heatsink Performance: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16957 Certification: Authoritative certification, quality assurance
  • Easy and Quick to Install - Direct bolt-on OE fitment or replacement for factory unit, fast and easy installation without any drilling or modification.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1995 - 20041995 - 2004199819981998 - 20001998 - 20041998 - 20042001 - 20041998 - 20001995 - 2000
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacoma
TrimBaseBaseDLXDLXLimitedPre RunnerPre RunnerS-RunnerSR5SR5
Engine2.7L L43.4L V62.7L L43.4L V63.4L V62.7L L43.4L V63.4L V62.7L L43.4L V6
Note
22-5/8 in. Between Tanks;Radiator Cap Is Required
22-5/8 in. Between Tanks;Radiator Cap Is Required
22-5/8 in. Between Tanks;Radiator Cap Is Required
22-5/8 in. Between Tanks;Radiator Cap Is Required
22-5/8 in. Between Tanks;Radiator Cap Is Required
22-5/8 in. Between Tanks;Radiator Cap Is Required
22-5/8 in. Between Tanks;Radiator Cap Is Required
22-5/8 in. Between Tanks;Radiator Cap Is Required
22-5/8 in. Between Tanks;Radiator Cap Is Required
22-5/8 in. Between Tanks;Radiator Cap Is Required

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

5.0/5

Based on 6 reviews

5100%
40%
30%
20%
10%

Ann Kavanaugh

11/15/2024

Verified buyer

Perfect fit, this is exactly what my car need it. Read more

Frank Nerychel

07/26/2024

Verified buyer

Fast shipping. Exact fit. Seems to be a good quality part.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.
