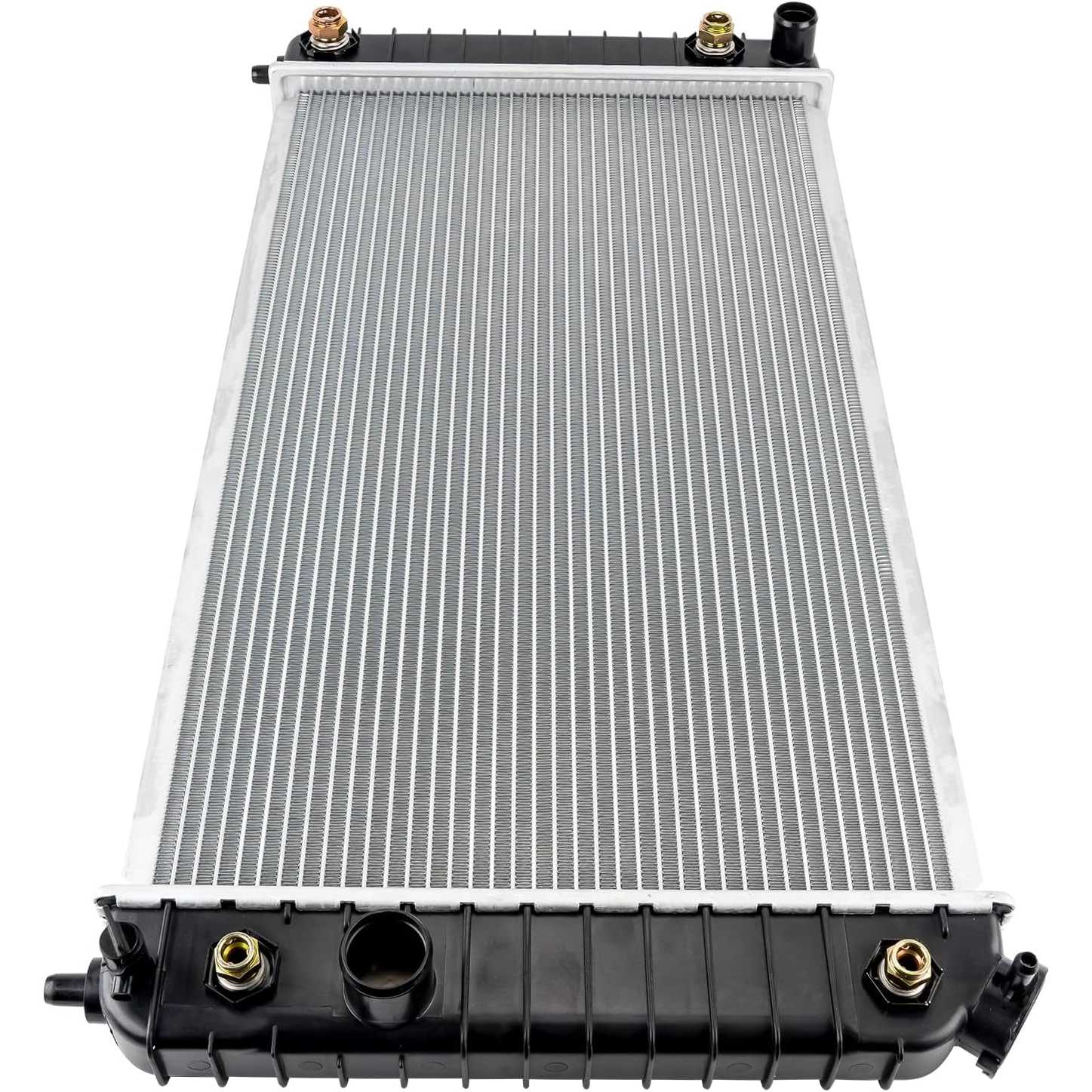

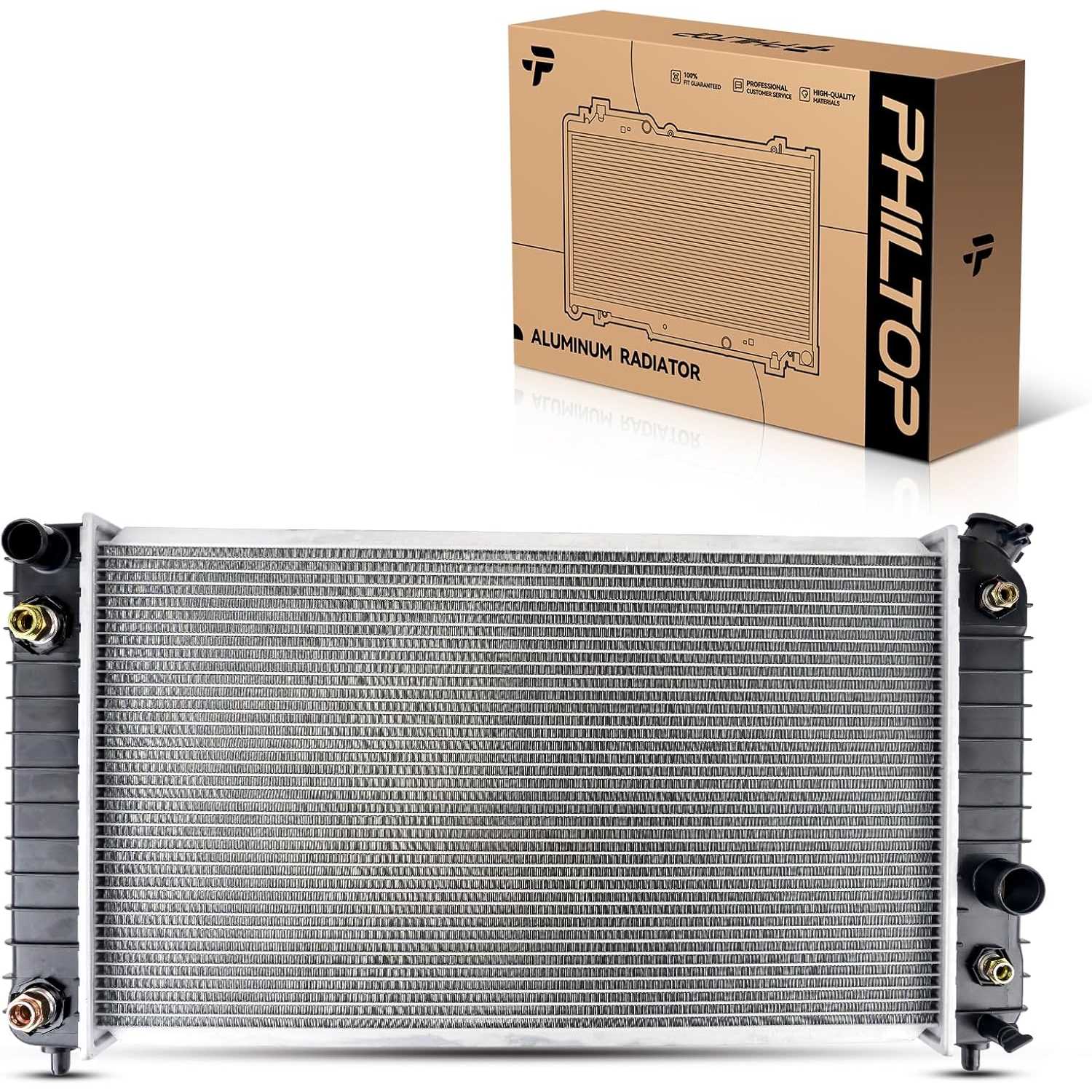

1996-2001 GMC Jimmy 4.3L V6 | Aluminum 3/4" Radiator | OE#8524729630/CU1826 - PHILTOP

1996-2001 GMC Jimmy 4.3L V6 | Aluminum 3/4" Radiator | OE#8524729630/CU1826 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6830CFK038TUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes

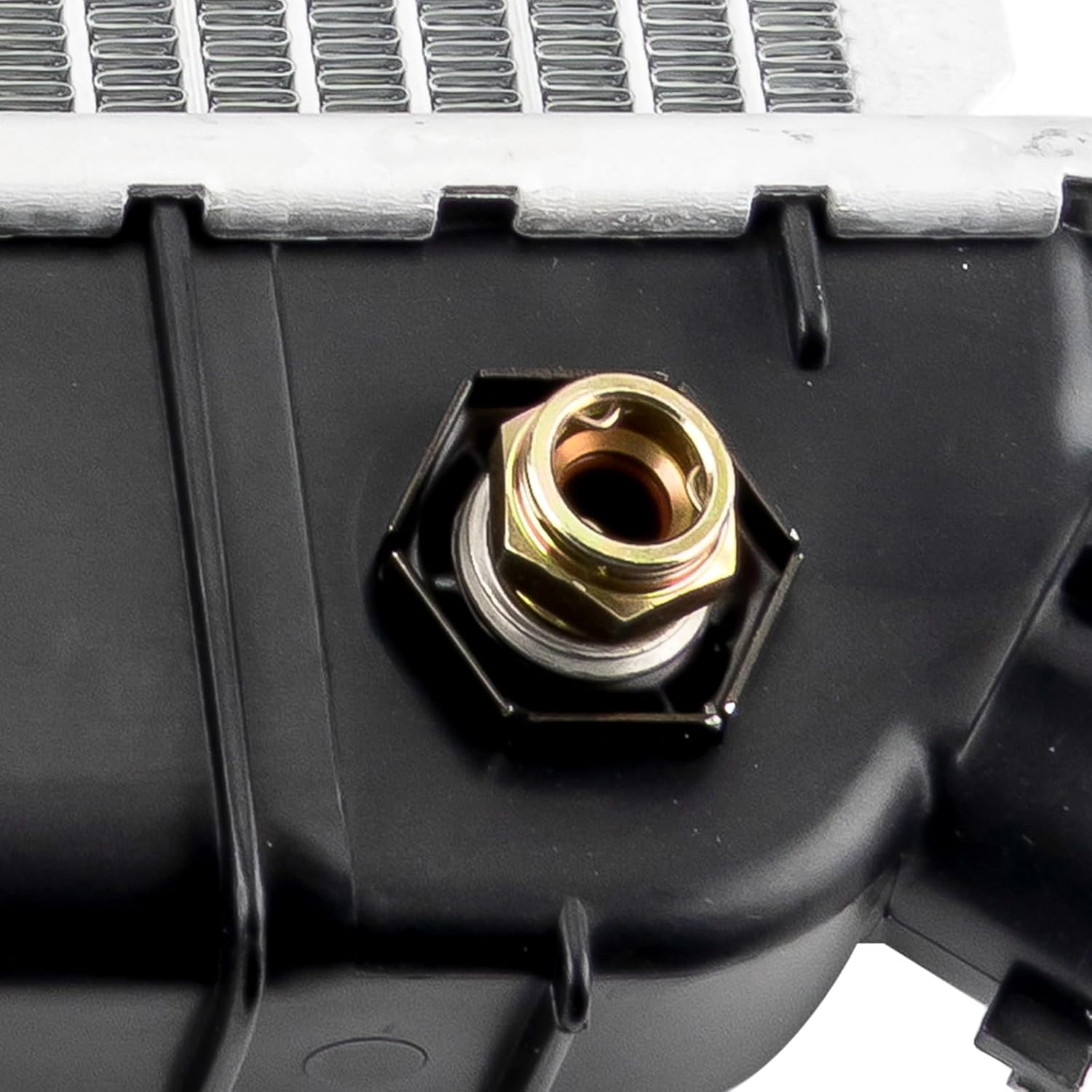

Engine Oil Cooler Included
Yes
Core Thickness
3/4 in
Core Width
26-1/4 in
Core Height
15 in
Radiator Cap Included
No
Inlet Diameter
1-5/16 in
Outlet Diameter
1-9/16 in
Items Included
1x Radiator - CU1826, 1x Instruction Manual
Mounting Type
Top Saddle / Bottom Pin
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
8524729630,OK01515200A,52473676,52472963,15120548,52472964,52462548,52462549,15120549,8524776850,8524729640,2480526
Part Number
CU1826,CU1825,2219006,411826,1826C,1825,IZ3010116,REA411826A,SBR1826,GM3010228,IZ3010115,431405,CUC1826,438072,A1826,PR1826A,CRS1826,609361,KLI1826,9535,BES1826,56011,CR1825,NR1826A,AM1826,AM1825,0R001826A2CM,1981201464,IZ3010117,GM3010226,1825A,9534

Highlights

  • Compatible with: 1996-2003 S10 4.3L, 1996-2005 Blazer 4.3L, 1996-2003 Sonoma 4.3L, 1996-2001 Jimmy 4.3L, 1996-2001 Bravada, 2004 S10, 2004 Sonoma, 1997-2000 Hombre 4.3L; Engine Oil Cooler And Transmission Oil Cooler Included
  • OEM Replacement.: 15120548, 15120549, 52462548, 52462549, 52472963, 52472964, CU1825
  • IATF16949 Certification: Designed with outstanding durability, in compliance with the original specifications, and suitable for direct replacement.
  • High-Efficiency Cooling: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • Easy and Quick to Install - Direct bolt-on OE fitment or replacement for factory unit, fast and easy installation without any drilling or modification.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1996 - 199920051996 - 20041996 - 20011999 - 20012001 - 20052003 - 20051996 - 20031996 - 20041996 - 19981999 - 20031996 - 20032002 - 200419962000 - 20011998 - 20001996 - 199920011996 - 20011996 - 20011996 - 20011996 - 20041996 - 20011996 - 20041997 - 20001997 - 20001996 - 2001
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCIsuzuIsuzuOldsmobile
ModelBlazerBlazerBlazerBlazerBlazerBlazerBlazerS10S10S10S10S10S10JimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmySonomaSonomaSonomaHombreHombreBravada
TrimBaseBaseLSLTTrailblazerXtremeZR2BaseLSSSXtremeZR2ZR5BaseDiamond EditionEnvoySLSLSLESLSSLTSLSLESLSSXSBase
Engine4.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V6
Note
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)
Radiator Cap Is Required;w/ EOC (Engine Oil Cooler)

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

radiatorradiator

Reviews

4.8/5

Based on 13 reviews

585%
415%
30%
20%
10%

sue dye

10/13/2025

Verified buyer

Good quality radiator reasonable pricing.

ryan islas

09/29/2025

Verified buyer

So far so good. Time will tell

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.
