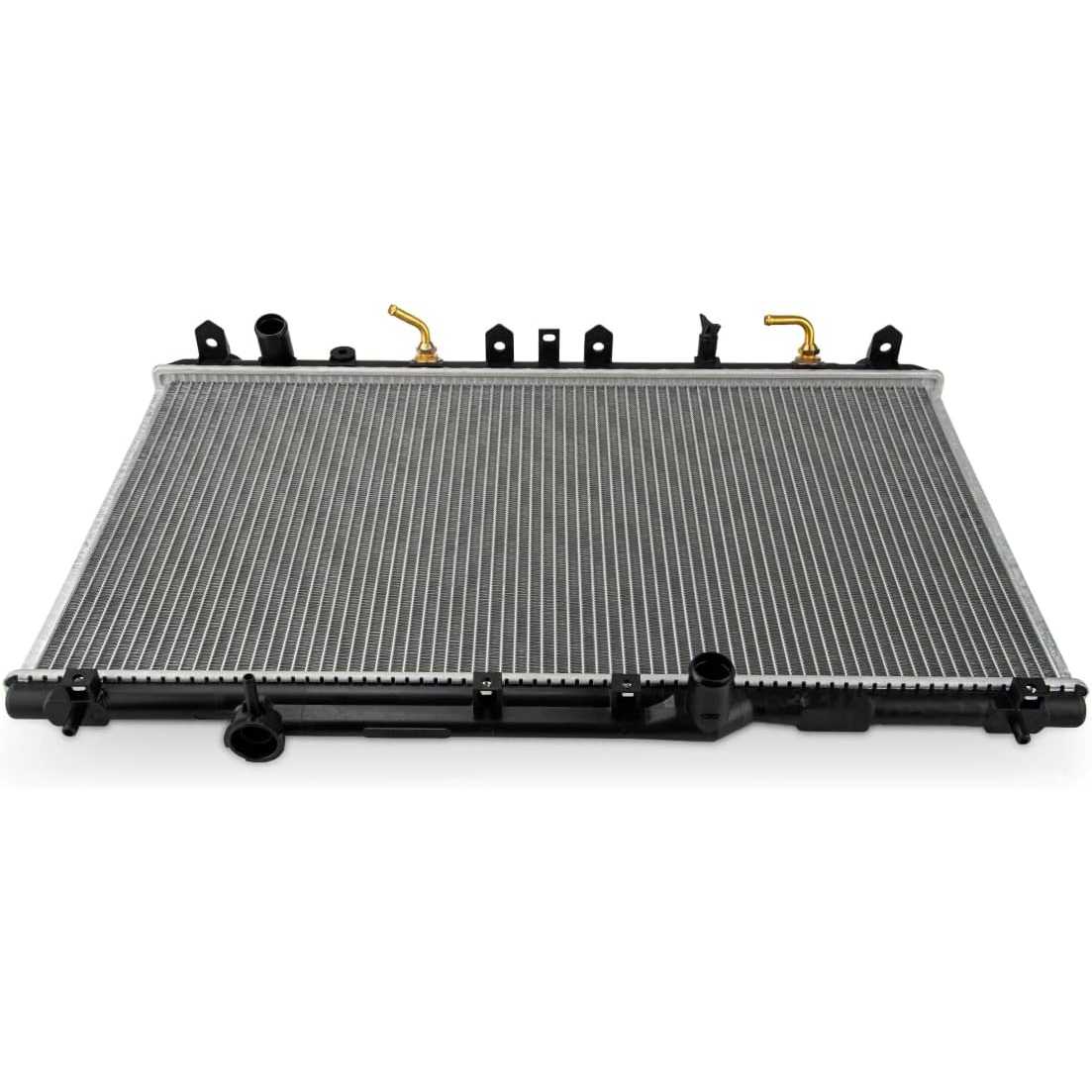

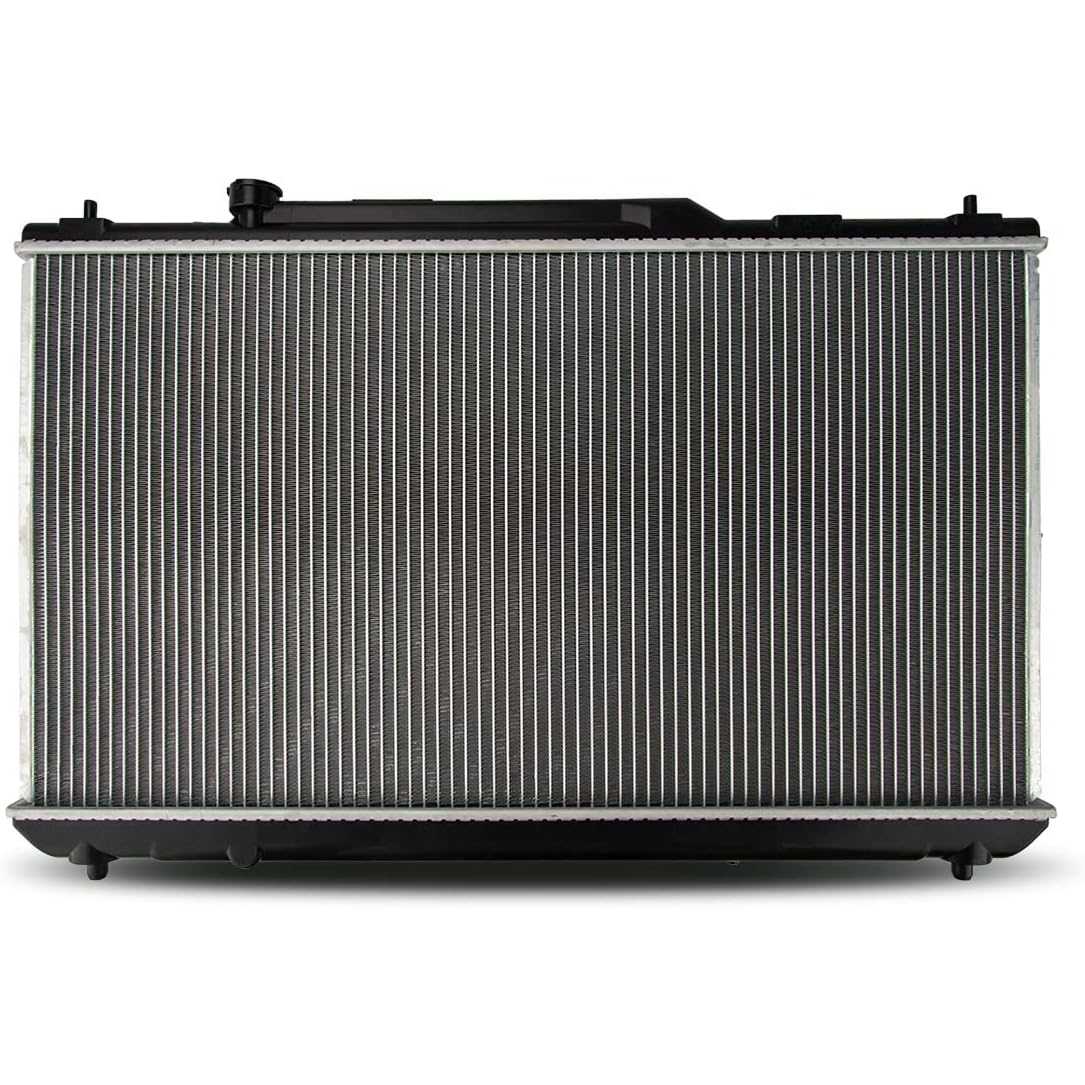

1997-2001 Toyota Camry 2.2L | Aluminum 3/4" Radiator | OE#1640003157/CU1909 - PHILTOP

1997-2001 Toyota Camry 2.2L | Aluminum 3/4" Radiator | OE#1640003157/CU1909 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5349CFK057ZUS

Specifications

Brand
PHILTOP

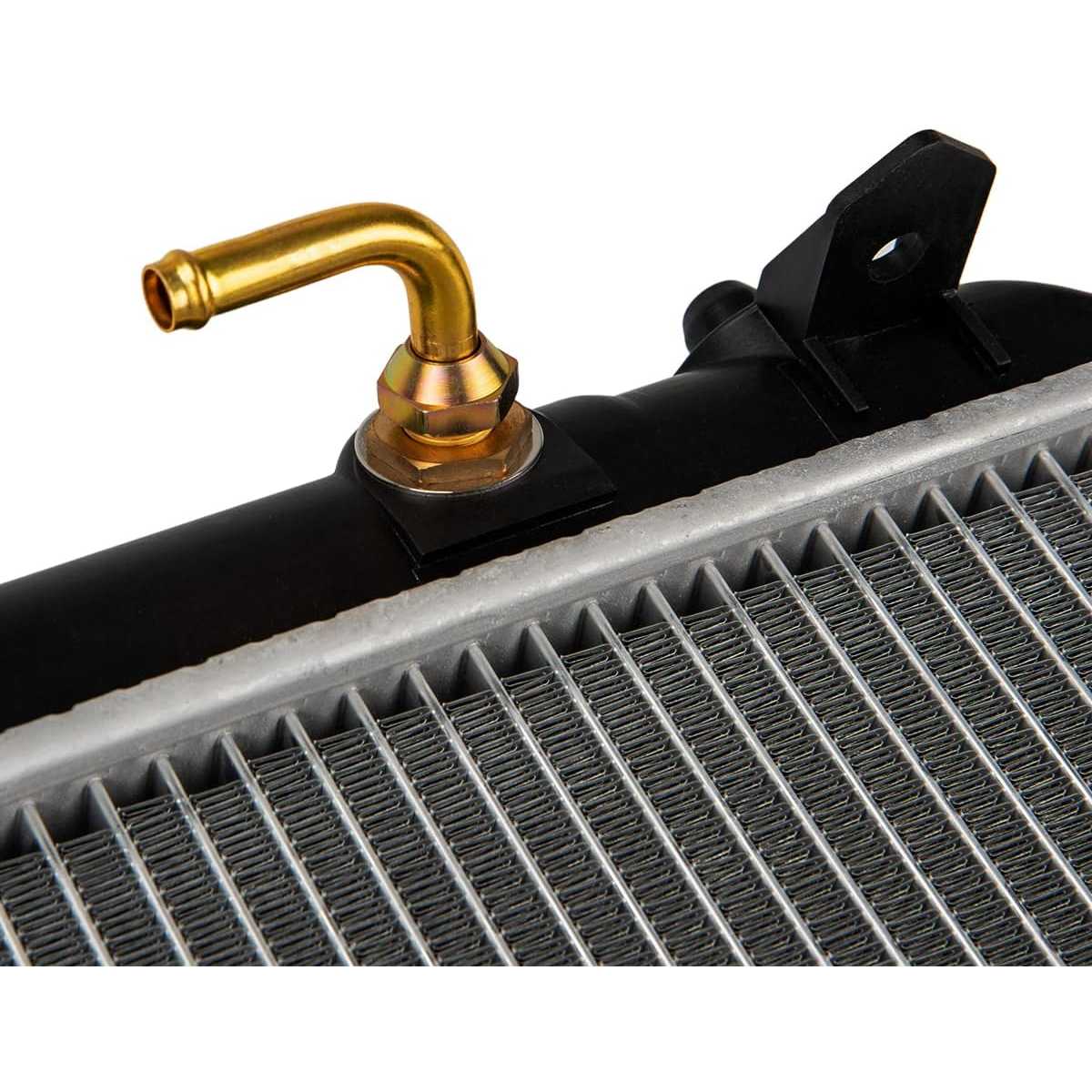

Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
28-5/8 in
Core Height
15-3/4 in

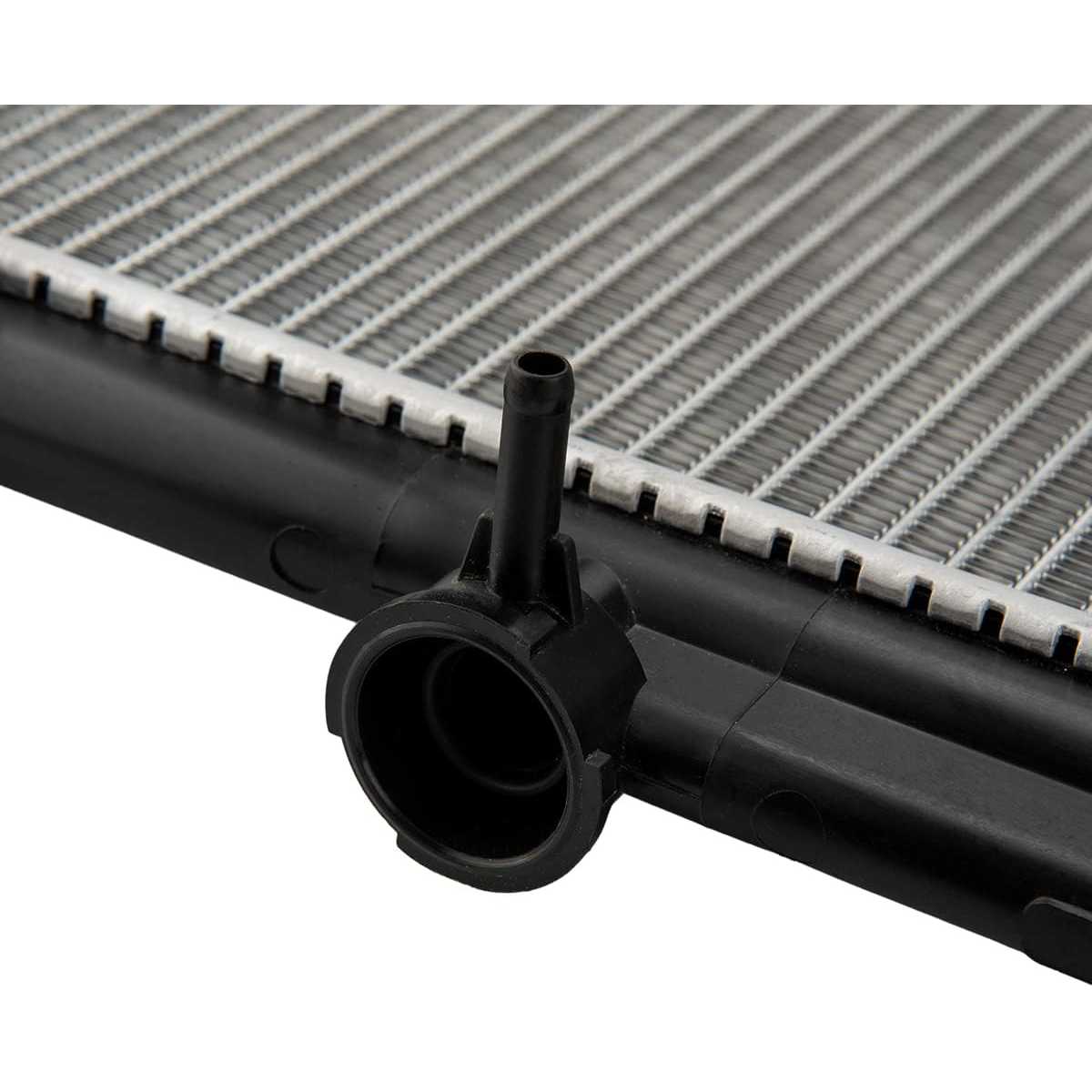

Radiator Cap Included
No

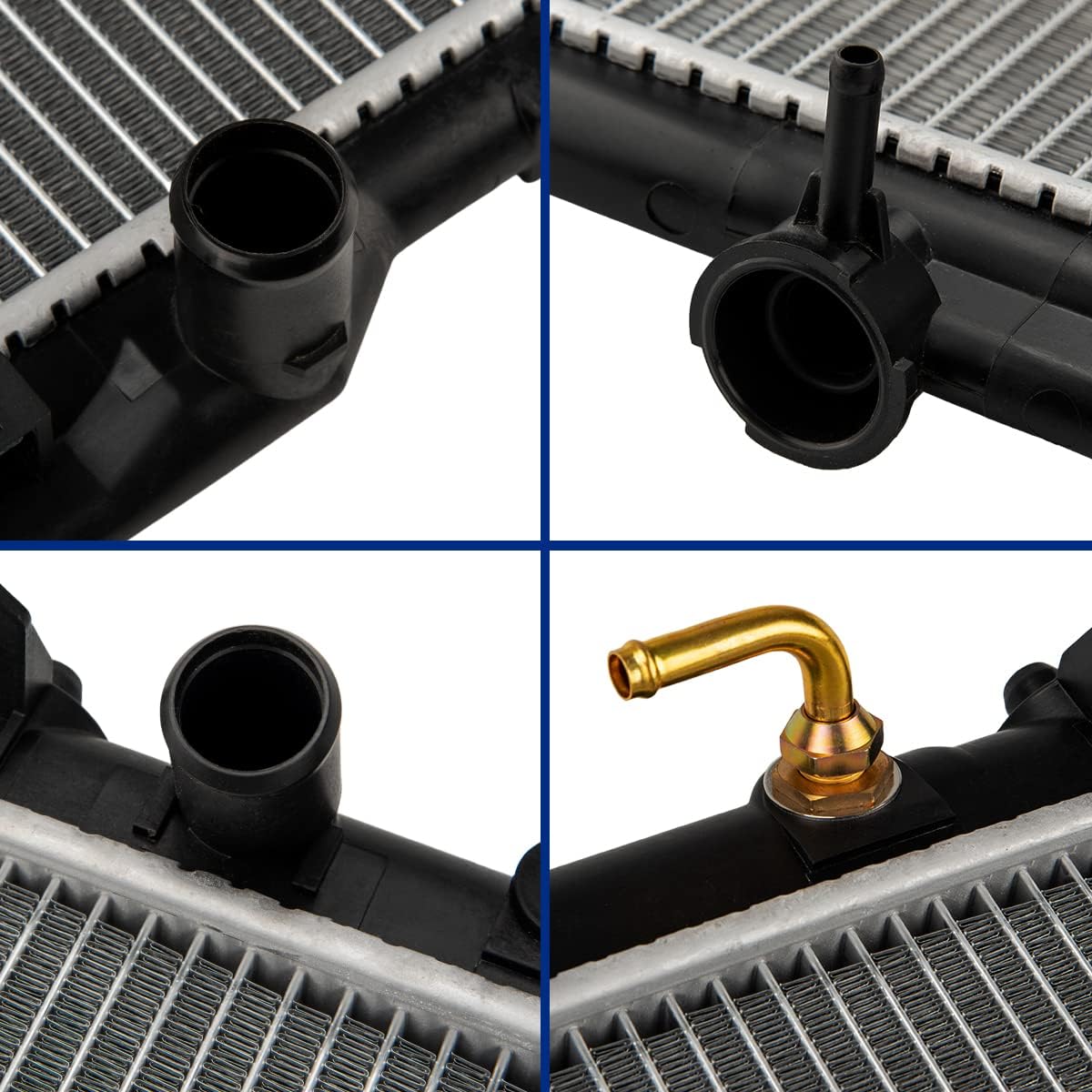

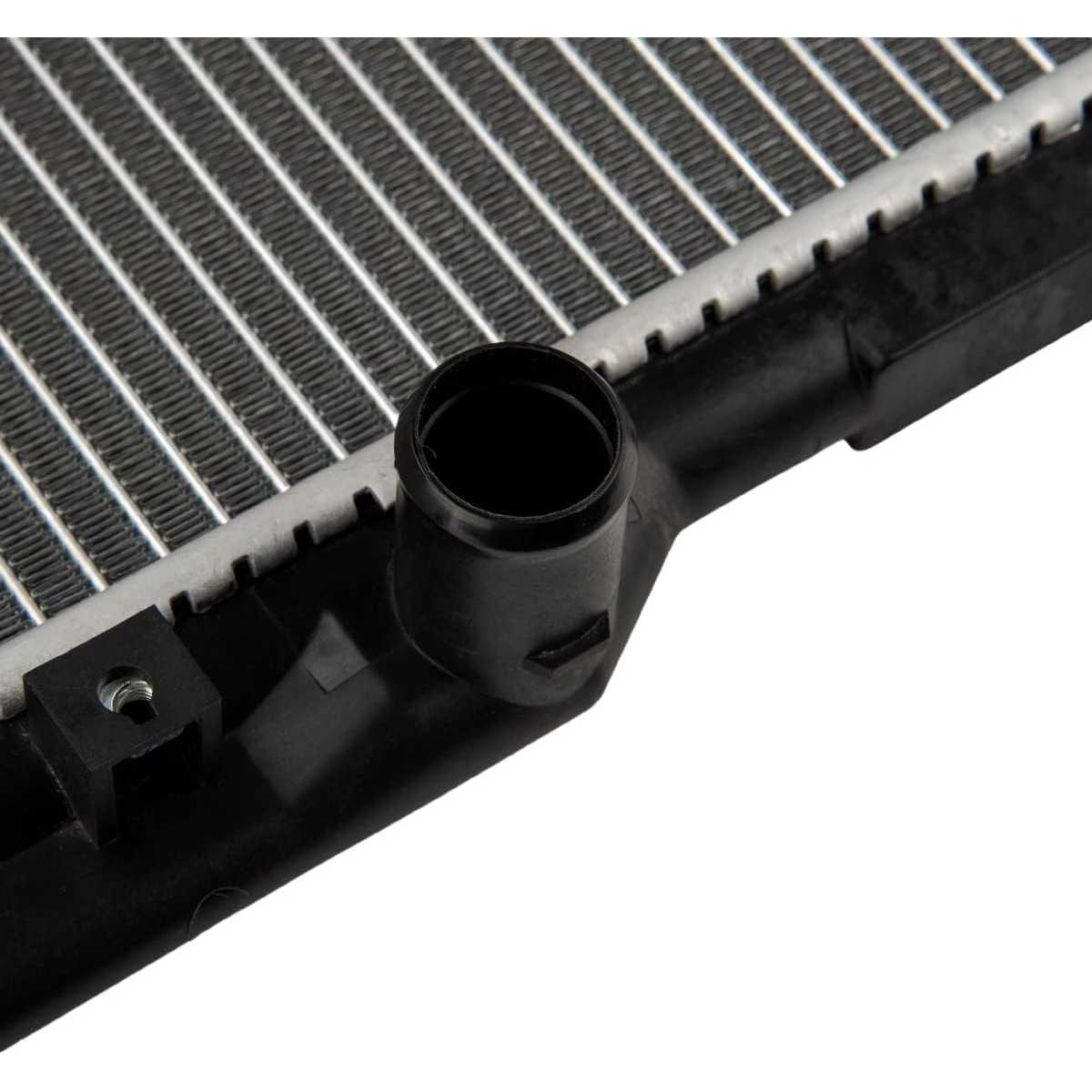

Inlet Diameter
1-1/4 in
Outlet Diameter
1-1/4 in
Items Included
1x Radiator - CU1909, 1x Instruction Manual
Mounting Type
Top / Bottom Pin
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
1640003157,164037A300,1640303150,1640303140,1640003140,1640003141,1640003142,1640003152,1640003150,1640003151,164007A291,164007A301,164007A300,16410YZZAA,164000A052,164000A062,16410YZZAB,164000A060,164000A270,16410YZZAC,1640020161,1640020090,164000A061,164000A190,1640020091,16410AZ002,164000A260,164000A200
Part Number
CU1909,2210500,411909,1909C,412005,2556,1909,2005,2590,2224,TO3010105,TO3010106,TO3010112,2621,432541,9761,PR1909A,376718531,2471,646991,KLI1909,REA411909A,RA1909C,SBR1909,CRS1909,BES1909,53374,RA1909,735345,53307,CR2005,CR1909,NR1909A,1981202294,B1909,CUC1909,0R001909A1CM,AM1909

Highlights

  • [Vehicle Fitment] The complete radiator compatible with Camry 1997-2001, Solara 1999-2001
  • [Specifications] Core Thickness 3/4 in. Core Width 28-5/8 in. Core Height 15-3/4 in. Inlet Diameter 1-1/4 in. Outlet Diameter 1-1/4 in

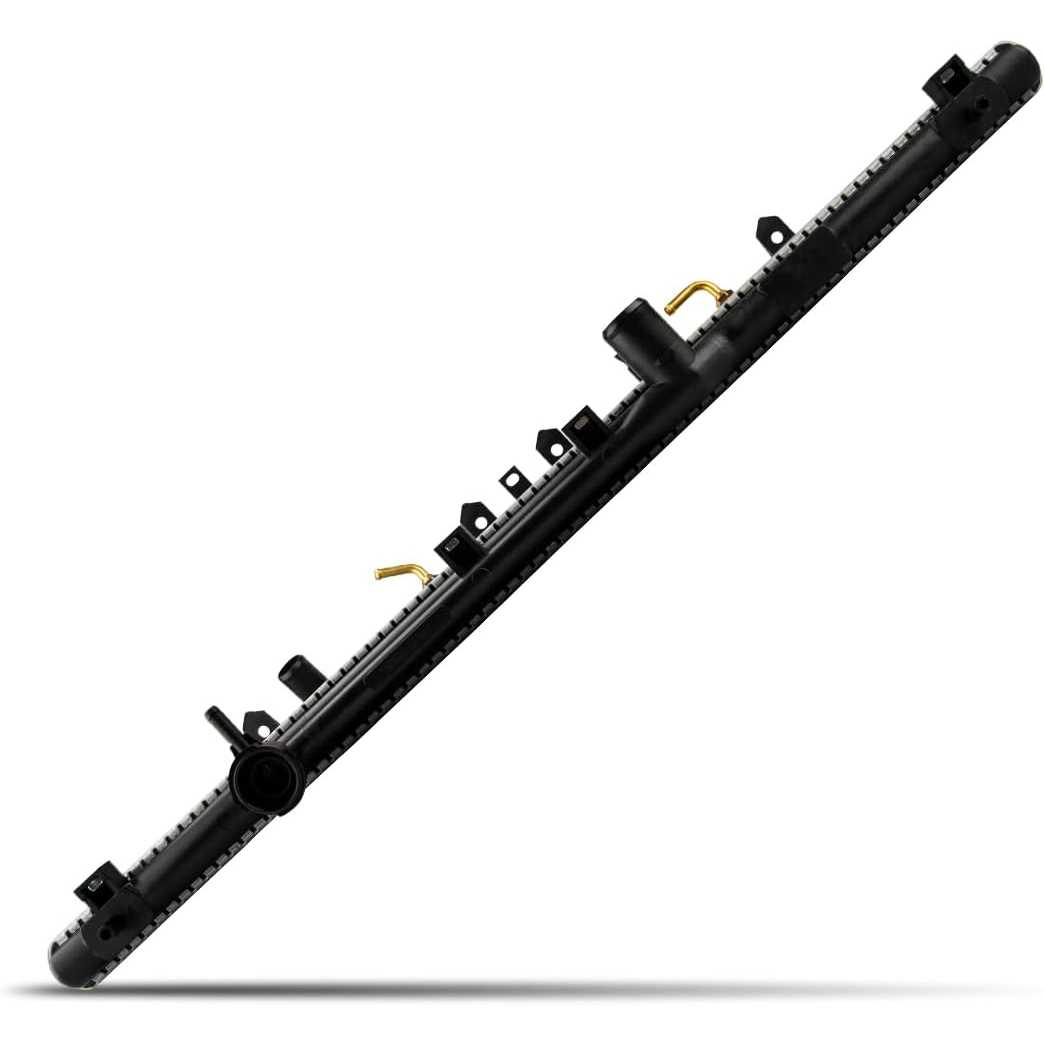

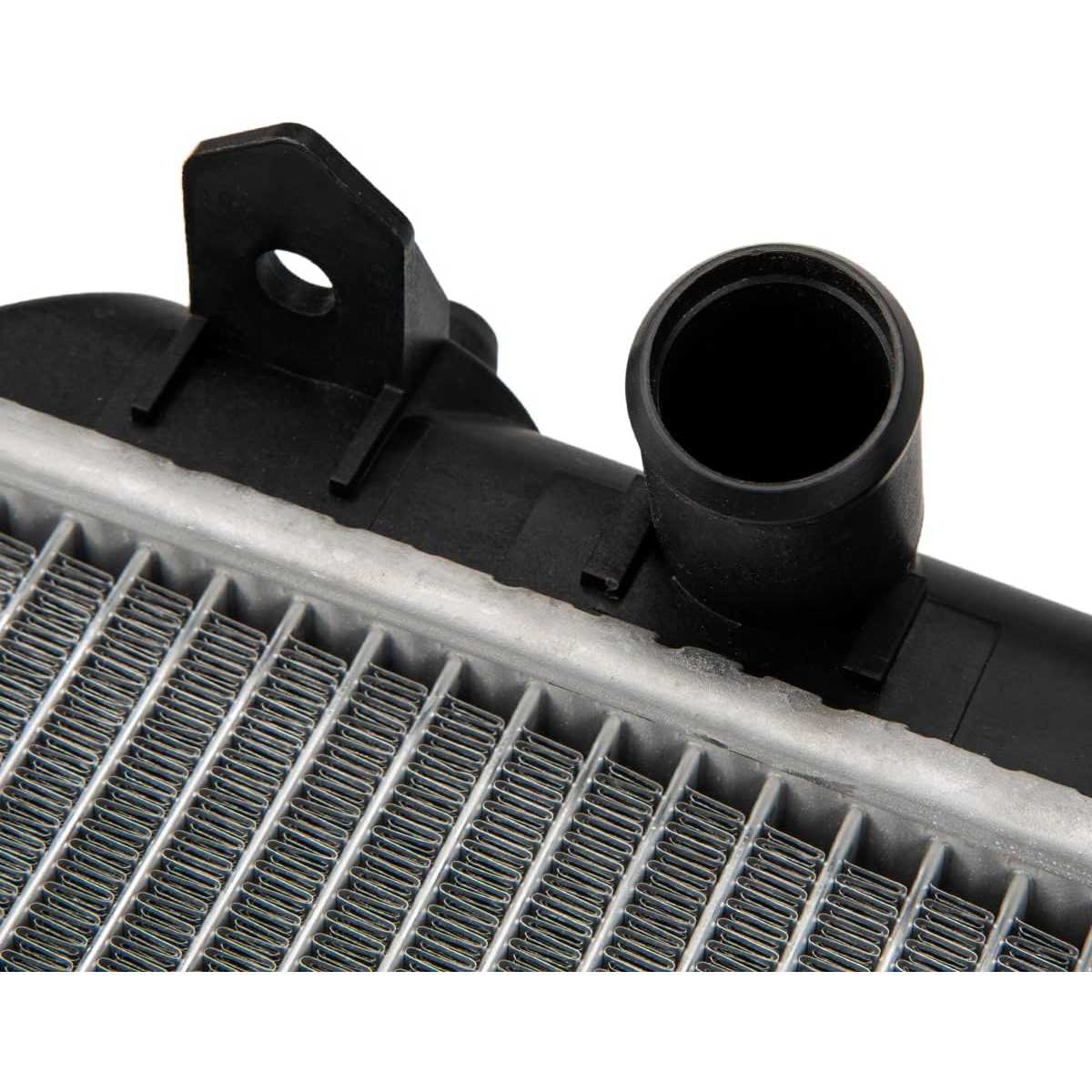

  • [High Quality Material] PHILTOP radiator housing is made of Aluminum, which can prevent corrosion and is stronger. The tank end interface is made of PA133 plastic to keep the shape of the radiator without deformation. Effectively ensure the service life

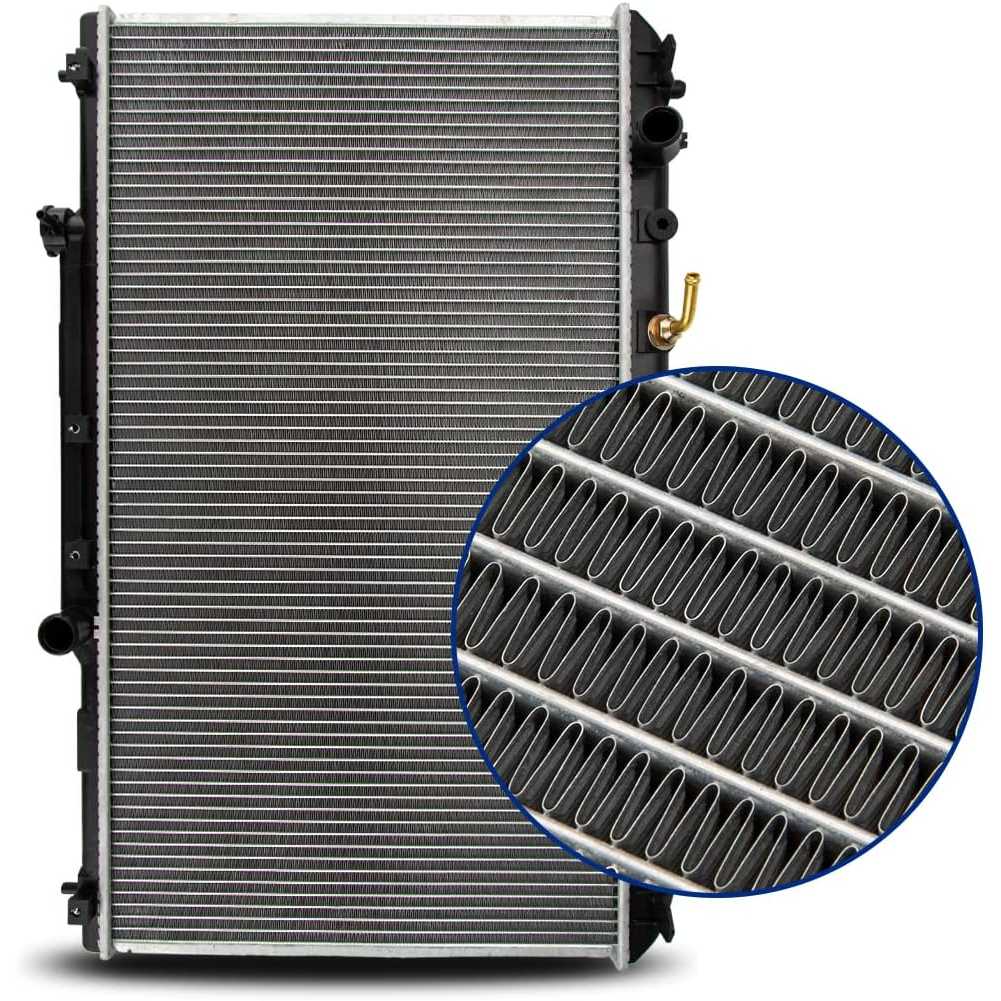

  • [Fast Heat Dissipation] The Aluminum water pipe is designed in a flat shape, and the heat sink is corrugated, focusing on heat dissipation performance. The cooling efficiency is at least 35%-112% higher than the radiators in the market. Gaskets and O-rings withstand thermal shock, ensuring durability in extreme cold weather
  • [No Leakage] PHILTOP Radiator Assembly has passed thousands of anti-leakage tests before leaving the factory, refuses to leak water

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1997 - 20011997 - 20011997 - 20011999 - 2001
MakeToyotaToyotaToyotaToyota
ModelCamryCamryCamrySolara
TrimCELEXLESE
Engine2.2L L42.2L L42.2L L42.2L L4
Note----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

excellent car radiators1

Reviews

4.8/5

Based on 12 reviews

583%
48%
38%
20%
10%

juan torres

08/25/2026

Verified buyer

Good parts

GVC

07/16/2026

Verified buyer

Perfect fit and easy installation in a 2000 Camry. It’s been in the car for several months now with no leaks or problems.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Many cooling systems require bleeding after refilling to remove trapped air. Follow the procedure specified for the vehicle.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.
