1987-1995/1997-2006 Jeep Wrangler 4.0L/2.5L/4.2L/2.4L | Aluminum 1" Radiator | OE#52029113/CU2101 - PHILTOP

1987-1995/1997-2006 Jeep Wrangler 4.0L/2.5L/4.2L/2.4L | Aluminum 1" Radiator | OE#52029113/CU2101 - PHILTOP

Leak-Resistant

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7085CFK124FUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
19-7/16 in
Core Height
18-1/16 in
Radiator Cap Included
No
Inlet Diameter
1-1/4 in
Outlet Diameter
1-1/2 in
Items Included

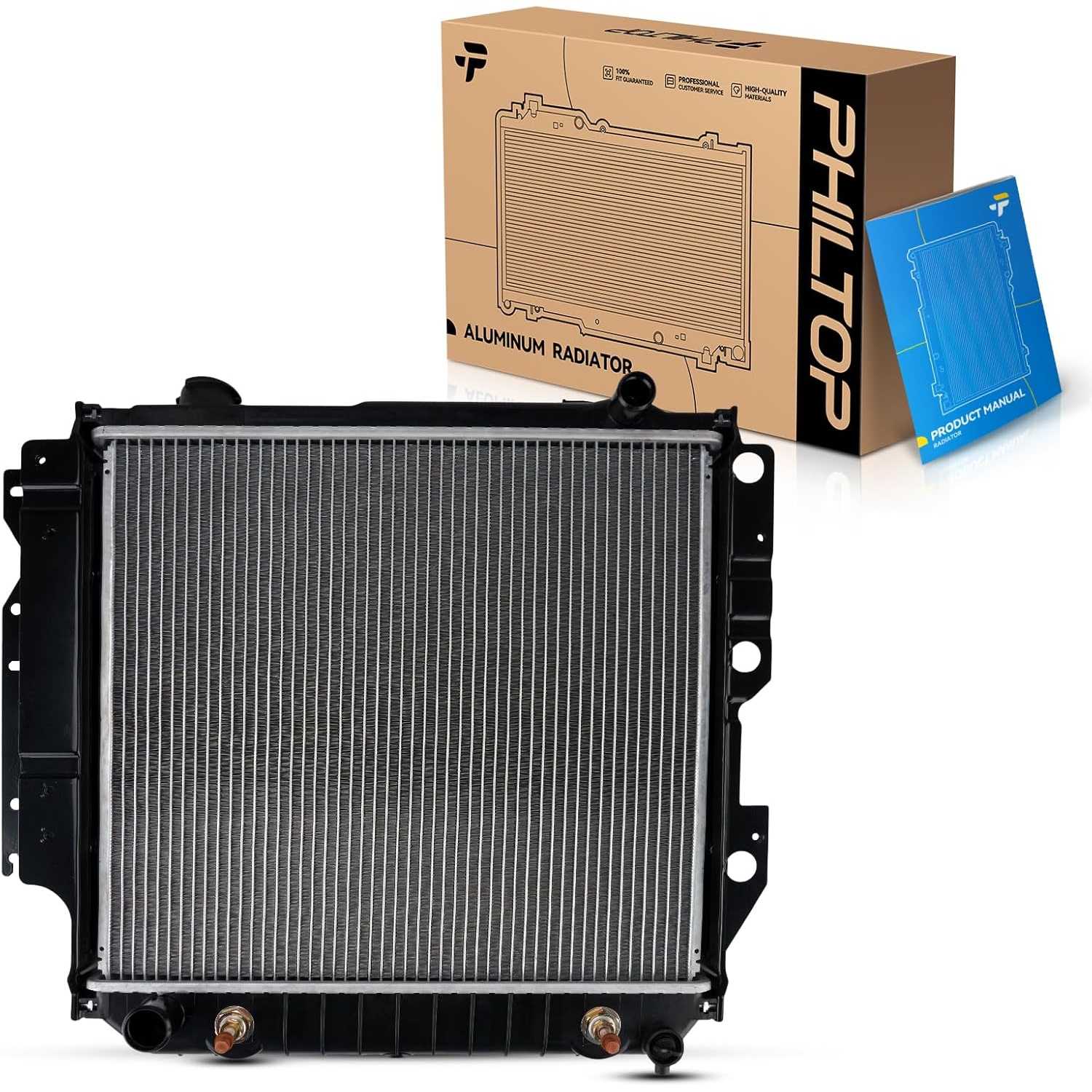

1x Radiator - CU2101, 1x Instruction Manual
Mounting Type
Flange Mount
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
52029113,55037654AB,55037654AA,52029050,52080186AC,52029049,52029230,52029231,52080186,52080186AB,55037654AC,52080183,52080180,52080181,52080184,5102983AA,52028123,52028120,52028041,55037652AA,52029121,52029122,55037653AC,55037653AB,52029160,52028120AC,52028120AB,52028114AB,52004781,52080180AE,52028114,52080183AF,52080183AG,52028112,52080180AB,52080184AC,52080181AB,52028123AB,52006125,52006123,52007228,52006122,52040229,52080180AF,52080183AC,52006124,52028112AB,52006126,52007227,52029160AB,52040286,55037653AA,52040288,52040285,52080181AF,52080181AG,52028112AC,52080184AG,8952040229,55037658AA,52040287,52029160AC,52028114AC,8952040285,8952040288,8952040286,8952040287,52080184AB,52080183AB,55037657AA,52080184AH
Part Number
CU2101,2219234,411682,1682C

Highlights

  • Vehicle Fitment: 1987-1995 1997-2006 Wrangler
  • Reference Number:CU2937, 735328, 412936, 412937, 2219051, 2219039, 2219409, 2937C, 13309C, 2936C, RAD35, 7T4Z8005B, 8G1Z8005B, 8G1Z8005A, 8A8Z8005A
  • Product Dimension - Core Width: 19-7/16 in ,Core Height: 18-1/16 in ,Core Thickness: 1 in ,Inlet Diameter: 1-1/4 in ,Outlet Diameter: 1-1/2 in
  • IATF16972 Certification: Authoritative certification, quality assurance
  • Feature: Built with high density multi-Lowered fins for maximum cooling efficiency

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20061987 - 19931991 - 19931987 - 19901989 - 19911991 - 19921988 - 19901987 - 19881987 - 19901991 - 1994199520032004 - 200619881991 - 1994198820032004 - 20061997 - 20021994 - 19952005 - 20061988 - 19911991 - 19951997 - 200320041988 - 19901987 - 19881997 - 20032004 - 20061987 - 19882004 - 20062005 - 20062002 - 20032004 - 2006
MakeJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWrangler
Trim65th Anniversary EditionBaseBaseBaseIslanderIslanderIslanderLaredoLaredoRenegadeRio GrandeRubiconRubiconSSSSESESESESESaharaSaharaSaharaSaharaSaharaSportSportSportSportUnlimitedUnlimited RubiconXX
Engine4.0L L62.5L L44.0L L64.2L L62.5L L44.0L L64.2L L62.5L L44.2L L64.0L L62.5L L44.0L L64.0L L62.5L L42.5L L44.2L L62.4L L42.4L L42.5L L44.0L L64.0L L62.5L L44.0L L64.0L L64.0L L64.2L L62.5L L44.0L L64.0L L64.2L L64.0L L64.0L L64.0L L64.0L L6
Note
Radiator Cap Is Required;w/o Quick Disconnect Fittings (w/ Hose Barb Oil Cooler Fittings)
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
-
Radiator Cap Is Required;w/o Quick Disconnect Fittings (w/ Hose Barb Oil Cooler Fittings)
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
-
Radiator Cap Is Required;w/o Quick Disconnect Fittings (w/ Hose Barb Oil Cooler Fittings)
-
Radiator Cap Is Required
Radiator Cap Is Required;w/o Quick Disconnect Fittings (w/ Hose Barb Oil Cooler Fittings)
Radiator Cap Is Required
Radiator Cap Is Required
-
Radiator Cap Is Required;w/o Quick Disconnect Fittings (w/ Hose Barb Oil Cooler Fittings)
Radiator Cap Is Required
Radiator Cap Is Required
-
Radiator Cap Is Required;w/o Quick Disconnect Fittings (w/ Hose Barb Oil Cooler Fittings)
Radiator Cap Is Required
Radiator Cap Is Required;w/o Quick Disconnect Fittings (w/ Hose Barb Oil Cooler Fittings)
Radiator Cap Is Required;w/o Quick Disconnect Fittings (w/ Hose Barb Oil Cooler Fittings)
-
Radiator Cap Is Required;w/o Quick Disconnect Fittings (w/ Hose Barb Oil Cooler Fittings)

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Rob_HomeGarage_344

04/06/2026

Installation was surprisingly easy, took me maybe an hour. The shipping was incredibly quick, I got it two days after ordering. Couldn't ask for a better experience.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Many cooling systems require bleeding after refilling to remove trapped air. Follow the procedure specified for the vehicle.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.
