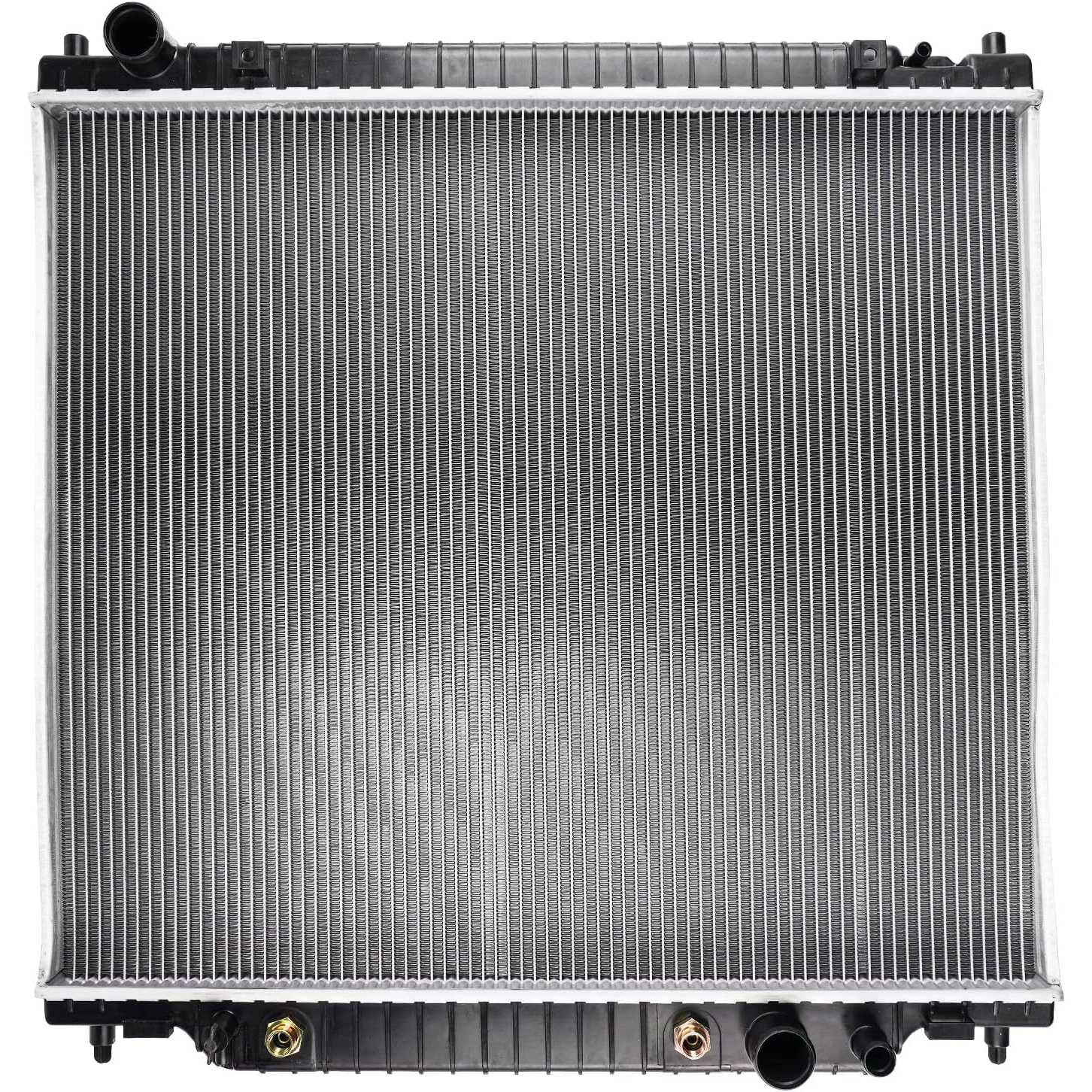

1998-2003 Ford F-150 5.4L V8 | Aluminum 1" Radiator | OE#F81HFA/CU2170 - PHILTOP

1998-2003 Ford F-150 5.4L V8 | Aluminum 1" Radiator | OE#F81HFA/CU2170 - PHILTOP

Leak-Resistant

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6114CFK250RUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
29-13/16 in
Core Height
26-1/2 in
Radiator Cap Included
No
Inlet Diameter
1-3/4 in
Outlet Diameter
1-3/4 in
Items Included

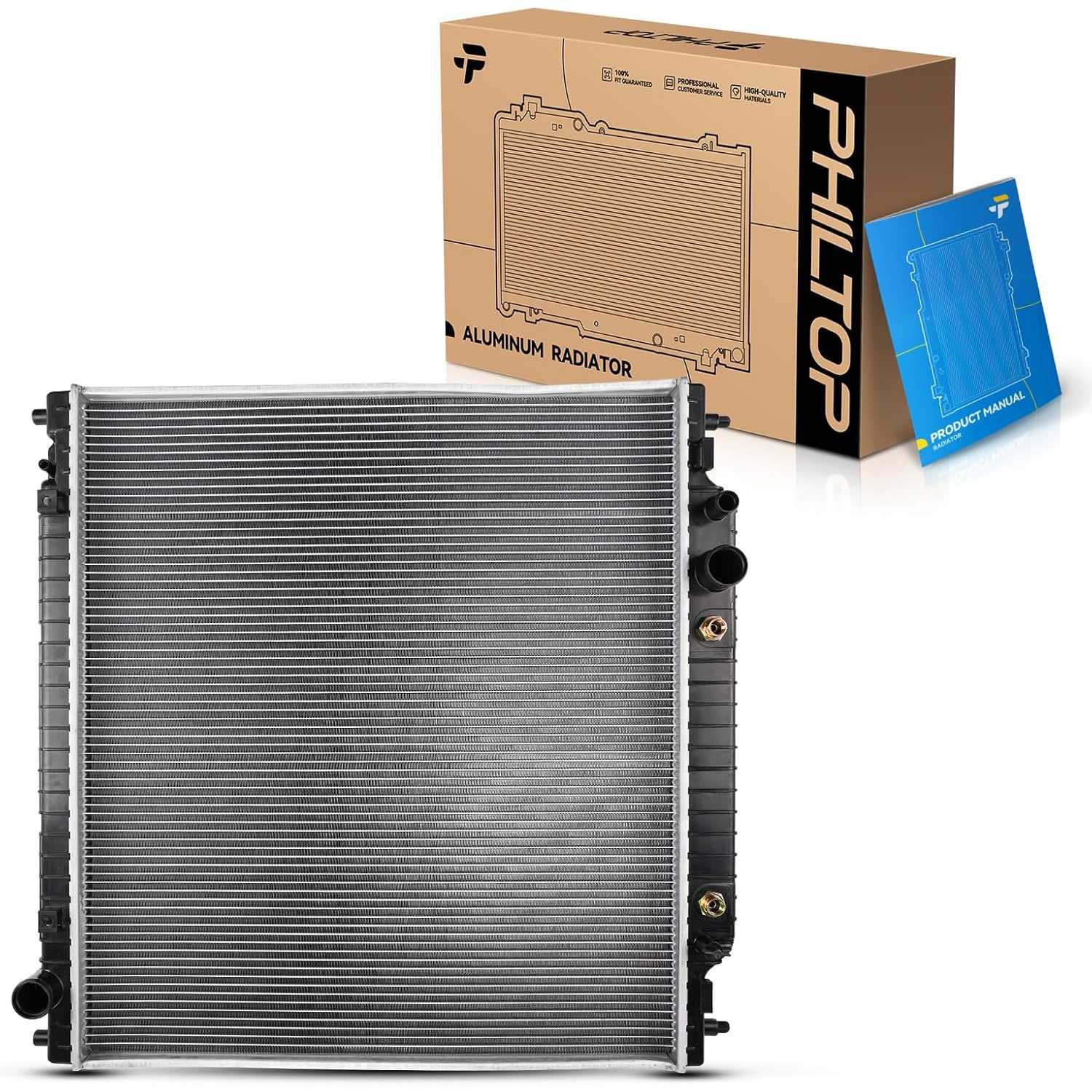

1x Radiator - CU2170, 1x Instruction Manual
Mounting Type
Pin
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
F81HFA,3C348005FA,YL3Z8005GACP,XL3Z8005AACP,F81Z8005FACP,F75Z8005GACP,3C3Z8005FACP,3C3Z8005FA,F81Z8005FA,F81H8005GA,F81H8005FA,F81Z8005GA,2480630
Part Number
CU2170,412170,1997,FO3010139,431389,PR2170A,CRS2170,REA412170A,KLI2170,CR2170,9418,1981200501,C2170,BES2170,CUC2170,0R002170A2CM,NR2170C,69206,56553,SBR2171V,AM2170

Highlights

  • Direct Fit: 1998-2003 F-150 5.4L(Over 8500 GVW; 29-13/16 in. x 26-1/2 in. x 1 in. Core) 1998-1999 F-250 5.4L(Over 8500 GVW; 29-13/16 in. x 26-1/2 in. x 1 in. Core) 1999-2004 F-250/F-350 Super Duty 5.4L(Over 8500 GVW; 29-13/16 in. x 26-1/2 in. x 1 in. Core) 2000-2005 Excursion 5.4L
  • Replacement OEM Part Number: 3C3Z8005EB, 3C3Z8005EC, 3C3Z8005ECCP, 3C3Z8005FA, 4C3Z8005EB, 4C3Z8005EBCP, F2TH8005BA, F81H8005AA, F81H8005EB, F81Z8005AA, F81Z8005EA, F81Z8005EACP, F81Z8005FA, XL3Z8005AA, YC3Z8005AA, YC3Z8005BA, YC3Z8005BACP
  • Specification - Core Width: 29-3/4 in Core Height: 26-7/16 in Core Thickness: 1-3/4 in Inlet Diameter: 1-3/4 in Outlet Diameter: 1-3/4 in
  • IATF16949 Certification: Designed with outstanding durability, in compliance with the original specifications, and suitable for direct replacement.
  • Quick and Easy Installation: Direct-fit design eliminates the need for modifications during installation

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2003 - 20052000 - 20052004 - 20052000 - 20051998 - 20002000 - 20032001 - 20031998 - 20031999 - 20031998 - 20031998 - 20031998 - 19991998 - 19991998 - 19991998 - 199920041999 - 20041999 - 20041999 - 20042003 - 20041999 - 20041999 - 20041999 - 2004
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelExcursionExcursionExcursionExcursionF-150F-150F-150F-150F-150F-150F-150F-250F-250F-250F-250F-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super Duty
TrimEddie BauerLimitedXLSXLTBaseHarley-Davidson EditionKing RanchLariatLightningXLXLTBaseLariatXLXLTKing RanchLariatXLXLTKing RanchLariatXLXLT
Engine5.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V8
Note----
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW
29-13/16 in. x 26-1/2 in. x 1 in. Core;Over 8500 GVW

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

radiatorradiator

Reviews

4.7/5

Based on 18 reviews

578%
417%
36%
20%
10%

Customer

03/04/2026

Verified buyer

Fit good. Only had to change the trans fitting. No leaks

Arturo d.

02/16/2026

Verified buyer

Make sure put Teflon on transmission line or it'll leak very little but other than that perfect

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Many cooling systems require bleeding after refilling to remove trapped air. Follow the procedure specified for the vehicle.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.
