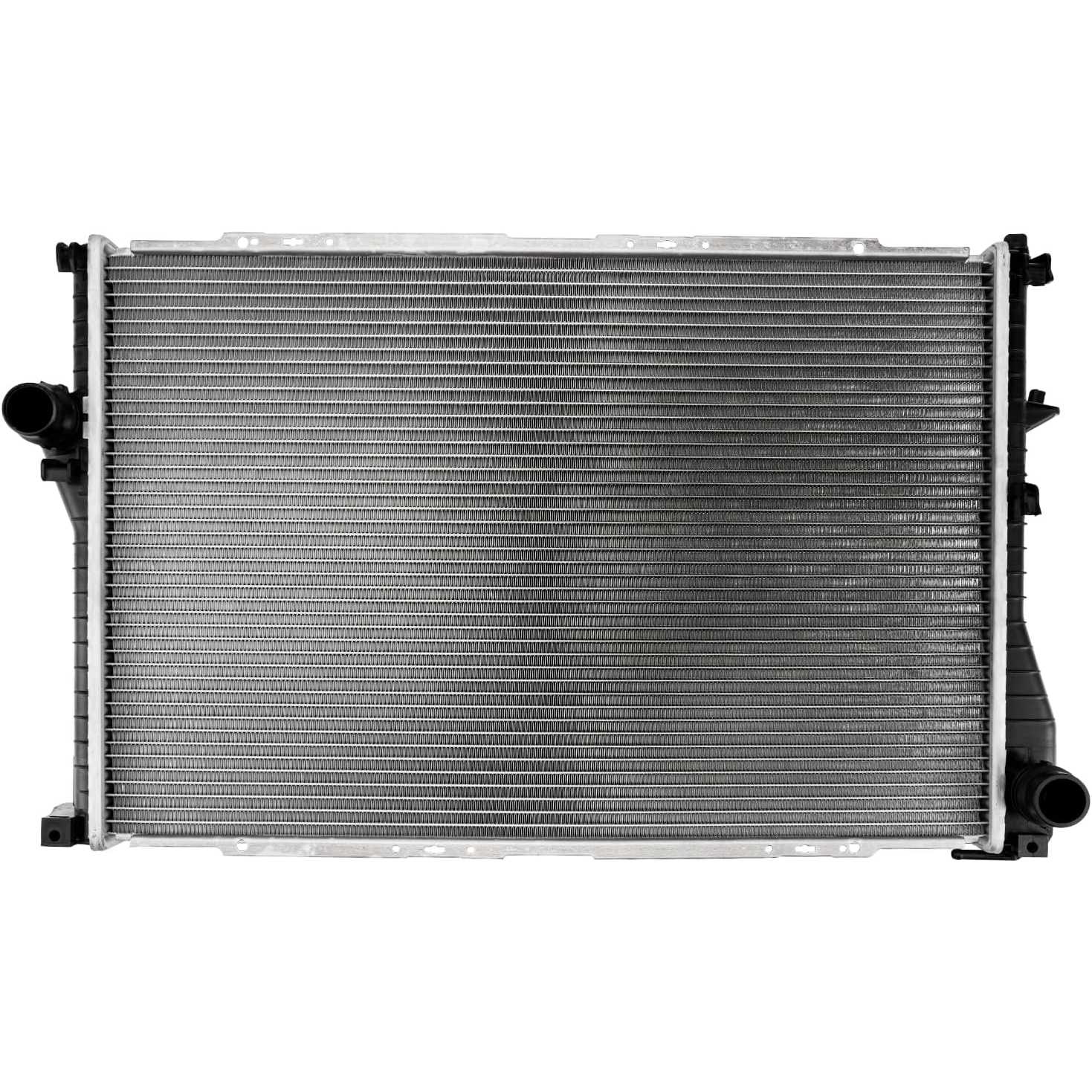

2001-2003 BMW 530i 3.0L | Aluminum 1-1/4" Radiator | OE#17111436062/CU2284 - PHILTOP

2001-2003 BMW 530i 3.0L | Aluminum 1-1/4" Radiator | OE#17111436062/CU2284 - PHILTOP

Leak-Resistant

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7063RAD1785US

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
No
Engine Oil Cooler Included
No
Core Thickness
1-1/4 in
Core Width
17-1/2 in
Core Height
25-9/16 in
Radiator Cap Included
No

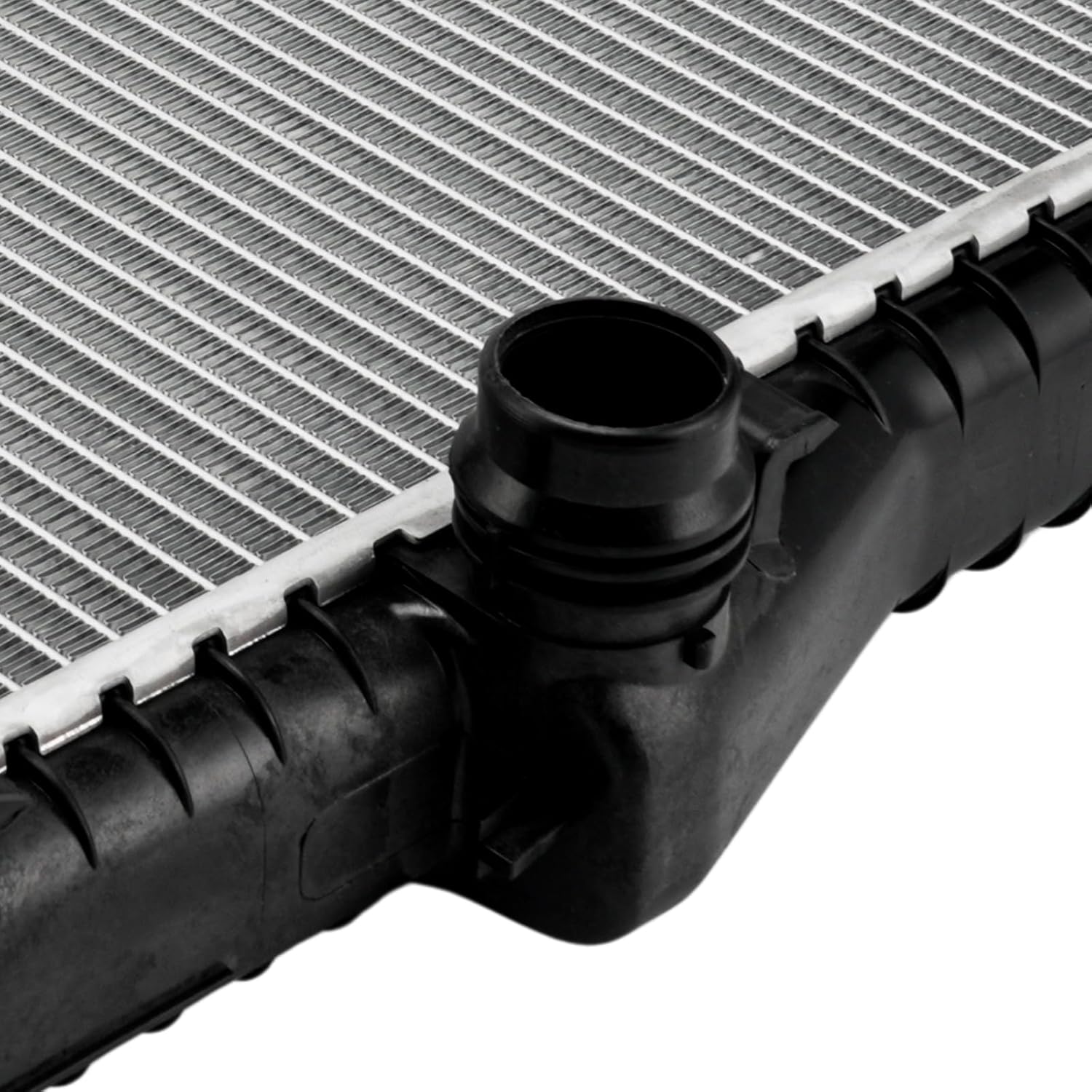

Inlet Diameter
1-1/2 in
Outlet Diameter
1-1/2 in
Items Included
1x Radiator - CU2284, 1x Instruction Manual
Mounting Type
Top Flange / Bottom Pin
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
17111436062,17111436063,17111436060,17111436061,1436060,1463061,1436061,2480924,2480935
Part Number
CU2284,412285,2284C,CU2285,8763,3453,2285,1403,2716,1401,60754A,376712501,432526,PR2285A,376712511,KLI2285,8012285,55321,RAD2285,SBR2285,432524,735223,735233,RA2285C,55322,8756,OR2285,RA2285,CR2285,CR2284,NR2285A,NR2284A,AM2285,AM2284,0R002285A4CM,C2285,BES2285,A2285,A2284,1981200114

Highlights

  • Vehicle Fitment For: 2001-2003 530i 3.0L, 2001-2003 525i 2.5L, 1999-2000 528i 2.8L, 1999-2003 540i 4.4L
  • Reference Number: CU2284, 412285, 2284C, CU2285, 17111436062, 17111436063, 17111436061, 17111436060, 1463061, 1436061, 1436060, 2284, 2285, 432524, 432526
  • Enhanced Package: Package come with 1x PHILTOP Radiator Complete Radiator and. Fixed foam in four corners for the purpose of fixing the radiator, no bending and no damage.

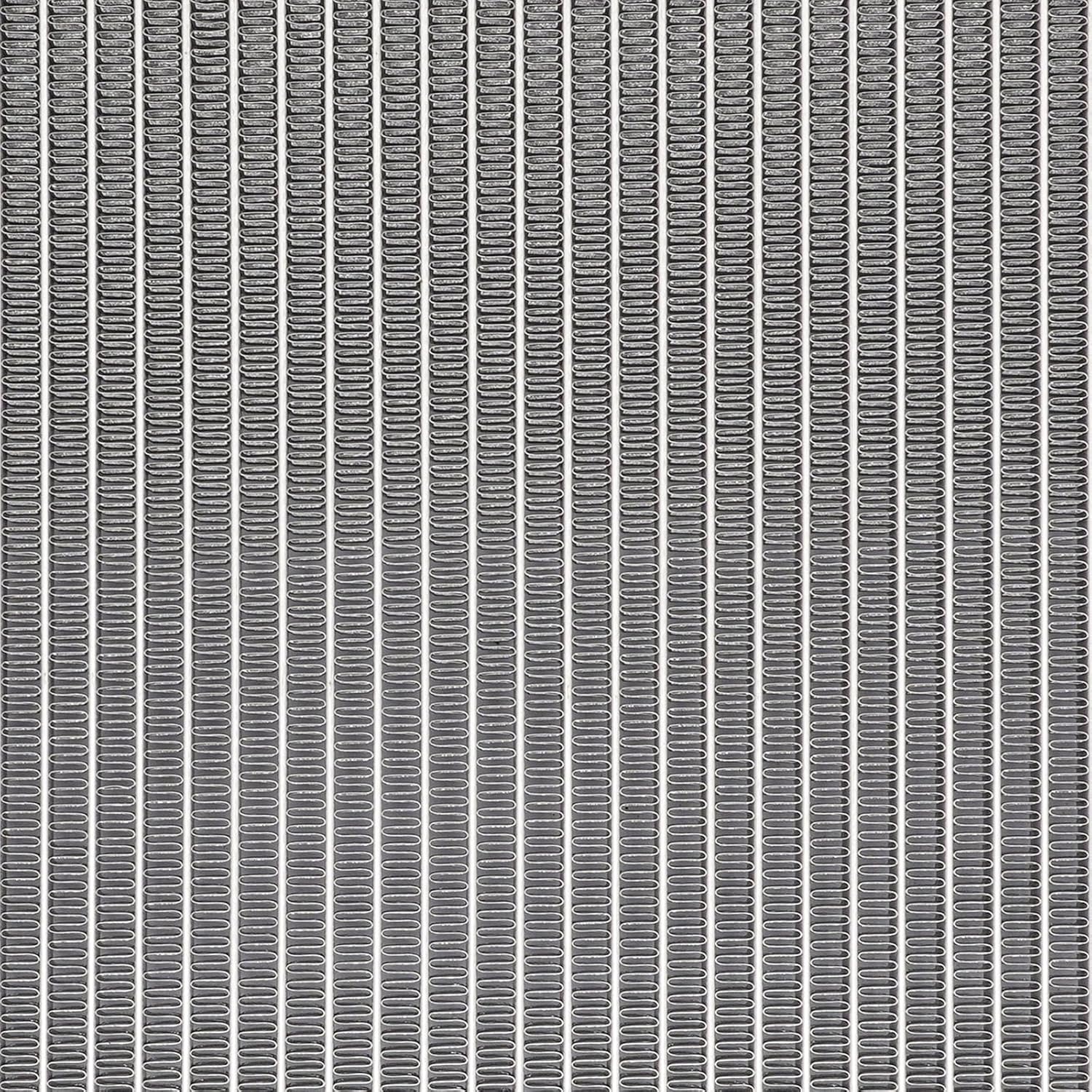

  • High-Efficiency Cooling: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16952 Certification: Authoritative certification, quality assurance

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2001 - 20031999 - 20002001 - 20031999 - 2003
MakeBMWBMWBMWBMW
Model525i528i530i540i
TrimBaseBaseBaseBase
Engine2.5L L62.8L L63.0L L64.4L V8
Note----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.6/5

Based on 5 reviews

560%
440%
30%
20%
10%

Tom_Handy_917

04/24/2026

This radiator looks and feels incredibly well-made. The welds are clean, and the materials seem top-notch. Definitely a great value for a BMW part.

Mike from Texas_939

03/16/2026

My BMW was constantly running hot, and this radiator completely fixed the issue. The temperature gauge stays right in the middle now, even on long drives. Big relief.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

A flush may help remove old coolant and debris when contamination is present. Follow the vehicle manufacturer’s service procedure.

Minor fin movement can occur during handling and may not affect normal operation. Do not install the radiator if the tubes, tanks, or mounting points are damaged.
