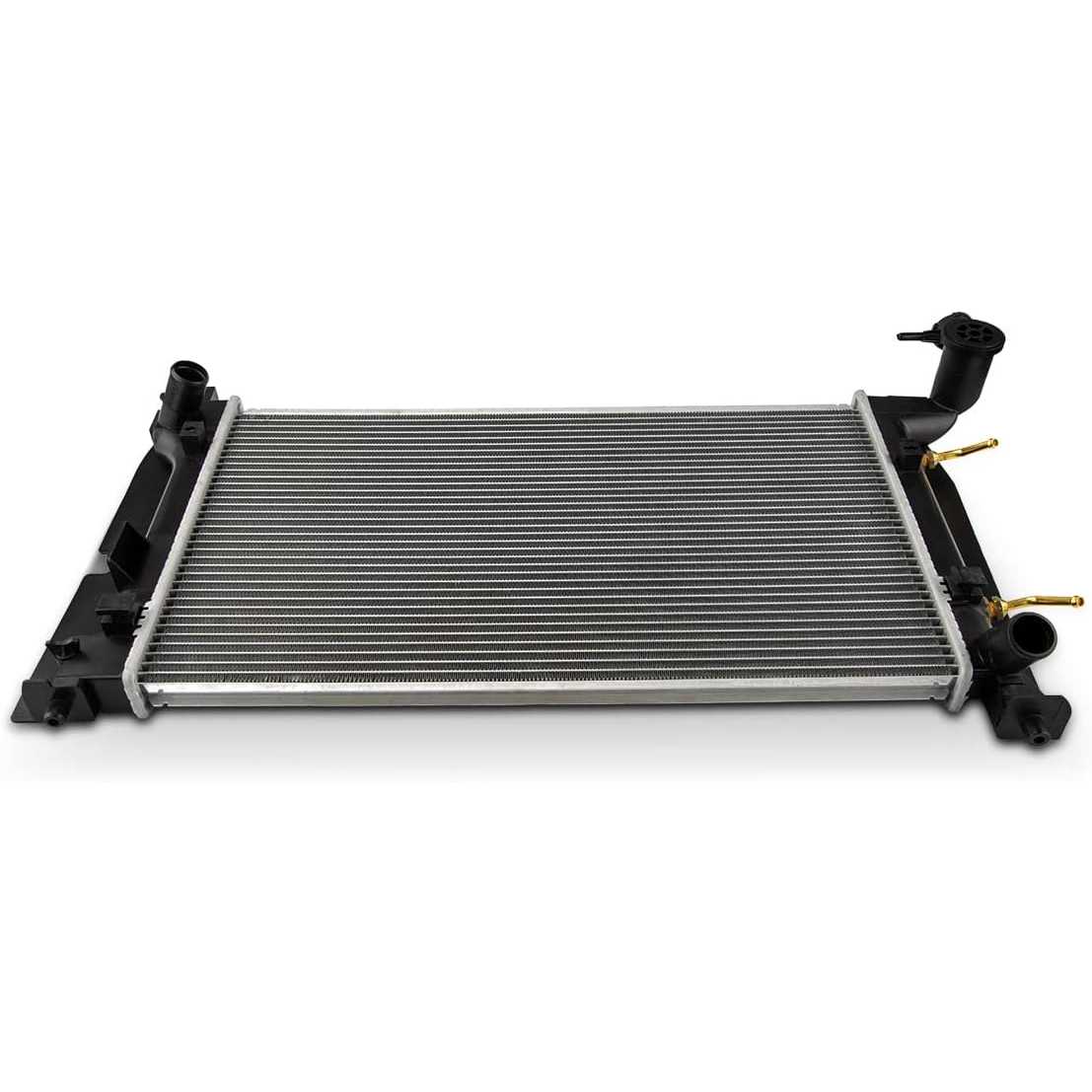

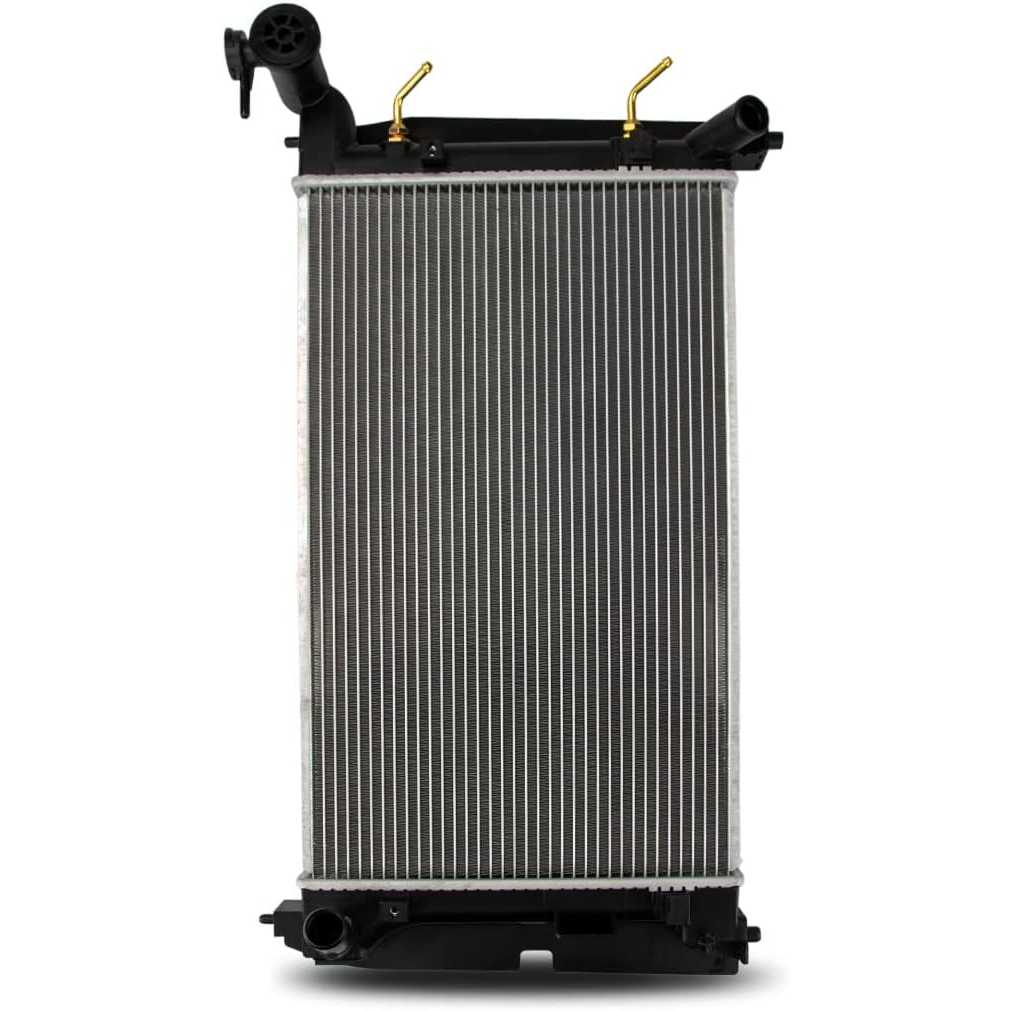

2003-2008 Toyota Corolla 1.8L L4 | Aluminum 3/4" Radiator | OE#164030D250/CU2428 - PHILTOP

2003-2008 Toyota Corolla 1.8L L4 | Aluminum 3/4" Radiator | OE#164030D250/CU2428 - PHILTOP

Leak-Resistant

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7661CFK035KUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
23-1/2 in
Core Height
13-11/16 in
Radiator Cap Included
No
Inlet Diameter
1-3/8 in
Outlet Diameter
1-3/8 in
Items Included
1x Radiator - CU2428, 1x Instruction Manual
Mounting Type
Top / Bottom Pin
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
164030D250,164030D240,164030D230,88969096,16410YZZAQ,164000D230,164000D240,164000D250,164100D240,164100D250,88969095,88969094,1640021160,1640021180,1640021140,36000000,1640021130,164100D230,16410AZ001
Part Number
CU2428,2210514,412428,2428C,2432,TO3010270,2911,432456,646321,PR2428A,REA412428A,KLI2428,SBR2428,BES2428,CU2432,B2428,1981202449,376748053,CRS2428,CUC2428,0R002428A1CM,AM2428,AM2432,NR2428A,CR2428,CR2432,56150,53325,RA2428,9790

Highlights

  • [Vehicle Fitment] The complete radiator compatible with 2003-2008 Corolla Matrix Vibe
  • [Specifications] Core Thickness 5/8 in. Core Width 23-1/2 in. Core Height 13-11/16 in. Inlet Diameter 1-3/8 in. Outlet Diameter 1-3/8 in
  • [High Quality Material] PHILTOP radiator housing is made of Aluminum, which can prevent corrosion and is stronger. The tank end interface is made of PA219 plastic to keep the shape of the radiator without deformation. Effectively ensure the service life

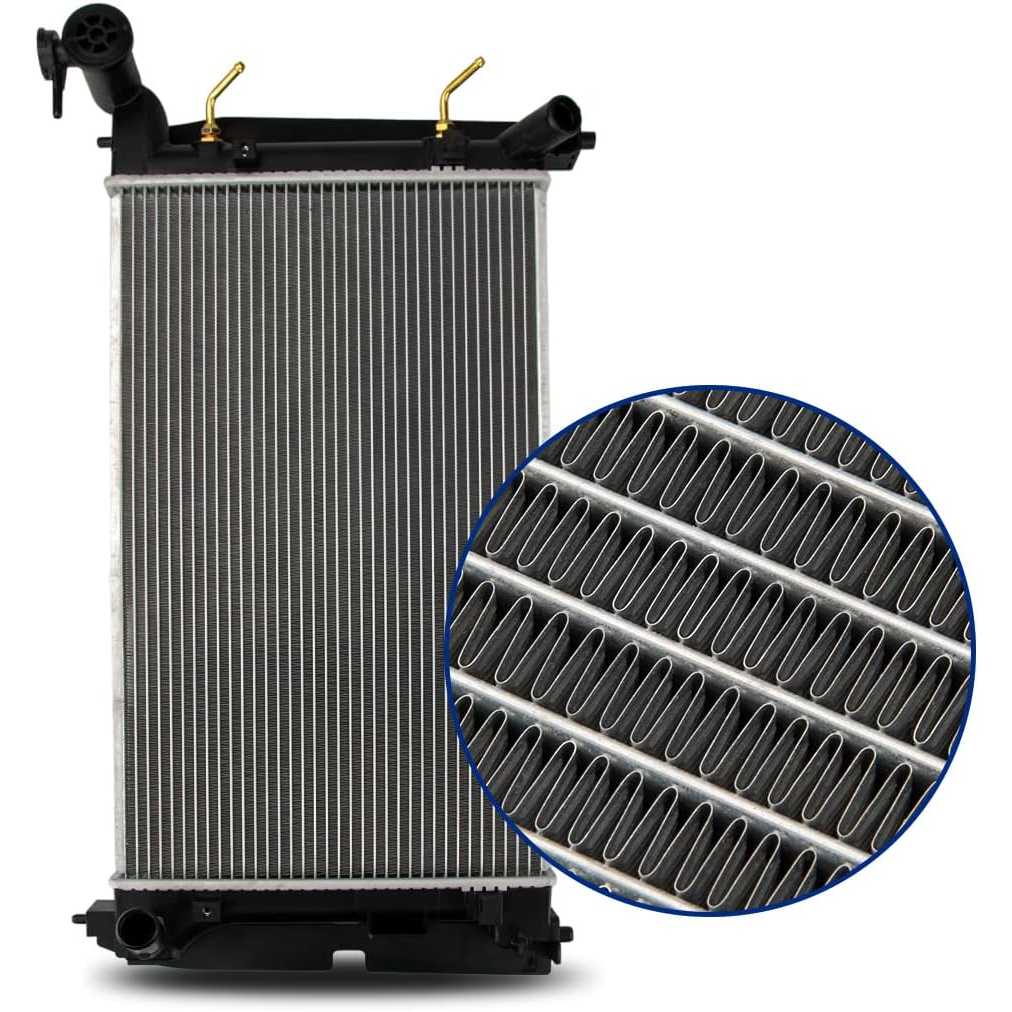

  • [Fast Heat Dissipation] The Aluminum water pipe is designed in a flat shape, and the heat sink is corrugated, focusing on heat dissipation performance. The cooling efficiency is at least 35%-198% higher than the radiators in the market. Gaskets and O-rings withstand thermal shock, ensuring durability in extreme cold weather
  • [151% No Leakage] PHILTOP Radiator Assembly has passed thousands of anti-leakage tests before leaving the factory, refuses to leak water

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2003 - 20082003 - 20062003 - 20082003 - 20082003 - 20082005 - 20062003 - 20082003 - 20082003 - 2006
MakePontiacPontiacToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelVibeVibeCorollaCorollaCorollaCorollaMatrixMatrixMatrix
TrimBaseGTCELESXRSBaseXRXRS
Engine1.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L4
Note
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

PHILTOP radiatorradiators

Reviews

4.9/5

Based on 12 reviews

592%
48%
30%
20%
10%

Alexander

07/10/2025

Verified buyer

Good quality radiator, easy to install

Cody

04/20/2025

Verified buyer

Fit perfectly an price is great easily replaced my radiator

FAQS

Minor fin movement can occur during handling and may not affect normal operation. Do not install the radiator if the tubes, tanks, or mounting points are damaged.

Please do not install the product. Take photos of the item, packaging and shipping label, then contact Philtop customer support as soon as possible for assistance.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
