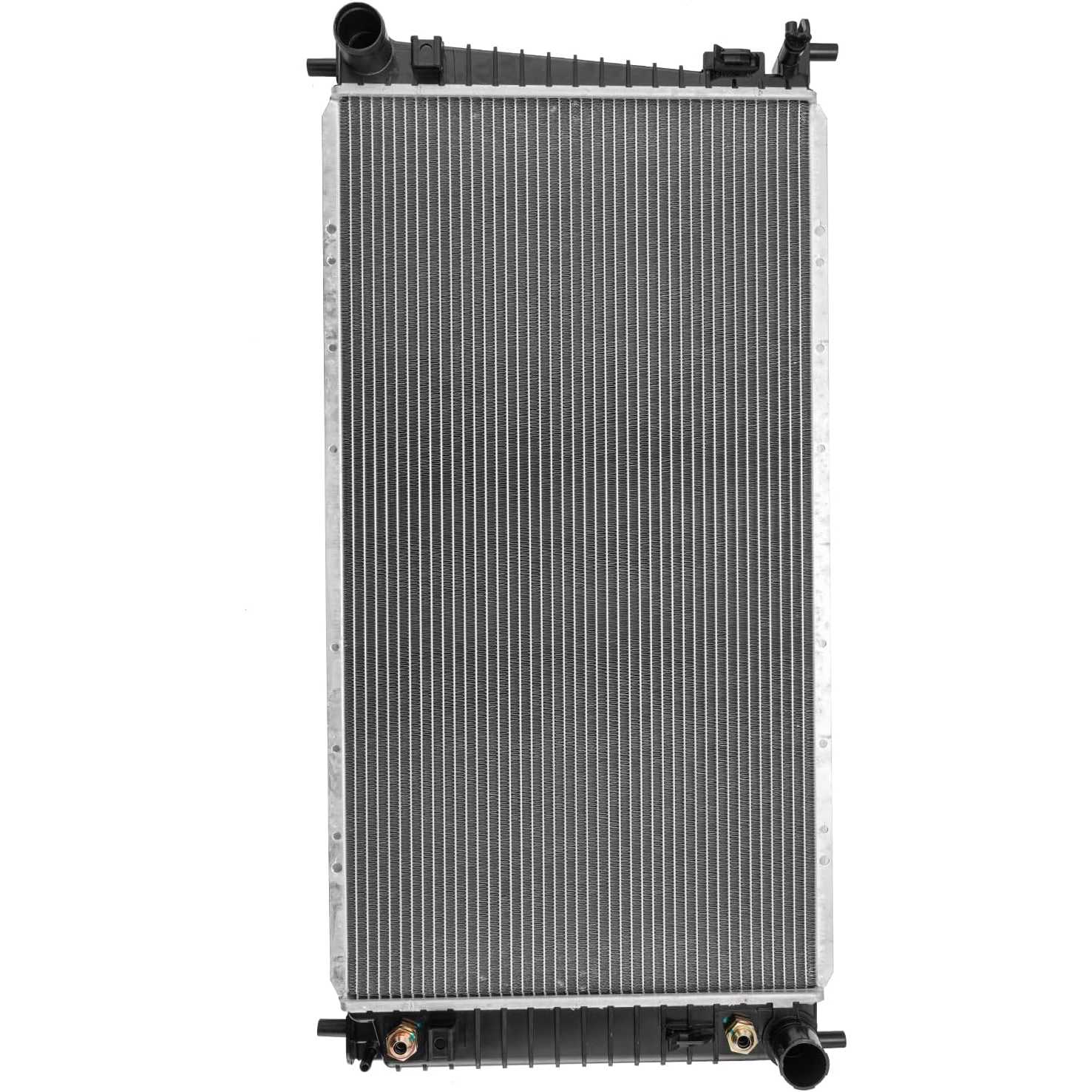

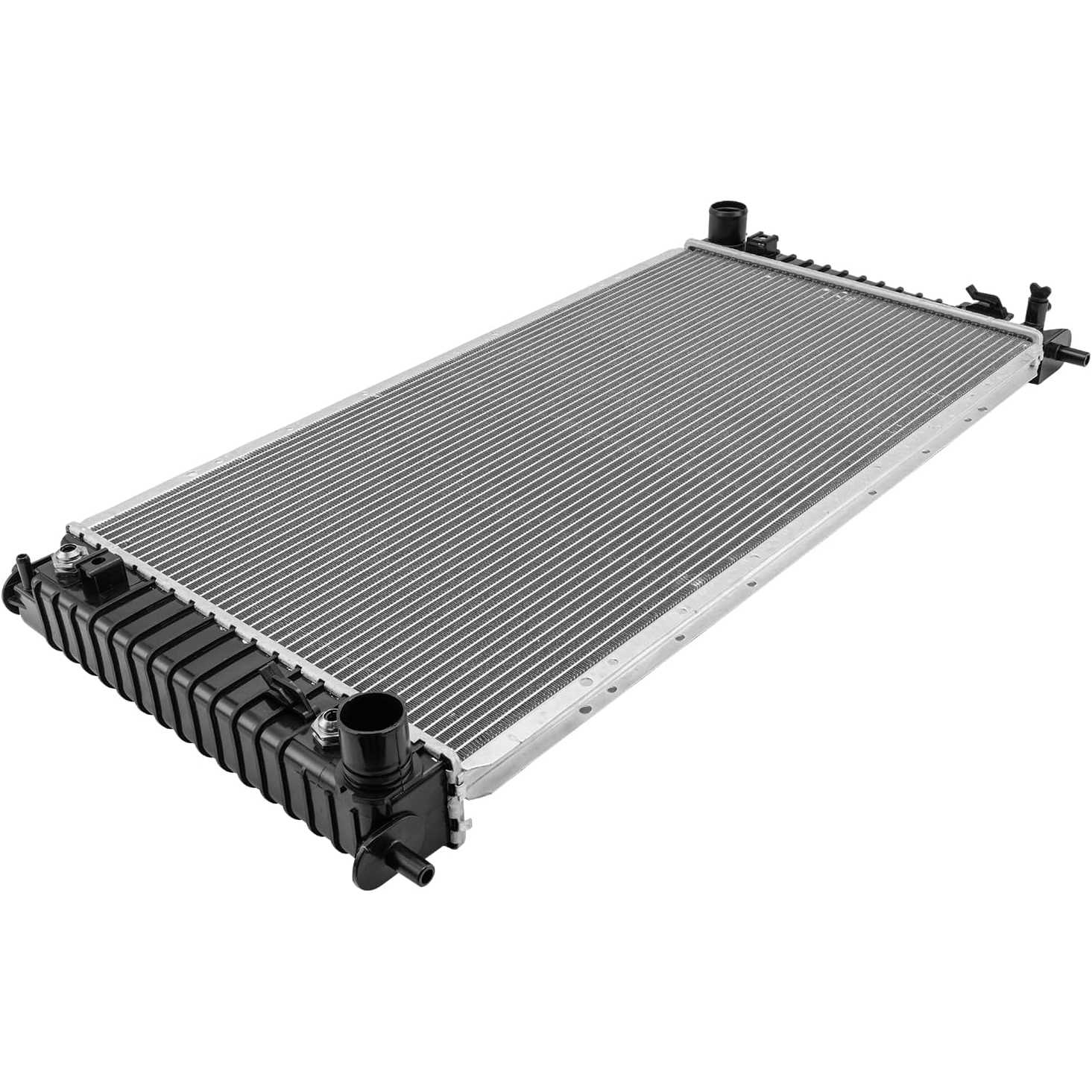

2003-2004 Ford F-150 5.4L V8 | Aluminum 1" Radiator | OE#4L3Z8005AB/CU2596 - PHILTOP

2003-2004 Ford F-150 5.4L V8 | Aluminum 1" Radiator | OE#4L3Z8005AB/CU2596 - PHILTOP

Leak-Resistant

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5351RAD114PUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
16-7/8 in
Core Height
31-13/16 in
Radiator Cap Included
No
Inlet Diameter
1-3/4 in
Outlet Diameter
1-3/4 in
Items Included
1x Radiator - CU2596, 1x Instruction Manual
Mounting Type
Top / Bottom Pin
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
4L3Z8005AB,YL3Z8005GACP,3C3Z8005FACP,YL3Z8005BACP,2L3Z8005AB,2L3Z8005BA,2L3H8005AB,3L348005AA,2L348005BA,2L348005AB,5L3Z8005DB,5L3Z8005DC,3L3Z8005BA,2480991
Part Number
CU2596,412596,2596C,412718,2596,2718,KLI2718,KLI2596,SBR2596,FO3010158,PR2596A,438200,CRS2596,PR2596F,103034,B2596,BES2596,BES2718,CUC2596,0R002596A2CM,AM2596,AM2718,NR2596B,CR2596,CR2718,REA412596A,REA412718A,9436,CU2718

Highlights

  • Vehicle Fitment For: 2003-2004 F-150 2004 F-150 Heritage XL/XLT 2003 F-250/F-350 Super Duty 5.4L (w/ 1 in. Thick Core; w/ Quick Connect Fittings)
  • Direct Replacement OE NO.:4L3Z8005AB、2596、2L3Z8005AB、2L3Z8005BA、2718、2L3H8005AB、3L348005AA、CU2596、2L348005AB、2L348005BA、KLI2718、YL3Z8005GACP、KLI2596、SBR2596、FO3010158、PR2596A、412596、438200、CRS2596、PR2596F、CU2718、9436、REA412718A、REA412596A、2480991、CR2718、CR2596、NR2596B、AM2718、AM2596、0R002596A2CM、CUC2596、3C3Z8005FACP、BES2718、BES2596、B2596、103034、5L3Z8005DB、5L3Z8005DC、3L3Z8005BA、YL3Z8005BACP、412718、2596C
  • Excellent Heatsink Performance: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16957 Certification: Authoritative certification, quality assurance
  • Easy and Quick to Install - Direct bolt-on OE fitment or replacement for factory unit, fast and easy installation without any drilling or modification.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year200420032003200320032003 - 20042003200420032003 - 20042003 - 200420032003 - 20042003 - 20042004200420042004200420042003200320032003200320032003
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-250 Super DutyF-250 Super DutyF-250 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super Duty
TrimFX4Harley-Davidson EditionKing RanchKing RanchLariatLariatLightningSTXXLXLXLXLTXLTXLTXLXLXLXLTXLTXLTLariatXLXLTKing RanchLariatXLXLT
Engine5.4L V85.4L V84.6L V85.4L V84.6L V85.4L V85.4L V84.6L V84.2L V64.6L V85.4L V84.2L V64.6L V85.4L V84.2L V64.6L V85.4L V84.2L V64.6L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V8
Note
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
------
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings
w/ 1 in. Thick Core;w/ Quick Connect Fittings

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.7/5

Based on 6 reviews

567%
433%
30%
20%
10%

Steve_DIYer_429

12/08/2025

Seriously impressed with the build quality of this radiator. It feels robust and well-made, especially considering the price. It’s a great value and performs excellent.

Rob_HomeGarage_900

04/04/2026

The shipping was incredibly fast, and the radiator was well-packaged. Installation was straightforward, everything fit perfectly. It's always great when a part goes on without any issues.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.
