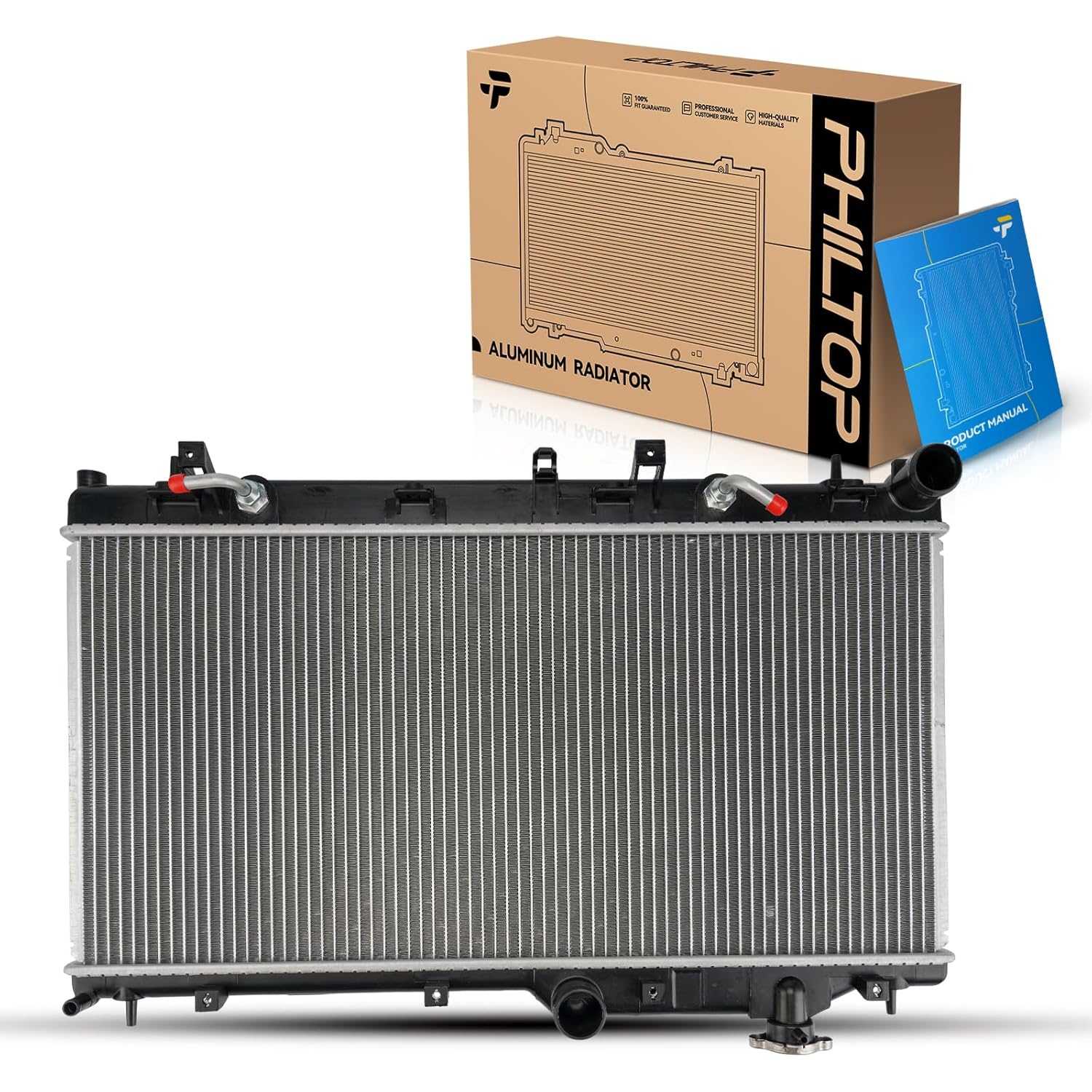

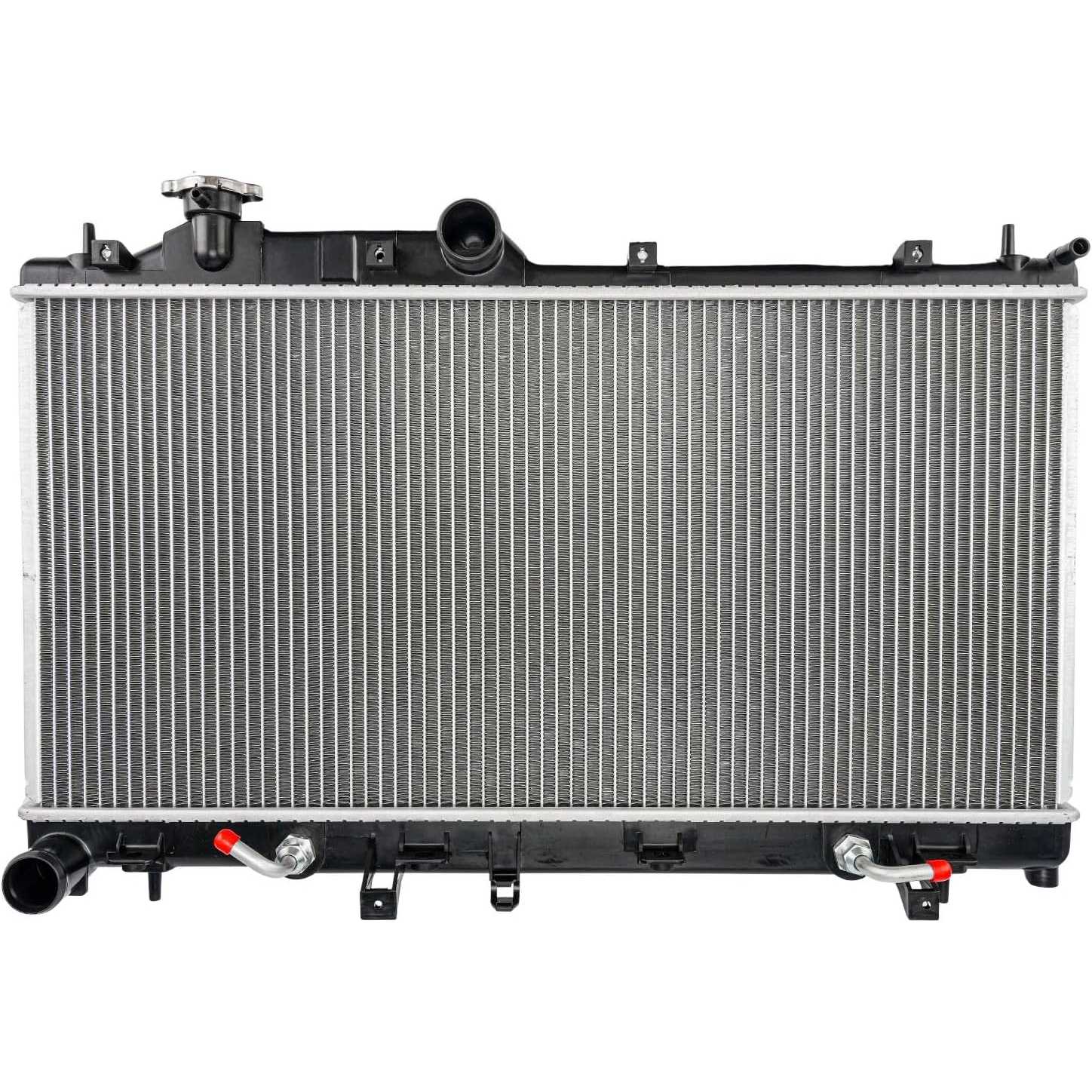

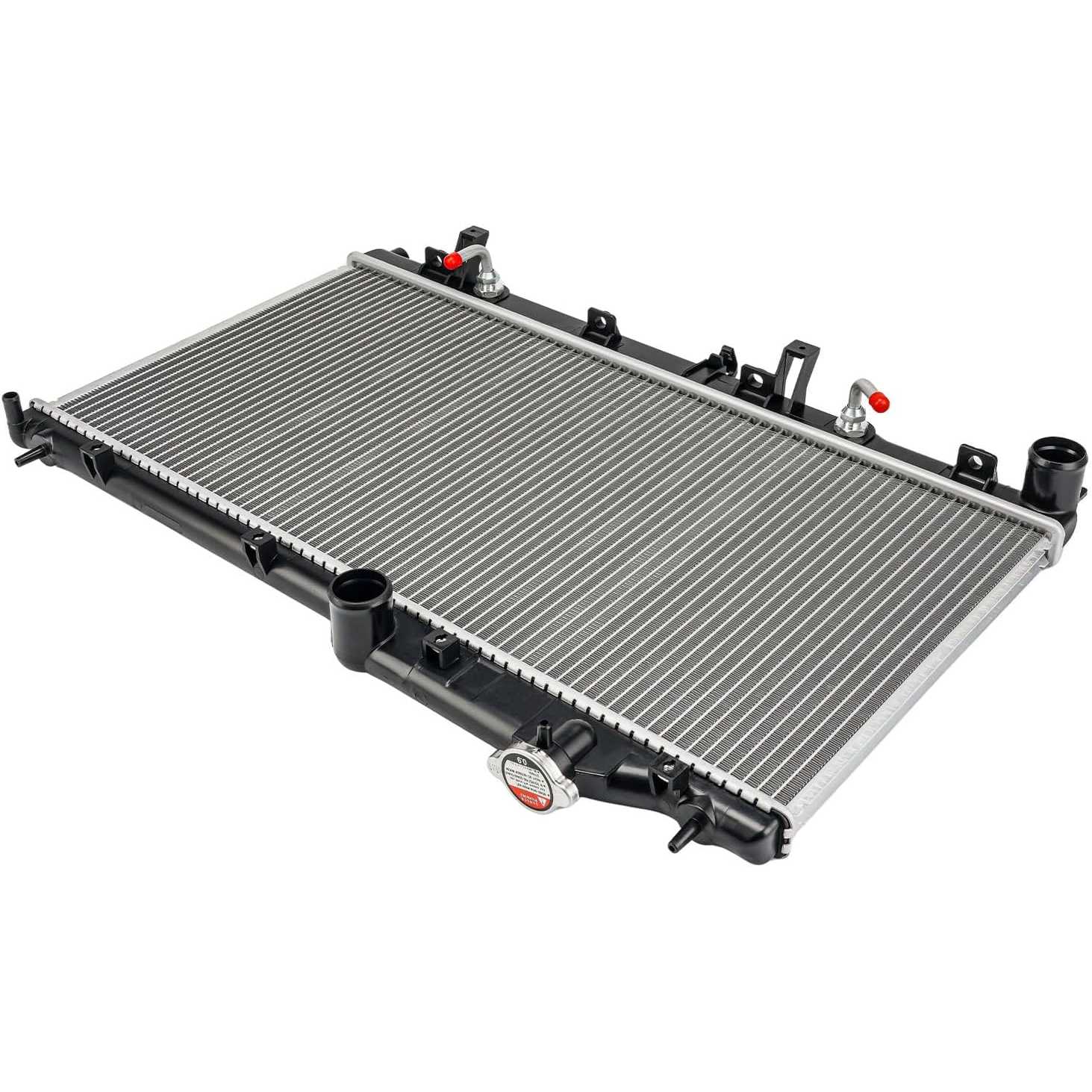

2005-2009 Subaru Outback 2.5L | Aluminum 3/4" Radiator | OE#45111AG02A/CU2778 - PHILTOP

2005-2009 Subaru Outback 2.5L | Aluminum 3/4" Radiator | OE#45111AG02A/CU2778 - PHILTOP

Cap Included

Leak-Resistant

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8510RAD182MUS

Specifications

Brand
PHILTOP

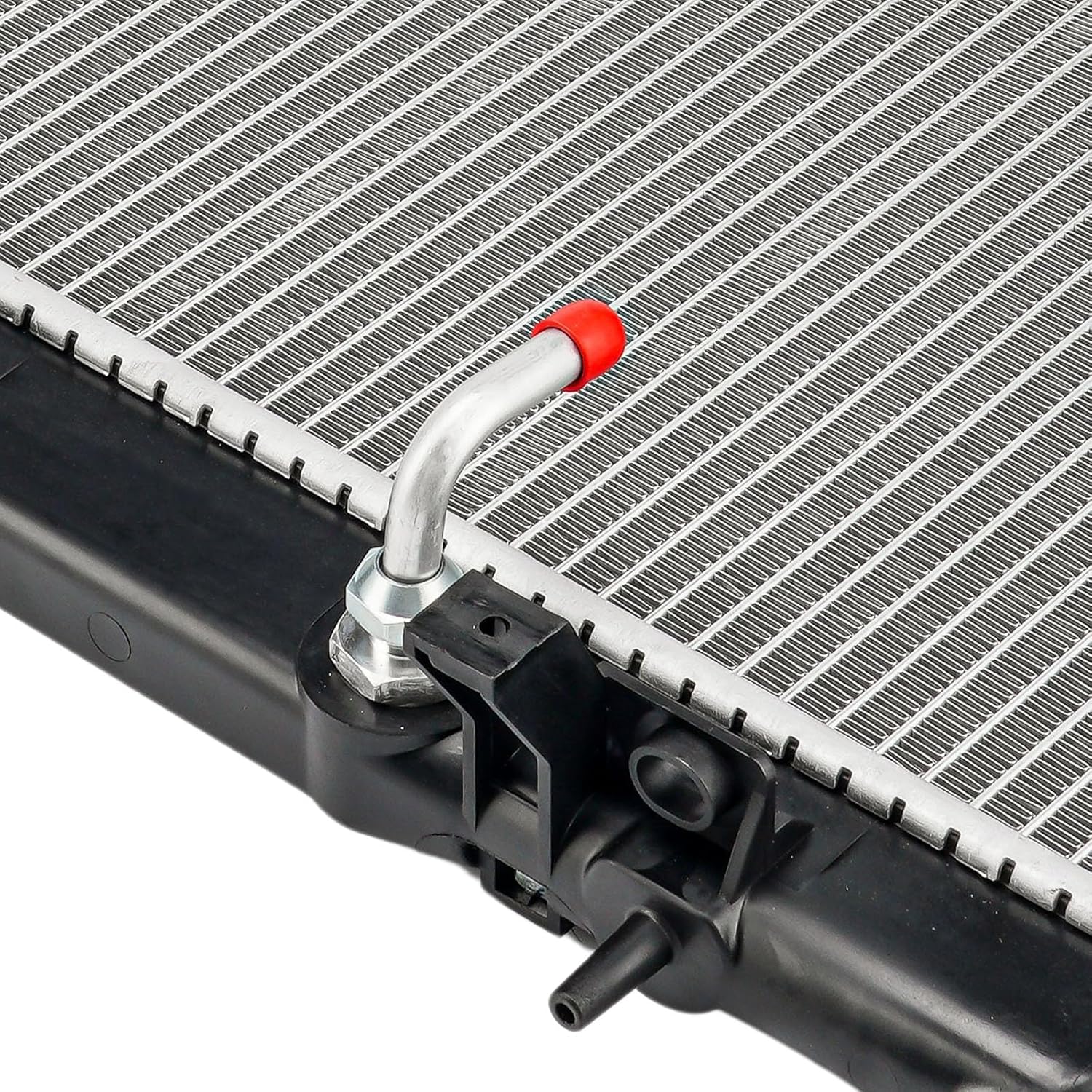

Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
27 in
Core Height
13-3/8 in
Radiator Cap Included
Yes
Inlet Diameter
1-9/16 in
Outlet Diameter
1-9/16 in
Items Included
1x Radiator - CU2778, 1x Instruction Manual
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
45111AG02A,45119AG01A,45111AG03A,45111AG09A,45119FG000
Part Number
CU2778,2213605,2778C,434001

Highlights

  • Vehicle Fitment For: [Subaru] 2005-2009 Legacy Turbocharged 2005-2009 Outback Turbocharged
  • Direct Replacement OE NO.:45111AJ07A、CU2778、45111AG02A、2778、45119FG040、45119SC020、45119AG01A、45111AG03A、2213605、45111AG09A、RAD2778、45119FG000、45111AG08A、434001、2778DPI、C2778、0ASU6139、0ASU6127、2778C
  • Excellent Heatsink Performance: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16957 Certification: Authoritative certification, quality assurance
  • Easy and Quick to Install - Direct bolt-on OE fitment or replacement for factory unit, fast and easy installation without any drilling or modification.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 200620052007 - 20092006 - 20092005 - 20062005 - 2009
MakeSubaruSubaruSubaruSubaruSubaruSubaru
ModelLegacyLegacyLegacyLegacyOutbackOutback
TrimGTGT LimitedGT LimitedGT spec.BXTXT Limited
Engine2.5L H42.5L H42.5L H42.5L H42.5L H42.5L H4
Note
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

Emma_DailyCommute_866

11/25/2025

My Subaru was overheating like crazy, but this radiator fixed it right up. Keeps the temp steady, big improvement.

Jason_Trucks_106

04/06/2026

Fitment was good, but I did need a couple of special tools that I didn't have handy. Glad I had them in my toolbox though.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.

A flush may help remove old coolant and debris when contamination is present. Follow the vehicle manufacturer’s service procedure.
