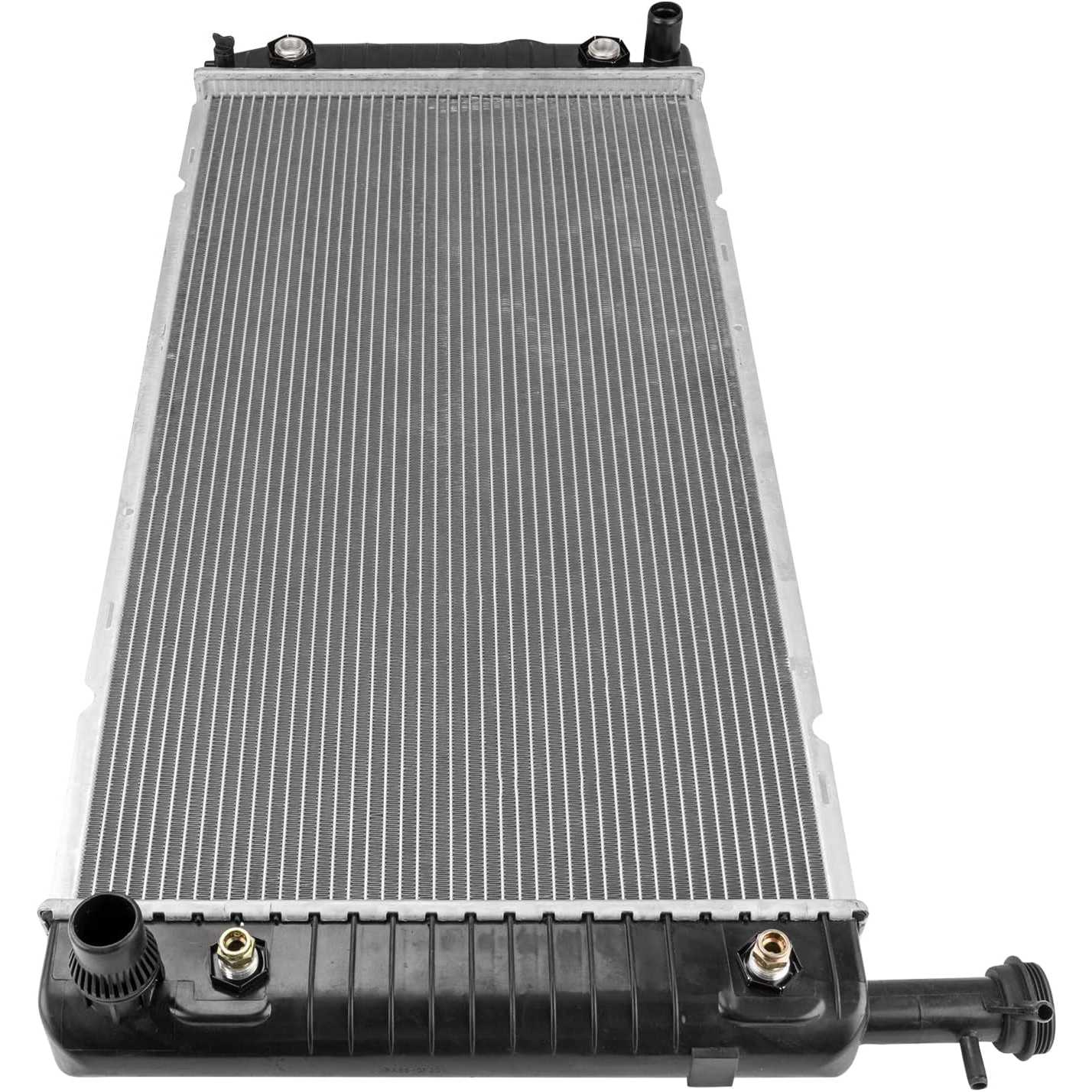

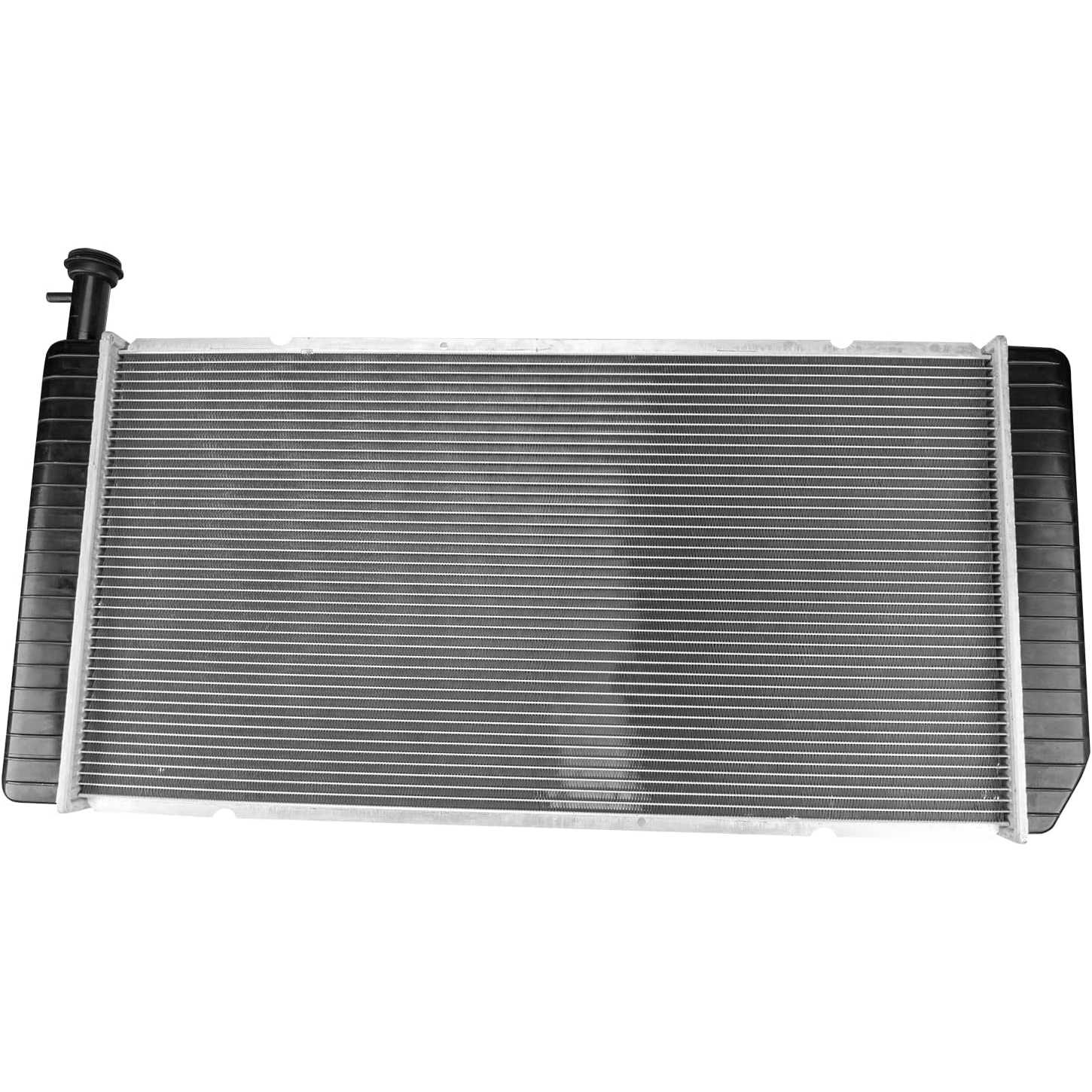

2004-2020 Chevrolet Express 3500 4.8L V8 | Aluminum 1" Radiator | OE#84111993/CU2791 - PHILTOP

2004-2020 Chevrolet Express 3500 4.8L V8 | Aluminum 1" Radiator | OE#84111993/CU2791 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9307CFK155QUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
Yes
Core Thickness
1 in
Core Width
34 in
Core Height
17-1/4 in
Radiator Cap Included
No
Inlet Diameter
1-5/16 in
Outlet Diameter
1-1/2 in
Items Included

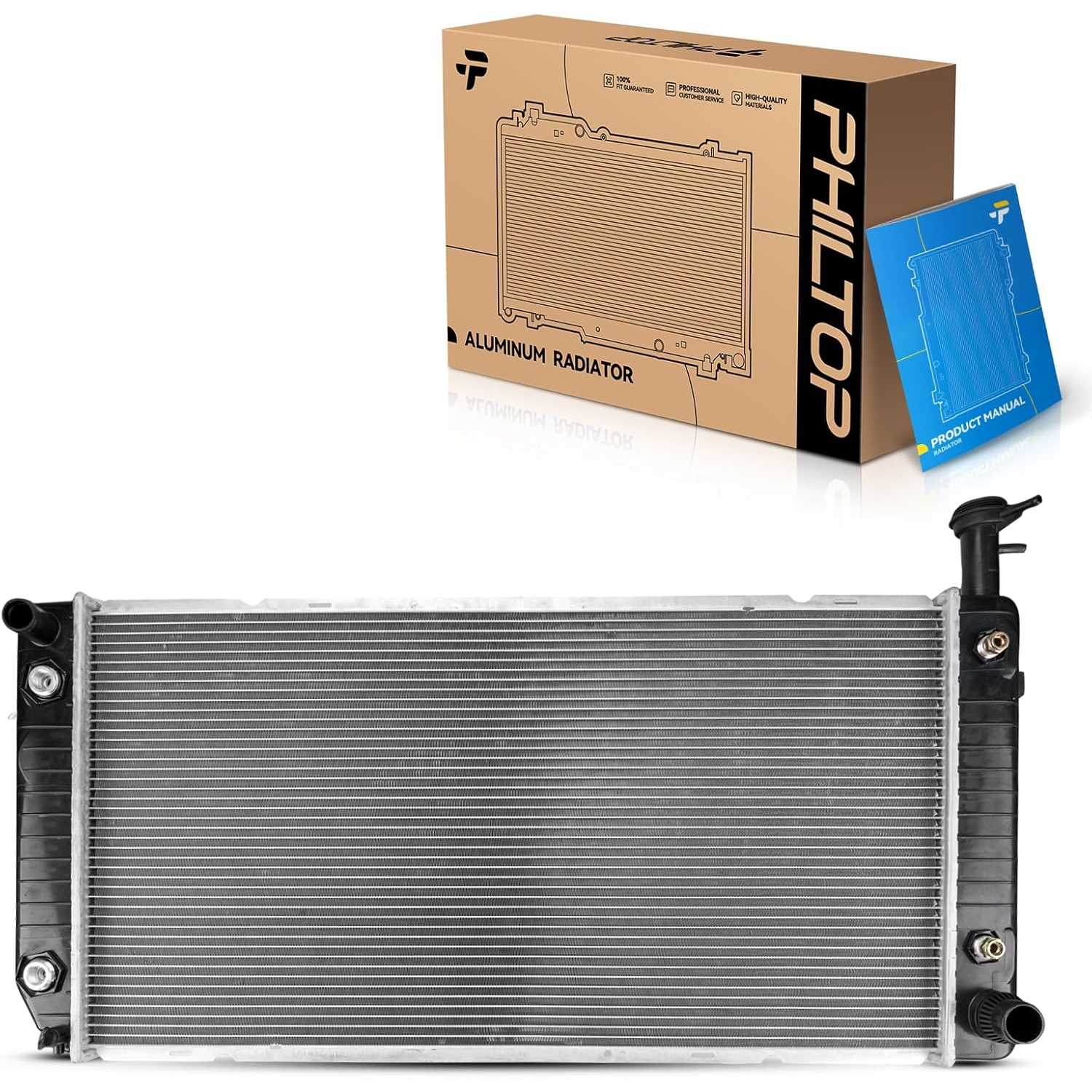

1x Radiator - CU2791, 1x Instruction Manual
Mounting Type
Saddle
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
84111993,23378648,84310389,84261847,89019353,15897984,15262433,15107009,15127536,15262432,25912001,23378647,25912002,84494240,22795300,15798094,15897981,25912003,2480798
Part Number
CU2791,2791C,412791,2791,GM3010502,GM3010483,SBR2791,PR2791A,438064,KLI2791,RA2866C,9488,1981201087,B2791,BES2791,0R002791A2CM,13867,AM2791,AM2866,NR2791B,CR2791,CR2866,56093,RA2866

Highlights

  • Vehicle Fitment: 2004-2020 Express 2500 4.8/6.0L 2004-2020 Express 3500 4.8/6.0L(2004 ONLY Fits 6.0L) 2004-2020 Savana 2500/3500 4.8/6.0L 2009-2020 Express/Savana 4500 6.0L (w/o Sensor Hole; w/ Quick Connect) Engine Oil Cooler Included; Transmission Oil Cooler Included
  • Reference Number: 15107009, 15127536, 15262432, 15262433, 15798094, 15897981, 15897984, 22795300, 23378647, 25912001, 25912002, 25912003, 84462085, 84494240, 89019353, CU2866
  • Product Dimension - Core Width: 34 in ,Core Height: 17-1/4 in ,Core Thickness: 1 in ,Inlet Diameter: 1-5/16 in ,Outlet Diameter: 1-1/2 in
  • IATF16994 Certification: Authoritative certification, quality assurance
  • Feature: Built with high density multi-Lowered fins for maximum cooling efficiency

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 20172004 - 20202004 - 20062011 - 20172004 - 202020062011 - 20172006 - 20202005 - 201720042005 - 202020052012 - 201720042005 - 20202012 - 20172006 - 20202009 - 201920202004 - 20172004 - 20202011 - 20172007 - 20202011 - 20172007 - 20202004 - 20052004 - 20052004 - 20172004 - 20202012 - 20172006 - 20202012 - 20172006 - 20202004 - 20052004 - 20052009 - 2020
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMC
ModelExpress 2500Express 2500Express 2500Express 2500Express 2500Express 2500Express 2500Express 2500Express 3500Express 3500Express 3500Express 3500Express 3500Express 3500Express 3500Express 3500Express 3500Express 4500Express 4500Savana 2500Savana 2500Savana 2500Savana 2500Savana 2500Savana 2500Savana 2500Savana 2500Savana 3500Savana 3500Savana 3500Savana 3500Savana 3500Savana 3500Savana 3500Savana 3500Savana 4500
TrimBaseBaseLSLSLSLTLTLTBaseBaseBaseLSLSLSLSLTLTBaseBaseBaseBaseLSLSLTLTSLESLEBaseBaseLSLSLTLTSLESLEBase
Engine4.8L V86.0L V84.8L V84.8L V86.0L V84.8L V84.8L V86.0L V84.8L V86.0L V86.0L V84.8L V84.8L V86.0L V86.0L V84.8L V86.0L V86.0L V86.0L V84.8L V86.0L V84.8L V86.0L V84.8L V86.0L V84.8L V86.0L V84.8L V86.0L V84.8L V86.0L V84.8L V86.0L V84.8L V86.0L V86.0L V8
Note
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
-
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
-
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
-
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole
Radiator Cap Is Required;w/ Quick Connect Hose;w/o Sensor Hole

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.8/5

Based on 6 reviews

583%
417%
30%
20%
10%

Nancy_FirstCar_477

11/10/2025

My old radiator finally gave out, and this replacement has been fantastic. No more overheating issues on my work van, and it was a pretty simple swap.

Mike from Texas_886

01/04/2026

Solid construction, feels very durable. I was looking for something affordable but reliable, and this radiator fits the bill perfectly. Glad I chose this one.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.
