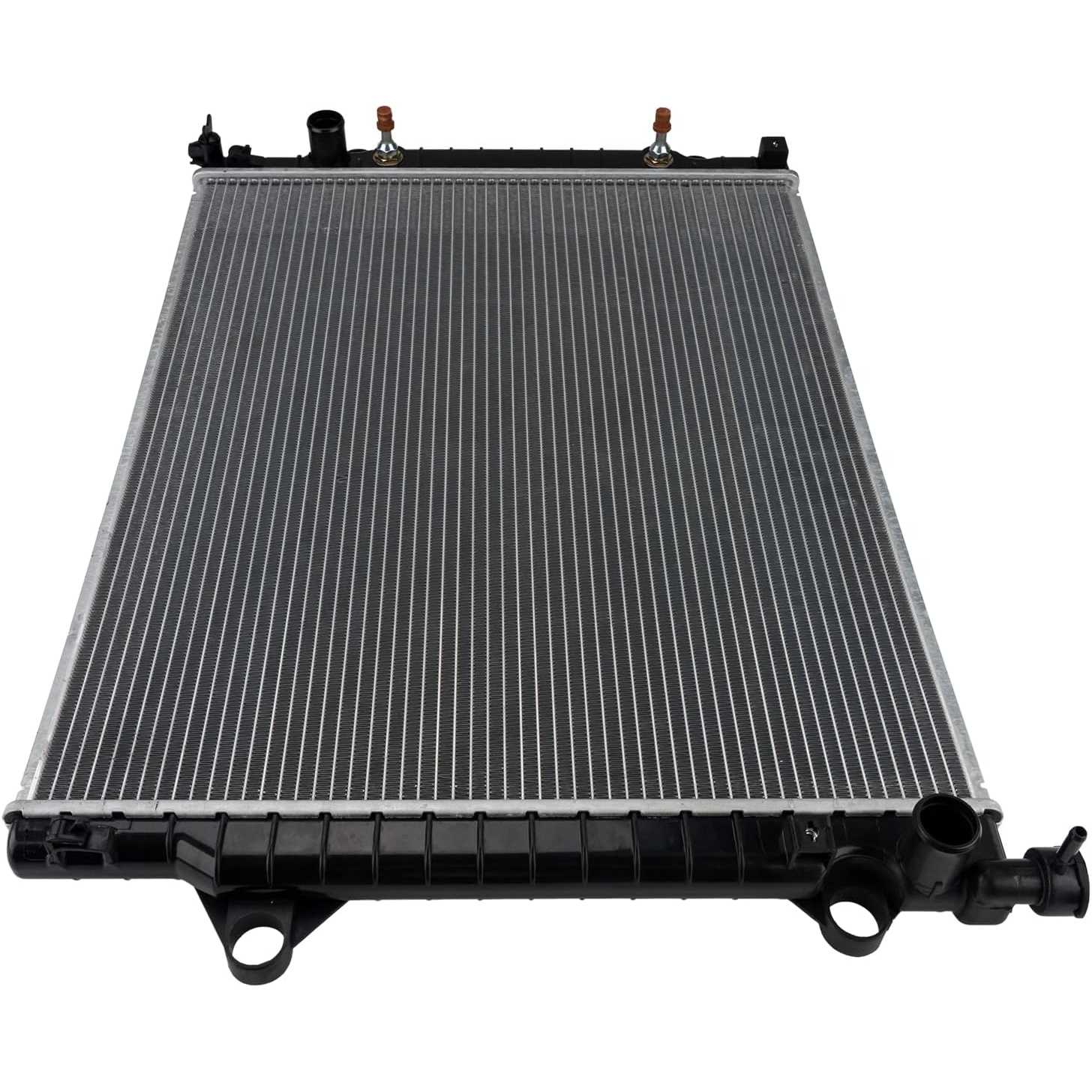

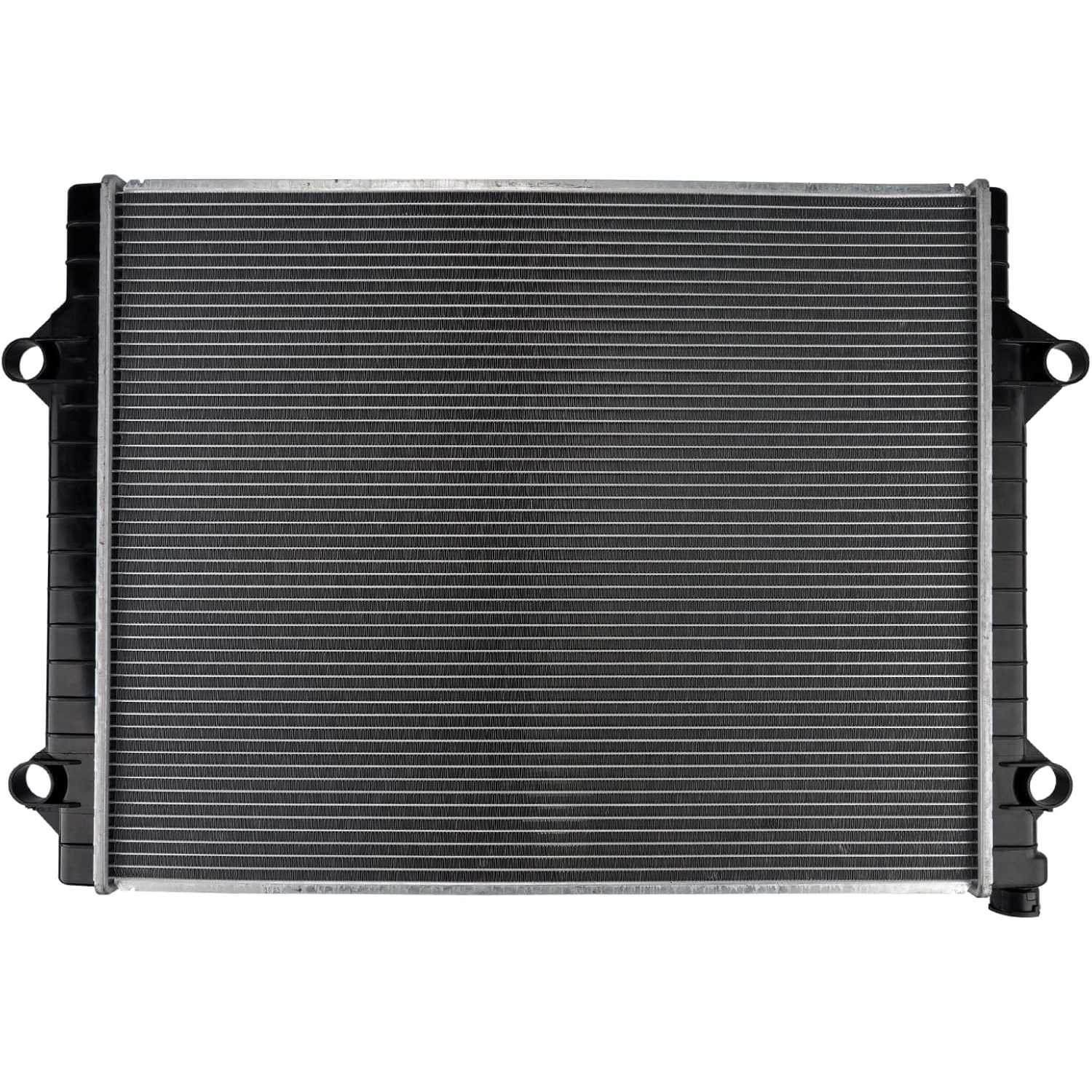

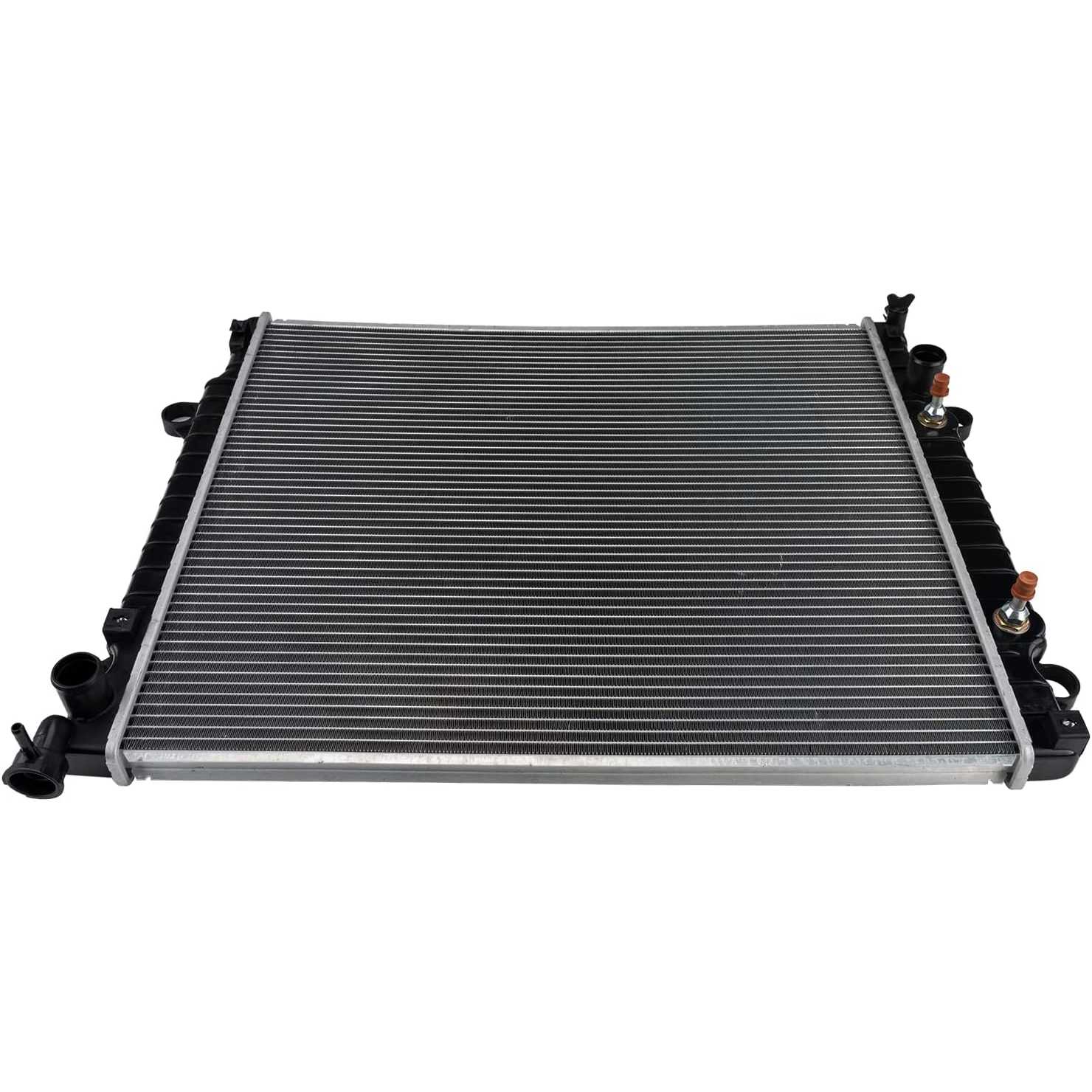

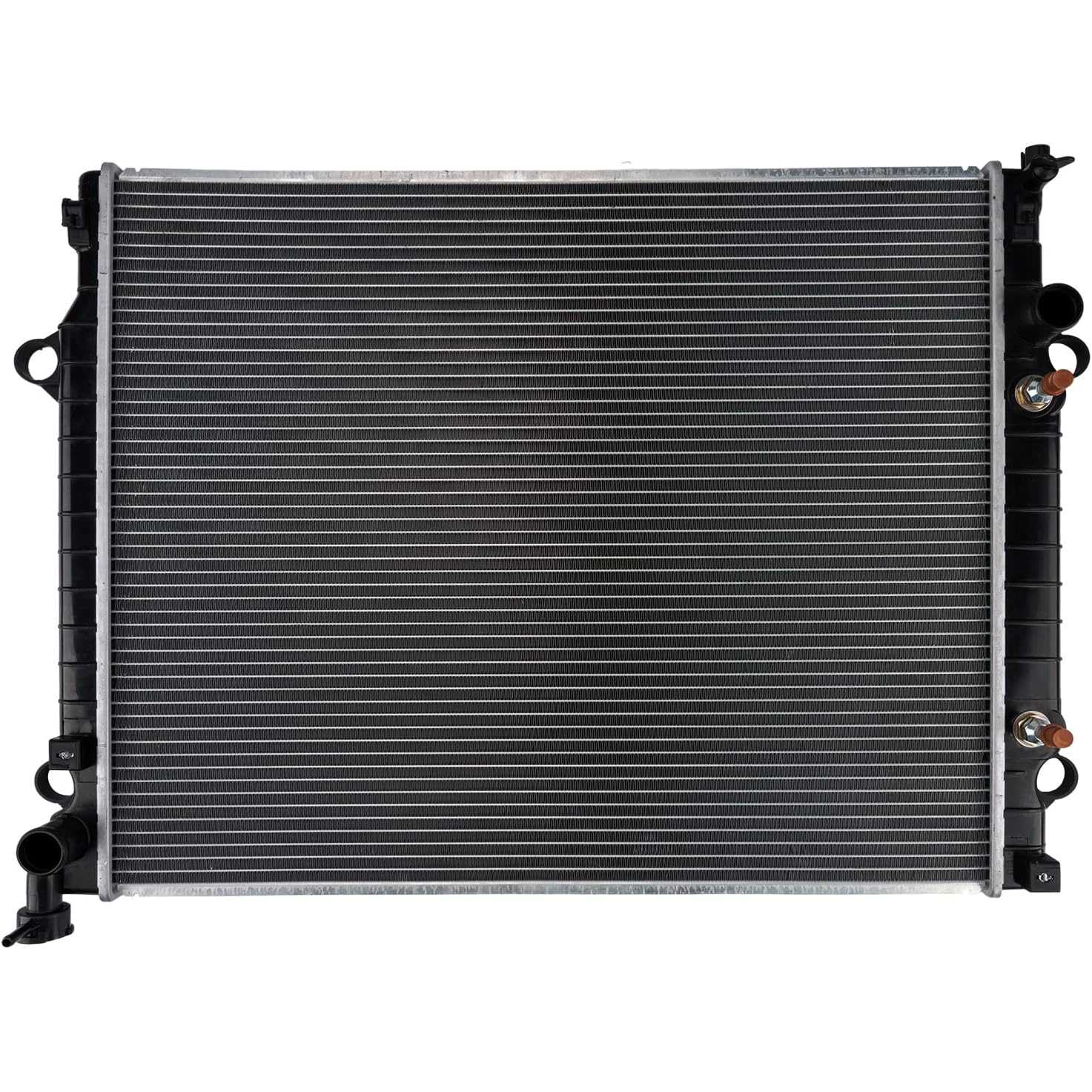

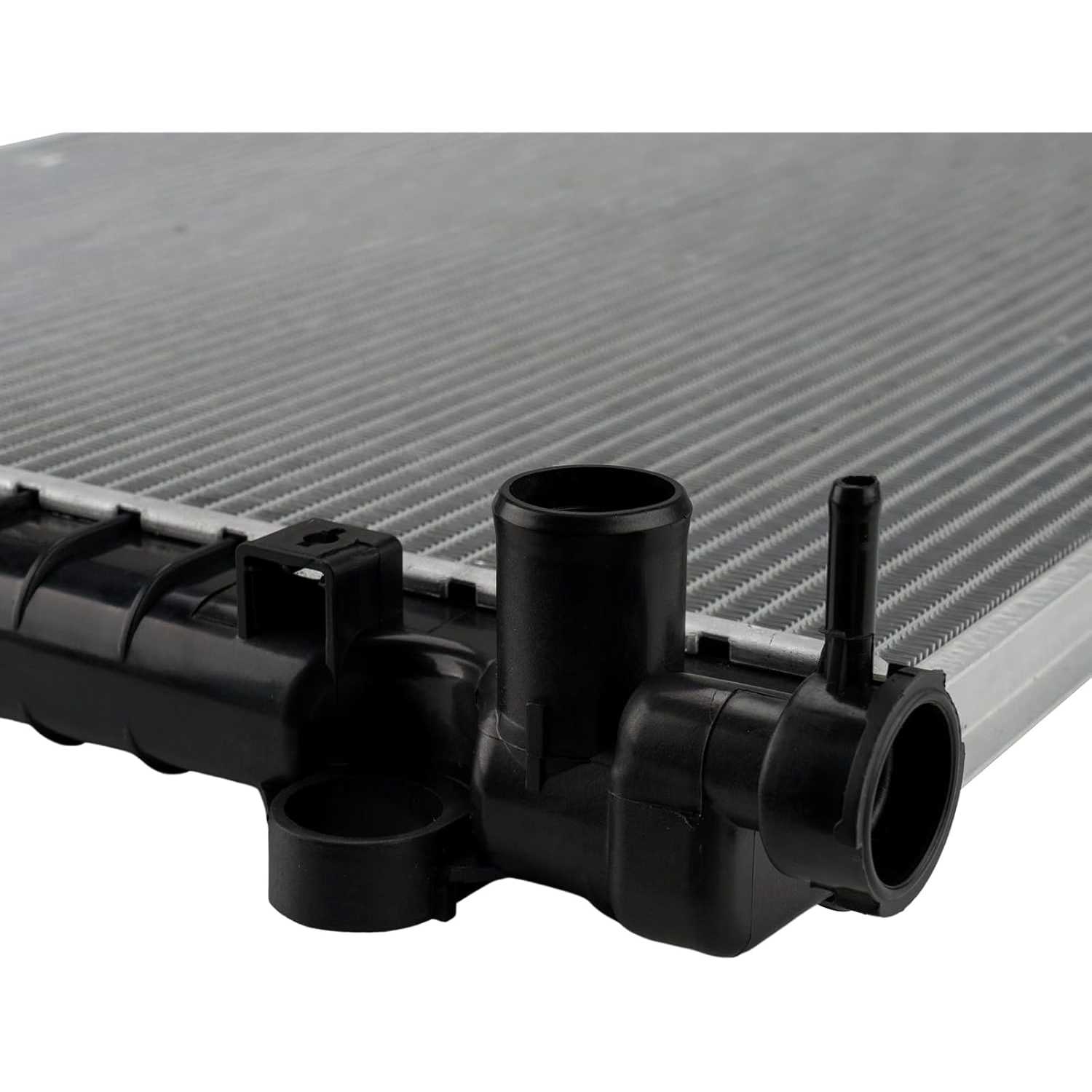

2005-2015 Toyota Tacoma 2.7L L4 | Aluminum 1" Radiator | OE#164100P030/CU2802 - PHILTOP

2005-2015 Toyota Tacoma 2.7L L4 | Aluminum 1" Radiator | OE#164100P030/CU2802 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6883CFK134HUS

Specifications

Brand
PHILTOP

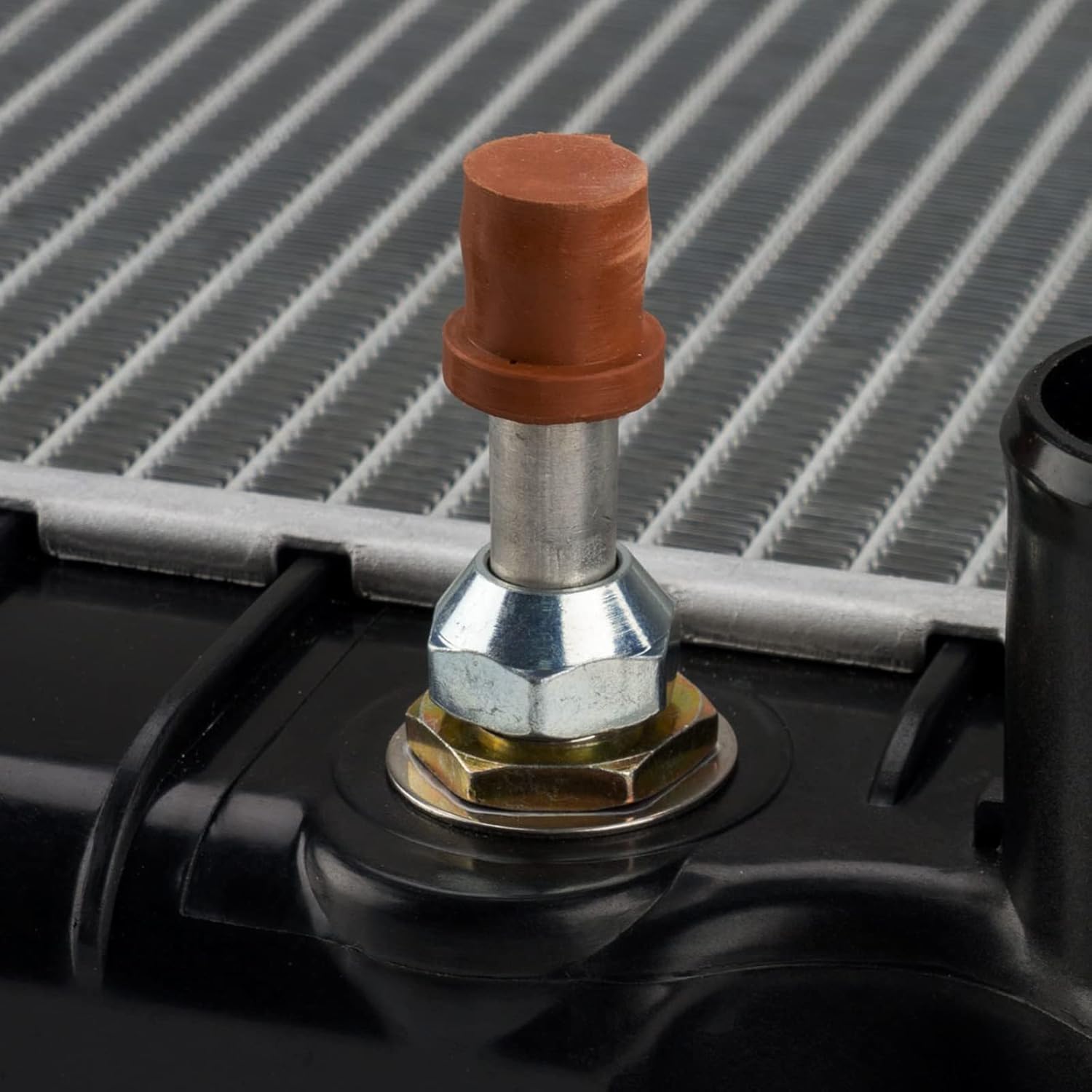

Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No

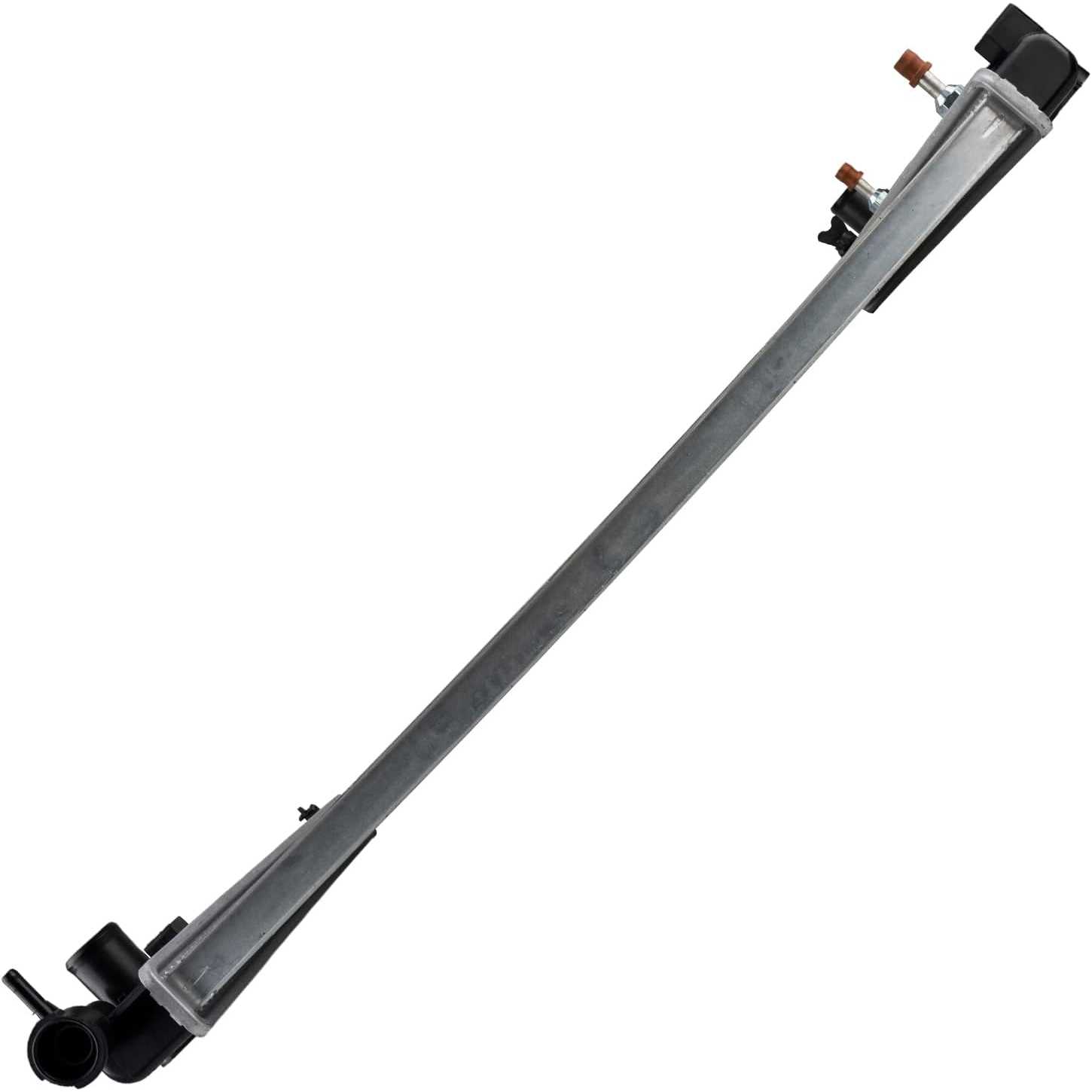

Core Thickness
1 in
Core Width
25-5/8 in
Core Height
21-1/2 in
Radiator Cap Included
No
Inlet Diameter
1-3/8 in
Outlet Diameter
1-3/8 in
Items Included
1x Radiator - CU2802, 1x Instruction Manual
Mounting Type

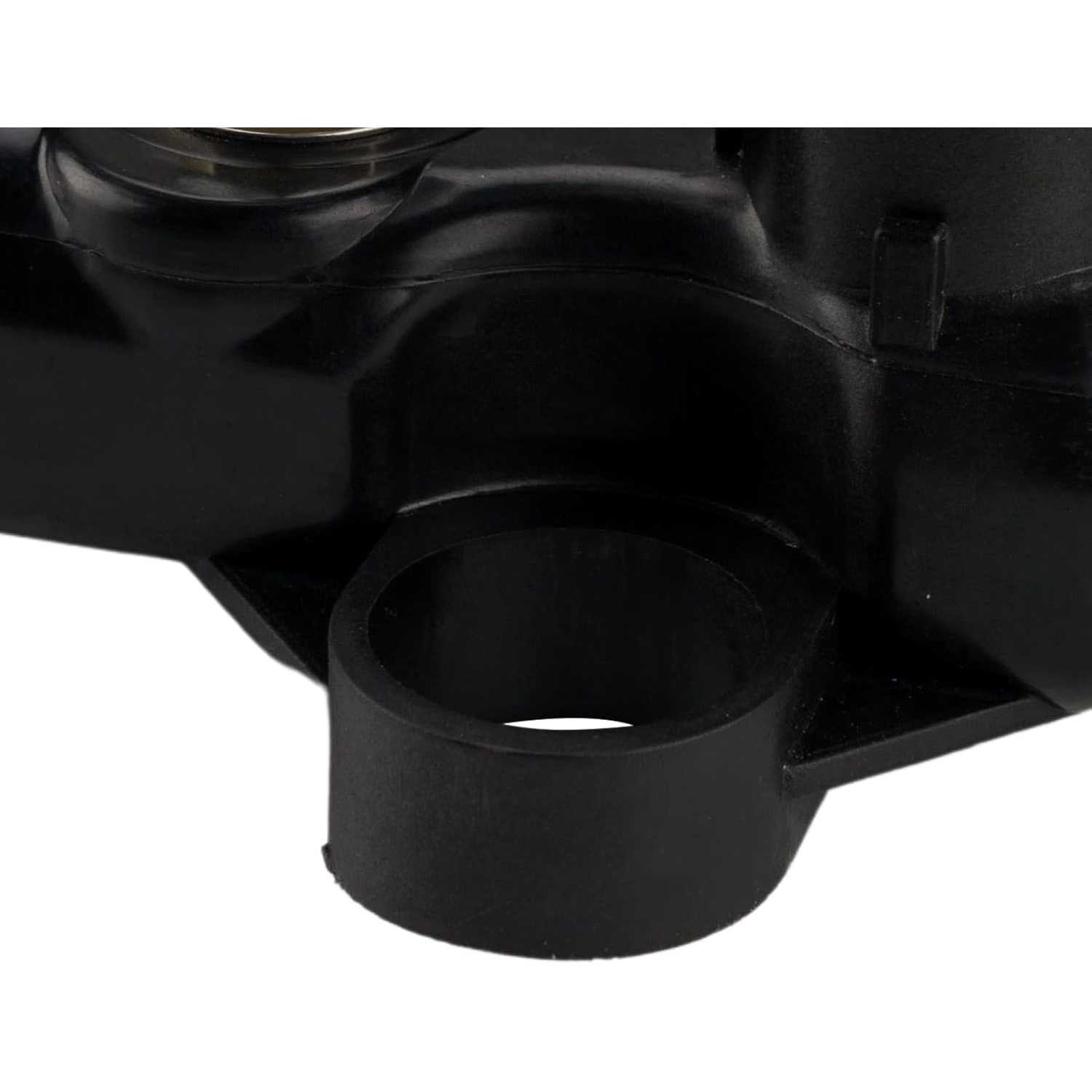

Saddle
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
164100P030,164100C180,164100C190,164100P040,2481017
Part Number
CU2802,2213139,412800,2802C,3248,2800,KLI2800,CU2800,TO3010293,PR2800A,433984,SBR2802,3199,RA2802C,1981202468,B2802,BES2800,0R002800A2CM,AM2800,AM2802,NR2800B,CR2800,CR2802,56625,RA2802,9972

Highlights

  • Vehicle Fitment For: 2005-2015 Tacoma
  • Direct Replacement OE NO.:CU2802、164100P030、3248、164100C180、2800、164100C190、164100P040、2213139、KLI2800、CU2800、TO3010293、412800、PR2800A、433984、2802C、SBR2802、3199、RA2802C、9972、RA2802、56625、2481017、CR2802、CR2800、NR2800B、AM2802、AM2800、0R002800A2CM、BES2800、B2802、1981202468

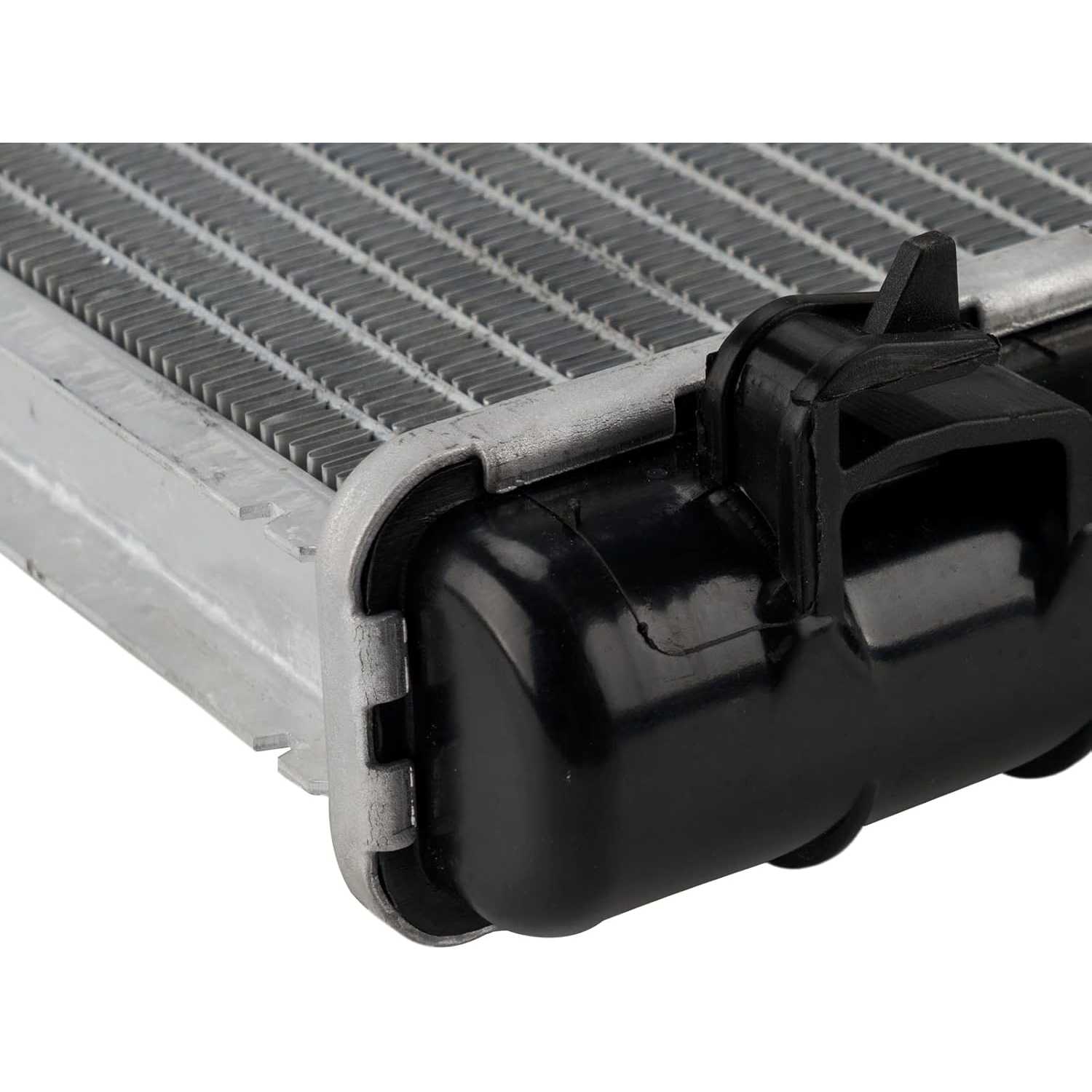

  • Excellent Heatsink Performance: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16957 Certification: Authoritative certification, quality assurance
  • Easy and Quick to Install - Direct bolt-on OE fitment or replacement for factory unit, fast and easy installation without any drilling or modification.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20152005 - 20152005 - 20152005 - 201520152005 - 2013
MakeToyotaToyotaToyotaToyotaToyotaToyota
ModelTacomaTacomaTacomaTacomaTacomaTacoma
TrimBaseBasePre RunnerPre RunnerTRD ProX-Runner
Engine2.7L L44.0L V62.7L L44.0L V64.0L V64.0L V6
Note
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

RickFixIt_142

02/23/2026

For the price, the quality is excellent. It looks and feels like a premium part. My Tacoma's cooling system is working perfectly now.

Rob_HomeGarage_627

02/16/2026

My Tacoma was constantly running hot, especially when towing. This radiator has completely solved that issue. Temps are stable now, even under load.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.
