2006 BMW 325i 3.0L L6 | Aluminum 1-1/4" Radiator | OE#17117559273/CU2882 - PHILTOP

2006 BMW 325i 3.0L L6 | Aluminum 1-1/4" Radiator | OE#17117559273/CU2882 - PHILTOP

Leak-Resistant

3.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7761RAD1687US

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
No
Engine Oil Cooler Included
No
Core Thickness
1-1/4 in
Core Width
18-1/16 in
Core Height
23-5/8 in
Radiator Cap Included
No
Inlet Diameter
1-1/2 in
Outlet Diameter
1-1/2 in
Items Included
1x Radiator - CU2882, 1x Instruction Manual
Mounting Type
Cradle / Saddle Mount
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
17117559273,17117553111,17112283468,17117566339,17117564654,17117548432,17117562079,17117542199,17117521048,2480913
Part Number
CU2882,2219405,412882,2882C,735166,701576,RAD2882,60786A,2824,REA412882A,PR2882A,13392,SBR2882,53474,376754071,KLI2882,NR2882C,438456,CRS2882,BES2882,CUC2882,376754073,C2882,4716900006,0R002882A3CM,3412,AM2882,CR2824,8758,RA2882,CR2882

Highlights

  • Vehicle Fitment: 2006 325i/330i/325xi/330xi 2007-2008 328xi(EngDesign:N52) 2007-2011 328i(EngDesign:N52,MfrCode:E90) 2012-2013 328i(EngDesign:N52) 2008-2013 128i(EngDesign:N52B30A) 2009-2011 328i xDrive(EngDesign:N52,MfrCode:E90) 2012-2012 328i xDrive(EngDesign:N52) 2013-2013 328i xDrive Coupe(EngDesign:N52,MfrCode:E92) 2009-2011 Z4 3.0L (w/o Sensor Port Built Into The Core) (Includes a plastic plug, compatible with more car models)
  • Reference Number:412882, 2219405, CU2882, 735166, 2882C, 17117566339, 17117564654, 17117562079, 17117559273, 17117553111, 17117548432, 17117542199, 17112283468, 8758, 438456
  • Product Dimension - Core Width: 18-1/16 ,Core Height: 23-5/8 ,Core Thickness: 1-1/4 ,Inlet Diameter: 1-1/2 ,Outlet Diameter: 1-1/2
  • IATF17134 Certification: Authoritative certification, quality assurance

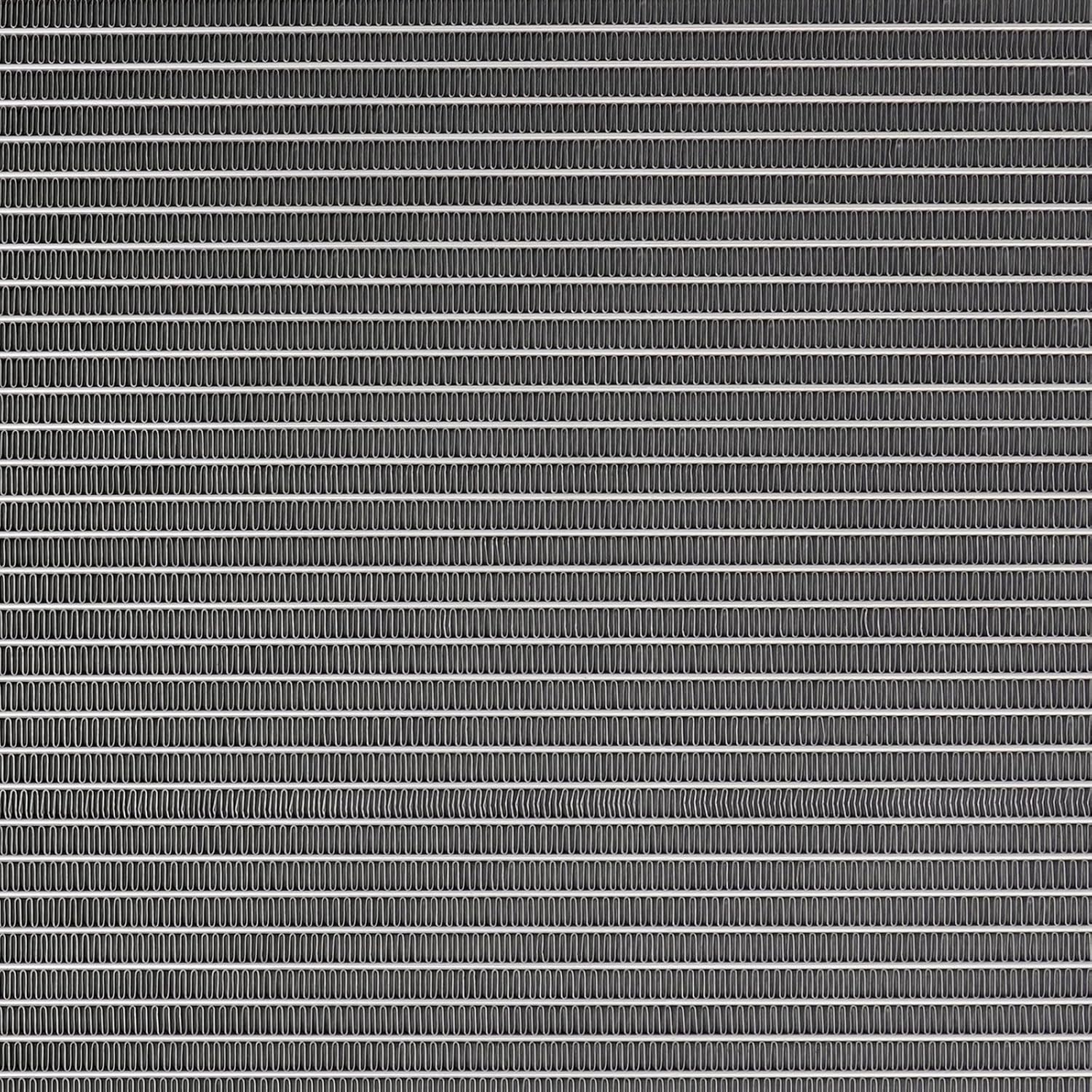

  • Feature: Built with high density multi-Lowered fins for maximum cooling efficiency

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2008 - 2013200620062007 - 20132009 - 20132007 - 2008200620062009 - 2011
MakeBMWBMWBMWBMWBMWBMWBMWBMWBMW
Model128i325i325xi328i328i xDrive328xi330i330xiZ4
TrimBaseBaseBaseBaseBaseBaseBaseBasesDrive30i
Engine3.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L L6
Note
w/o Sensor Port Built Into The Core
w/o Sensor Port Built Into The Core
w/o Sensor Port Built Into The Core
w/o Sensor Port Built Into The Core
w/o Sensor Port Built Into The Core
w/o Sensor Port Built Into The Core
w/o Sensor Port Built Into The Core
w/o Sensor Port Built Into The Core
w/o Sensor Port Built Into The Core

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

3.8/5

Based on 6 reviews

533%
417%
350%
20%
10%

Brad_AutoParts_147

04/07/2026

Really happy with the build quality on this. The materials feel top-notch and it looks like it'll last a long time. Definitely a great value for the price.

Jennifer_Auto_485

10/02/2025

My 328i was overheating like crazy, but this radiator fixed it right up. It's been holding steady temps even in traffic, which is a huge relief. Definitely a solid upgrade over the old one.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Minor fin movement can occur during handling and may not affect normal operation. Do not install the radiator if the tubes, tanks, or mounting points are damaged.

Many cooling systems require bleeding after refilling to remove trapped air. Follow the procedure specified for the vehicle.
