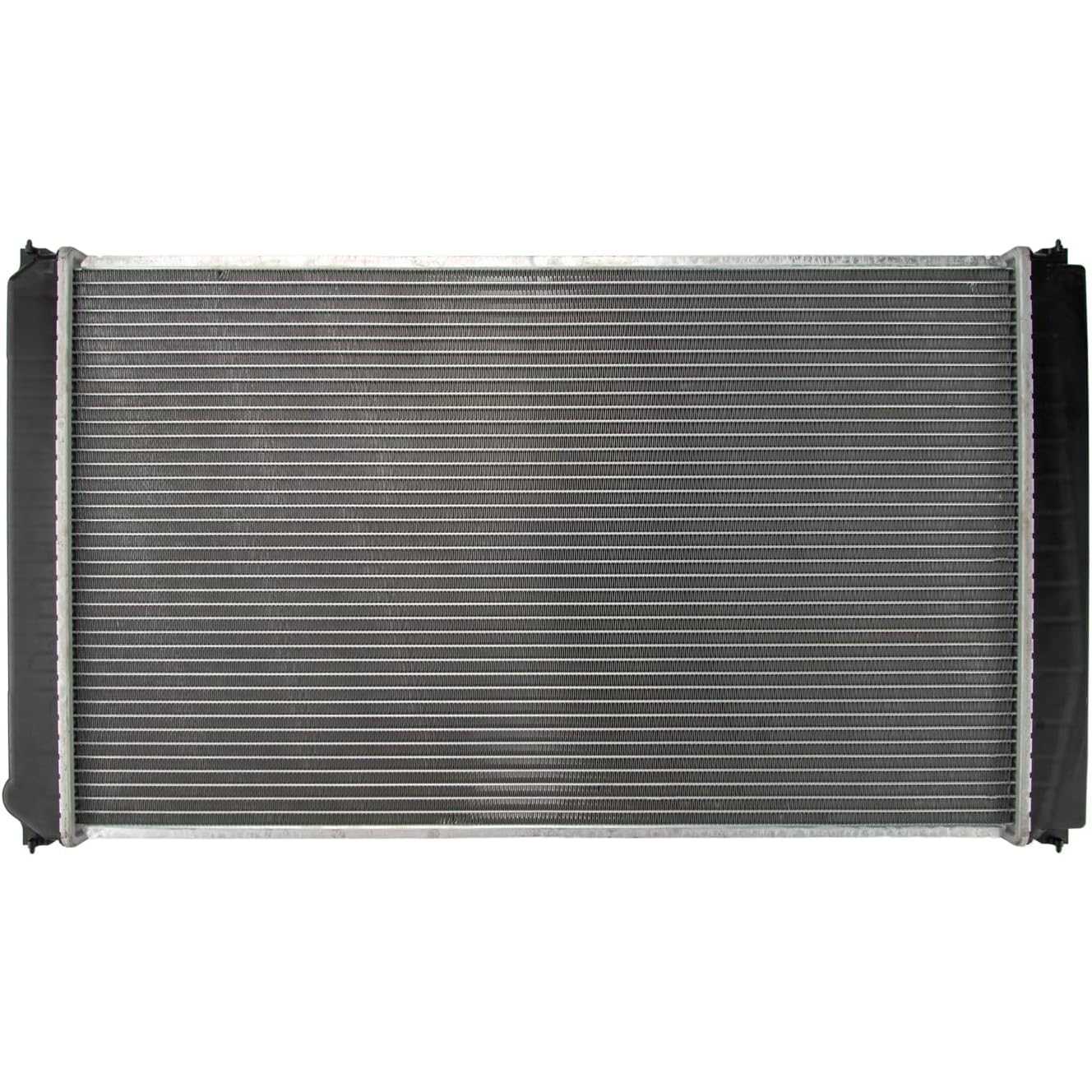

2006-2016 Toyota RAV4 2.4L L4 | Aluminum 3/4" Radiator | OE#1640028570/CU2892 - PHILTOP

2006-2016 Toyota RAV4 2.4L L4 | Aluminum 3/4" Radiator | OE#1640028570/CU2892 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8812CFK051EUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
26-3/8 in
Core Height
15-7/8 in
Radiator Cap Included
No
Inlet Diameter
1-1/2 in
Outlet Diameter
1-1/2 in
Items Included
1x Radiator - CU2892, 1x Instruction Manual
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
1640028570,1640031420,164000P230
Part Number
CU2892,2213162,412892,2892C,A2892,8587,SBR2892,KLI2892,8012892,434033,PR2892A,PR2892KA,REA412892A,REA412891A,1981202482,NR2892A,AM2892,3316,0R002892A2CM,CUC2892,CRS2892,BES2892,376748611,812892,CR2892

Highlights

  • Before purchasing, please enter your vehicle's year/make/model to check whether the Car Radiators fits your car or not. Please also check the product specification information to make sure it is consistent with the radiator of your original one.
  • Specification: Core Thickness: 7/8 IN (22 mm) | Core Height: 28-3/8 IN (670 mm) | Core Width: 15-13/16 IN (401.5 mm) | Inlet Diameter: 1-1/2 IN (38 mm) | Outlet Diameter: 1-1/2 IN (38 mm) | Core Material: Aluminum | Tank Material: Plastic.
  • Compatible Auto List: Car Radiators Replacement for RAV-4 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018
  • Premium Quality: Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles. Our fin edges are folded for increased stability and heat disbursement properties.
  • Non-Leakage: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2006 - 20082009 - 20122006 - 201220132014 - 20162006 - 20082009 - 20132014 - 20162006 - 201220162006 - 20082009 - 20122006 - 201220132014 - 2016
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelRAV4RAV4RAV4RAV4RAV4RAV4RAV4RAV4RAV4RAV4RAV4RAV4RAV4RAV4RAV4
TrimBaseBaseBaseLELELimitedLimitedLimitedLimitedSESportSportSportXLEXLE
Engine2.4L L42.5L L43.5L V62.5L L42.5L L42.4L L42.5L L42.5L L43.5L V62.5L L42.4L L42.5L L43.5L V62.5L L42.5L L4
Note
Japan Built;w/ internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ Internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ Internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ Internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ internal Transmission Oil Cooler;w/o Towing Package
Japan Built;w/ Internal Transmission Oil Cooler;w/o Towing Package

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

PHILTOP radiatorradiators

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

Joe Nowicki

11/15/2024

Verified buyer

Fit great, dropped right in Read more

Rob_HomeGarage_903

10/01/2025

The craftsmanship on this radiator is really good. It feels sturdy and well-made. For the price, it's a fantastic deal.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Many cooling systems require bleeding after refilling to remove trapped air. Follow the procedure specified for the vehicle.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.
