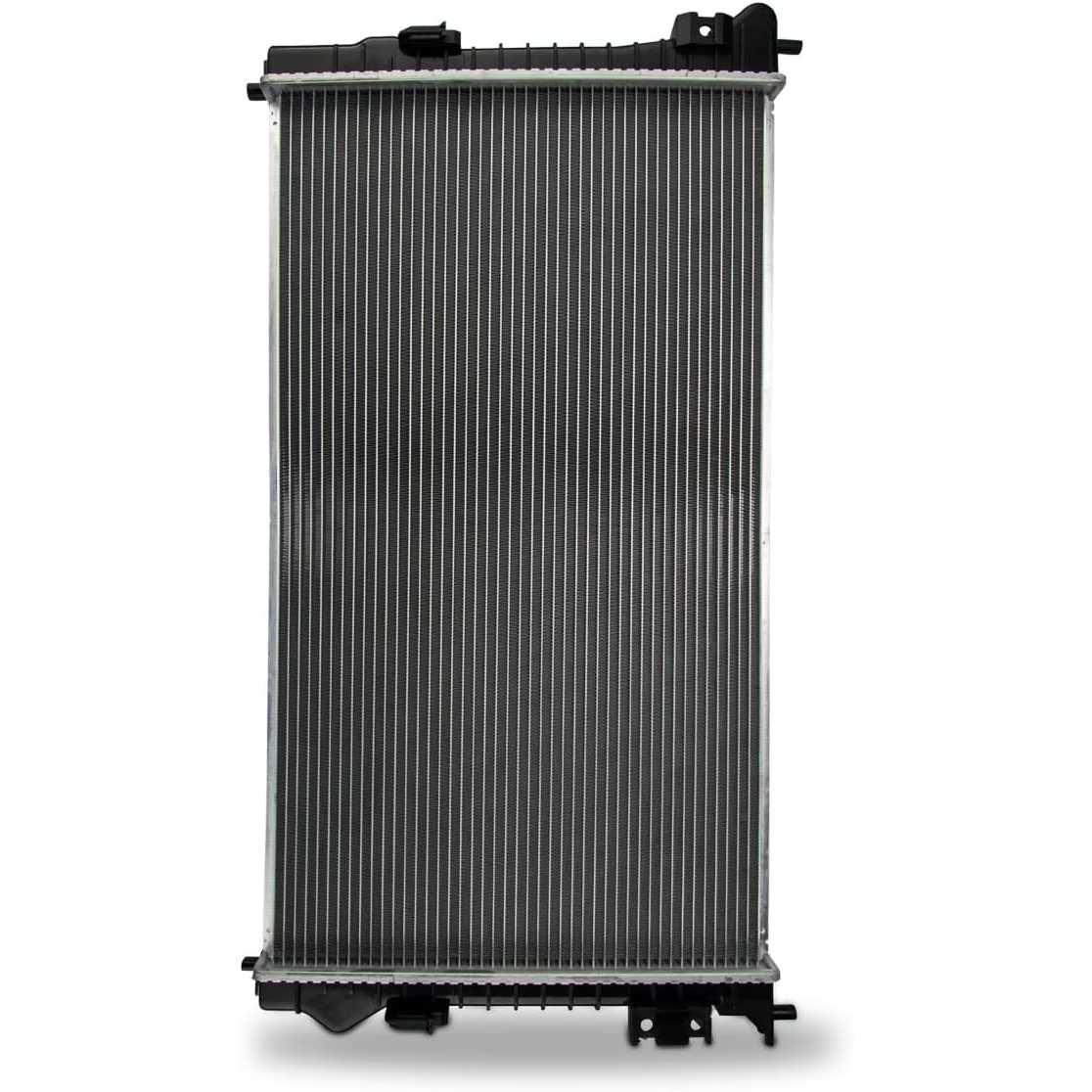

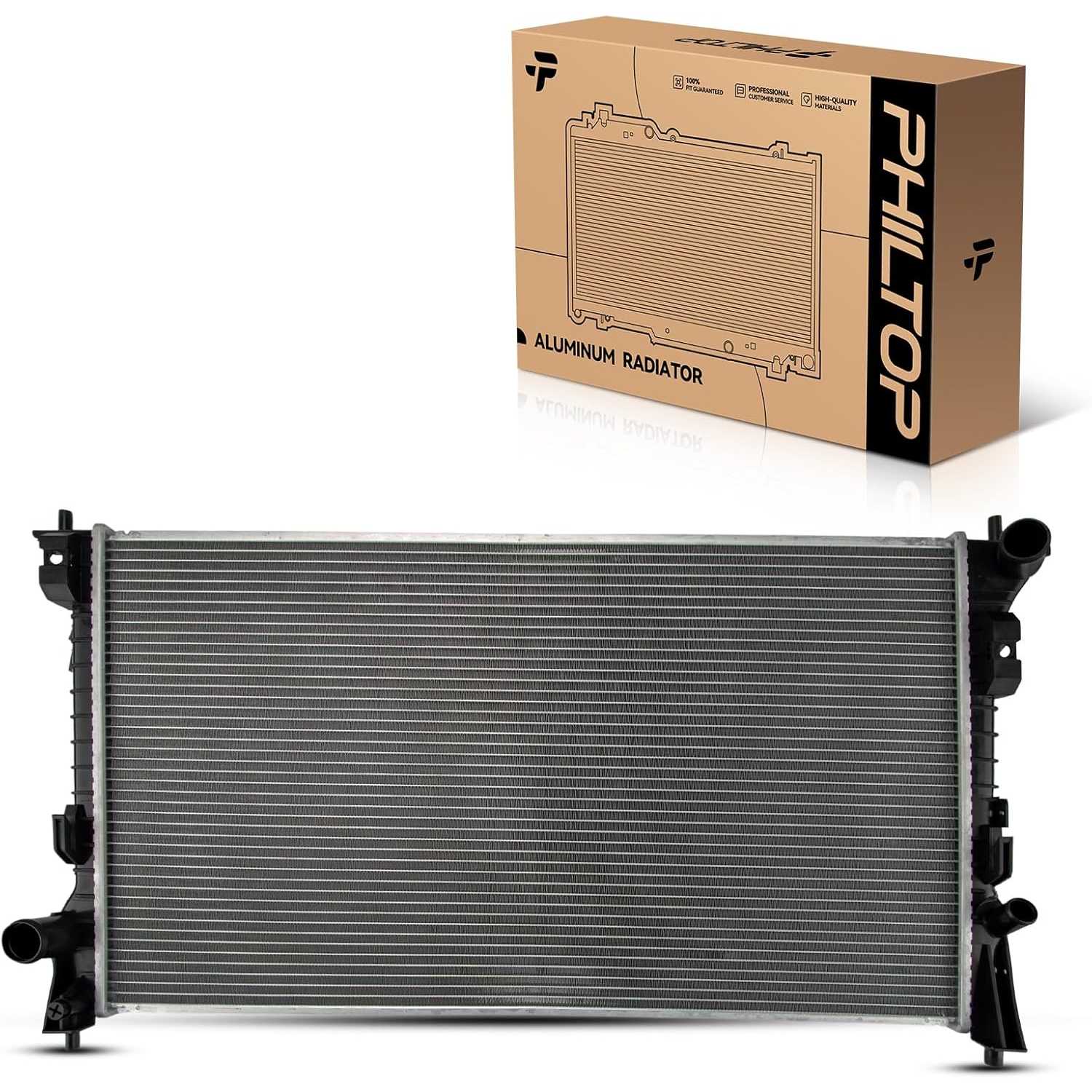

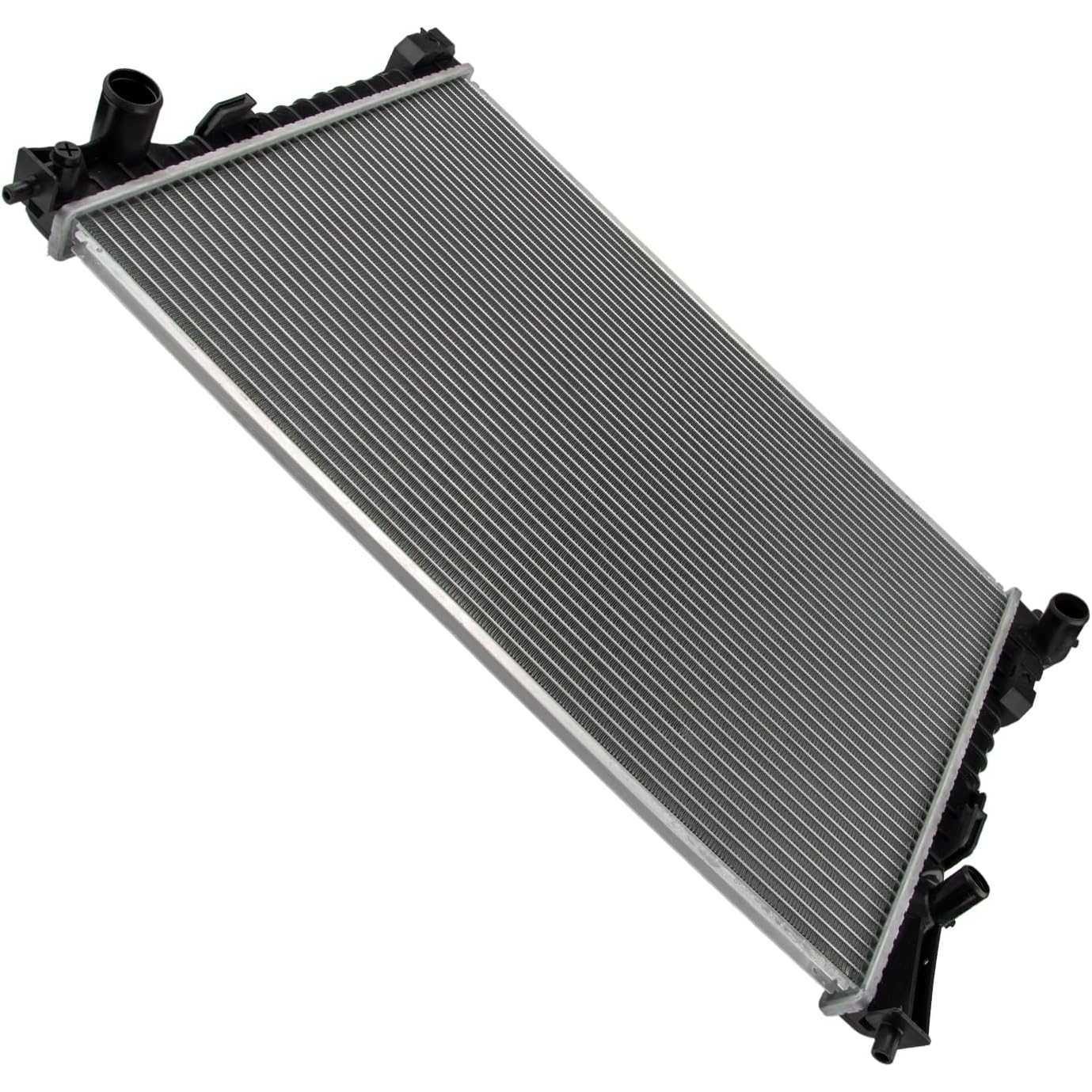

2007-2014 Ford Edge 3.5L V6 | Aluminum 1" Radiator | OE#7T4Z8005BCP/CU2937 - PHILTOP

2007-2014 Ford Edge 3.5L V6 | Aluminum 1" Radiator | OE#7T4Z8005BCP/CU2937 - PHILTOP

Leak-Resistant

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3984CFK0221US

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
No
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
28-3/4 in
Core Height
17-1/2 in
Radiator Cap Included
No
Inlet Diameter
1-1/2 in
Outlet Diameter
1-1/2 in
Items Included
1x Radiator - CU2937, 1x Instruction Manual
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
7T4Z8005BCP,RAD35,7T4Z8005A,7T4Z8005B,8A8Z8005A,8G1Z8005A,DG1Z8005F,8G1Z8005B,DT4Z8005A,EG1Z8005A,EG1Z8005C,DG1Z8005G,DG1Z8005E,2481032
Part Number
CU2937,2219039,412937,412936,2219051,735328,4113143,4113485,2937C,8005,13185,13308,13143,PR2936A,13485,PR2937A,13541,735327,KLI2936,8006,434082,KLI2937,A2937,RA2936C,REA412937A,812936,1981200635,1981200636,B2936,BES2936,BES2937,0R002936A1CM,0R002937A2CM,AM2936,AM2937,NR2936A,NR2937A,CR13143,56547,REA412936A,CU13086,SBR13143,VS2937

Highlights

  • Compatible with: 2007-2011 Edge, 2012-2014 Edge 3.5L, 2013-2019 Taurus 3.5L, 2008-2012 Taurus, 2007-2015 MKX, 2010-2012 Flex 3.5L, 2010-2016 MKS 3.7L, 2009 Flex, 2008-2009 Taurus X, 2008-2009 Sable, 2012-2014 Edge 3.7L, 2009 MKS, 2010-2012 MKT 3.7L
  • OEM Replacement.:CU2937, 735328, 412936, 412937, 2219051, 2219039, 2219409, 2937C, 13309C, 2936C, RAD35, 7T4Z8005B, 8G1Z8005B, 8G1Z8005A, 8A8Z8005A
  • IATF16949 Certification: Designed with outstanding durability, in compliance with the original specifications, and suitable for direct replacement.
  • High-Efficiency Cooling: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • Easy and Quick to Install - Direct bolt-on OE fitment or replacement for factory unit, fast and easy installation without any drilling or modification.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2008 - 20142007 - 20142007 - 201420072009 - 20102011 - 20142009 - 20122009 - 20122009 - 20122011 - 20122008 - 20192009 - 20192008 - 20192010 - 20122008 - 20092008 - 20092008 - 20092009 - 20132014 - 20162010 - 20122007 - 20102011 - 20152008 - 20092008 - 2009
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincolnLincolnLincolnLincolnMercuryMercury
ModelEdgeEdgeEdgeEdgeEdgeEdgeFlexFlexFlexFlexTaurusTaurusTaurusTaurusTaurus XTaurus XTaurus XMKSMKSMKTMKXMKXSableSable
TrimLimitedSESELSEL PlusSportSportLimitedSESELTitaniumLimitedSESELSHOEddie BauerLimitedSELBaseBaseBaseBaseBaseBasePremier
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.7L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.7L V63.7L V63.7L V63.5L V63.7L V63.5L V63.5L V6
Note
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
-
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)
17-1/2 in. Core Width (From Top to Bottom Coolant Tubes)

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

radiatorradiator

Reviews

4.6/5

Based on 7 reviews

571%
414%
314%
20%
10%

Amanda_MomOfThree_549

11/15/2025

This radiator fixed my cooling issue right up. My MKX runs like new again. Definitely a good buy, and it was easy to put in.

Nancy_FirstCar_382

02/07/2026

My Taurus is staying at the perfect temperature now, no more overheating issues. This radiator was definitely the right choice. Installation was smooth and it's working like a charm.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.
