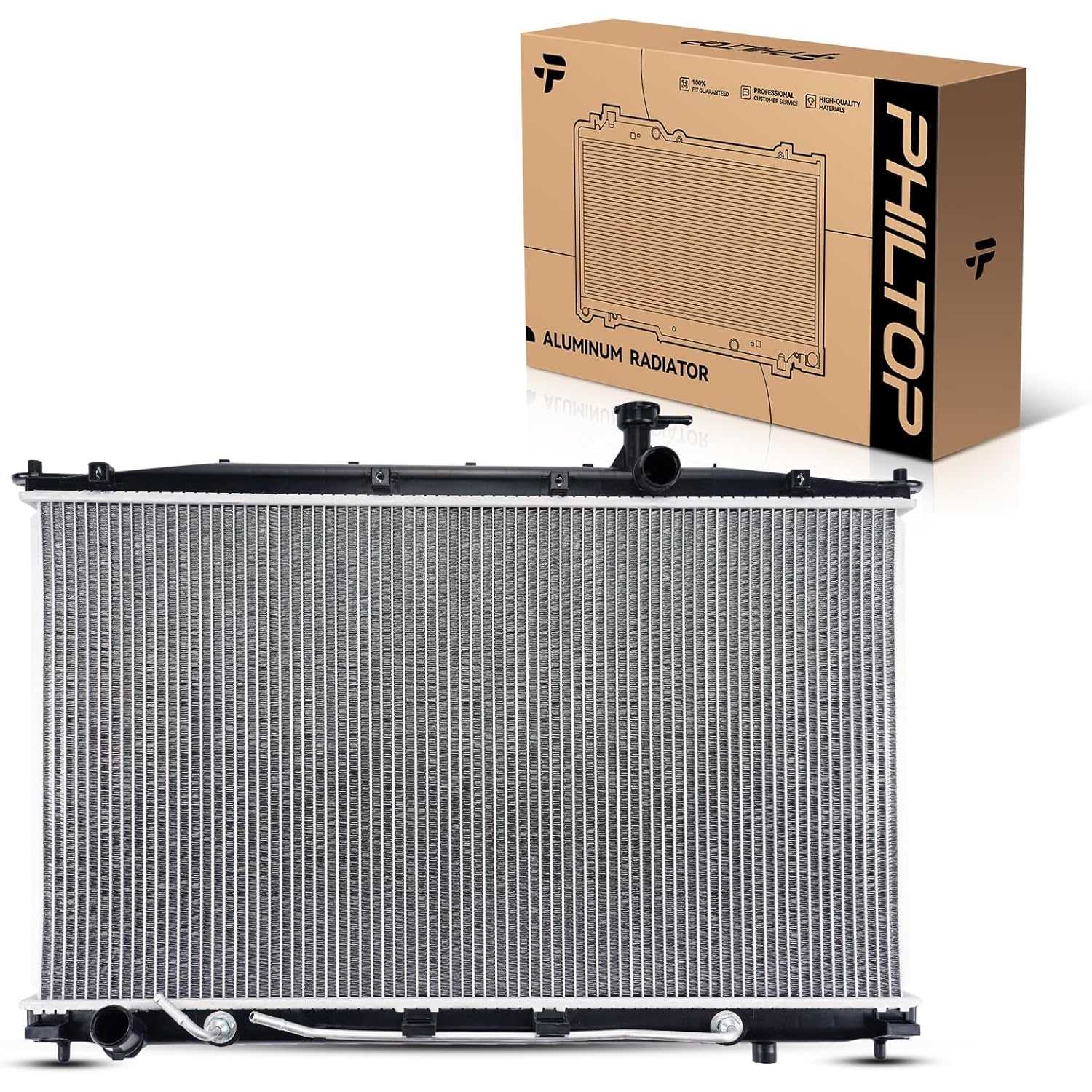

2007-2009 Hyundai Santa Fe 2.7L V6 | Aluminum 3/4" Radiator | OE#253100W100/CU2997 - PHILTOP

2007-2009 Hyundai Santa Fe 2.7L V6 | Aluminum 3/4" Radiator | OE#253100W100/CU2997 - PHILTOP

Leak-Resistant

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7730CFK280BUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
30-9/16 in
Core Height
17-1/8 in
Radiator Cap Included
No
Inlet Diameter
1-3/8 in
Outlet Diameter
1-3/8 in
Items Included
1x Radiator - CU2997, 1x Instruction Manual
Mounting Type
Top / Bottom Post
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
253100W100,253100W000,253100W201,253100W200,3100W200
Part Number
CU2997,2213705,412897,2997C,412997,2897,2997,2495,HY3010157,RAD2897,SBR2897,HY3010161,RAD2997,8012897,KLI2897,2897G,A2897,438157,2897C,PR2897A,67505,BES2897,0R002897A1CM,AM2897,NR2897A,CR2897,CR2997,2997G,8910,B2997,1981201364,812897,0AKA5925,C2997,103150,24642793620462706,C2897

Highlights

  • Vehicle Fitment: 2007-2009 Santa Fe
  • Reference Number: 253100W000, 253100W100, 253100W200, 253100W201, 3100W200
  • Product Dimension - Core Width: 30-9/16 in ,Core Height: 17-1/8 in ,Core Thickness: 5/8 in ,Inlet Diameter: 1-3/8 in ,Outlet Diameter: 1-3/8 in
  • IATF17080 Certification: Authoritative certification, quality assurance
  • Feature: Built with high density multi-Lowered fins for maximum cooling efficiency

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 2009
MakeHyundai
ModelSanta Fe
TrimGLS
Engine2.7L V6
Note
w/o Internal Oil Cooler

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.7/5

Based on 10 reviews

580%
410%
310%
20%
10%

Me mega encantó

04/26/2026

Verified buyer

Excelente 👌

josh maes

01/05/2026

Verified buyer

Holding coolent so far and fit probably. Trans lines were loose so check them before finel assembly

FAQS

Unused products may be eligible for return according to the Philtop return policy. Please keep the product and packaging in their original condition and contact us before sending it back.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.
