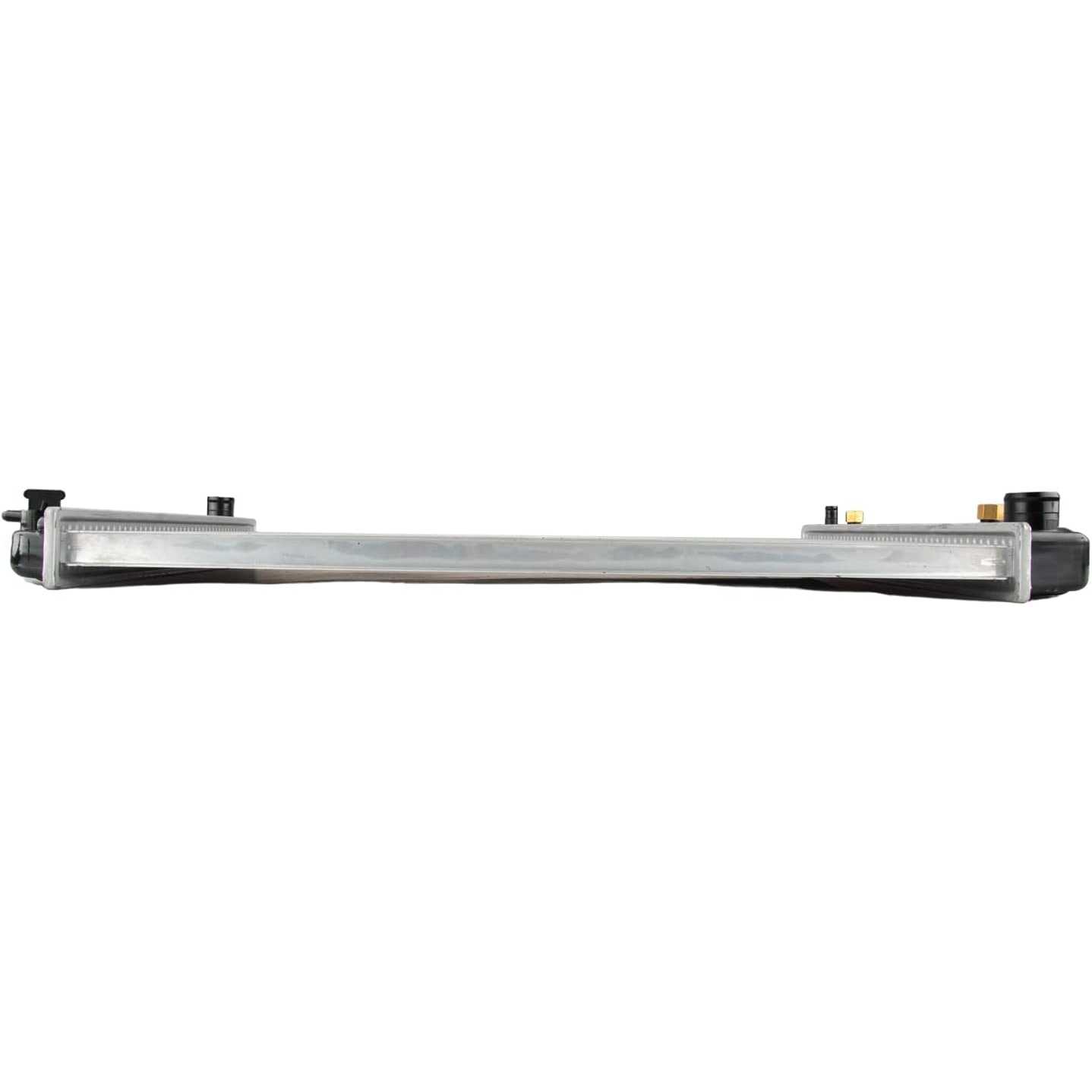

1988-1993 Chevrolet K1500 5.0L/5.7L | Aluminum 1" Radiator | OE#20811/CU618 - PHILTOP

1988-1993 Chevrolet K1500 5.0L/5.7L | Aluminum 1" Radiator | OE#20811/CU618 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4734CFK0674US

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
28-1/4 in
Core Height
17-1/4 in
Radiator Cap Included
No
Inlet Diameter
1-5/16 in
Outlet Diameter
1-9/16 in
Items Included
1x Radiator - CU618, 1x Instruction Manual
Mounting Type
Saddle
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
20811,20812,52462527,52479555,52481621,52469080,52470421,3058768,52470420,52491623,52457843,52457841,52467208,52489379,3058765,3095794,52470426,52469674,52470425,3058766,52470419,52469469,52469081,52469085,52465845,52463931,52469468,52470423,52470418,3058767,52470427,52469675,3095793,52458331,52458334,52469465,52459679,52465846,3058775,3058777,52465843,52477786,52467244,52479552,52467213,52467240,52465849,52465850,52457842,52457840,52467211,52465842,52467209,3058757,52469679,52547842,52450651,52450652,3058769,3058771,52489548,52458329,3058797,3058772,3058770,52463933,52463701,52457850,52457848,52457846,3058787,52457847,52457849,52459678,52457851,52455775,52464667,52480035,2480512,2480571
Part Number
CU618,CU434,41618,41434,618C,41620,1791,1690,618,2569,1591,1541,1595,KLI618,CU1690,2546,1692,434,432055,1789,1542,2313,SBR618,CU1791,432053,438029,432056,432073,9546,432445,8011791,436011,631,1590,BES618,9271,A043428C,6016,0AAS2651,24642793620462913,AM0631,NR618A,NR1791A,436012,432569,RAD1789,AM1791,AM1692,AM1690,AM0618,CU631,CU1692,0R000618A3CM,A618,A1791,811542,CR1541,CR1591,CR1595,CR1690,432054,56012,PR0618A,PR1542A,617,CR631,CR618,CR617,CR616,CR1805,CR1791,CR1789,CR1692,CU1542,RA618,RA618C,431366,9547,9573,9275,9273

Highlights

  • Vehicle Fitment For: 1988-1995 C1500/C2500/K1500/K2500 5.0/5.7L 1994-1995 C1500/C2500/K1500/K2500 4.3L 1992-1995 C1500/C2500/K1500/K2500 Suburban 5.7L 1988-1994 C3500/K3500 5.7L 1996-1997 P30 4.3L 1996-1997 P3500 4.3L 1989-1989 R2500 5.7L 1989-1991 R3500/V3500 5.7L 1990-1990 R1500/R2500/V1500/V2500 Suburban 5.7L (w/ 28-1/4 in. Between Tanks)
  • Direct Replacement OE NO.:52470421、CU618、3058768、52470420、52491623、52457843、52457841、52467208、52489379、3058765、3095794、52470426、52469674、52470425、3058766、52470419、52469469、52469081、52469085、52465845、52463931、52469468、52470423、52470418、3058767、52470427、52469675、3095793、52458331、52458334、52469465、52459679、52465846、3058775、52465843、52477786、52467244、52479552、52467213、52467240、52465849、52465850、52457842、52457840、52467211、52465842、52467209、3058757、52469679、52547842、41618、20811、20812、52462527、52479555、618C、52469080
  • Excellent Heatsink Performance: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16957 Certification: Authoritative certification, quality assurance
  • Easy and Quick to Install - Direct bolt-on OE fitment or replacement for factory unit, fast and easy installation without any drilling or modification.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1988 - 19931988 - 19931988 - 19921988 - 19921988 - 19931988 - 19931990 - 199119931990 - 19931988 - 19931988 - 19931988 - 19921988 - 19921988 - 19931988 - 19931988 - 19931988 - 19931988 - 19921988 - 19921988 - 19931988 - 1993199119911990 - 19931990 - 19931988 - 19931988 - 19931988 - 19921988 - 19921988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 1993199319931988 - 19931988 - 19931988 - 19931988 - 19931988 - 19931988 - 1993
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMC
ModelC1500C1500C1500C1500C1500C1500C1500C1500C1500C2500C2500C2500C2500C2500C2500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K2500K2500K2500K2500K2500K2500C1500C1500C1500C1500C1500C1500C2500C2500C2500C2500C2500C2500K1500K1500K1500K1500K1500K1500K1500K1500K2500K2500K2500K2500K2500K2500
TrimCheyenneCheyenneScottsdaleScottsdaleSilveradoSilveradoWTWTWTCheyenneCheyenneScottsdaleScottsdaleSilveradoSilveradoCheyenneCheyenneScottsdaleScottsdaleSilveradoSilveradoSportSportWTWTCheyenneCheyenneScottsdaleScottsdaleSilveradoSilveradoSierraSierraSierra SLESierra SLESierra SLXSierra SLXSierraSierraSierra SLESierra SLESierra SLXSierra SLXSierraSierraSierra SLESierra SLESierra SLXSierra SLXSierra SportSierra SportSierraSierraSierra SLESierra SLESierra SLXSierra SLX
Engine5.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V8
Note
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks
Radiator Cap Is Required;w/ Transmission Oil Cooler;w/o Engine Oil Cooler;with 28.25in Between Tanks

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Jennifer_Auto_297

01/11/2026

This radiator is built tough. It feels really solid and well-constructed. For the price, it's an amazing value. Very happy with the quality.

DIY_Karen_949

03/17/2026

Installation was surprisingly easy, and the radiator fit perfectly. Plus, it got here super fast. Couldn't ask for a better online purchase experience.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.
