2007-2014 Ford Edge 3.5L V6 | Front Driver Side & Passenger Side CV Axle | FD8148 - PHILTOP

2007-2014 Ford Edge 3.5L V6 | Front Driver Side & Passenger Side CV Axle | FD8148 - PHILTOP

Front

Built to Last

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3226SHA019KUS

Specifications

Brand
PHILTOP
Position
Front
ABS Ring Included
Yes
Quantity
2
Input Shaft Spline Count
27
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
31
Items Included

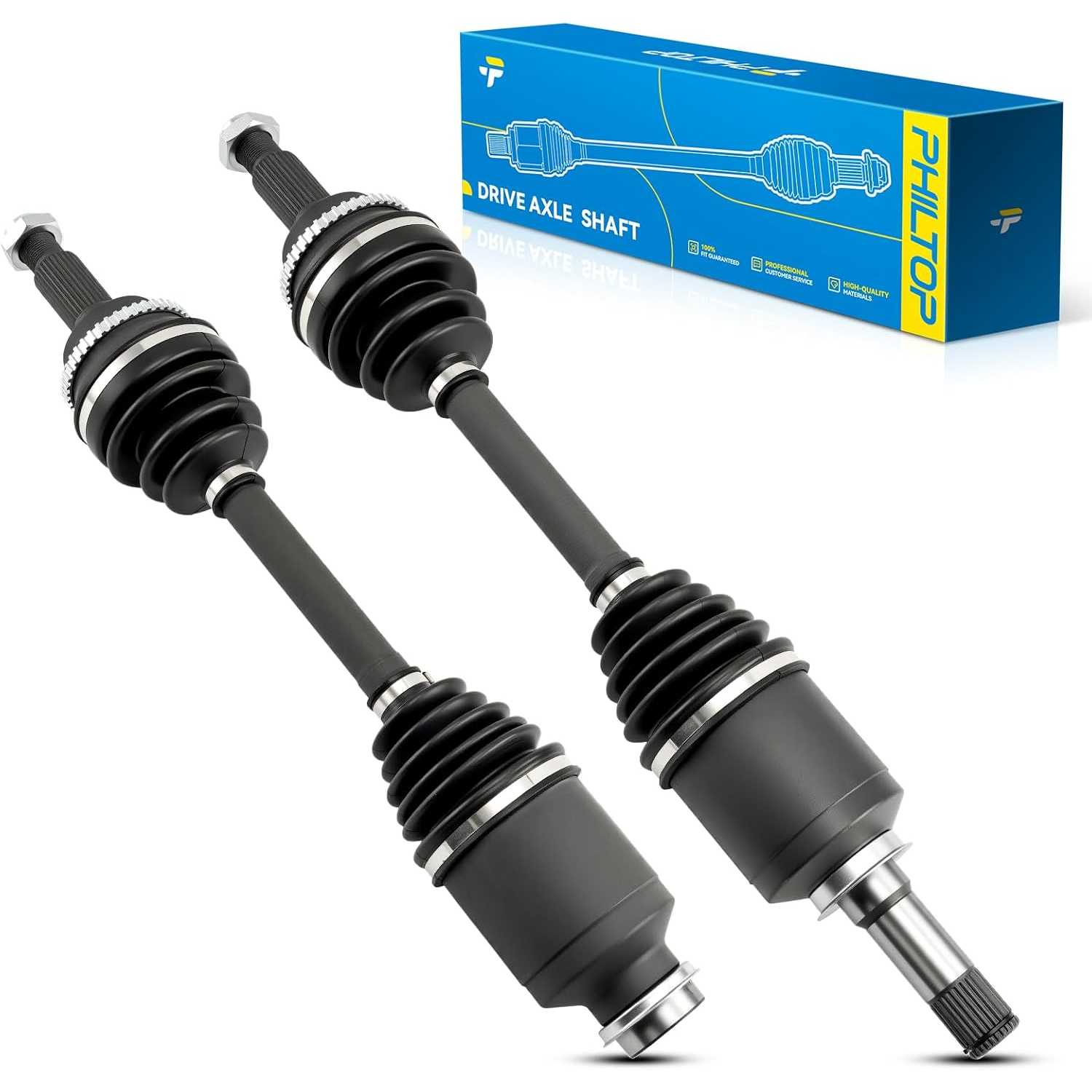

1x Front Cv Axle Shaft - FD8148 1x Front Cv Axle Shaft - FD8149
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
FD8148,FD8149

Highlights

  • Specific Fit: CV Axle Shaft Assembly Fits 2007-2014 Edge 3.5/3.7L FWD, 2007-2015 MKX FWD.
  • OEM Number: FD8148, FD8149, 662188, NCV11509, 7T4Z3A428C, 662190, 7T4Z3A427B, 662190HD, 7T4Z3A427C, 7T4Z3A428A, 662188HD, 602188, NCV11508, 7T4Z3A427A, AX39489, 71250, FD10561, 2209N, 802938, FD88608A, 169149, FD2622A, FD10560, FD2621A, MP2188, 169148, NCV556311, 2207N, AX39469, 802937, NCV11525, FD88606A.
  • Sealed Dust Cover: The premium neoprene rubber boot effectively seals out dust. Exceptional high and low temperature performance ensures the CV shaft operates reliably in all weather conditions.

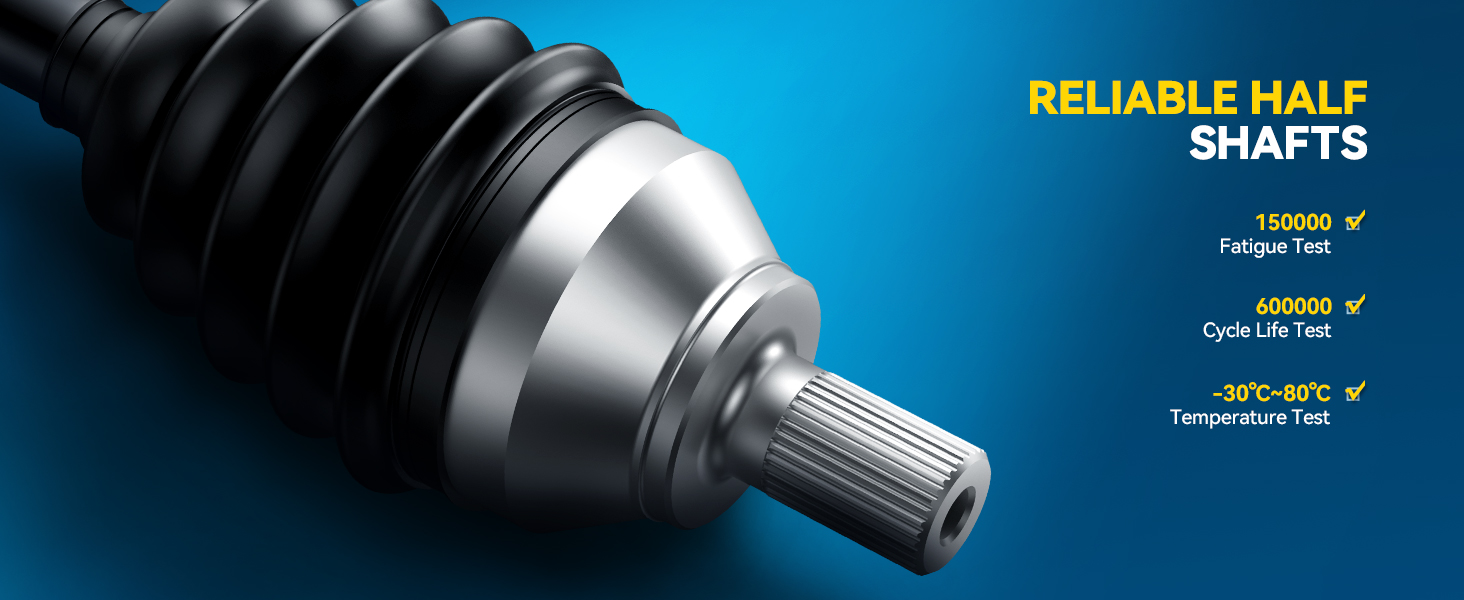

  • Long Service Life: The shaft of the CV axle is manufactured from high-quality steel with precision machining, resulting in superior strength.
  • Easy to install: Our CV shafts are manufactured to exacting standards, meeting OEM specifications for easy installation. The package includes all necessary accessories required for installation.

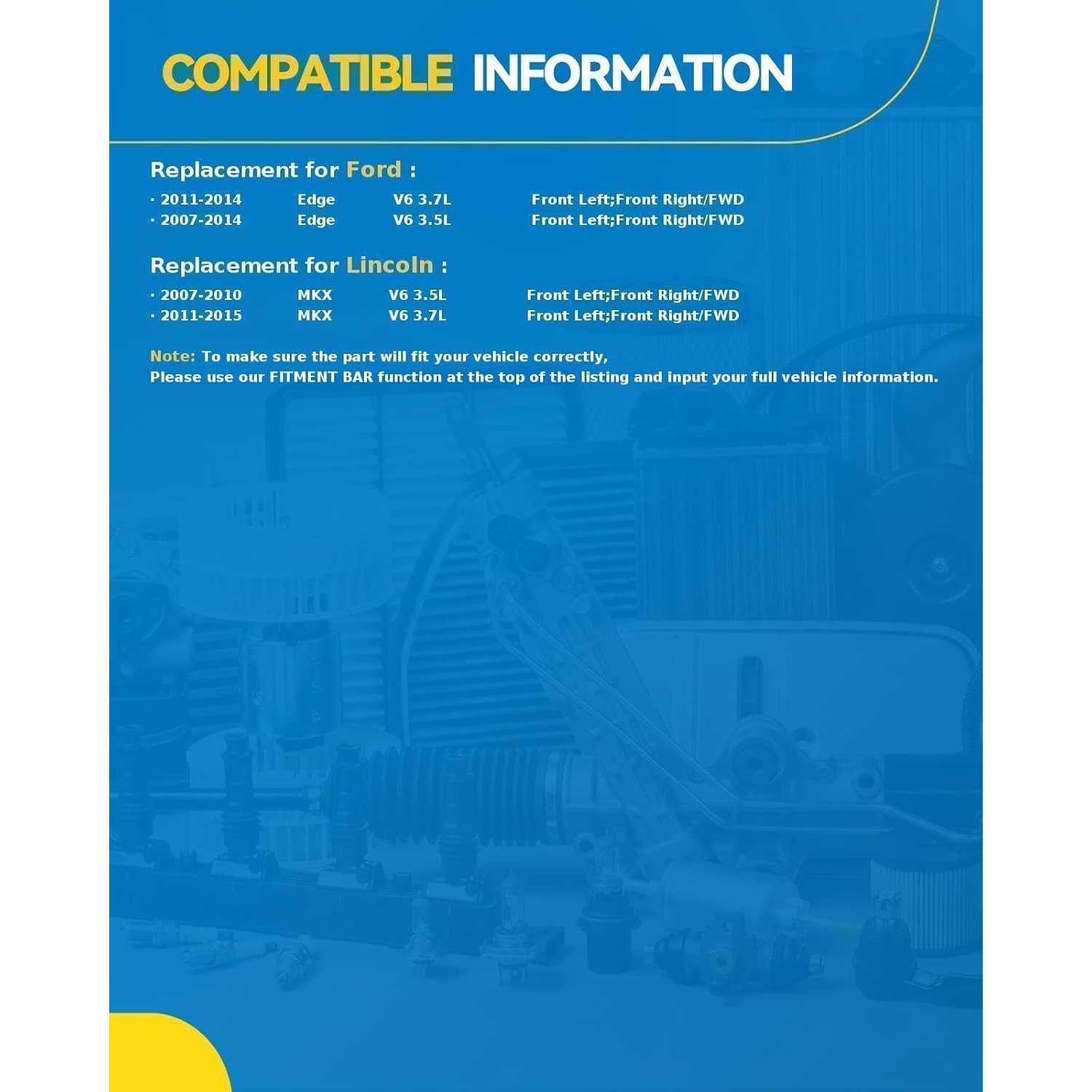

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2008 - 20142007 - 20142007 - 201420072009 - 20102011 - 20142007 - 20102011 - 2015
MakeFordFordFordFordFordFordLincolnLincoln
ModelEdgeEdgeEdgeEdgeEdgeEdgeMKXMKX
TrimLimitedSESELSEL PlusSportSportBaseBase
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.7L V63.5L V63.7L V6
Note--------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.6/5

Based on 7 reviews

571%
414%
314%
20%
10%

Tom_Handy_110

10/10/2025

Super easy to bolt on, everything lined up like a charm. Plus, they got here in no time at all. Really impressed with the quick turnaround.

Kelly_SUV_Life_207

02/16/2026

My car was pulling to one side, and these axles sorted it right out. Now it drives straight and true, and all the weird noises are gone. Super satisfied.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
