Front Left

Built to Last

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2924SHA7213US

Specifications

Brand
PHILTOP
Position
Front Left
ABS Ring Included
No
Quantity
1

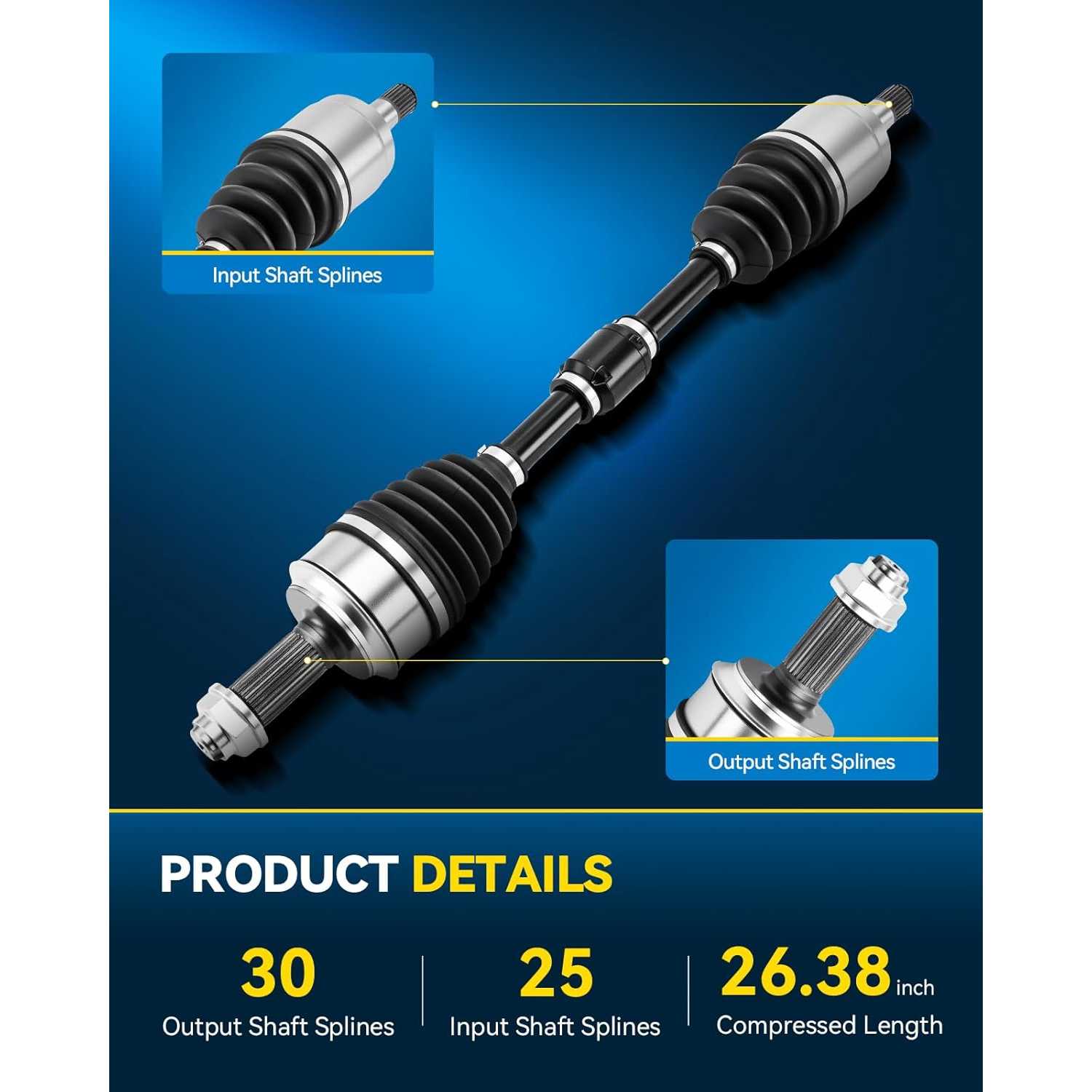

Input Shaft Spline Count
25
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
30
Items Included

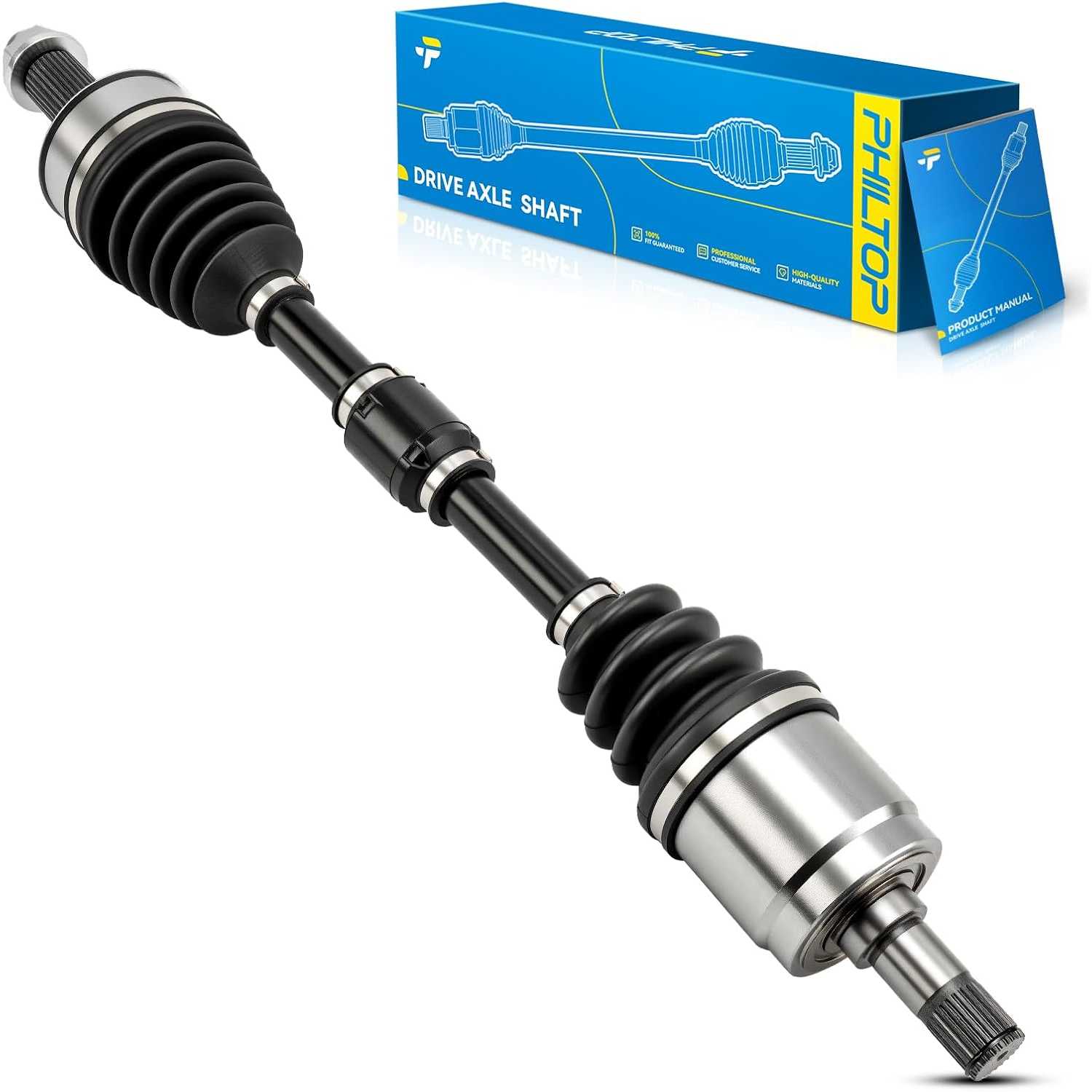

1x Front Left Cv Axle Shaft - NCV36195
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
NCV36195

Highlights

  • Vehicle Fit: Front Left Complete CV Joint Axle Shaft for 2016-2018 HR-V(Trans:Automatic CVT), 2019-2022 HR-V.Please double check that the CV is suitable for your vehicle before purchasing
  • Kit Includes: 1x Front cv axle shaft - NCV36195. CV axles are designed to work with your vehicle make and model
  • High Precision Design: CV shafts are manufactured by precision instruments and rigorously tested before sale to make the interface perfectly match your vehicle.The performance of CV shafts is far superior to ordinary types.
  • Top Quality: CV shafts made of high-quality neoprene rubber and grease ensure that the product stays lubricated, helping to extend the life of the CV shaft.
  • Easy Installation: CV axles are carefully designed and tested to work perfectly with your vehicle. The installation process ensures an accurate and secure connection.

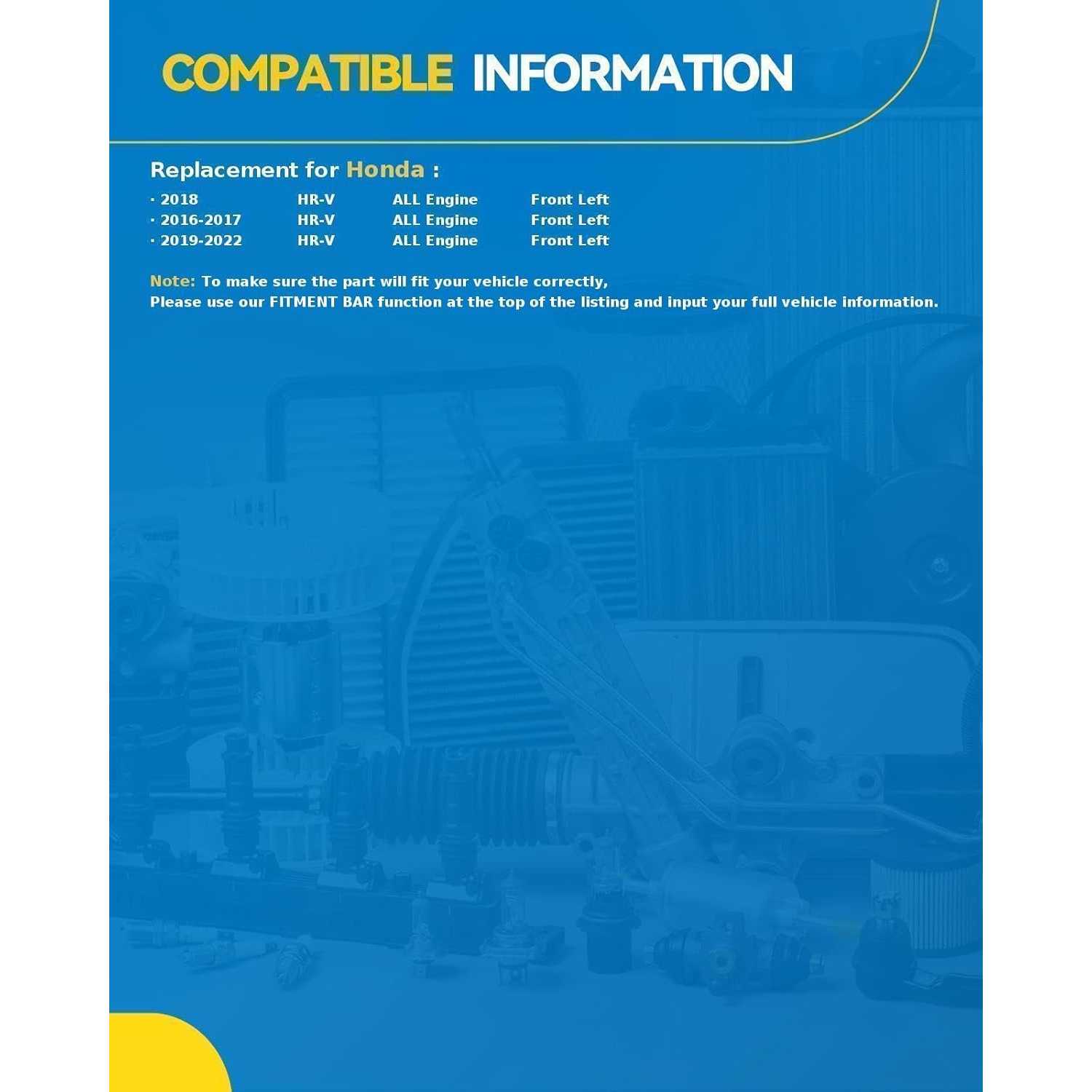

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2016 - 20222016 - 20222016 - 20222019 - 20222019 - 2020
MakeHondaHondaHondaHondaHonda
ModelHR-VHR-VHR-VHR-VHR-V
TrimEXEX-LLXSportTouring
Engine1.8L L41.8L L41.8L L41.8L L41.8L L4
Note-----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.6/5

Based on 5 reviews

560%
440%
30%
20%
10%

Mike from Texas_174

11/06/2025

Delivery was fast and the part was well-packaged. Installation was straightforward and it fit perfectly. Couldn't be happier.

Ashley_RoadTrip_963

03/26/2026

Super impressed with how quickly this got here. Fit like a glove and was simple to put on. Highly recommend this seller.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
