2005-2009 Subaru Outback 2.5L/3.0L | Front Driver Side & Passenger Side CV Axle | 667355HD - PHILTOP

2005-2009 Subaru Outback 2.5L/3.0L | Front Driver Side & Passenger Side CV Axle | 667355HD - PHILTOP

Front Left or Right

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2563SHA6621US

Specifications

Brand
PHILTOP
Position
Front Left or Right
ABS Ring Included
No
Quantity
1

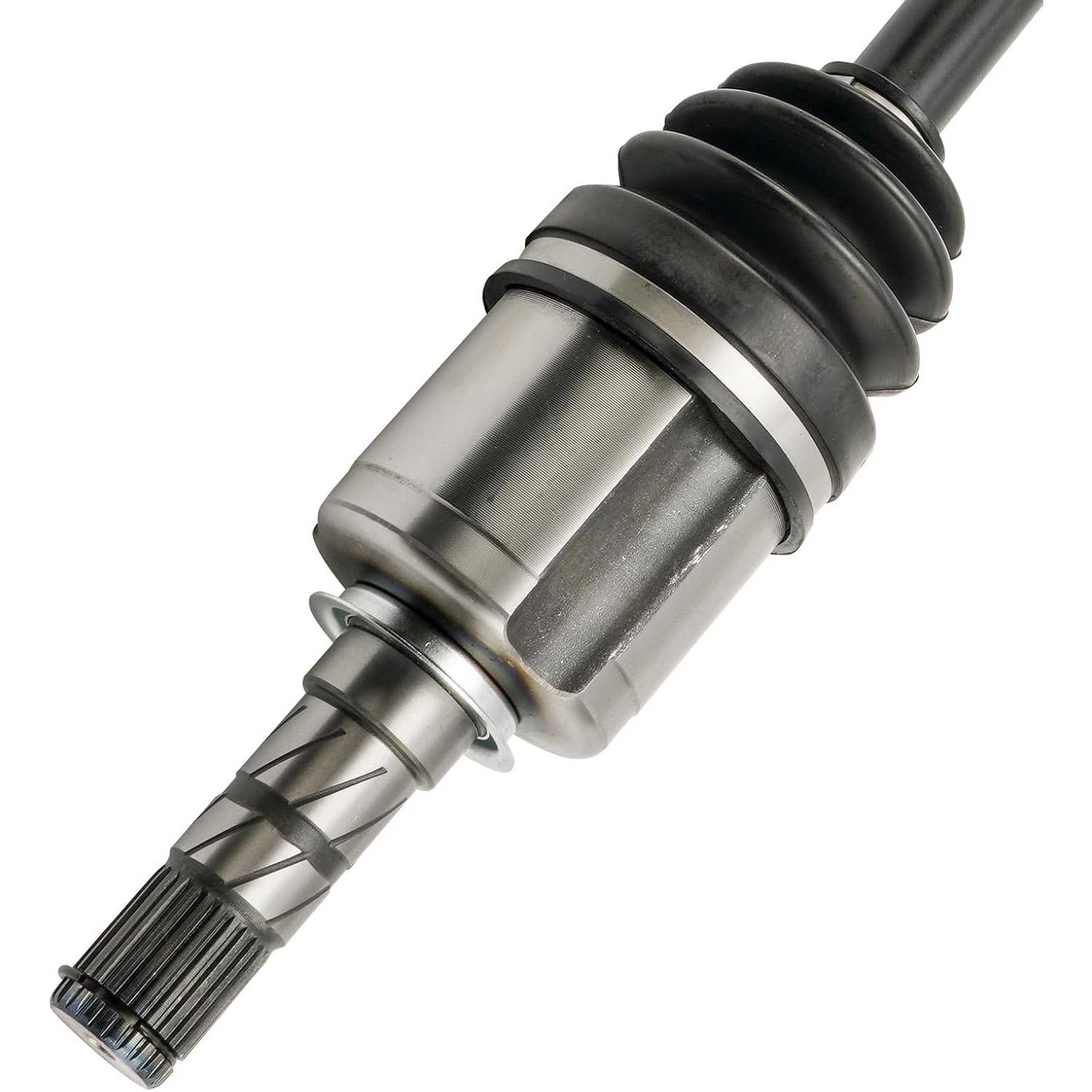

Input Shaft Spline Count
25
Material
SAE 1055 Steel and Chloroprene Rubber

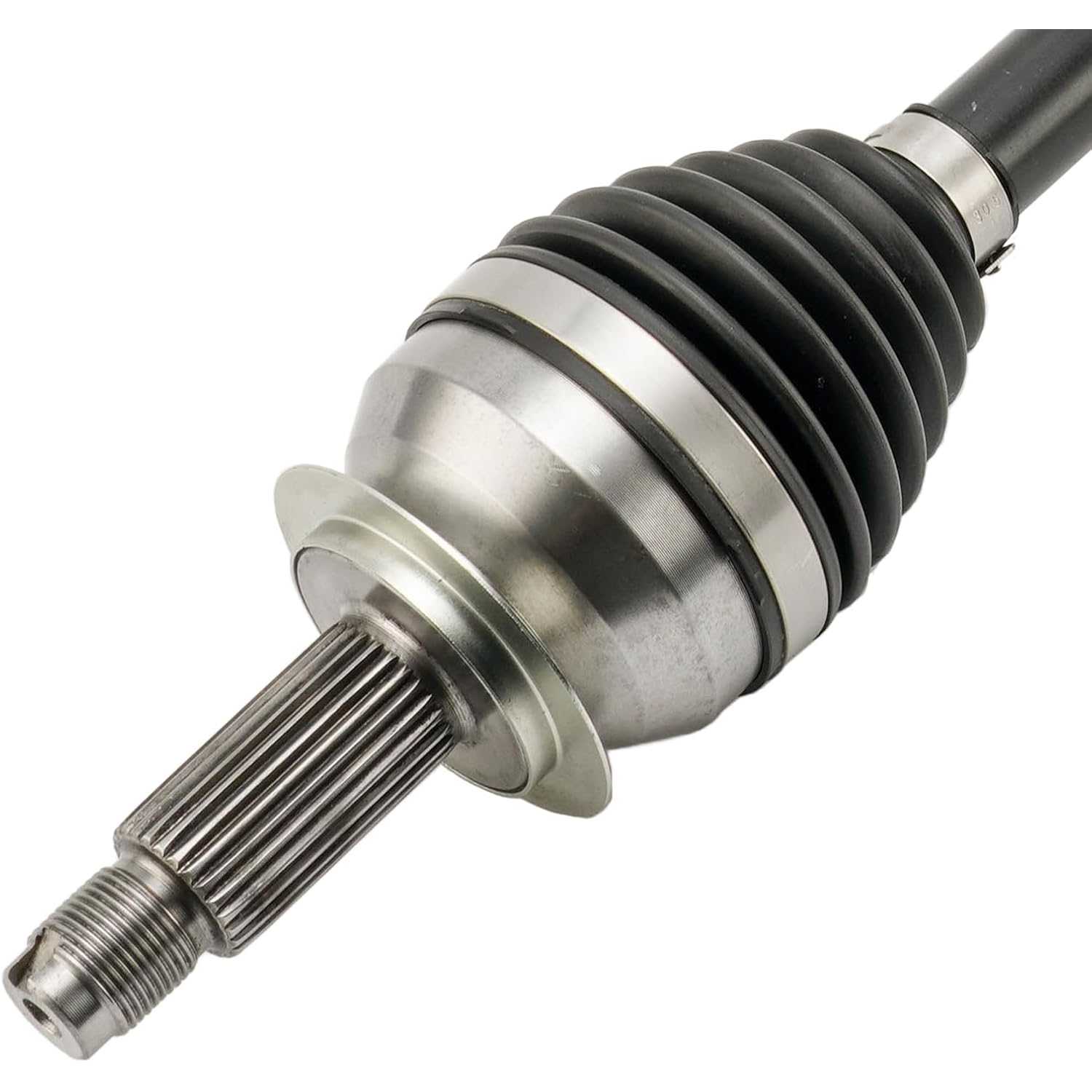

Output Shaft Spline Count
27
Items Included

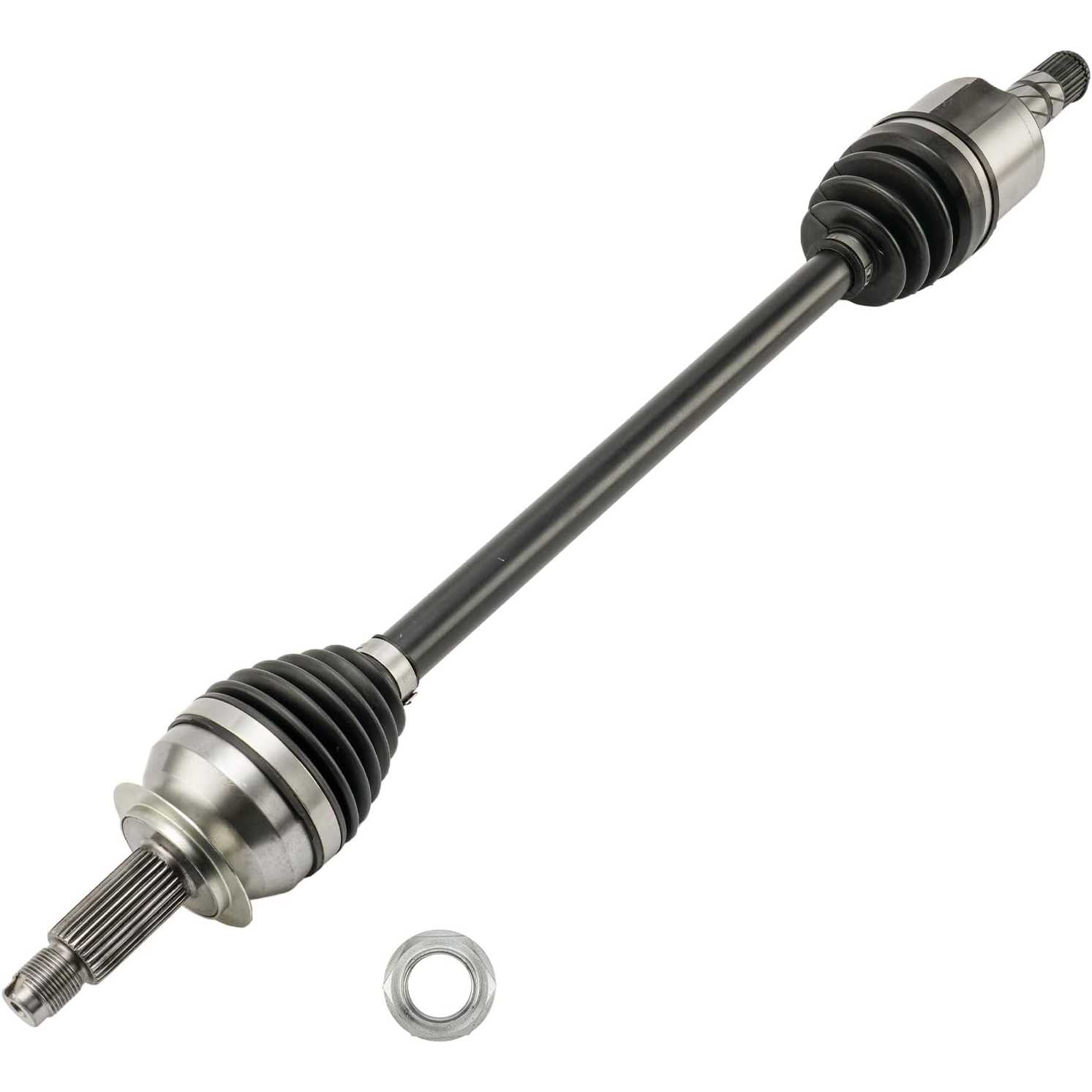

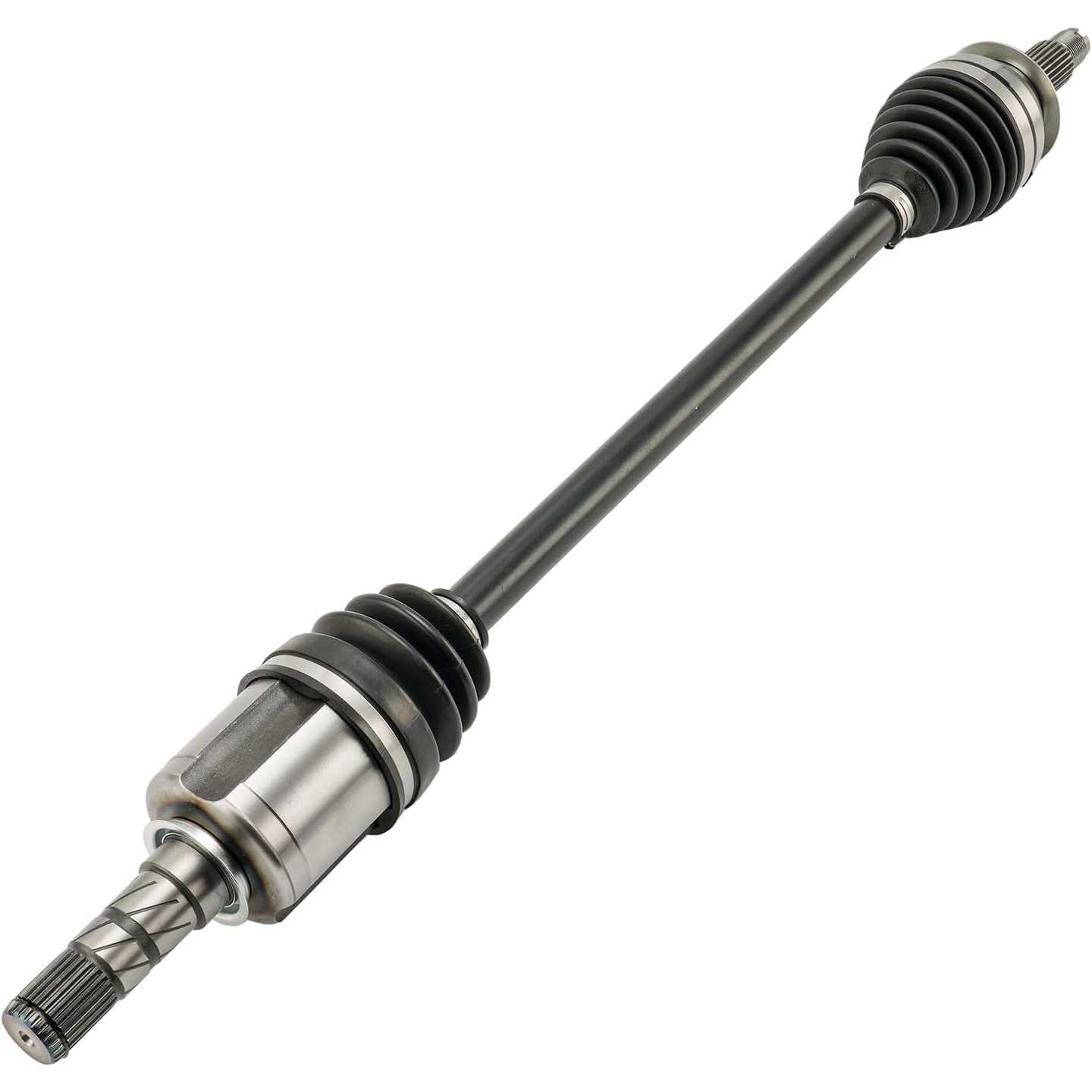

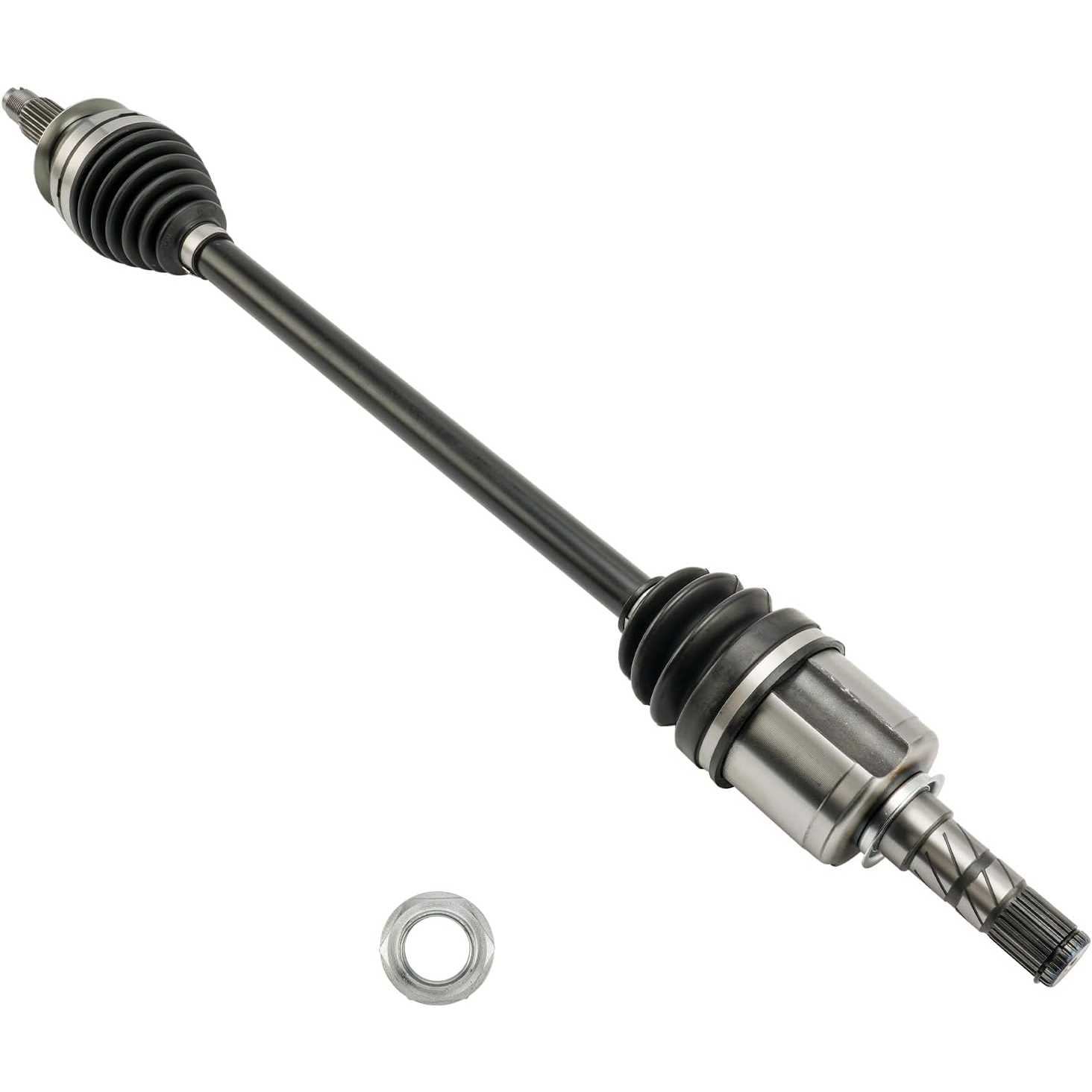

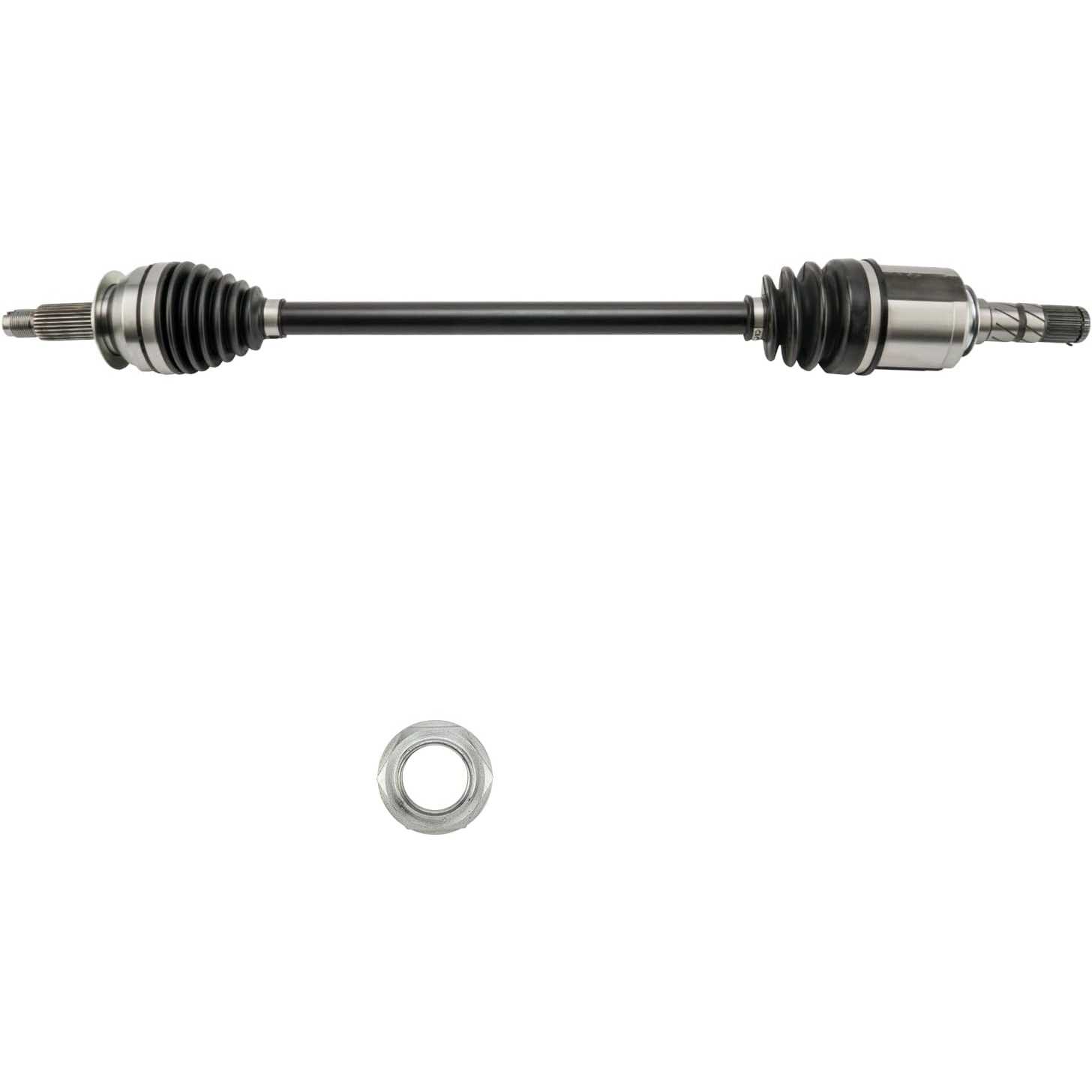

1x Front Left or Right Cv Axle Shaft - 66-7355HD
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
667355HD

Highlights

  • Vehicle Fit: Front Complete CV Joint Axle Shaft for 2008-2010 Impreza 2.5GT/WRX/WRX Premium, 2008-2011 Impreza 2.5i/Outback Sport, 2010-2010 WRX STI Special Edition, 2010-2011 Impreza 2.5i Premium, 2005-2009 Outback, 2005-2009 Legacy.Please double check that the CV is suitable for your vehicle before purchasing
  • Kit Includes: 1x Front cv axle shaft - 66-7355HD. CV axles are designed to work with your vehicle make and model
  • High Precision Design: CV shafts are manufactured by precision instruments and rigorously tested before sale to make the interface perfectly match your vehicle.The performance of CV shafts is far superior to ordinary types.

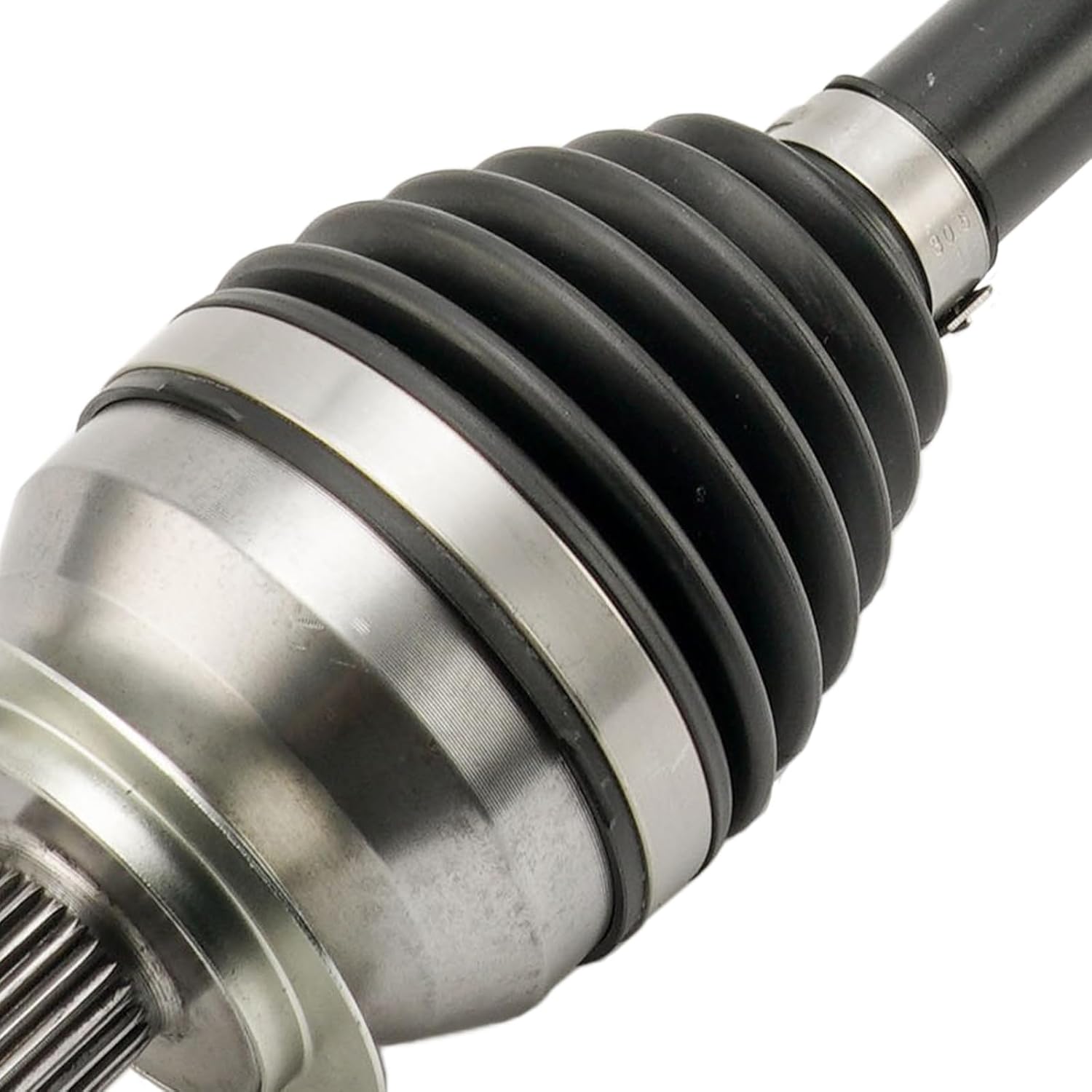

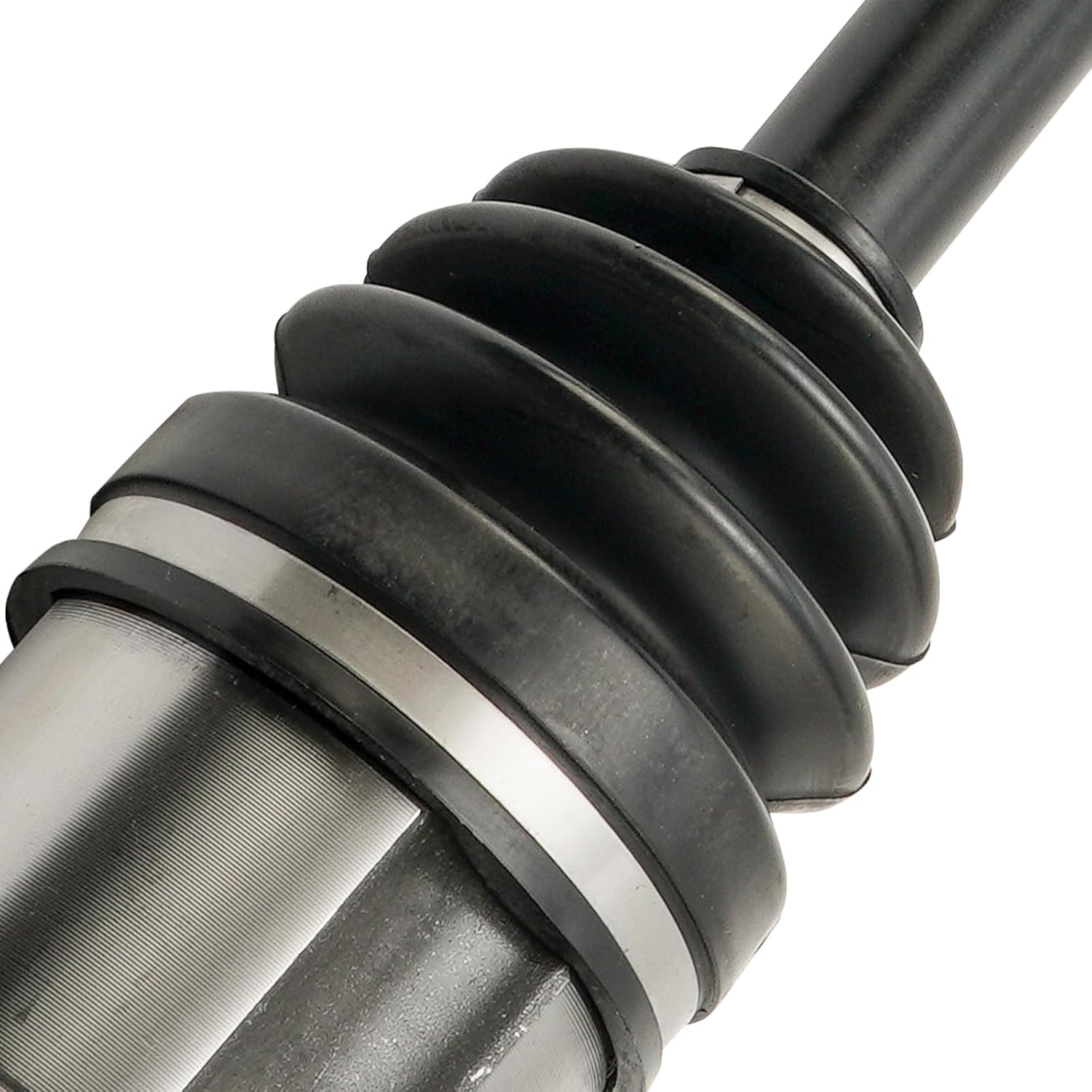

  • Top Quality: CV shafts made of high-quality neoprene rubber and grease ensure that the product stays lubricated, helping to extend the life of the CV shaft.
  • Easy Installation: CV axles are carefully designed and tested to work perfectly with your vehicle. The installation process ensures an accurate and secure connection.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20102008 - 20112010 - 20112008 - 20112008 - 201020102009 - 201020102006 - 20092007 - 20092007 - 200920092008 - 20092005 - 200620052007 - 20092006 - 2009200520052006 - 2009200720082006 - 2009200820092009200820052005 - 20062005 - 2008200620052005 - 20062005 - 20092005
MakeSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaru
ModelImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutback
Trim2.5 GT2.5i2.5i PremiumOutback SportWRXWRX LimitedWRX PremiumWRX STI Special Edition2.5i2.5i Limited2.5i Special Edition3.0 R3.0 R LimitedGTGT LimitedGT LimitedGT spec.BLimitedi2.5i2.5i Basic2.5i L.L. Bean Edition2.5i Limited2.5i Limited L.L. Bean Edition2.5i Special Edition3.0 R LimitedBaseLimitedRR L.L. Bean EditionR VDC LimitedVDC LimitedXTXT Limitedi
Engine2.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H43.0L H63.0L H62.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H43.0L H62.5L H42.5L H43.0L H63.0L H63.0L H63.0L H62.5L H42.5L H42.5L H4
Note-----------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.8/5

Based on 6 reviews

583%
417%
30%
20%
10%

Robert Samson

09/20/2026

Verified buyer

The delivery was great and it fits

Steve_DIYer_646

02/16/2026

It completely fixed the issue I was having with my drive axle. No more weird noises or vibrations. The car feels stable and reliable again, which is a huge relief.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
