Front Right

Built to Last

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8325SHA654FUS

Specifications

Brand
PHILTOP
Position
Front Right
ABS Ring Included
No
Quantity
1
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
36
Items Included
1x Front Right Cv Axle Shaft - 66-7253
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
667253

Highlights

  • Vehicle Fit: Front Right Complete CV Joint Axle Shaft for 2000-2002 TT, 1998-1998 Beetle 1.9L Automatic, 1999-2001 Beetle Automatic, 1999-2004 Beetle 1.8L, 2004-2004 Beetle 1.9/2.0L, 2005-2005 Beetle 1.8L Manual, 1999-2002 Golf Automatic, 1999-2002 Golf 2.8L, 2001-2002 Golf 1.8L, 2003-2003 Golf GL/GLS Automatic, 2003-2003 Golf GTI 1.8T Manual, 2004-2006 Golf 1.8L Manual, 2004-2006 Golf 2.0L Automatic, 1999-2001 Jetta 2.8L, 1999-2000 Jetta Automatic, 2001-2001 Jetta 1.8L
  • Kit Includes: 1x Front cv axle shaft - 66-7253. CV axles are designed to work with your vehicle make and model
  • High Precision Design: CV shafts are manufactured by precision instruments and rigorously tested before sale to make the interface perfectly match your vehicle.The performance of CV shafts is far superior to ordinary types.
  • Top Quality: CV shafts made of high-quality neoprene rubber and grease ensure that the product stays lubricated, helping to extend the life of the CV shaft.
  • Easy Installation: CV axles are carefully designed and tested to work perfectly with your vehicle. The installation process ensures an accurate and secure connection.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2000 - 200120021999 - 20031999 - 20041999 - 20041999 - 20051999 - 20041999 - 20041999 - 20042001 - 20022001 - 20022001 - 2002199819992000 - 2001200319992000 - 20012002 - 200620042000 - 20012000 - 2001200319992000 - 20012002 - 2006200419992002 - 20062000 - 200120002000 - 2001200219992003 - 20041999200020012002 - 20052004200020012002 - 20041999200020012002 - 2005199920002001200219992000200120021999200020012002 - 2004200120031999
MakeAudiAudiVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagen
ModelTTTTBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleGolfGolfGolfGolfGolfGolfGolfGolfGolfGolfGolfGolfGolfGolfGolfGolfGolfGolfGolfGolfGolfJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJetta
TrimBaseBaseGLGLGLGLSGLSGLSGLXSportSportSportTDIGLGLGLGLGLGLGL TDIGLSGLSGLSGLSGLSGLSGLS TDIGTIGTI 1.8TGTI GLSGTI GLSGTI GLXGTI VR6Wolfsburg EditionGLGLGLGLGLGLIGLSGLSGLSGLSGLSGLSGLSGLSGLSGLSGLSGLXGLXGLXGLXTDITDITDITDIWolfsburg EditionWolfsburg EditionWolfsburg Edition
Engine1.8L L41.8L L41.8L L41.9L L42.0L L41.8L L41.9L L42.0L L41.8L L41.8L L41.9L L42.0L L41.9L L41.9L L41.9L L41.9L L42.0L L42.0L L42.0L L41.9L L41.8L L41.9L L41.9L L42.0L L42.0L L42.0L L41.9L L42.8L V61.8L L41.8L L42.0L L42.8L V62.8L V62.0L L41.8L L42.0L L42.0L L42.0L L42.0L L41.8L L41.8L L41.8L L41.8L L42.0L L42.0L L42.0L L42.0L L42.8L V62.8L V62.8L V62.8L V62.8L V62.8L V62.8L V62.8L V61.9L L41.9L L41.9L L41.9L L41.8L L41.8L L42.0L L4
Note-
w/ 16 and 17(in) Wheels
-----------
New Body Style
1999 For New Body Style
-
New Body Style
1999 For New Body Style
--
1999 For New Body Style
1999 For New Body Style
-
New Body Style
1999 For New Body Style
--
New Body Style
-
1999 For New Body Style
1999 For New Body Style
1999 For New Body Style
-
New Body Style
-
New Body Style
1999 For New Body Style
w/ Aluminum Wheels;w/ Steel Wheels
--
1999 For New Body Style
w/ Aluminum Wheels;w/ Steel Wheels
-
New Body Style
1999 For New Body Style
w/ Aluminum Wheels;w/ Steel Wheels
-
New Body Style
1999 For New Body Style
w/ Aluminum Wheels;w/ Steel Wheels
-
New Body Style
1999 For New Body Style
w/ Aluminum Wheels;w/ Steel Wheels
-
New Body Style
1999 For New Body Style
w/ Aluminum Wheels;w/ Steel Wheels
-
w/ Aluminum Wheels;w/ Steel Wheels
-
New Body Style

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.6/5

Based on 9 reviews

567%
422%
311%
20%
10%

tester67

07/29/2026

Verified buyer

For the price, this has been a very good buy. The part fits well, feels sturdy, and installs straightforwardly for the listed application. Exact vehicle fitment and alignment should be verified before putting serious miles on it. Overall, it is a good value and does the job.

DaveTheMechanic_411

01/16/2026

The clicking noise on my Beetle is completely gone! This axle solved the problem perfectly. It feels much more stable and smooth now. Very satisfied.

FAQS

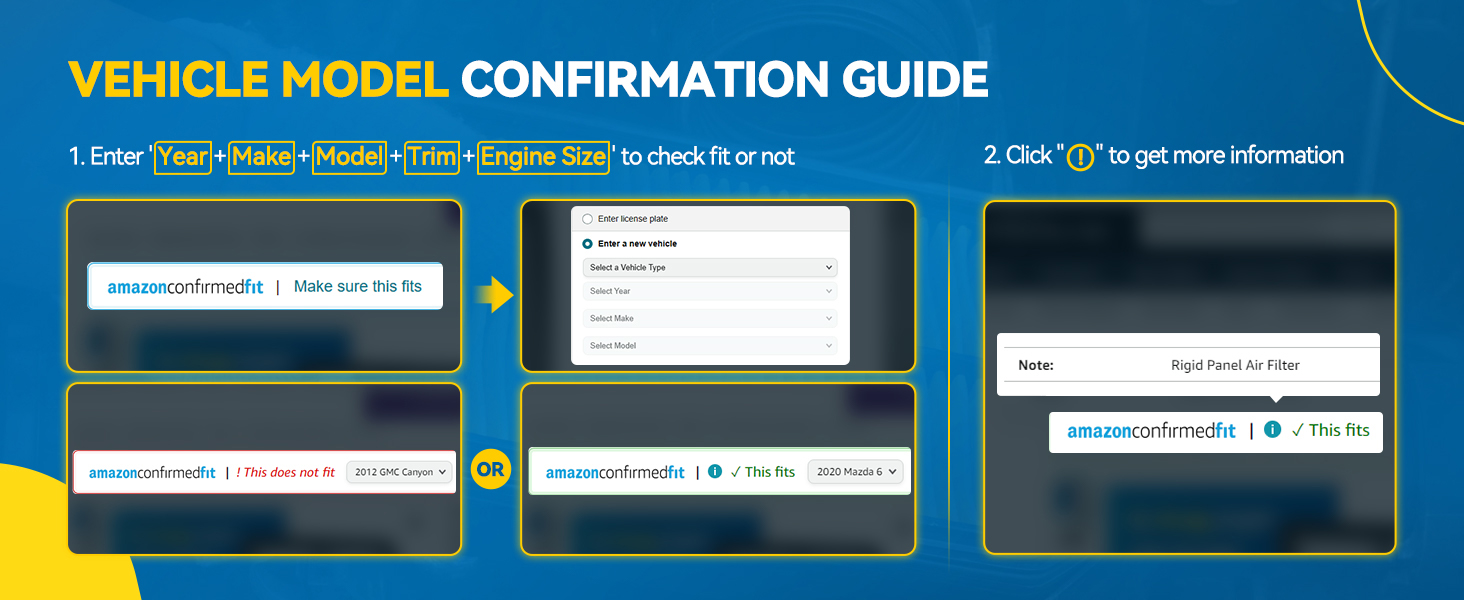

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
