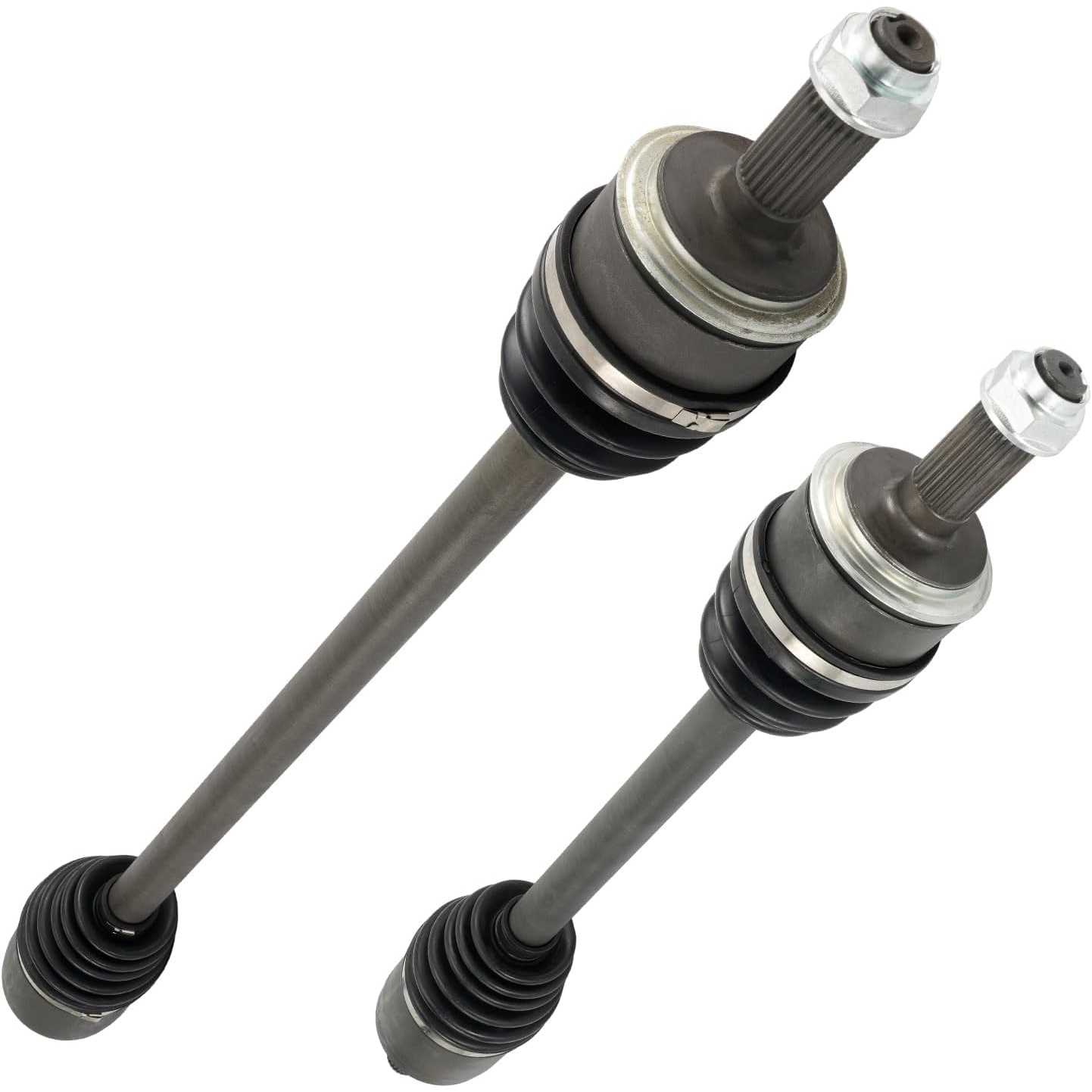

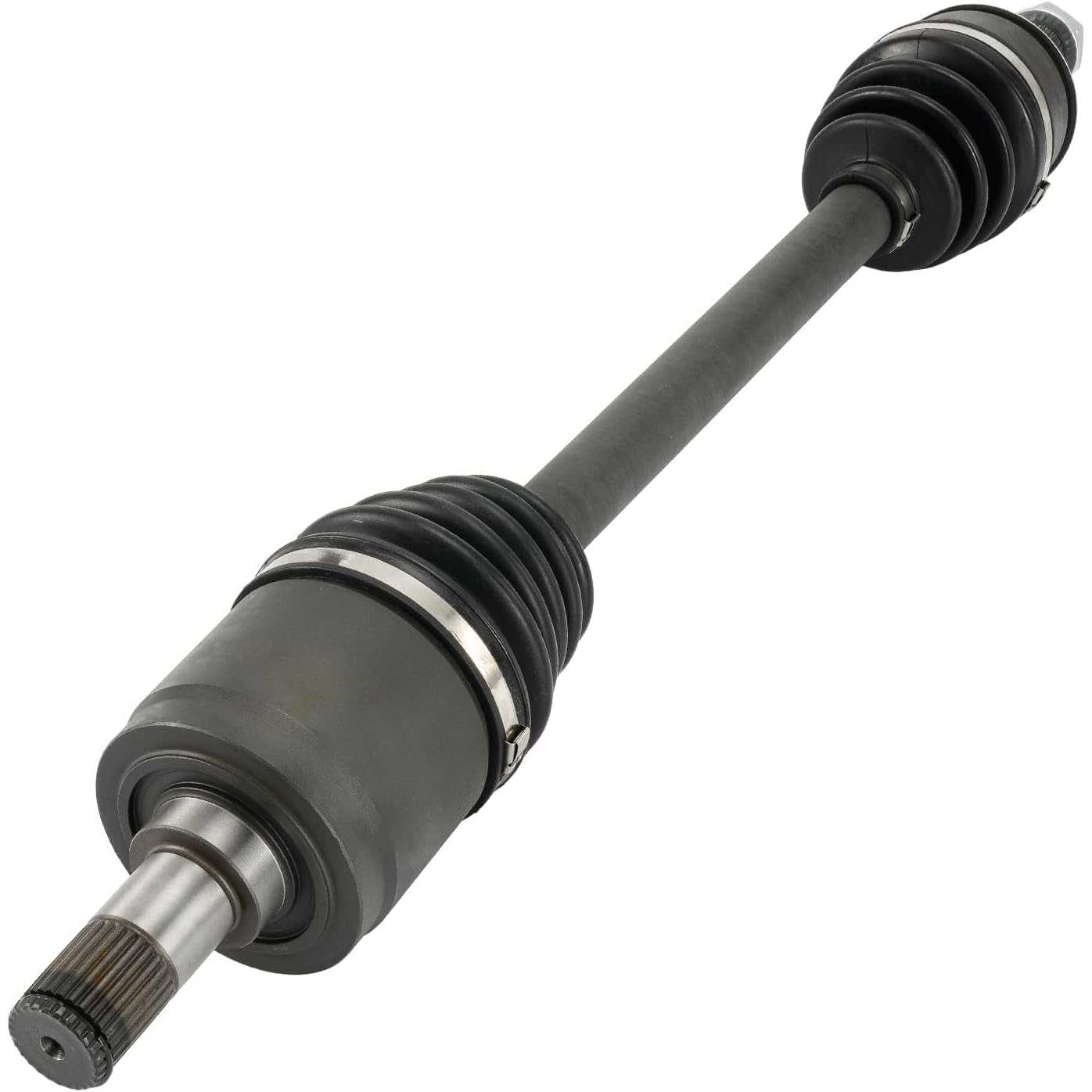

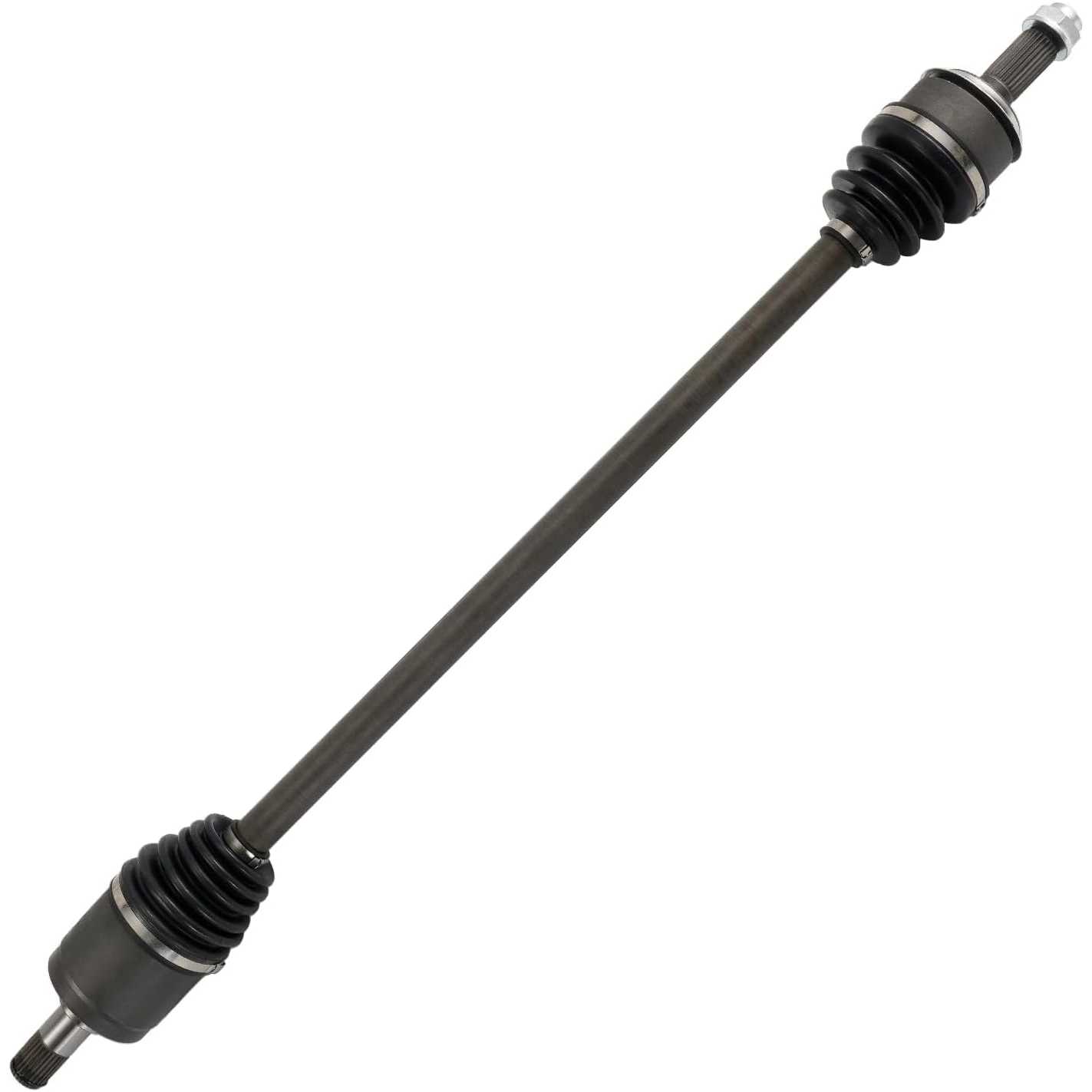

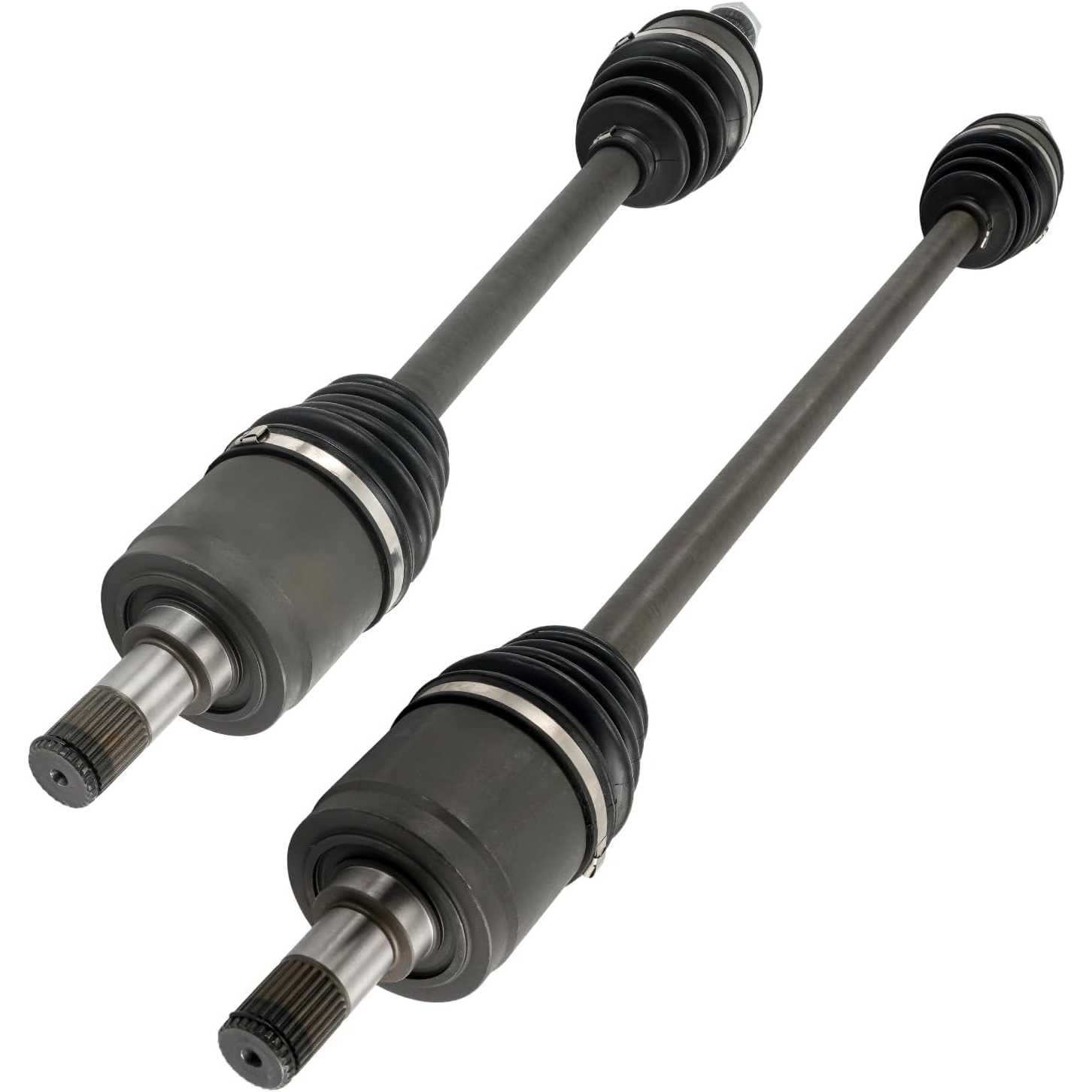

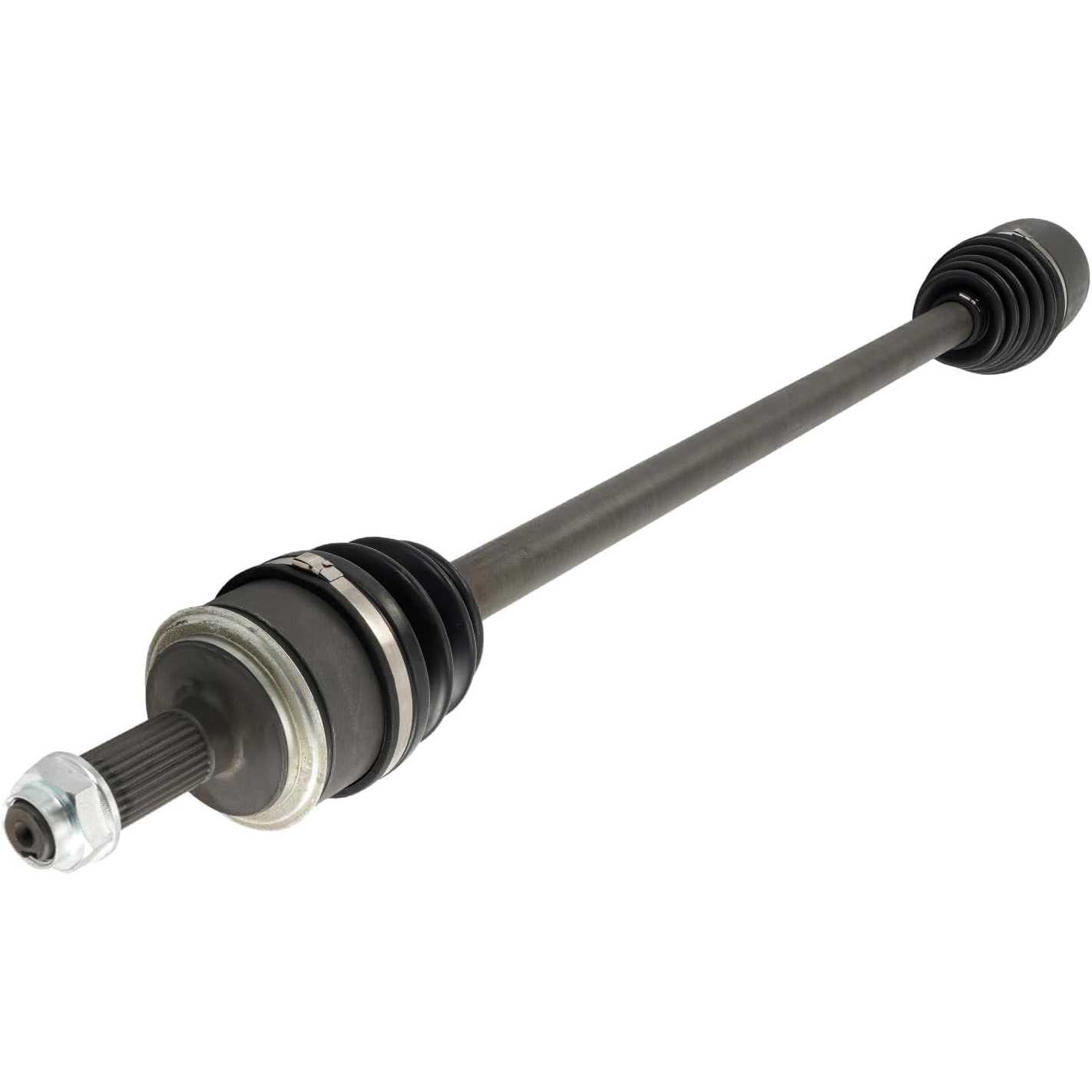

2003-2007 Honda Accord 2.4L | Front Driver Side & Passenger Side CV Axle | 664218 - PHILTOP

2003-2007 Honda Accord 2.4L | Front Driver Side & Passenger Side CV Axle | 664218 - PHILTOP

Front

Built to Last

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5053SHA091ZUS

Specifications

Brand
PHILTOP
Position
Front
ABS Ring Included
No
Quantity
2

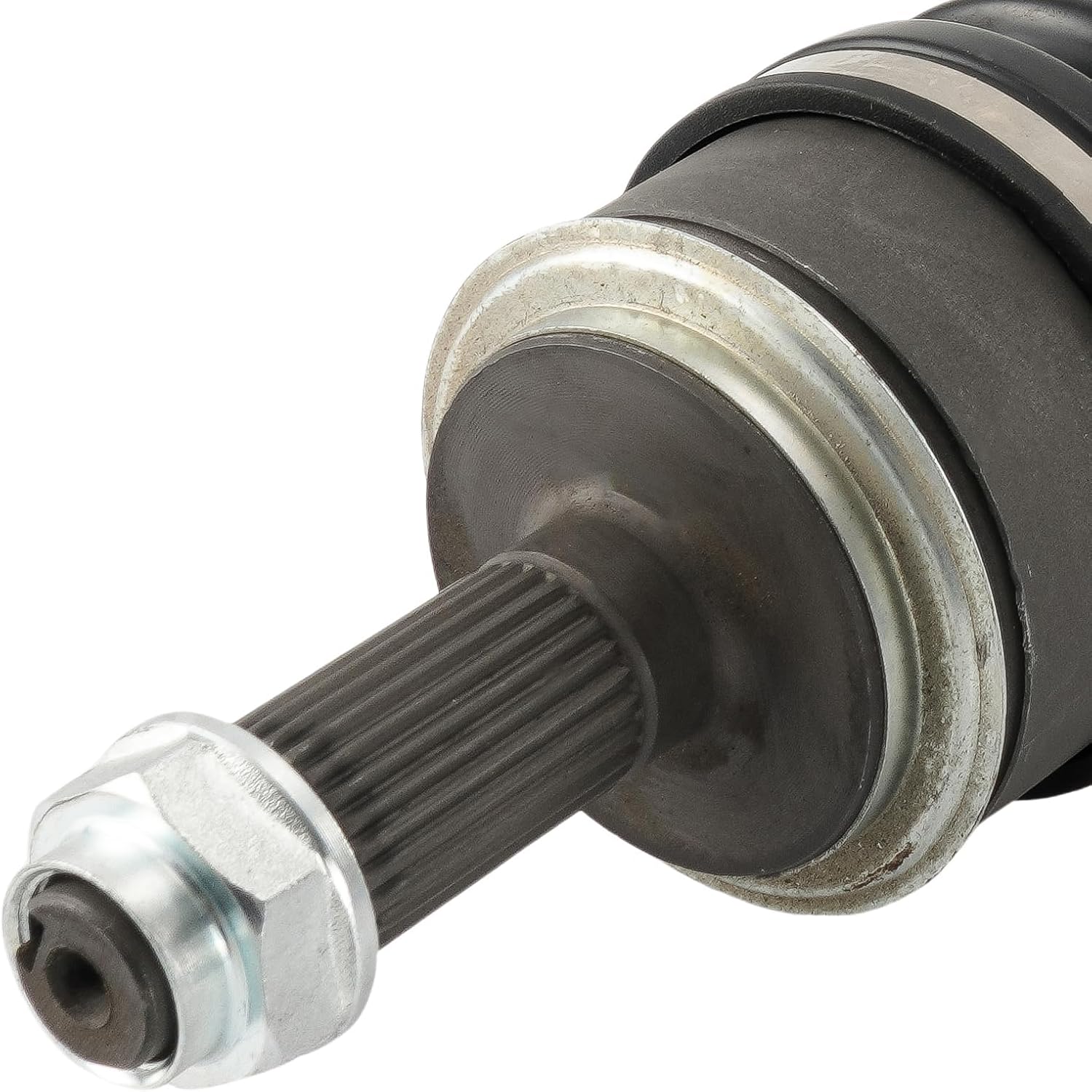

Input Shaft Spline Count
27
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
26
Items Included

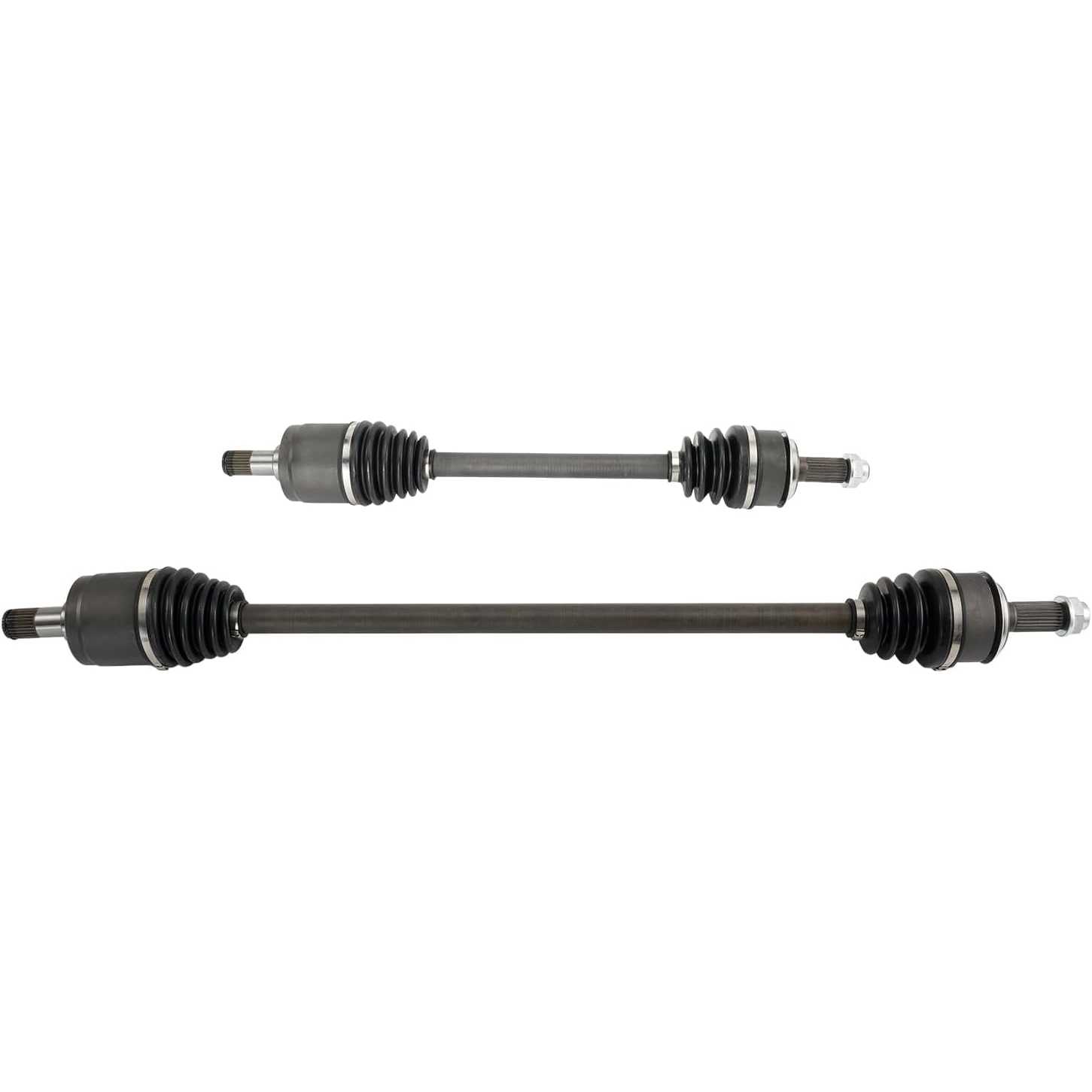

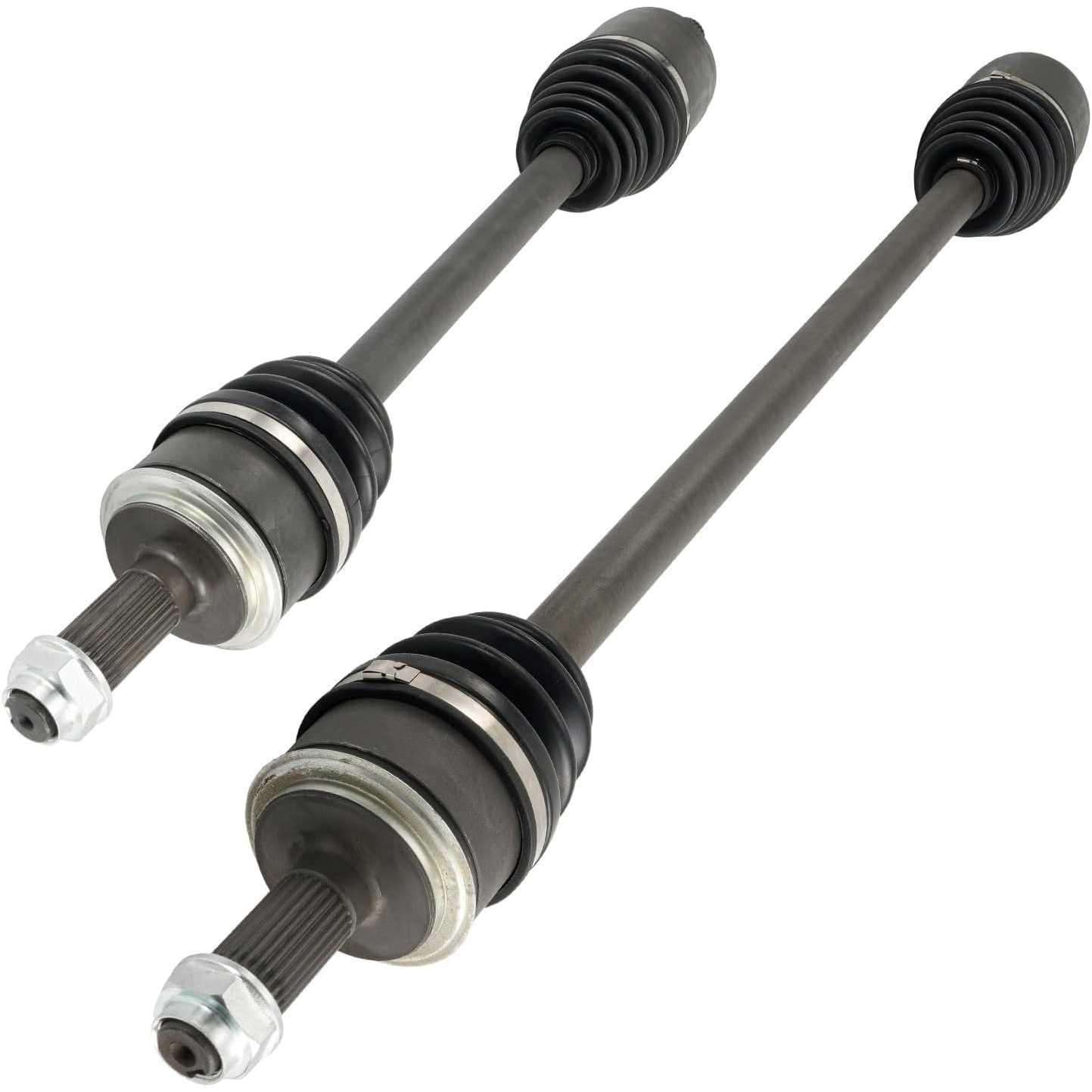

1x Front Cv Axle Shaft - 66-4217 1x Front Cv Axle Shaft - 66-4218
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
664218,664217

Highlights

  • (Perfect Fit)Front Axle Shaft Joint Assembly Set Fit for 03-07 Accord 2.4L 66-4217,66-4218
  • (High Quality)Made of high-quality chromoly steel, it has cushioning and vibration-absorbing properties, which can reduce noise and automatically circulate lubrication. CV Axles can handle harsh environments. The temperature is within 300°C and can work in corrosive environments such as acid, alkali, salt spray, etc.
  • (Easy to Install)The shaft can operate at high CV angles, easy to install and remove, maintenance-free, long service life, ideal for low-speed heavy loads and high-speed transmissions
  • (High Performance)It can maintain smooth operation under low speed, heavy load and high speed transmission, with high transmission efficiency and load capacity 0.5 to 1 times higher than similar products
  • (After Sales Service)Provide professional service. If you have any questions, please contact us at any time. Please use Suncentauto's Part Finder to check whether this mounts are compatible with your vehicle

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2003 - 20052003 - 200720072003 - 20072006200520072006 - 2007
MakeHondaHondaHondaHondaHondaHondaHondaHonda
ModelAccordAccordAccordAccordAccordAccordAccordAccord
TrimDXEXEX-LLXLX Special EditionSESpecial EditionValue Package
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note--------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length

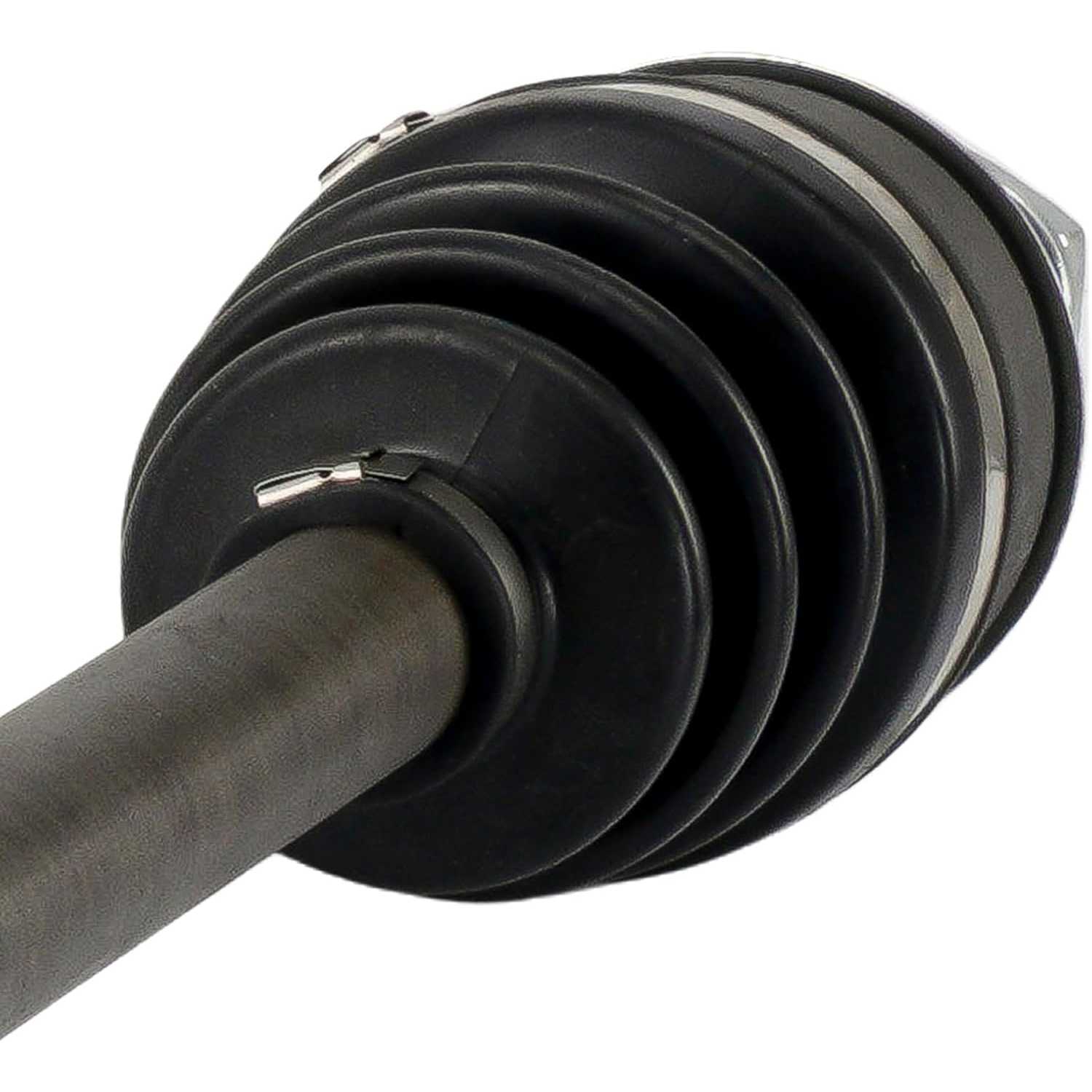

  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

Reviews

4.5/5

Based on 4 reviews

575%
40%
325%
20%
10%

GT

01/25/2026

Verified buyer

Fit great and working great so far. No issues. I used these on my 2005 Honda Accord 2.4l.

Emma_DailyCommute_519

03/04/2026

These look and feel like high-quality parts. The machining is clean and they seem very durable. For the price I paid, I'm really impressed with the overall craftsmanship.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
