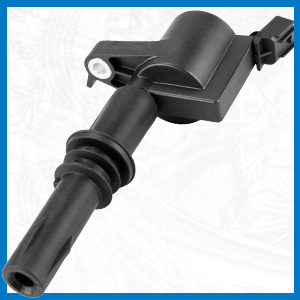

2004-2008 Ford F-150 5.4L V8 | 1 PC Ignition Coil | DG511 - PHILTOP

2004-2008 Ford F-150 5.4L V8 | 1 PC Ignition Coil | DG511 - PHILTOP

Quick Ignition Response

High-Grade Insulation

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7332IGC151AUS

Specifications

Brand
PHILTOP
Items Included

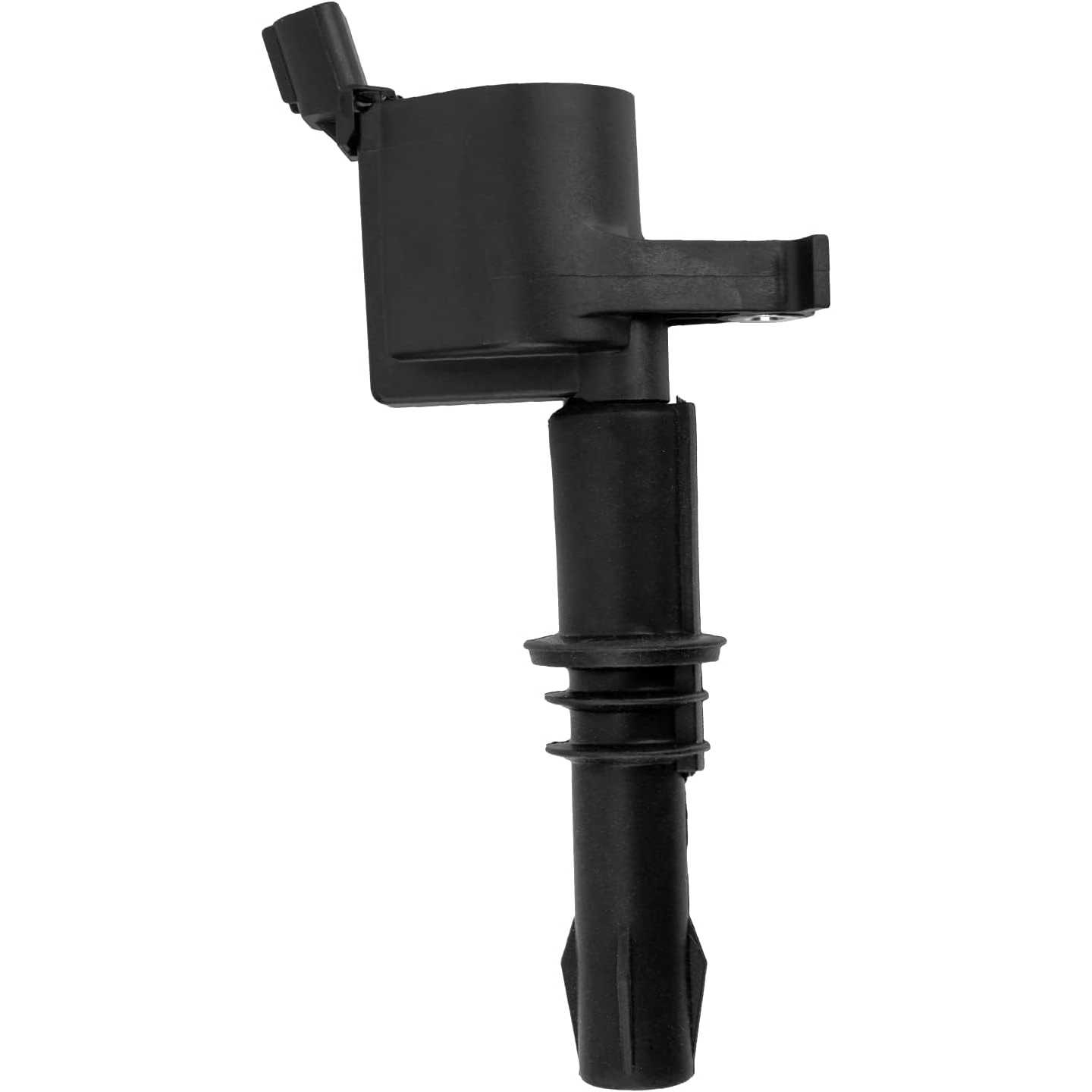

1x Ignition Coil - DG511
Type
Pen-Type
Quantity
1
Color
Black
Pin Count
2
Warranty Period
2-Year
Part Number
DG511

Highlights

  • [Vehicle Fitment]: Compatible with [Ford] 2004-2008 F-150 5.4L 2005-2008 Expedition, Mustang 4.6L 2005-2008 F-250/F-350 Super Duty 5.4/6.8L, F-450/F-550 Super Duty 6.8L 2006-2008 Explorer 4.6L 2007-2008 Explorer Sport Trac 4.6L
  • [Vehicle Fitment]: Compatible with [Lincoln] 2005-2008 Navigator 2006-2008 Mark LT [Mercury] 2006-2008 Mountaineer 4.6L
  • [OEM Coil Packs Design]: Meets strict OE specifications for precise fit and performance, matching or exceeding the original factory part. Reference Number: Extends OE manufacturer part number 3L3E12A366CA,3L3U12A366BB,3L3Z12029BA,521839,5C1584,C1541,C1659,DG511,E508,FD508,IC558,UF537
  • [Easy Installation]: Rigorous testing ensures maximum durability. Backed by 166+ years of expertise for simple, safe installation and reliable performance.
  • [Warm Tips]: Please enter your vehicle’s year, make, and model to verify fitment before purchasing.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 200820082007 - 20082007 - 20082005 - 20082008200620082005 - 20082005 - 20062005 - 200820062006 - 20082006 - 20082006 - 20082007 - 20082007 - 20082007 - 20082004 - 20082006 - 20082005 - 20082004 - 2008200820082004 - 20082004 - 200820082008200520082005 - 20082005 - 20082005 - 20082005 - 20082005 - 20082005 - 20082005 - 20082005 - 200820082008200520082005 - 20082005 - 20082005 - 20082005 - 20082005 - 20082005 - 20082005 - 20082005 - 200820082005 - 20082005 - 20082005 - 20082005 - 20082005 - 20082005 - 200820082005 - 20082007 - 20082006 - 2008200520082008200720072006 - 20072006 - 200720062006 - 2008
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnMercuryMercury
ModelExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExplorerExplorerExplorerExplorer Sport TracExplorer Sport TracF-150F-150F-150F-150F-150F-150F-150F-150F-150F-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-450 Super DutyF-450 Super DutyF-450 Super DutyF-450 Super DutyF-550 Super DutyF-550 Super DutyF-550 Super DutyMustangMustangMustangMark LTNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorMountaineerMountaineer
TrimEL Eddie BauerEL King RanchEL LimitedEL XLTEddie BauerFunkmaster Flex EditionKing RanchKing RanchLimitedXLSXLTXLT SportEddie BauerLimitedXLTLimitedXLTFX2FX4Harley-Davidson EditionKing RanchLariatLimitedTHE 60TH ANNIVERSARY EDITIONXLXLTFX4FX4Harley-Davidson EditionHarley-Davidson EditionKing RanchKing RanchLariatLariatXLXLXLTXLTFX4FX4Harley-Davidson EditionHarley-Davidson EditionKing RanchKing RanchLariatLariatXLXLXLTXLTKing RanchLariatXLXLTLariatXLXLTBullittGTShelby GTBaseBaseBaseLL LuxuryL UltimateLuxuryUltimateLuxuryPremier
Engine5.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V84.6L V84.6L V84.6L V84.6L V84.6L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V86.8L V106.8L V106.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V106.8L V106.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V106.8L V106.8L V106.8L V106.8L V106.8L V106.8L V106.8L V104.6L V84.6L V84.6L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V84.6L V84.6L V8
Note
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
-
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots
w/ Black Coil Boots

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.

Product Video

Product Description

ignition coilignition coil

Reviews

4.8/5

Based on 8 reviews

575%
425%
30%
20%
10%

Sadie

08/14/2025

Verified buyer

Needed these for our Nissan. Good quality, easy to replace, fit well

Parker

06/27/2025

Verified buyer

Works great

FAQS

Fitment depends on your engine size and year. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a 100% match.

We stand behind the quality of our ignition systems with a 3-Year Limited Warranty. Scroll to the "Warranty & Support" section at the bottom of the page for full details on our 3-year reliability guarantee.

Yes, these are common symptoms of a failing coil (Code P0300-P0308). Review the "Product Highlights" section to see how our high-voltage output restores smooth engine performance.
