2011-2012 Ram 1500 3.6L | Fuel Pump Assembly | OE#68197317AA/SP7118M - PHILTOP

2011-2012 Ram 1500 3.6L | Fuel Pump Assembly | OE#68197317AA/SP7118M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8288FUP045NUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
990.0 Ω
Resistance Ohms Full
50.0 Ω
Average Flow Rating
20 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
109.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

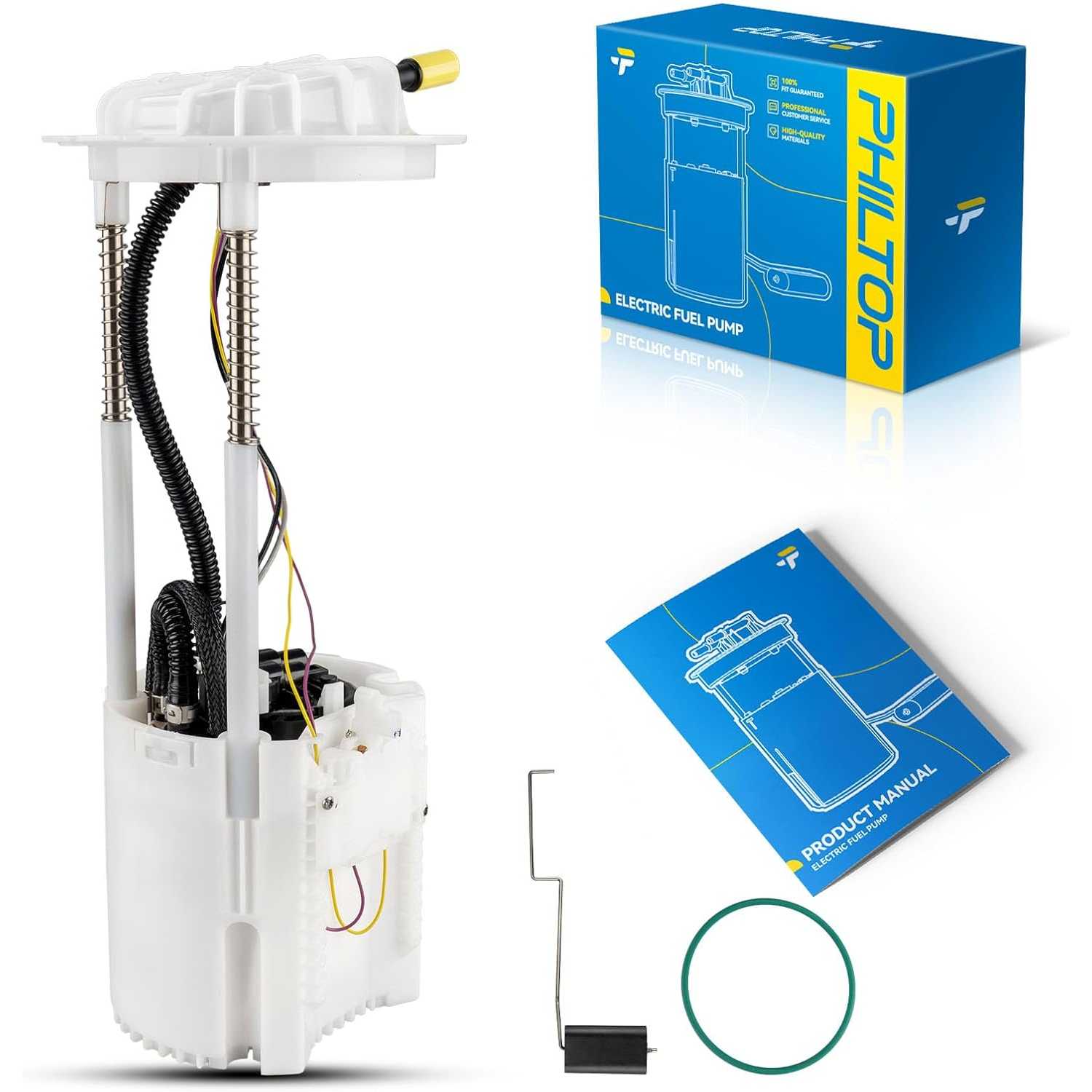

Items Included
1x Fuel Pump Assembly - FG1354
Warranty Period
2-Year
OE Number
68197317AA,RL145594AA,5145594AA,68050948AA,68050948AB
Part Number
SP7118M,FG1354,P77018M,USEP7270M,2921119,A31015,1234711,M2542456,B13111654TG,4010728,PN3109,TNKSP7118M,A46183

Highlights

  • (Direct Fit) - Direct replacement for worn fuel pump assembly, suitable for the following models: 1500 2011-2012 4.7L, 5.7L, 3.7L, 1500 2014-2014 5.7L, 3.6L, Ram 1500 2009-2010 4.7L
  • (OEM Number)--PHILTOP fuel pump meets OE standard, replace# FG1354,SP7118M,P77018M,P77119M,68050948AA,68253232AA,RL145594AA,5145594AA,68050948AB,68197317AA,68141873AA,E7270M,P76745M,P77085M,SP7200M,FP22047S,E7257M,SP7252M,66112,B13111654TG,TNKSP7118M,A30436,A31015,A46183,PN3109,M2520930,4010728,C0840M,1234711,DFG1354,M2542456,2921119,FG1439,68197307AA,RL050948AA,FG1356,C0838M,150244,C0519M,A46069,B13111656TG,B13112087TG,1234889,M635745,A30523,TNKSP7252M,TNKSP7200M,4010721,1234849,4011447
  • (Premium Quality & Service)--One year hassle-free return and exchange. All plastic parts are made of imported high performance POM raw materials, and the module adopts the most mature fuel pump structure, which is ethanol resistant, more efficient and longer service life
  • (Product Advantage)--PHILTOP fuel pumps generate noise as low as 48dB during operation and can operate stably in different media (e.g. gasoline, diesel, alcohol). The anti-electromagnetic interference level of fuel pump products reaches level 3. At the same time philtop fuel pump made 3500 hours life test, the test results show that the flow decay is less than 15%, so its long life is also a major advantage
  • (Easy to install)--No need to buy other accessories, can be installed directly. Please confirm the year/make/model of the vehicle you are purchasing before purchasing. You can refer to the fitment description on the product detail page or use the "Suncentautoconfirmedfit" in the upper left corner of the link to confirm

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20102009 - 20102009 - 20102009 - 2010201420112011 - 201220142014201220142014201420142011 - 2012201420142011 - 201220142014201420142011 - 20122011 - 2012201420142011 - 20122011 - 201220142011 - 20122011 - 20122011 - 201220142011 - 20122014201420122011 - 20122014
MakeDodgeDodgeDodgeDodgeRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRam
ModelRam 1500Ram 1500Ram 1500Ram 150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500
TrimSLTSTTRXTRX4Big HornBig HornBig HornBig HornExpressExpressExpressHFEHFELaramieLaramieLaramieLaramie LimitedLaramie LonghornLaramie LonghornLone StarLone StarOutdoorsmanOutdoorsmanOutdoorsmanOutdoorsmanSLTSLTSLTSLTSTSTSTSpecial ServiceSportSportTradesmanTradesmanTradesmanTradesman
Engine4.7L V84.7L V84.7L V84.7L V83.6L V64.7L V85.7L V85.7L V83.6L V65.7L V85.7L V83.6L V65.7L V83.6L V65.7L V85.7L V85.7L V85.7L V85.7L V83.6L V65.7L V83.6L V64.7L V85.7L V85.7L V83.6L V64.7L V85.7L V85.7L V83.7L V64.7L V85.7L V85.7L V85.7L V85.7L V83.6L V64.7L V85.7L V85.7L V8
Note-----
Exclude Tradesman HD
Exclude Tradesman HD
--
Exclude Tradesman HD
----
Exclude Tradesman HD
--
Exclude Tradesman HD
----
Exclude Tradesman HD
Exclude Tradesman HD
--
Exclude Tradesman HD
Exclude Tradesman HD
-
Exclude Tradesman HD
Exclude Tradesman HD
Exclude Tradesman HD
-
Exclude Tradesman HD
--
Exclude Tradesman HD
Exclude Tradesman HD
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel Pumpfuel pump

Reviews

4.9/5

Based on 12 reviews

592%
48%
30%
20%
10%

Steve

07/28/2026

Verified buyer

My hpfp was having issues. Then this came in, and I replaced it. Found that the spring was definitely partially collapsed. This would cause issues for sure. The tappet also showed signs of wear, so I replaced that as well.One for one replacement, fuel pressure is restored now.

T-Rex Wes

04/30/2026

Verified buyer

This fixed my problems. It’s hard work to drop the fuel tank on a ram 1500 but it’s definitely worth it to not have to pay the price of having somebody else do it for you. This electric fuel pump fit perfectly fix the issue. I can now drive again and I have decent gas mileage without any problems no more stuttering as I’m driving no more dead truck
