2003-2004 Kia Sorento 3.5L V6 | Fuel Pump Assembly | OE#311503E200/SP3025M - PHILTOP

2003-2004 Kia Sorento 3.5L V6 | Fuel Pump Assembly | OE#311503E200/SP3025M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1261FUP026CUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
200.0 Ω
Resistance Ohms Full
8.0 Ω
Average Flow Rating
40 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
3
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

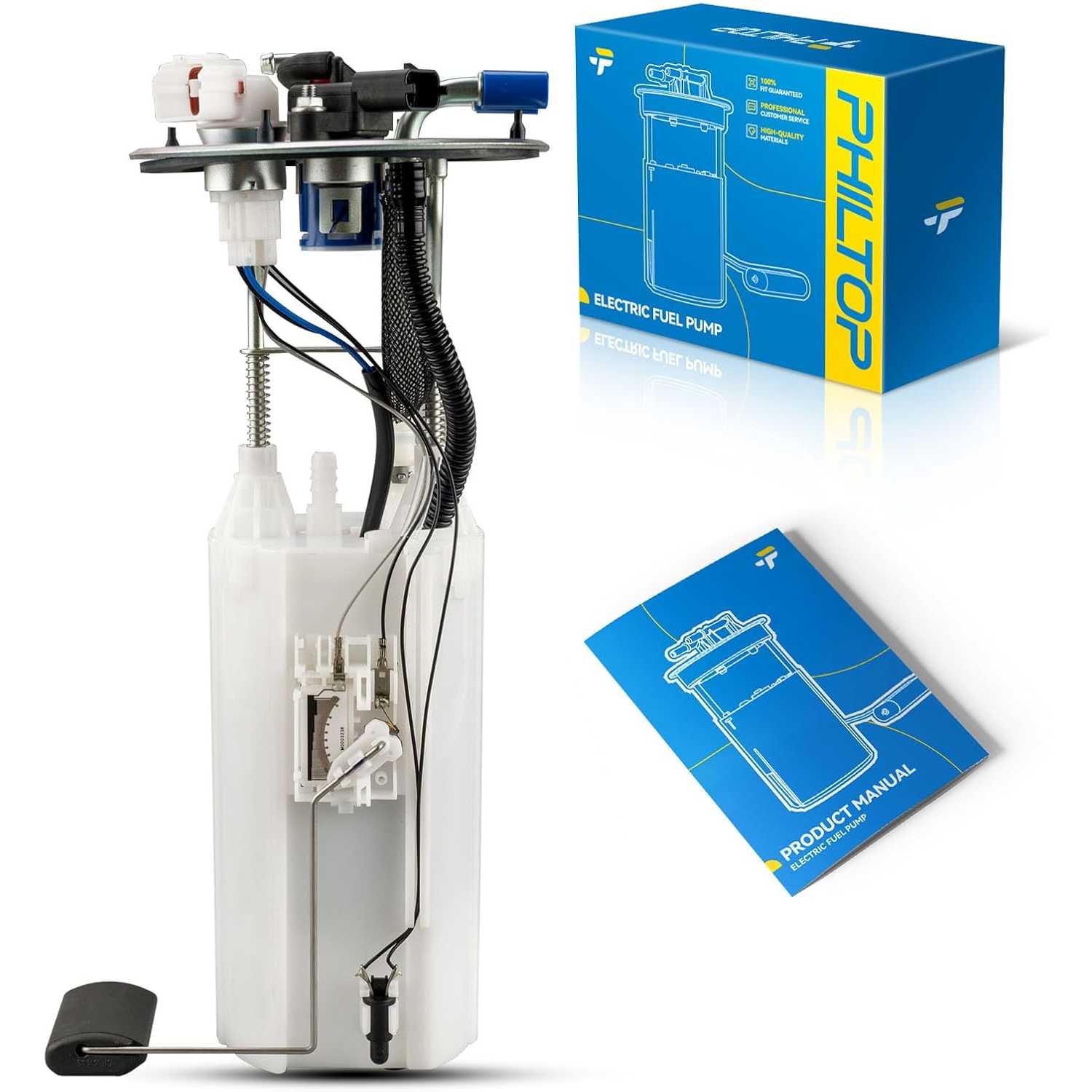

1x Fuel Pump Assembly - FG1238
Warranty Period
2-Year
OE Number
311503E200,311503E200DS
Part Number
SP3025M,P76317M,FG1238,USEP8520M,5462190,E8520M,67938,4010374,DFG1238,2920573,M2480511,TNKSP3025M,D17111182TG,C0570M

Highlights

  • Fitment: Compatible with [Kia] 2003-2004 Sorento.
  • Reference Number: 5462190, 4010374, DFG1238, 311503E200, SP3025M, E8520M, P76317M, FG1238, 67938, USEP8520M, 311503E200DS, 2920573, M2480511, TNKSP3025M, D17111182TG, C0570M.

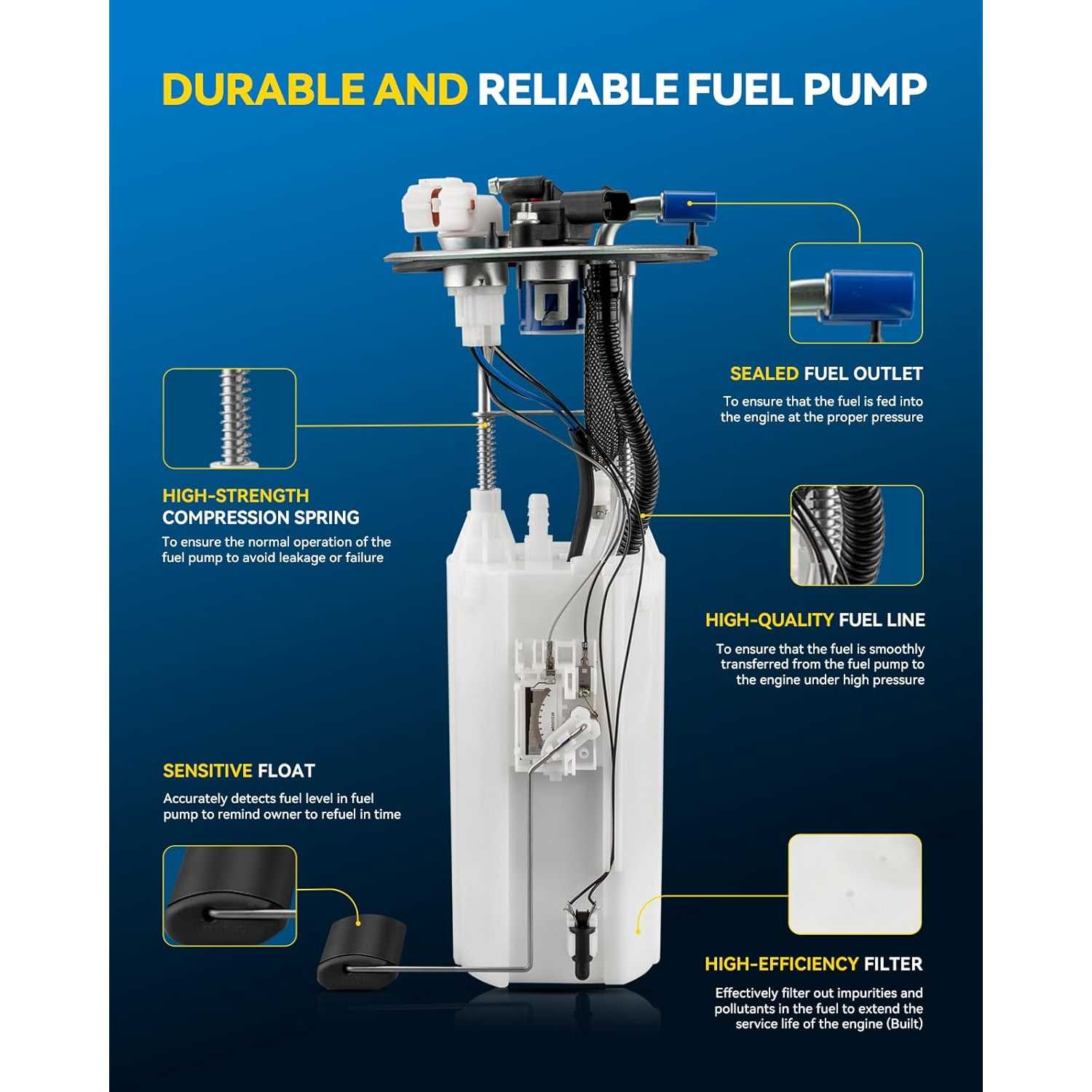

  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring, ④ Pressure Sensors.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2003 - 20042003 - 2004
MakeKiaKia
ModelSorentoSorento
TrimEXLX
Engine3.5L V63.5L V6
Note--

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump
