2004 Nissan Pathfinder Armada 5.6L V8 | Fuel Pump Assembly | OE#17040ZQ60A/FG1277 - PHILTOP

2004 Nissan Pathfinder Armada 5.6L V8 | Fuel Pump Assembly | OE#17040ZQ60A/FG1277 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3504FUP044GUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
82.0 Ω
Resistance Ohms Full
5.0 Ω
Average Flow Rating
30 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
52.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

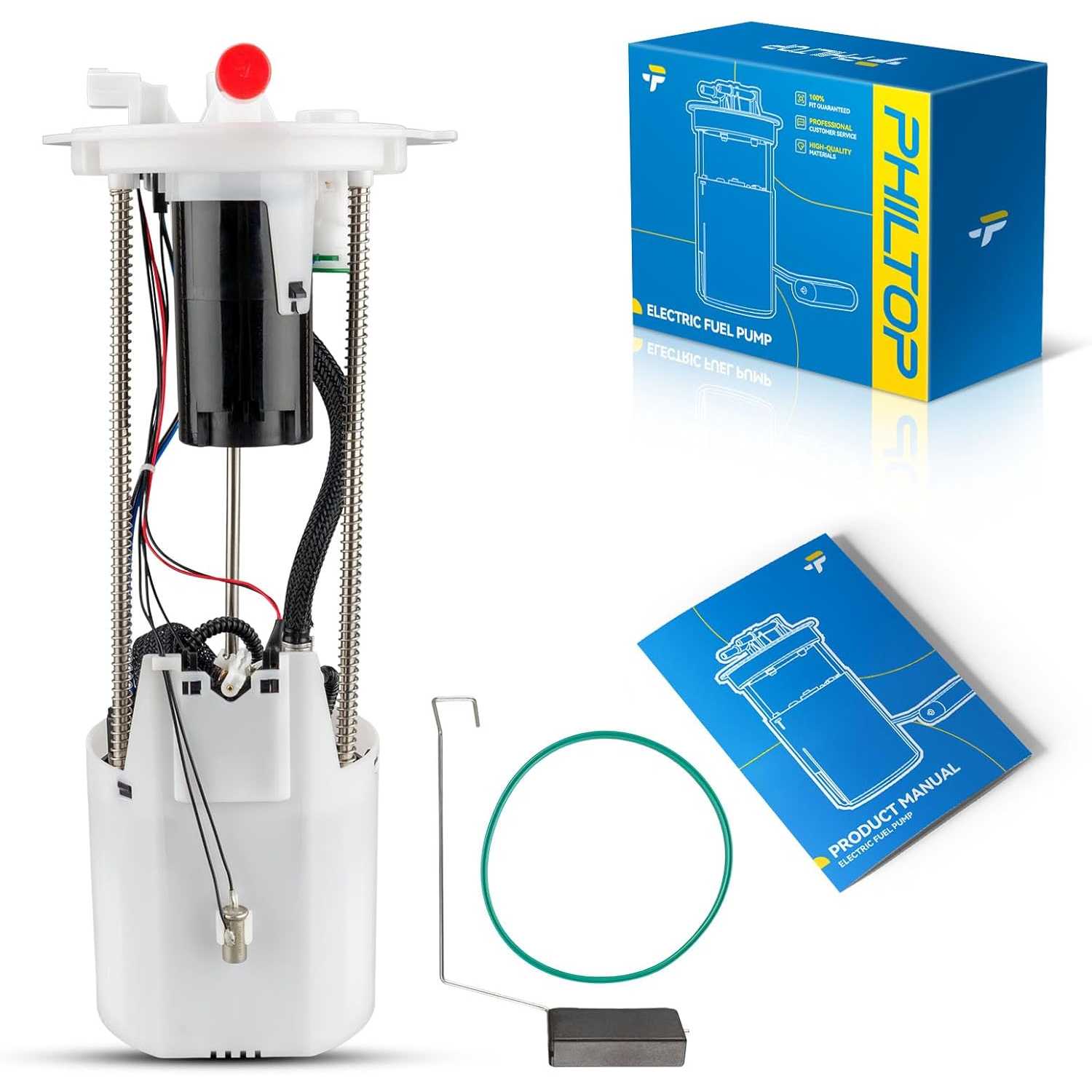

1x Fuel Pump Assembly - FG1277
Warranty Period
2-Year
OE Number
17040ZQ60A,170407S000,170407S00A,170407S20A,17040ZQ60B,17040ZH00A,17040ZQ60C,25060ZQ60D,17040ZV60B,17040ZH000
Part Number
FG1277,SP4023M,P76570M,USEP8862M,E8595M,P76360M,69905,SP4004M,SP4021M,E8788M,AFS0944S,F4506A,P76654M,69908,A30403,A30091,EFG1277,4010551,150315,USEP8595M,M3480500,B14111757TG,TU327,C0706M,C0610M,M3496404,C0707M,TNKSP4023M,2920712

Highlights

  • Fitment: Compatible with [Nissan] 2004-2007,2010-2015 TITAN, 2008-2009 TITAN(WheelBase:139.8), 2005-2015 Armada, 2004 Pathfinder Armada, [INFINITI] 2004-2010 QX56.
  • Reference Number: 4010551, SP4023M, P76570M, SP4021M, 150315, USEP8595M, USEP8862M, E8788M, AFS0944S, 17040ZV60B, 17040ZQ60B, F4506A, 17040ZH00A, 17040ZH000, P76654M, M3480500, FG1277, 17040ZQ60A, 170407S000, 170407S00A, 170407S20A, 17040ZQ60C, 69908, E8595M, P76360M, A30403, 25060ZQ60D, 69905, A30091, EFG1277, SP4004M, 2920712, M3496404, TNKSP4023M, C0706M, C0707M, TU327, B14111757TG, C0610M.
  • Related Parts: ① Fuel Pump, ② Strainer.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 20102005 - 20092010 - 20152005 - 20102005 - 20062011 - 20152011 - 20152010200420042004 - 20102008 - 20152011 - 20152004 - 20102011 - 20152011 - 20152004 - 2010
MakeINFINITINissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissan
ModelQX56ArmadaArmadaArmadaArmadaArmadaArmadaArmadaPathfinder ArmadaPathfinder ArmadaTITANTITANTITANTITANTITANTITANTITAN
TrimBaseLEPlatinumSESE Off-RoadSLSVTitaniumLESELEPRO-4XSSESLSVXE
Engine5.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V8
Note-----------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump
