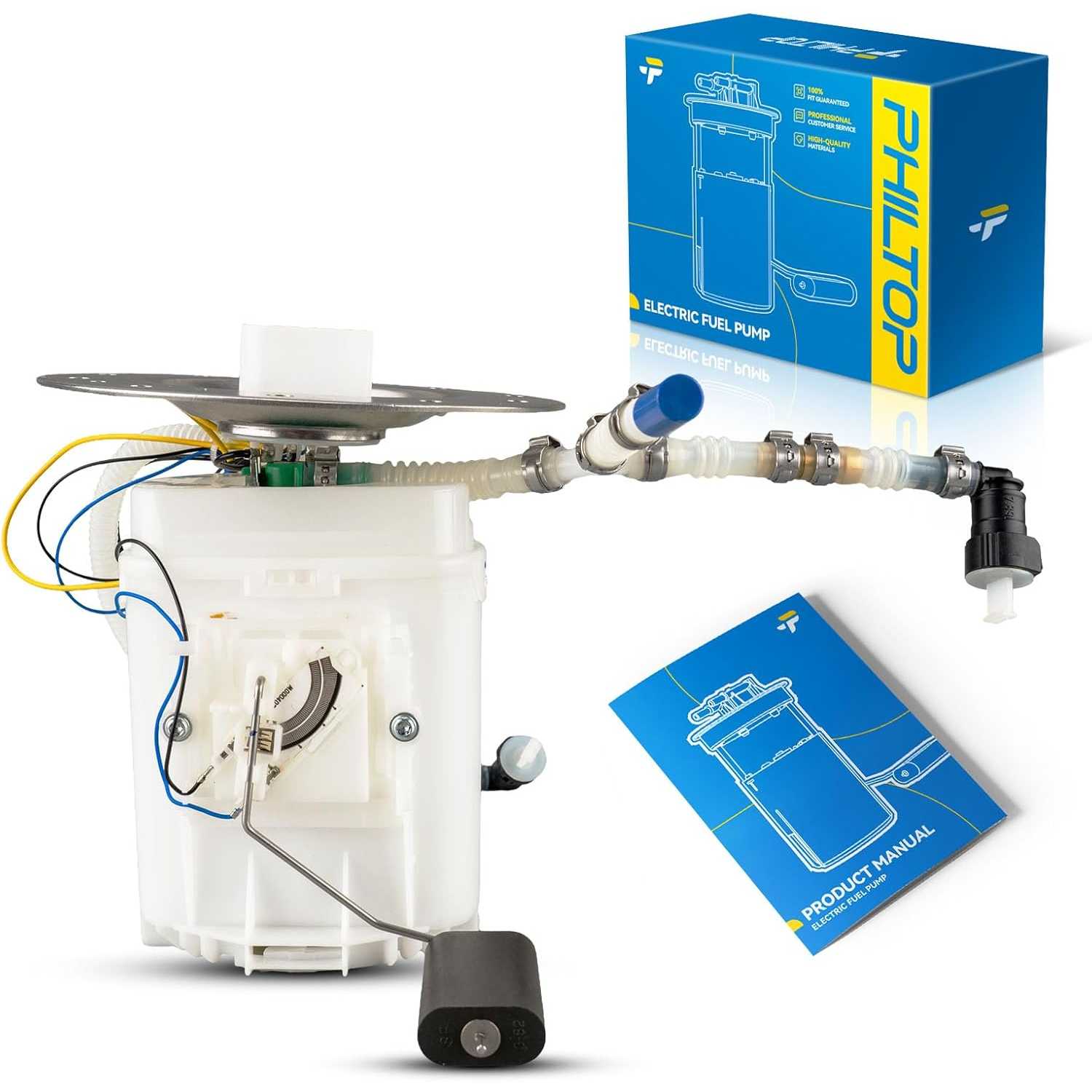

2004-2010 Volkswagen Beetle 2.5L/2.0L/1.8L | Fuel Pump Assembly | OE#1J0919087Q/SP8685M - PHILTOP

2004-2010 Volkswagen Beetle 2.5L/2.0L/1.8L | Fuel Pump Assembly | OE#1J0919087Q/SP8685M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1587FUP234BUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
No
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
53.0 Ω
Resistance Ohms Full
290.0 Ω
Average Flow Rating
26 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
138.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
1
Outlet Type
Female Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG1906
Warranty Period
2-Year
OE Number
1J0919087Q,1JM919051A,1J0919055,1J0919133A,1J0201209A,1J0919051N
Part Number
SP8685M,FG1906,P77073M,9533064,A30515,CFG1906,USEP8685M,C0825M,M2335079,2920827,C0650M,TNKSP8685M,A46728,4011584

Highlights

  • Fitment - 2006-2007 Beetle 2.5 L5 2.5, 2009-2010 Beetle Base L5 2.5, 2004-2005 Beetle GLS 2.0, 2004-2005 Jetta GLS L4 2.0, 2008 Beetle S L5 2.5, 2004-2005 Jetta GL L4 2.0, 2004-2005 Beetle GLS 1.8, 2008 Beetle SE L5 2.5, 2004-2005 Jetta GLS L4 1.8, 2004-2005 Beetle GL 2.0, 2004-2005 Jetta GLI L4 1.8, 2004 Jetta GLI V6 2.8, 2004-2005 Jetta GL L4 1.8, 2004 Beetle Turbo S 1.8, 2004 Beetle GLX 1.8
  • OE Reference No. - FG1906, 1J0919051N, 1J0-919-051-N, SP8685M, 1J0919087Q, 1J0 919 087 Q, E8685M, 1JM919051A, 1JM 919 051 A, 1J0919055, 1J0-919-055, P77097M, P77073M, 359GE, A30515

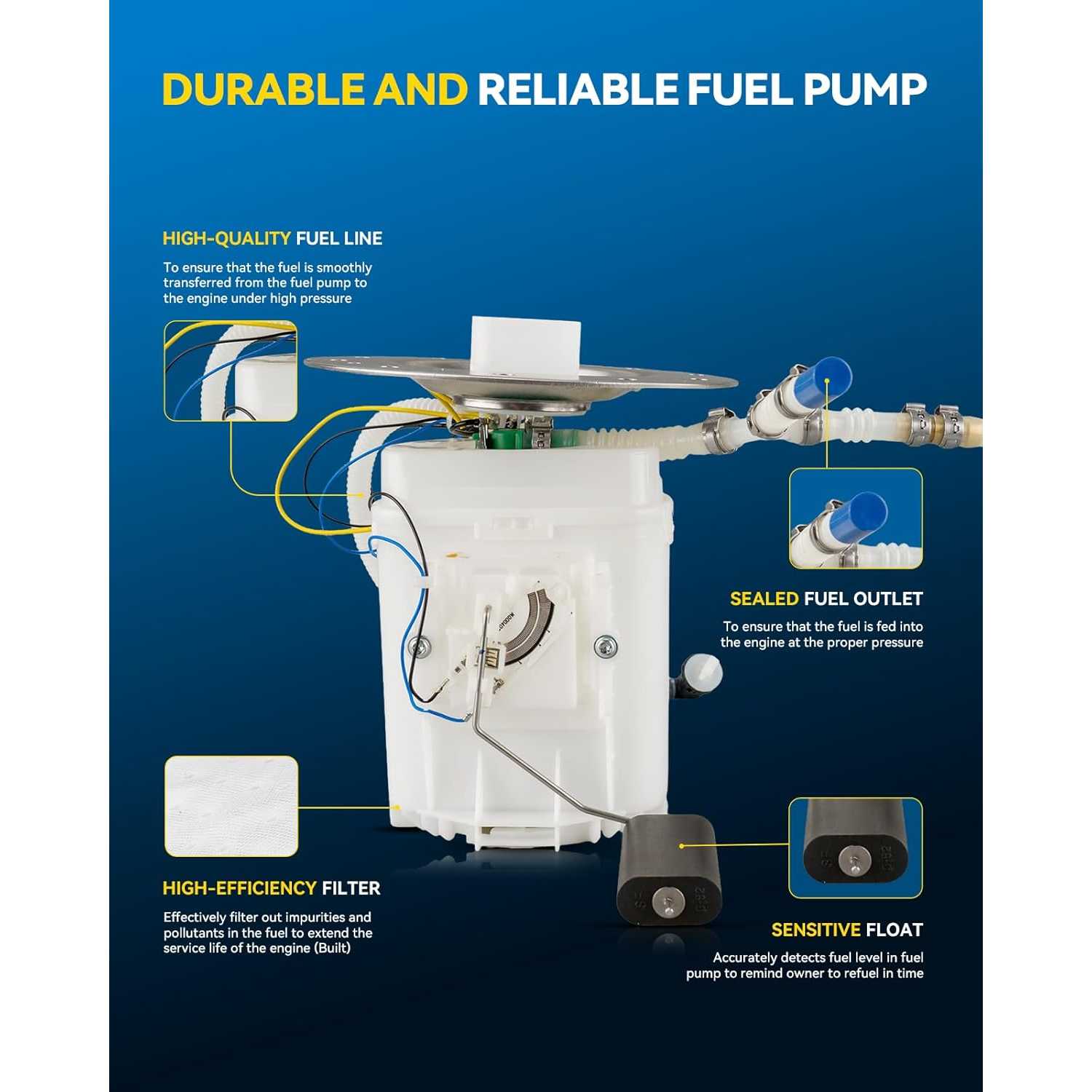

  • Quality Materials Manufacturing: All components are manufactured in strict accordance with requirements and meet or exceed OEM performance requirements in terms of manufacturing and materials. All plastic parts are made of imported high-performance POM raw materials, modules using the most mature fuel pump structure, ethanol resistance, higher efficiency, longer service life
  • More efficient filtration: fuel pump assembly filter element is generally made of non-woven fabric and nylon, filter out impurities and moisture in the oil, improve the working efficiency of the vehicle
  • Easy to install: No need to buy other accessories, can be installed directly. Please confirm the year/make/model of the vehicle you are purchasing before purchasing. You can refer to the fitment description on the product detail page or use the "Suncentautoconfirmedfit" in the upper left corner of the link to confirm.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2006 - 20072009 - 20102004 - 20052004 - 20052004 - 200520042008200820042004 - 20052004 - 20052004 - 200520042004 - 20052004 - 2005
MakeVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagen
ModelBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleJettaJettaJettaJettaJettaJetta
Trim2.5BaseGLGLSGLSGLXSSETurbo SGLGLGLIGLIGLSGLS
Engine2.5L L52.5L L52.0L L41.8L L42.0L L41.8L L42.5L L52.5L L51.8L L41.8L L42.0L L41.8L L42.8L V61.8L L42.0L L4
Note
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank
with Engine Code BPR;with Metal Tank

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump
