2001-2004 Chrysler PT Cruiser 2.4L L4 | Fuel Pump Assembly | OE#5017204AD/SP7143M - PHILTOP

2001-2004 Chrysler PT Cruiser 2.4L L4 | Fuel Pump Assembly | OE#5017204AD/SP7143M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8025FUP081HUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
70.0 Ω
Resistance Ohms Full
1050.0 Ω
Average Flow Rating
21 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
60.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG0373
Warranty Period
2-Year
OE Number
5017204AD,5086650AA,5086650AB,RL086650AC,P622M,5017204AC,5017204AE,5017204AB,RL017204AE,5017204AA
Part Number
SP7143M,P75024M,FG0373,P76094M,9533032,5202570,USEP7143M,073GE,E7189M,E7143M,TU148,4010291,MO155,D13111181TG,C0454M,M2510478,DFG0373,2920105,A41006,TNKSP7143M,5202710,150128

Highlights

  • Fitment: Compatible with [Chrysler] 2001-2004 PT Cruiser Naturally Aspirated(To 10/30/2003).
  • Reference Number: 4010291, 5017204AD, 5017204AB, RL017204AE, 9533032, 5017204AA, E7189M, 5202570, 5086650AA, 5086650AB, RL086650AC, SP7143M, P75024M, FG0373, P76094M, USEP7143M, 5017204AC, E7143M, TU148, 5017204AE, 073GE, P622M, 2920105, MO155, M2510478, 5202710, TNKSP7143M, A41006, D13111181TG, 150128, DFG0373, C0454M.

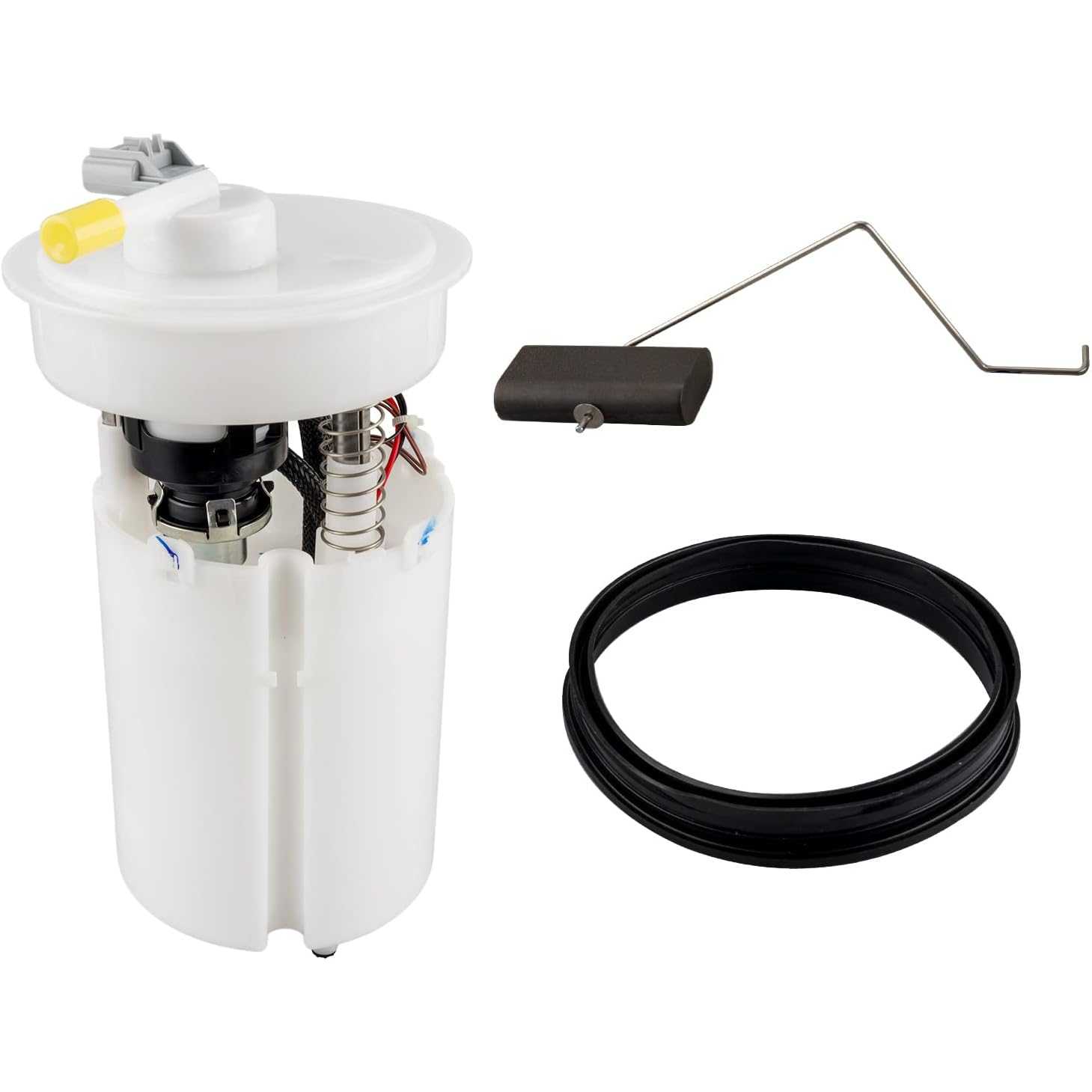

  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring .
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2001 - 200420022001 - 20042001 - 2004
MakeChryslerChryslerChryslerChrysler
ModelPT CruiserPT CruiserPT CruiserPT Cruiser
TrimBaseDreamLimitedTouring
Engine2.4L L42.4L L42.4L L42.4L L4
Note
To 10/30/2003
To 10/30/2003
To 10/30/2003
To 10/30/2003

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump
