1998-2004 Dodge Ram 2500 5.9L L6 | Fuel Pump Assembly | OE#4897668AF/P76473M - PHILTOP

1998-2004 Dodge Ram 2500 5.9L L6 | Fuel Pump Assembly | OE#4897668AF/P76473M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9634FUP0246US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
220.0 Ω
Resistance Ohms Full
20.0 Ω
Average Flow Rating
35 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
16.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

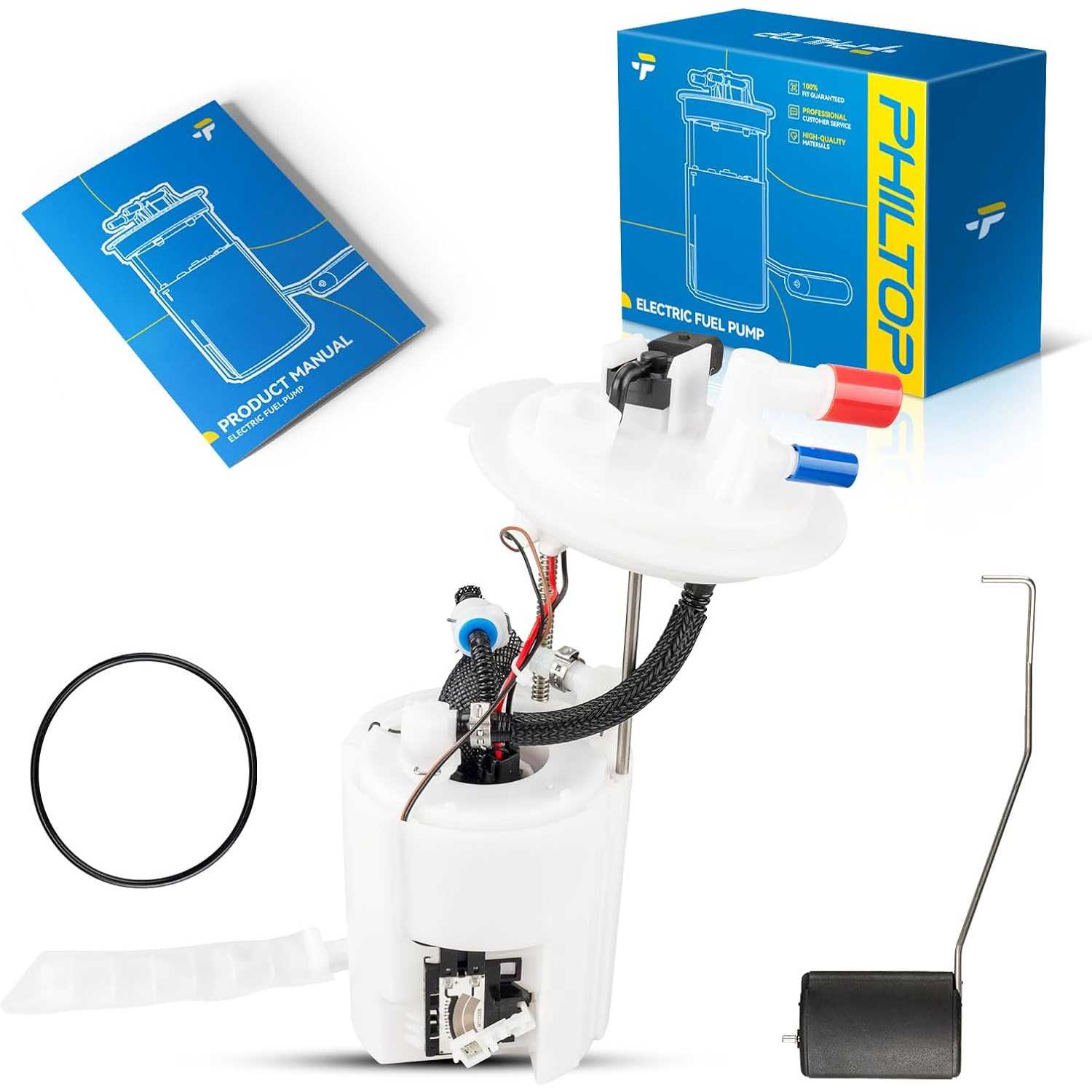

Items Included
1x Fuel Pump Assembly - FG1080
Warranty Period
2-Year
OE Number
4897668AF,5179873AB,RL179873AB,5179628AA,4897668AH,5179629AA,5179628AB,4897668AG,5179629AB,5093135AA,4897668AI,68003865AA,68003865AB
Part Number
P76473M,SP7036M,FG1080,SP7070M,E7187M,E7230,150301,SP1206,P76110,E16001,AFS1037P,RE1037P,SP7062M,FP22063S,A30060,M2496269,A30113,4010230,F3198A,C0481M,EFG1080,830907,2920437,1234671,B13212553TG,PN3124,4011252,TNKSP7070M,A46121,TNKSP7036M,402P7187M

Highlights

  • Fitment: Compatible with [Hyundai] 2011-2014 Sonata(engineVIN: C; From 08/21/2010), 2012 Sonata GL/GLS/Limited, 2014 Sonata 2.4L, [Kia] 2012-2014 Optima(engineVIN: 7; Exc. Korean Built).
  • Reference Number: USEP9120M, 1103Q600, SP3037M, P76756M, 311103Q600, FG1527, 311103Q700.
  • Related Parts: ① Fuel Pump, ② Strainer ③ Seal Ring ④ Pressure Sensors.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1998 - 200220032003 - 20042003 - 20041998 - 20022003 - 20042003 - 20042003 - 2004
MakeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodge
ModelRam 2500Ram 2500Ram 2500Ram 2500Ram 3500Ram 3500Ram 3500Ram 3500
TrimBaseLaramieSLTSTBaseLaramieSLTST
Engine5.9L L65.9L L65.9L L65.9L L65.9L L65.9L L65.9L L65.9L L6
Note
with In-Tank Pump
with In-Tank Pump
with In-Tank Pump
with In-Tank Pump
with In-Tank Pump
with In-Tank Pump
with In-Tank Pump
with In-Tank Pump

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 15 reviews

5100%
40%
30%
20%
10%

Customer photos and videos

Jason

09/15/2026

Verified buyer

My 04 Dodge RAM 2500 (5.9 Cummins H/O) has 220K miles and I was noticing issues with fuel delivery. I thought it was the fuel water separator but no, it was a tired fuel pump. It took a bit to drop the tank and get the old pump out but the philtop went in like OEM and the connections were plug and play. With it installed, there is a noticeable difference in the idle and I've driven about 1250 miles so far without a single issue. This is the second philtop part I've purchased and I have to say that I've been impressed with both so far. They are well made and I like that they avoid copper where possible as that has caused a lot of corrosion issues for me in the past. Extremely affordable parts and I plan to use more in the future.

Jason Jason

09/15/2026

Verified buyer

My 04 Dodge RAM 2500 (5.9 Cummins H/O) has 220K miles and I was noticing issues with fuel delivery. I thought it was the fuel water separator but no, it was a tired fuel pump.It took a bit to drop the tank and get the old pump out but the philtop went in like OEM and the connections were plug and play. With it installed, there is a noticeable difference in the idle and I've driven about 1250 miles so far without a single issue. This is the second philtop part I've purchased and I have to say that I've been impressed with both so far. They are well made and I like that they avoid copper where possible as that has caused a lot of corrosion issues for me in the past. Extremely affordable parts and I plan to use more in the future.
