2006-2009 Mazda B2300 2.3L L4 | Fuel Pump Assembly | OE#1FAC13350B/FG0884 - PHILTOP

2006-2009 Mazda B2300 2.3L L4 | Fuel Pump Assembly | OE#1FAC13350B/FG0884 - PHILTOP

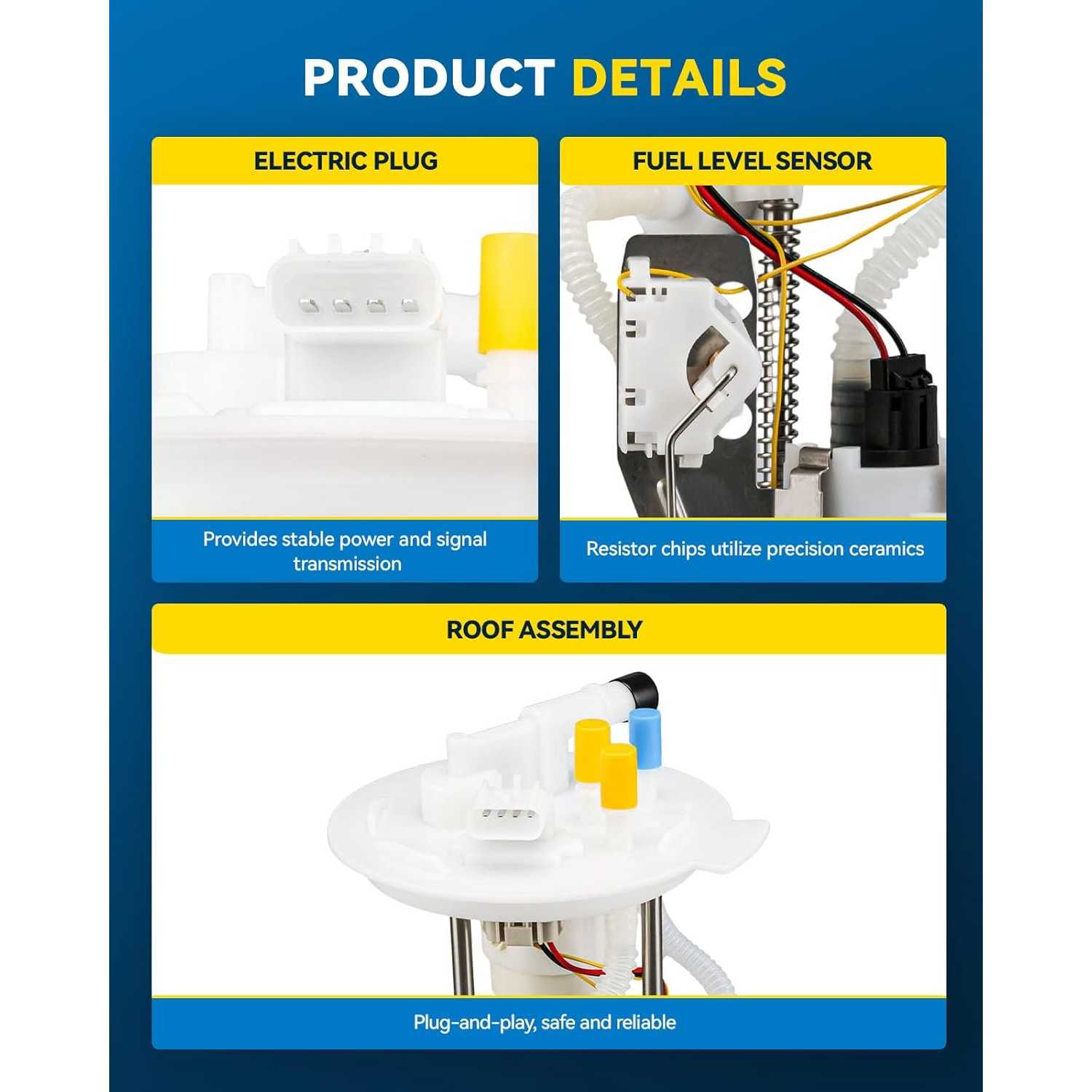

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7814FUP689YUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
180.0 Ω
Resistance Ohms Full
10.0 Ω
Average Flow Rating
23 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
65.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
4
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

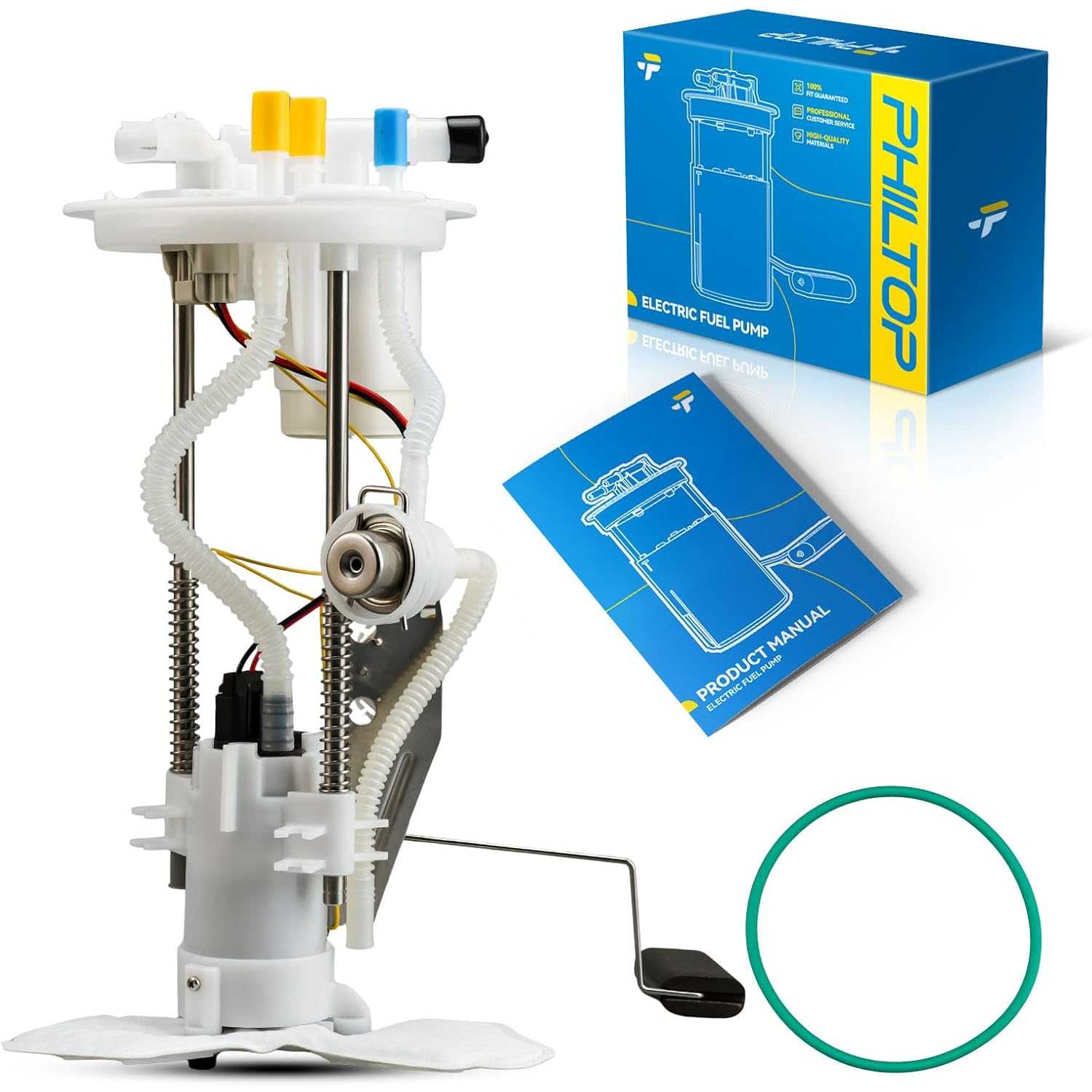

Items Included
1x Fuel Pump Assembly - FG0884
Warranty Period
2-Year
OE Number
1FAC13350B,8L5Z9H307C,8L5Z9H307B,7L5Z9H307B,8L5Z9H307E
Part Number
FG0884,SP2371M,P76479M,USEP2503M,E8707M,SP2133M,P76469M,PFS524,5252460,A27000,A30549,PFS520,66179,B12111965TG,C0115M,M2520820,1234885,DFG0884,4010646,A46204,PFS379,TNKSP2371M,2920715

Highlights

  • Fitment: Compatible with [Ford]2007-2008 Ranger 117.5/117.6, 2009-2011 Ranger 4.0L 117.5, [Mazda]2006-2009 B4000, 2006-2009 B2300, 2006-2007 B3000, (From 05/01/2006).
  • Reference Number: 1FAC13350B, 8L5Z9H307C, FG0884, 8L5Z9H307E, SP2371M, 8L5Z9H307B, 5252460, P76479M, 7L5Z9H307B, A30549, PFS520, 66179, 4010646, USEP2503M, 2920715, 1234885, M2520820, TNKSP2371M, PFS379, A46204, B12111965TG, E8707M, SP2133M, P76469M, PFS524, A27000, DFG0884, C0115M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20082007 - 20082007 - 20112007 - 20082007 - 20082007 - 20112006 - 20092006 - 20072006 - 20072006 - 20092006 - 2008
MakeFordFordFordFordFordFordMazdaMazdaMazdaMazdaMazda
ModelRangerRangerRangerRangerRangerRangerB2300B3000B3000B4000B4000
TrimXLXLXLXLTXLTXLTBaseBaseDSBaseSE
Engine2.3L L43.0L V64.0L V62.3L L43.0L V64.0L V62.3L L43.0L V63.0L V64.0L V64.0L V6
Note------
From 05/01/2006
From 05/01/2006
From 05/01/2006
From 05/01/2006
From 05/01/2006

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump
