2008-2012 Honda Accord 2.4L | Fuel Pump Assembly | OE#17045TA0A00/SP8005M - PHILTOP

2008-2012 Honda Accord 2.4L | Fuel Pump Assembly | OE#17045TA0A00/SP8005M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

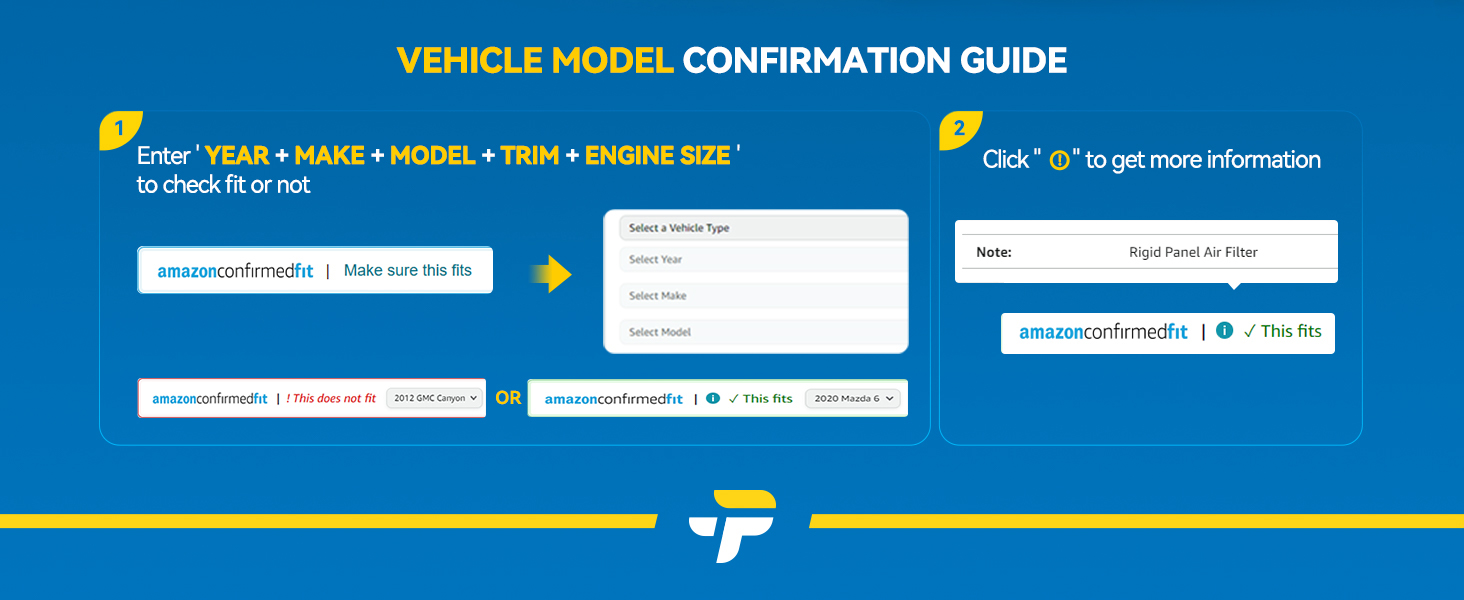

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7358FUP030YUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No

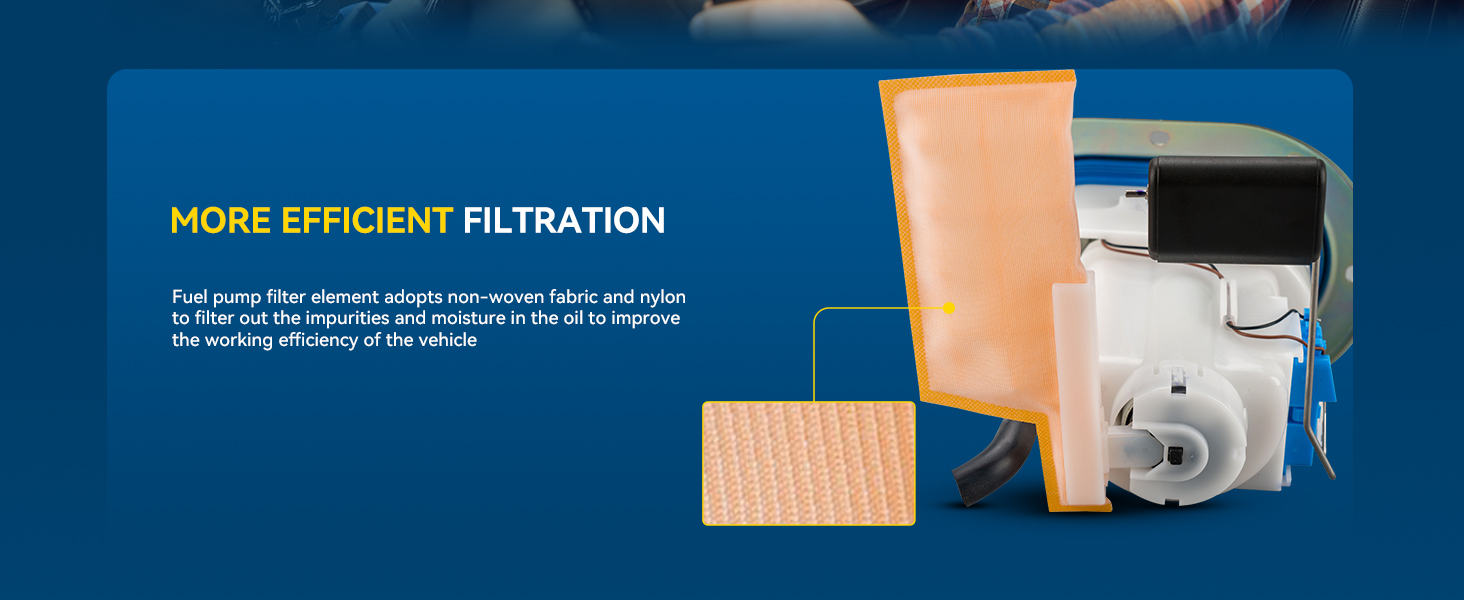

Strainer Included
Yes

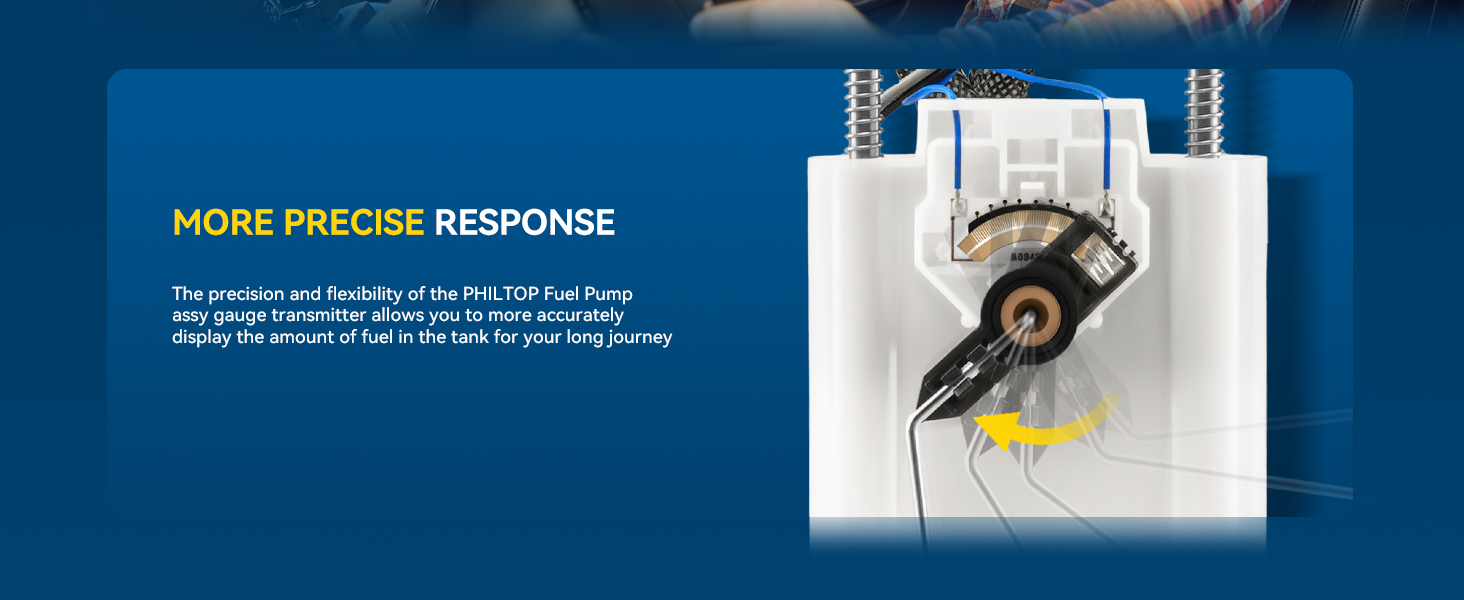

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
780.0 Ω
Resistance Ohms Full
20.0 Ω
Average Flow Rating
21 GPH
In Tank or External
In Tank
Lock Ring Included
Yes
Material
Metal, Plastic
Maximum Pressure
65.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

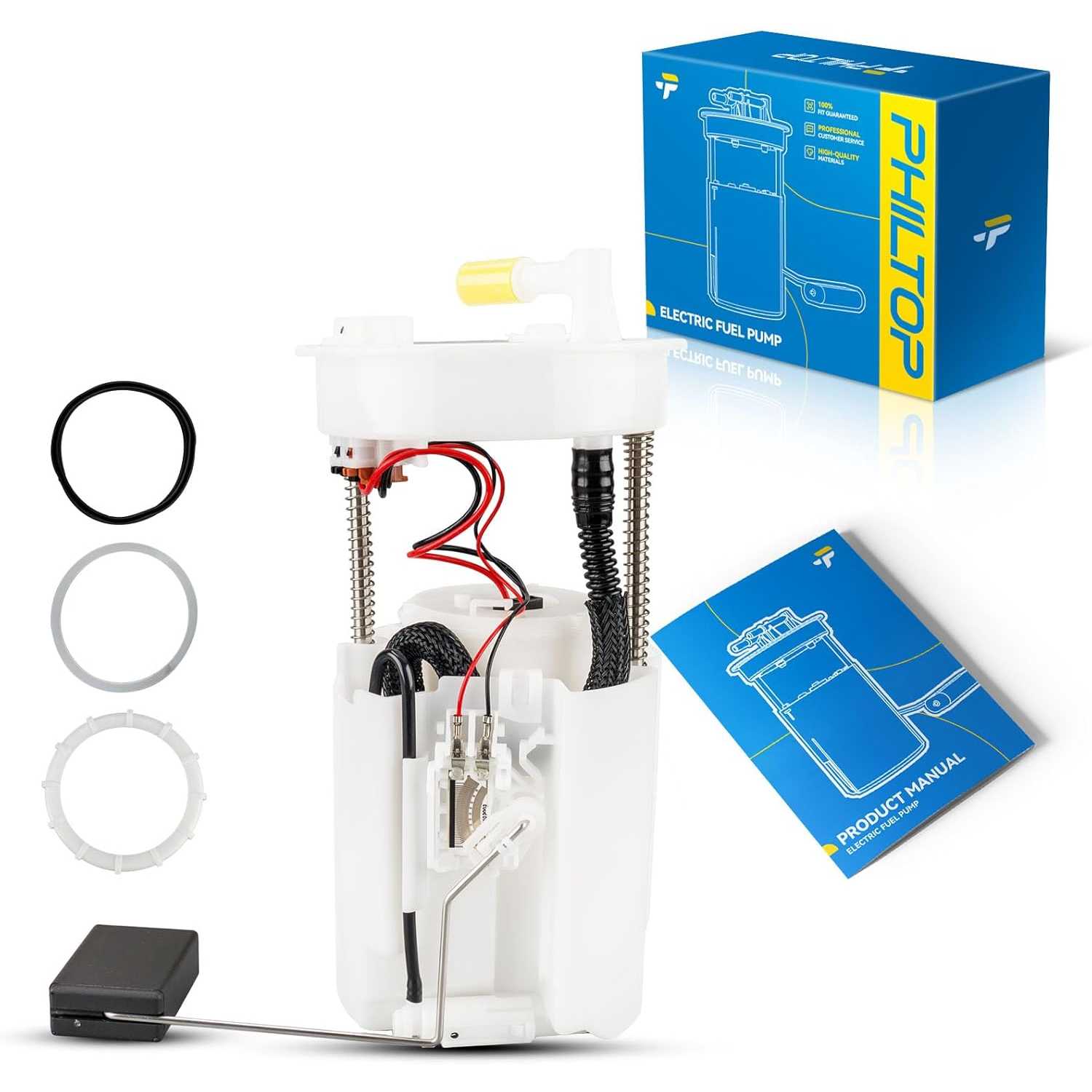

Items Included
1x Fuel Pump Assembly - FG0912
Warranty Period
2-Year
OE Number
17045TA0A00,17047TA0A00,17045TA1L00,17052TA0L00,17045TA0L00
Part Number
SP8005M,FG0912,P76767M,P76709M,USEP8922M,5352190,A42035,A33117,4010692,66186,DFG0912,C16112764TG,C0717M,M635697,M2521015,1234857,2920764,C0718M,TNKSP8005M,A46601

Highlights

  • Fitment: Compatible with [Honda] 2008-2012 Accord 2.4L(with California Emissions System), 2012 Crosstour 2.4L, [Acura] 2009-2014 TSX 2.4L.
  • Reference Number: 17052TA0L00, FG0912, P76767M, P76709M, DFG0912, A42035, A33117, 4010692, 17045TA0L00, 17045TA0A00, 66186, 17047TA0A00, 17045TA1L00, USEP8922M, SP8005M, 5352190, M2521015, A46601, TNKSP8005M, C16112764TG, M635697, 1234857, 2920764, C0718M, C0717M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring .
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20142012 - 20142008 - 20122008 - 20122008 - 20122008 - 20122008 - 20122011 - 201220122012
MakeAcuraAcuraHondaHondaHondaHondaHondaHondaHondaHonda
ModelTSXTSXAccordAccordAccordAccordAccordAccordCrosstourCrosstour
TrimBaseSpecial EditionEXEX-LLXLX-PLX-SSEEXEX-L
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note--
with California Emissions System
with California Emissions System
with California Emissions System
with California Emissions System
with California Emissions System
with California Emissions System
--

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

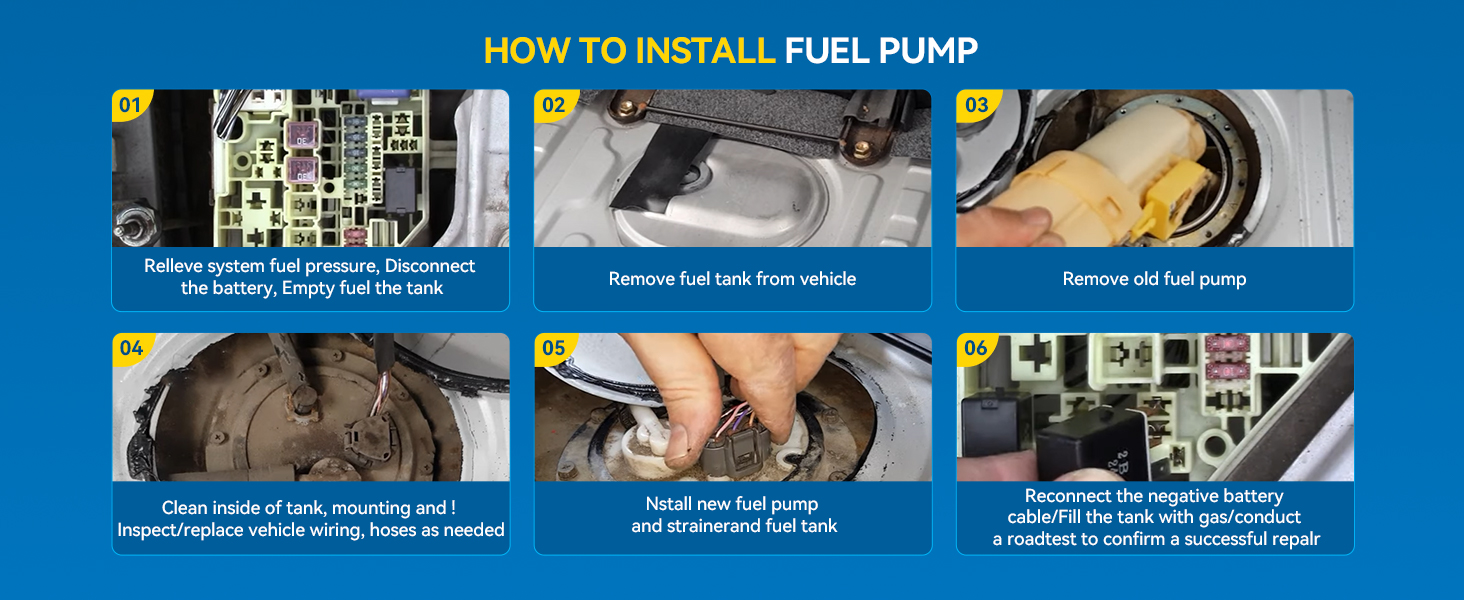

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 5 reviews

5100%
40%
30%
20%
10%

Lawrence C.

09/09/2026

Verified buyer

Fuel pump for my car was much cheaper here than the stores. Works the same. Would buy from again

Claudia Amaro

09/09/2025

Verified buyer

Buen producto
