1997-1998 Jeep Grand Cherokee 5.9L V8 | Fuel Pump Assembly | OE#5012961AC/FG1043 - PHILTOP

1997-1998 Jeep Grand Cherokee 5.9L V8 | Fuel Pump Assembly | OE#5012961AC/FG1043 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3882FUP0165US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes

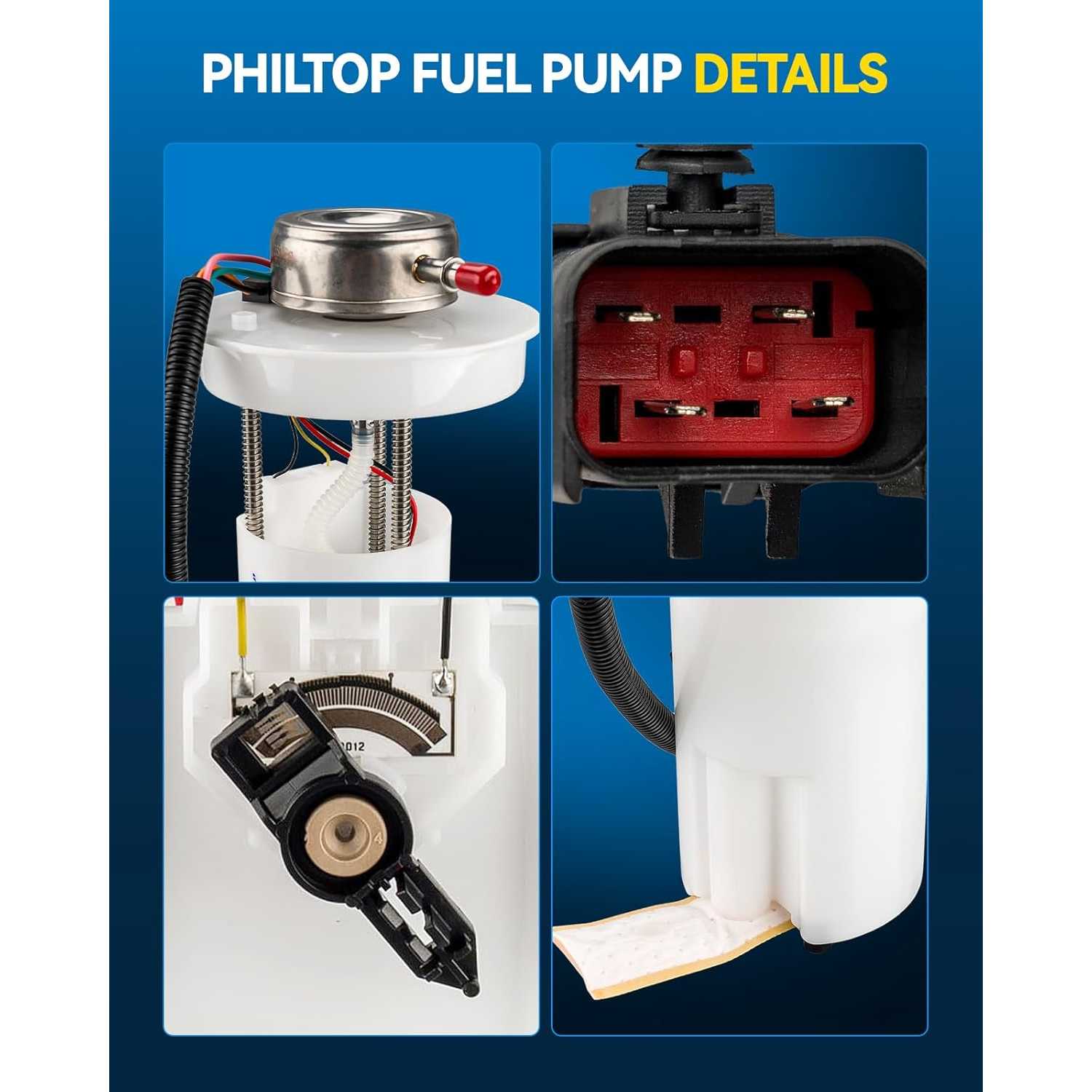

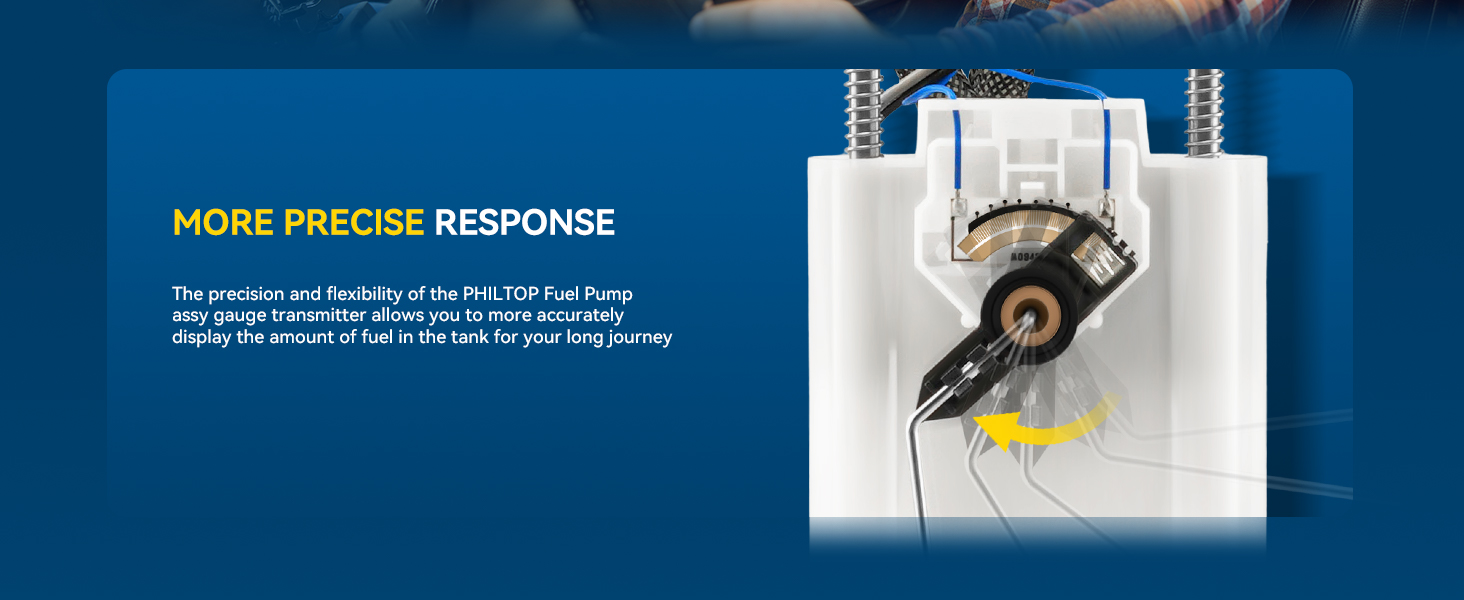

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
270.0 Ω
Resistance Ohms Full
19.0 Ω
Average Flow Rating
32 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
49.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure

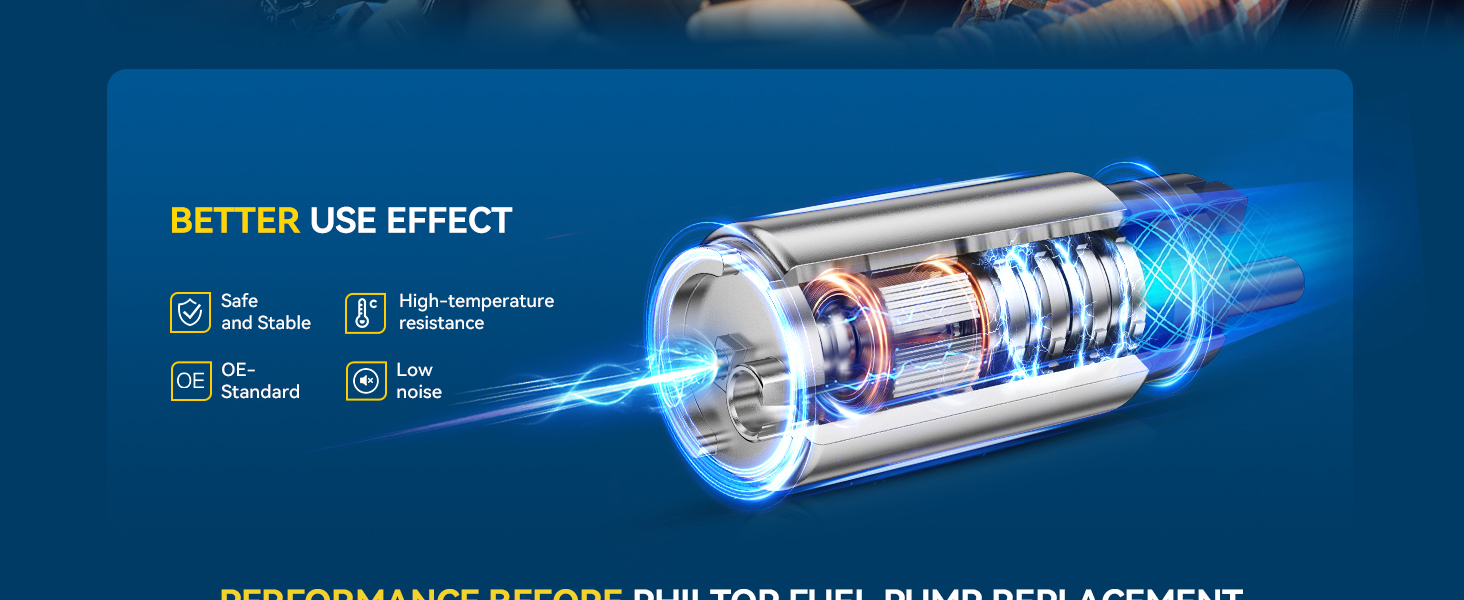

Turbine Impeller

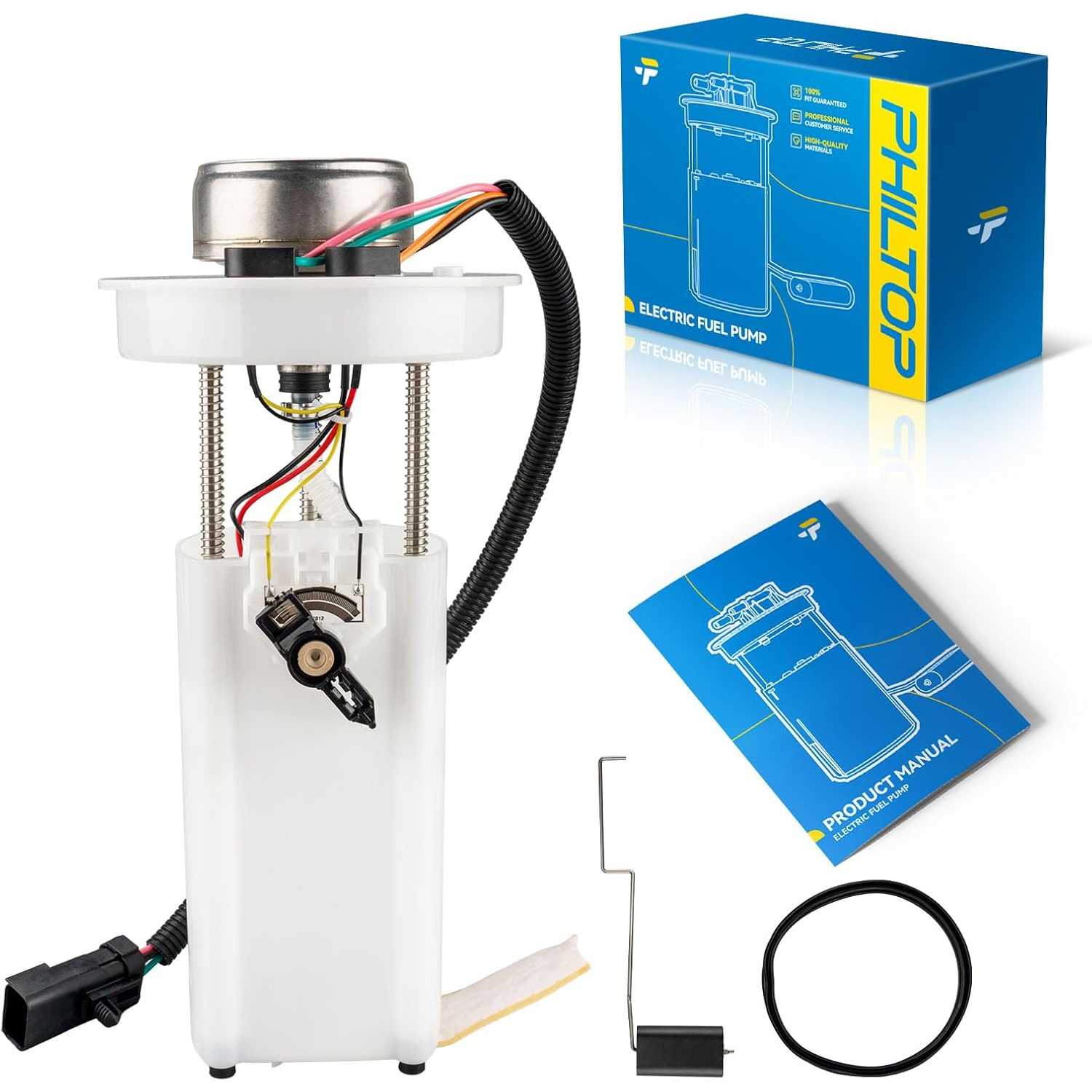

Items Included
1x Fuel Pump Assembly - FG1043
Warranty Period
2-Year
OE Number
5012961AC,5012961AB,P453M,4874172,5010019AA,5012961AA,5012961AD
Part Number
FG1043,P75043M,SP7103M,5202170,USEP7103M,024GE,E7154,E16022,E7103MN,E7103M,P74186,150184,AFS0497S,M319686,D5341969,DFG1043,4010112,FP5144,PN3062,B13111797TG,C0431M,830957,USEP7103MN,EG103MN,TNKSP7103M,MO359,F3144A,2920100

Highlights

  • (Vehicle Fitment) Compatible with 1997–1998 Jeep Grand Cherokee (4.0L / 5.2L / 5.9L). Designed as a direct replacement for the original fuel pump module—ensures proper fit, performance, and reliability
  • (OEM Replacement Numbers) Replaces multiple OE part numbers including: FG1043, SP1132, E7154, P75043M, E16022, 69316, FE0300, 5012961AD, 5012953AB, 5012953AC, and more. Built to meet or exceed OEM specifications
  • (Efficient Fuel Delivery) Precisely draws fuel from the tank, pressurizes it, and delivers it consistently to the injectors. Works in conjunction with the fuel pressure regulator to maintain optimal fuel pressure for smooth engine performance

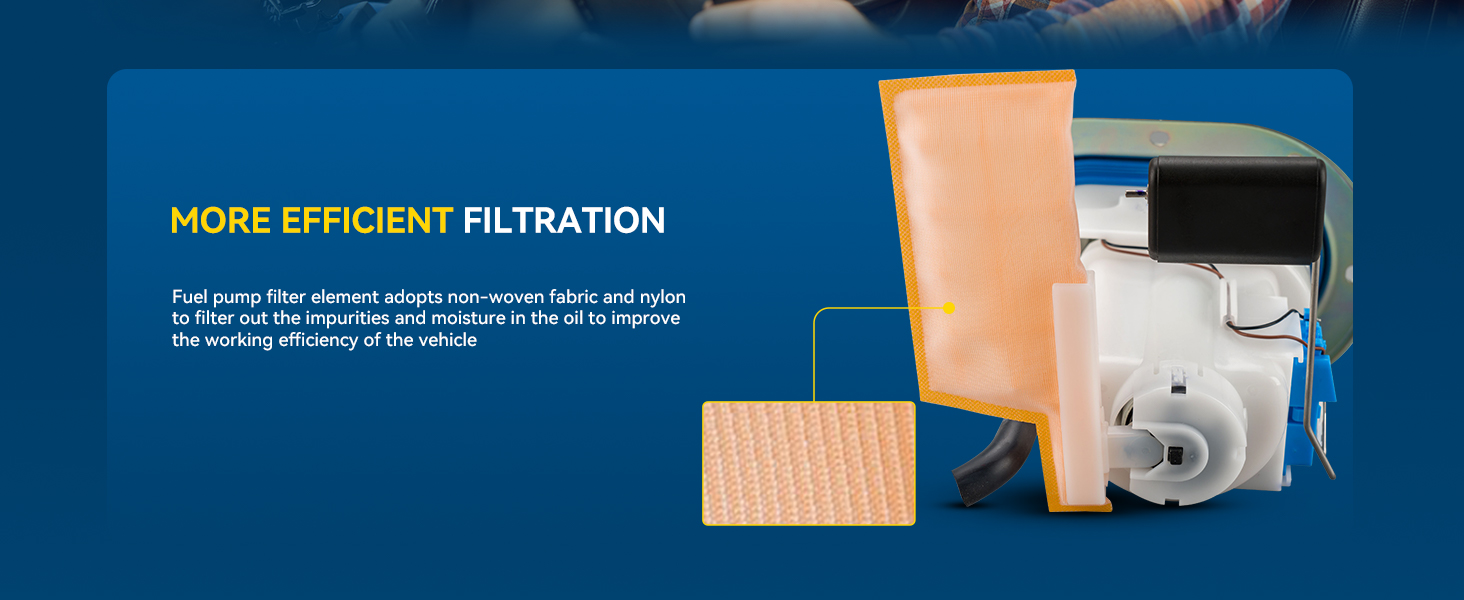

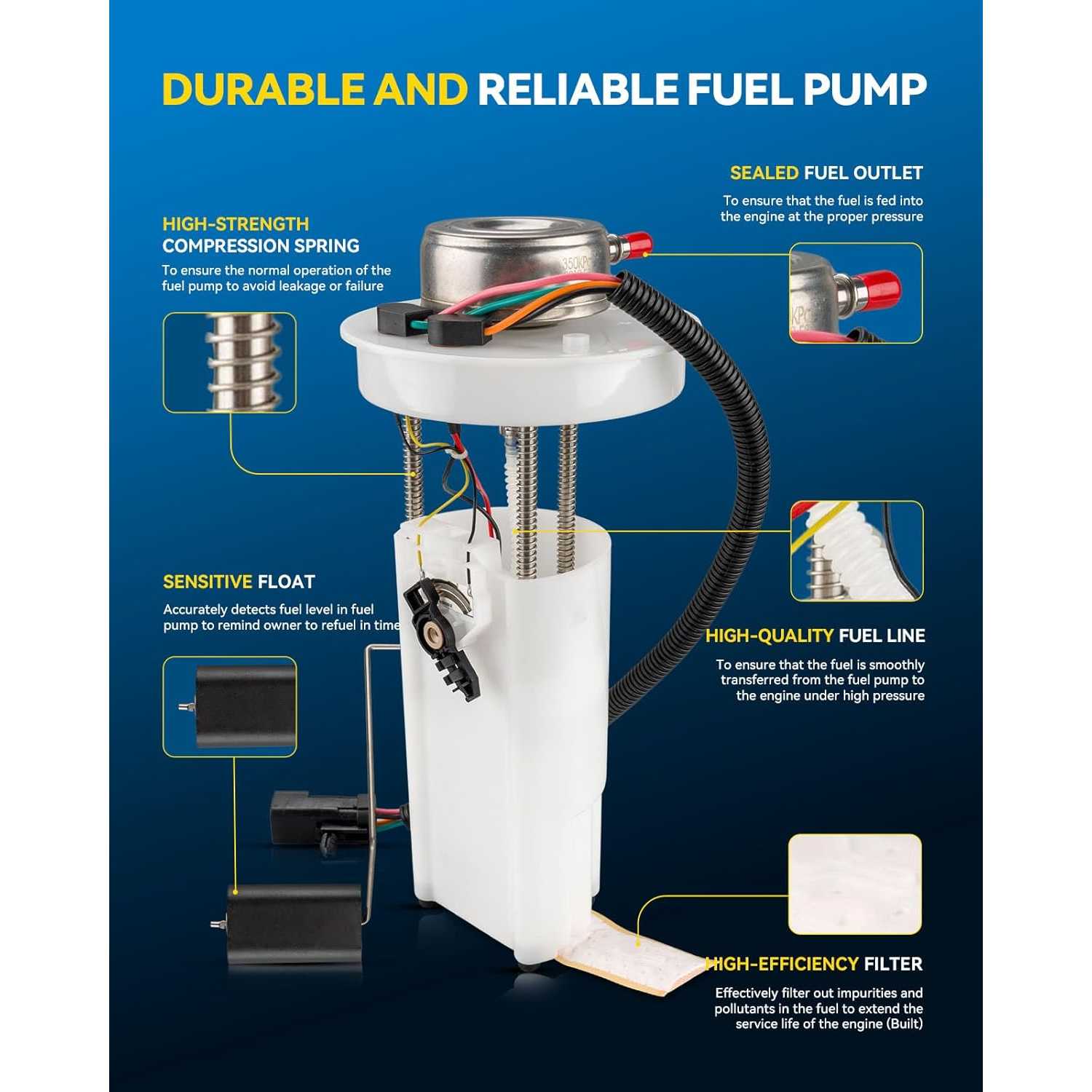

  • (Durable Materials & Enhanced Filtration) Built with high-performance POM plastic for strength and ethanol resistance. Features a high-efficiency filter made of non-woven fabric and nylon, helping remove impurities and moisture for improved fuel system efficiency and engine protection
  • (Trusted Quality & Warranty) Engineered by PHILTOP with over 15 years of automotive expertise. All units are 100% tested for performance and durability. Backed by a 3-year warranty for worry-free ownership

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year19981997 - 19981997 - 19981997 - 19981997 - 1998199719971997 - 19981997 - 1998
MakeJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand Cherokee
Trim5.9 LimitedLaredoLaredoLimitedLimitedOrvisOrvisTSiTSi
Engine5.9L V84.0L L65.2L V84.0L L65.2L V84.0L L65.2L V84.0L L65.2L V8
Note

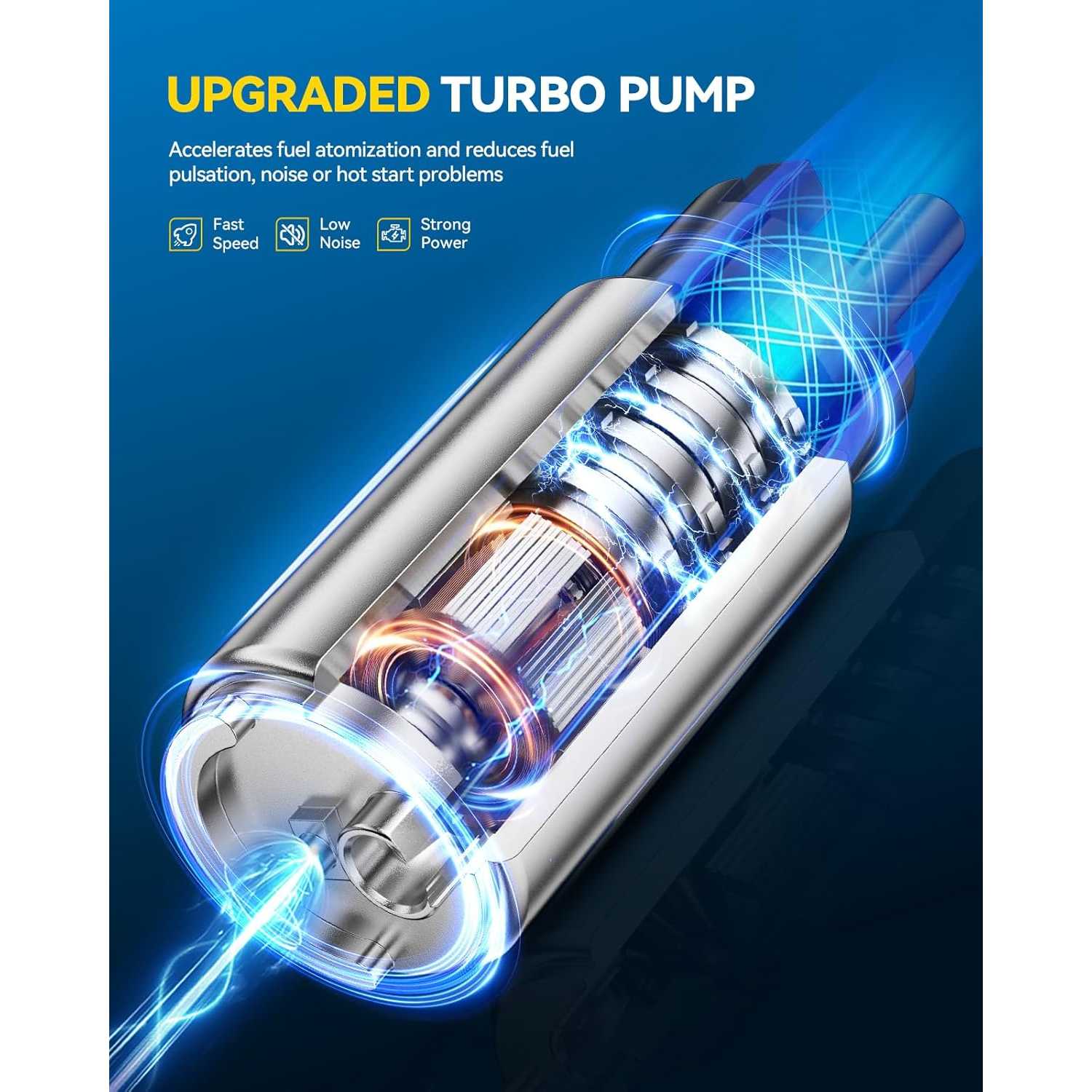

with Turbine Pump Technology
with Turbine Pump Technology
with Turbine Pump Technology
with Turbine Pump Technology
with Turbine Pump Technology
with Turbine Pump Technology
with Turbine Pump Technology
with Turbine Pump Technology
with Turbine Pump Technology

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

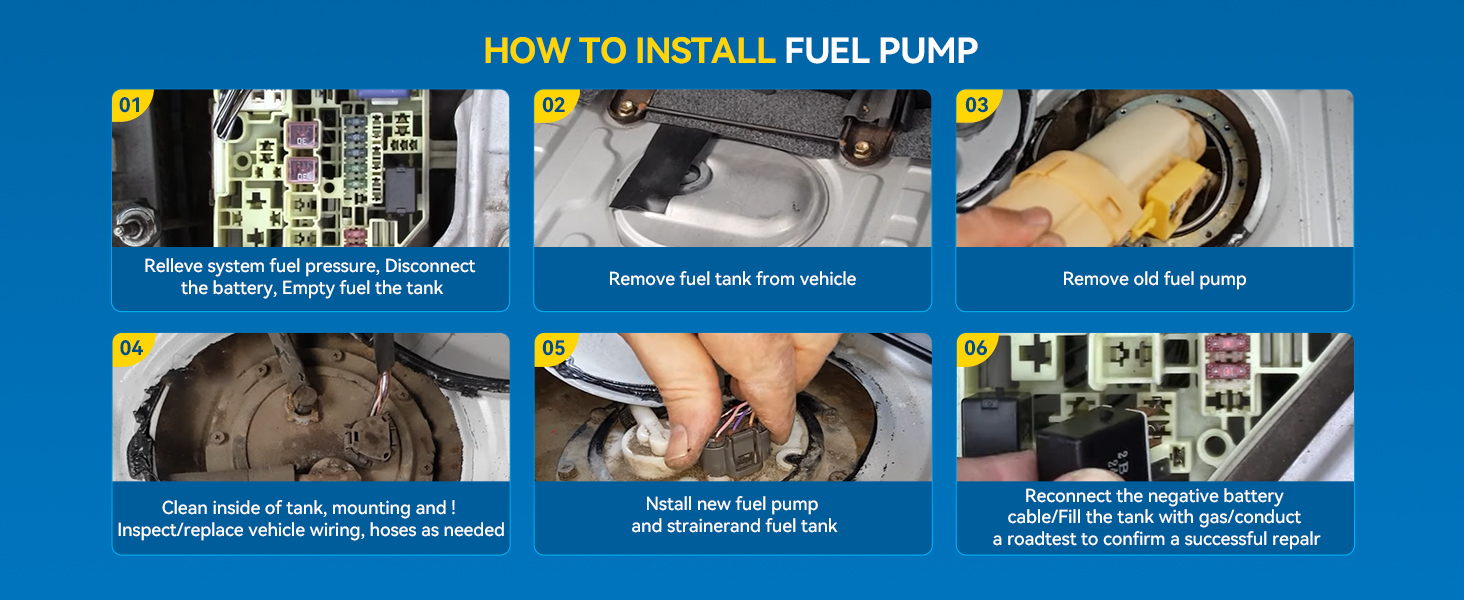

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

4.8/5

Based on 153 reviews

582%
418%
30%
20%
10%

Customer photos and videos

Maybel M.

05/08/2026

Verified buyer

This PHILTOP high-pressure fuel pump is a dependable replacement part that fits well on compatible Chevrolet, Buick, and Cadillac models, making it a practical option for restoring proper fuel delivery and engine performance. The construction feels solid and well made, with components that appear durable enough for regular vehicle use and demanding engine conditions. Installation is straightforward for those familiar with automotive repairs, and the fit aligns well with the specified vehicles without requiring modifications. Once installed, the pump operates smoothly and helps improve engine response, fuel pressure consistency, and overall drivability. It performs reliably without unusual noise or issues, which adds confidence for long-term use. Overall, this fuel pump offers a great balance of compatibility, functionality, and value, making it a reliable replacement solution for maintaining vehicle performance.

Roadcomando

02/28/2026

Verified buyer

I was on the look out to replace the fuel pump in my 2006 GMC Sierra 1500 . I have 306k on my old white basic work truck and the original pump although worked I could hear an audible whine in the morning . I ordered the PHILTOP pump because I used this brand on a Camry and already knew I would get a very high quality pump at a very low price. The pump arrived on time and very well packed with very heavy bubble wrap to make sure the pump would arrive unharmed. The pump is made of very nice high quality plastic that is as thick and durable as the factory oem pump . The pump top is the exact same size of stamped steel making fitment and installation very easy . PHILTOP includes a new fuel level float and fuel pump o ring so you won't need to reuse those . Once installed the pump primed and fired up and runs smoothly. I am a mechanic by trade and I personally have installed hundreds of pumps. I have definitely used cheap pumps that feel light and do not last long . This pump was just as heavy as the OEM pump I removed at a fraction of my local GMC dealer. I have used PHILTOP before and have no issues trusting these pumps .

FAQS

No FAQs have been added for this product yet.
