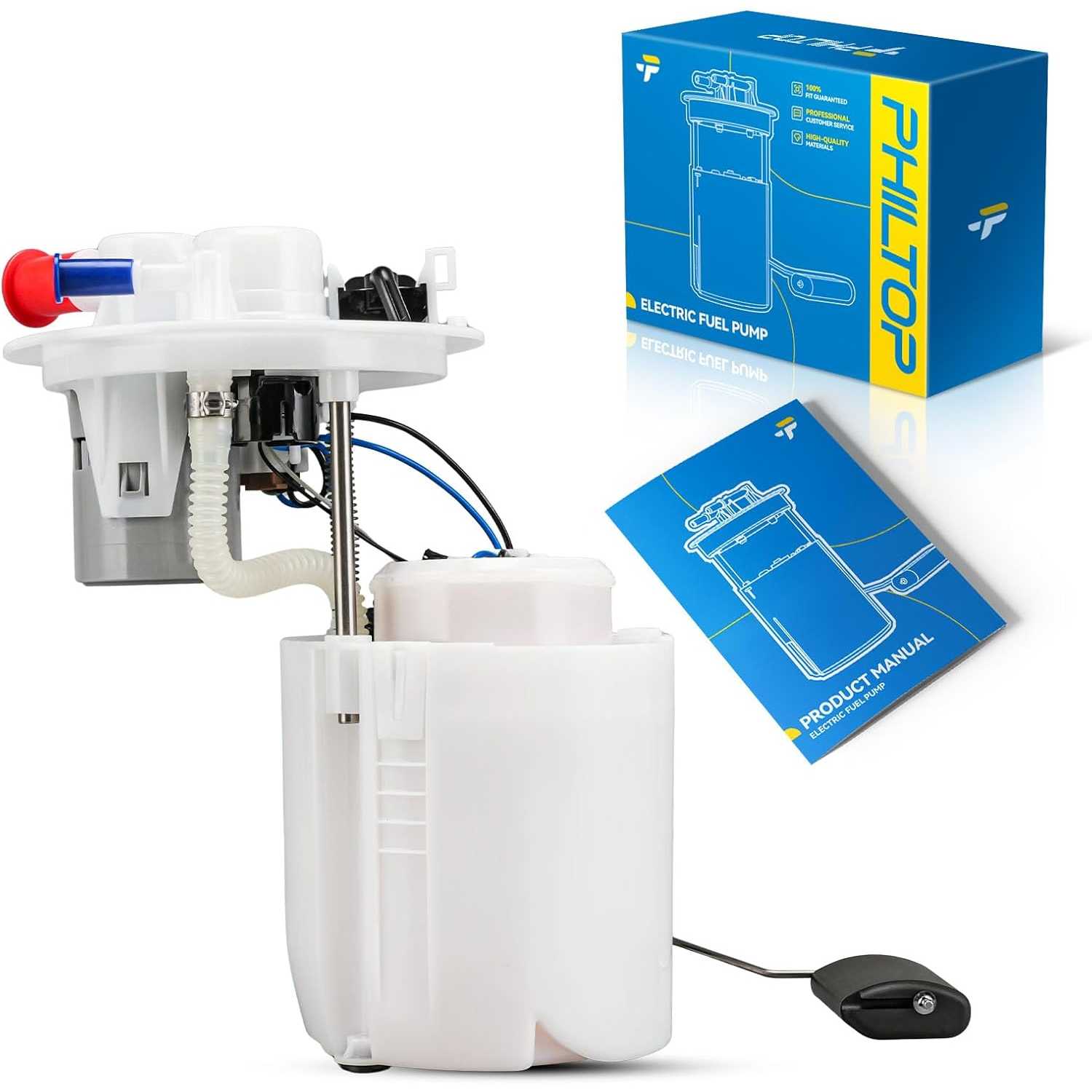

2013 Hyundai Elantra GT 1.8L | Fuel Pump Assembly | OE#311113L800/FG1892 - PHILTOP

2013 Hyundai Elantra GT 1.8L | Fuel Pump Assembly | OE#311113L800/FG1892 - PHILTOP

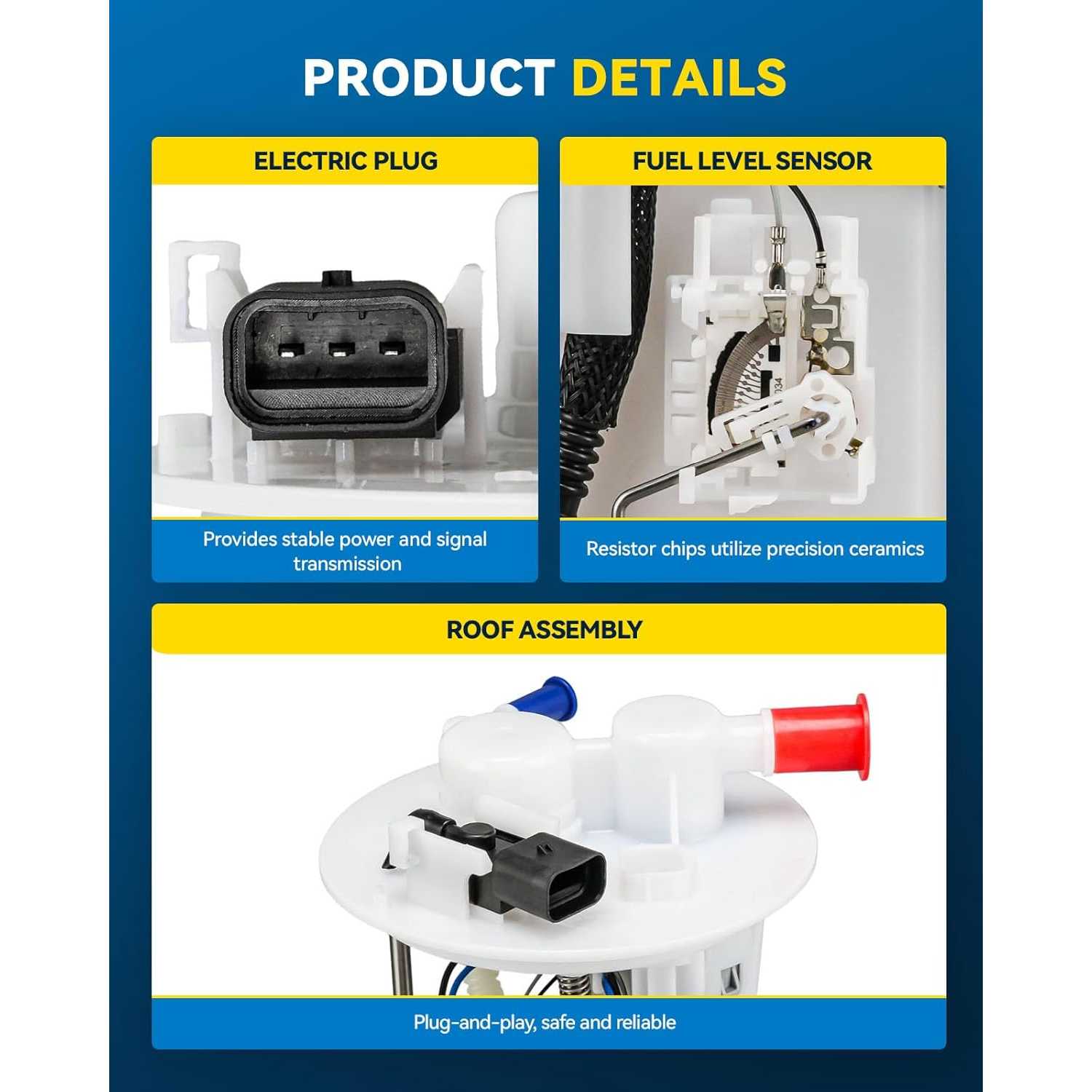

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8560FUP7316US

Specifications

Brand
PHILTOP
Gasket or Seal Included
No
Pressure Sensor Included
Yes
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
200.0 Ω
Resistance Ohms Full
8.0 Ω
Average Flow Rating
29 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
53.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG1892
Warranty Period
2-Year
OE Number
311113L800,31120B0500,31110A5500
Part Number
FG1892,SP3084M,P77328M,USEP9109M,E16468,E8818,CFG1892,4011402,M2528807,A46710,A47063,TNKSP3084M,C0950M

Highlights

  • Fitment: Compatible with [Kia]2014-2018 Forte LX, 2017-2018 Forte S, (Without California Emissions System), [Hyundai]2013-2013 Elantra GT, 2013-2013 Elantra Coupe, (Exc. Partial Zero Emissions Vehicle (PZEV)).
  • Reference Number: 31110A5500, FG1892, SP3084M, P77328M, 4011402, USEP9109M, M2528807, A46710, A47063, TNKSP3084M, 311113L800, E16468, E8818, 31120B0500, CFG1892, C0950M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Vapor Pressure Sensor.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2013201320132014 - 20162017 - 20182017 - 2018
MakeHyundaiHyundaiHyundaiKiaKiaKia
ModelElantra CoupeElantra CoupeElantra GTForteForteForte
TrimGSSEBaseLXLXS
Engine1.8L L41.8L L41.8L L41.8L L42.0L L42.0L L4
Note
Except Partial Zero Emissions Vehicle (PZEV)
Except Partial Zero Emissions Vehicle (PZEV)
Except Partial Zero Emissions Vehicle (PZEV)
without California Emissions System
without California Emissions System
without California Emissions System

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 2 reviews

5100%
40%
30%
20%
10%

Customer

04/25/2026

Verified buyer

Fixed my 2014 Kia forte lx, was not starting before now it’s running perfect

Thomas Cathney

09/23/2026

Verified buyer

Omg the best price across the board thanks your also shipping was fast !!!!

FAQS

No FAQs have been added for this product yet.
