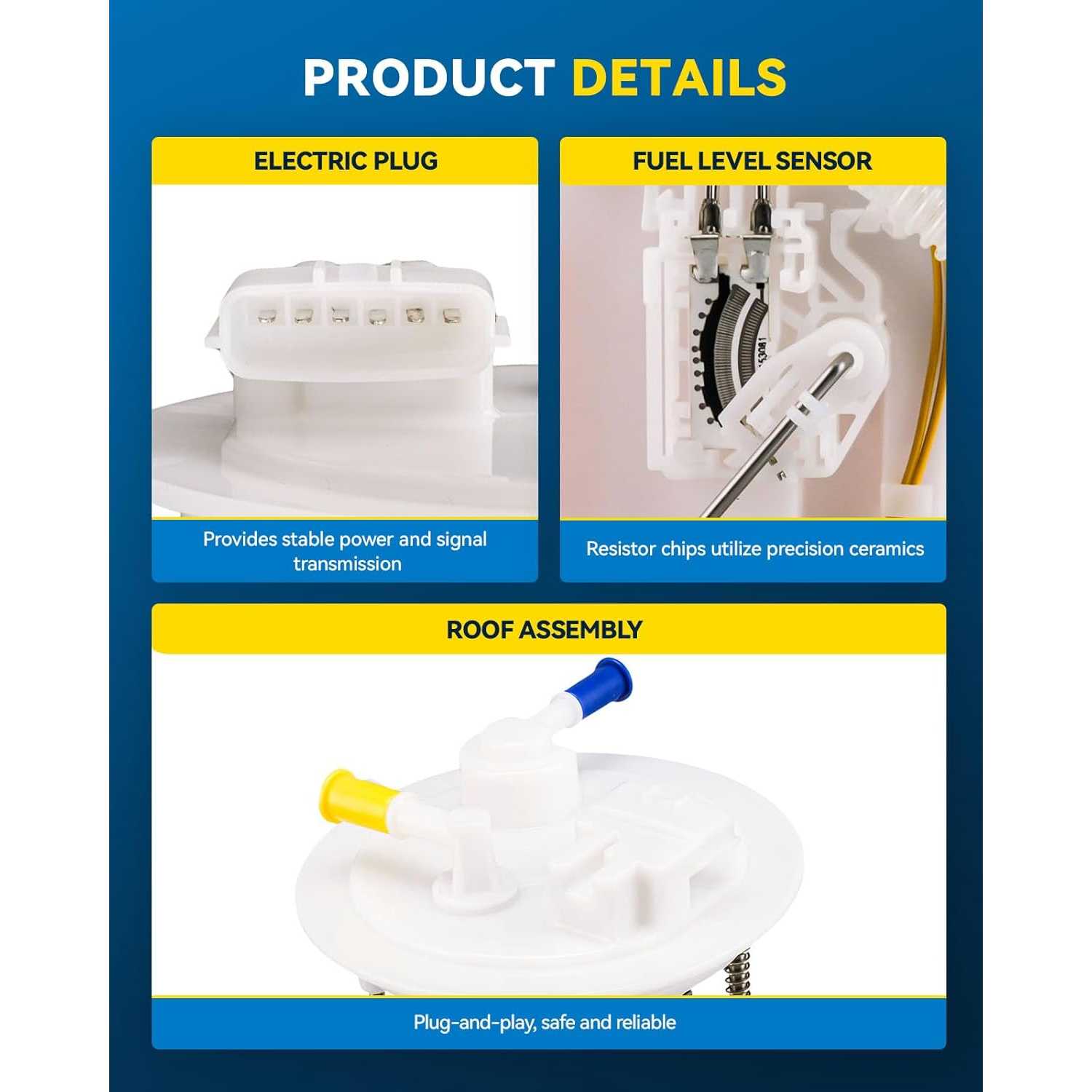

Carbon Commutator

Precision Ceramic Resistor

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5999FUP7061US

Specifications

Brand
PHILTOP
Gasket or Seal Included
No
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
283.0 Ω
Resistance Ohms Full
51.0 Ω
Average Flow Rating
32 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
49.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

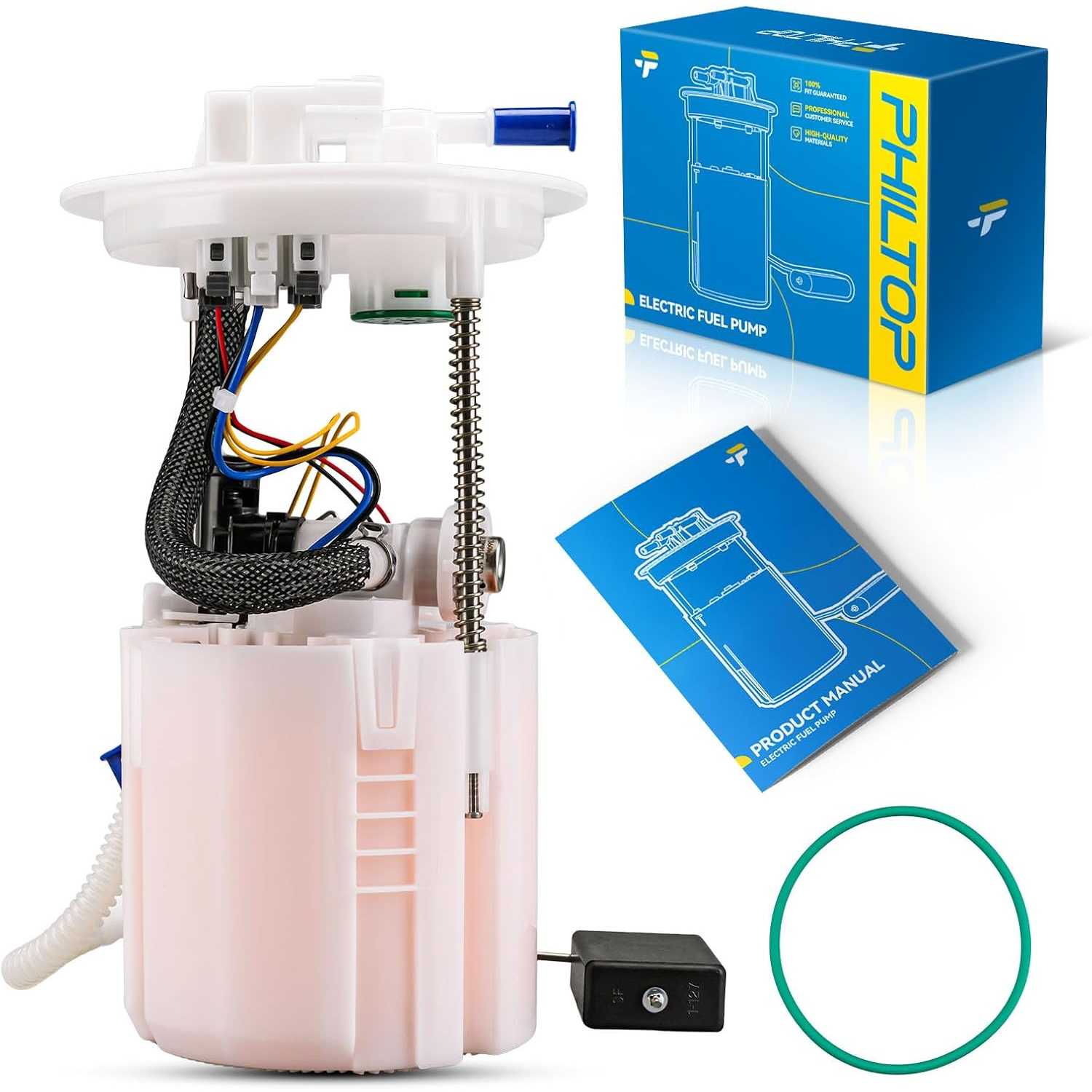

1x Fuel Pump Assembly - FG1548
Warranty Period
2-Year
OE Number
170403JA0A,170403KA1D,170403KA1B,170403JT0C,170403JT0D,170403KA1C,170403KA1A,170403KA1E
Part Number
FG1548,SP4092M,P77229M,USEP9187M,B14113356TG,C0914M,M635790,CFG1548,4011007,TNKSP4092M

Highlights

  • Fitment: Compatible with [Nissan]2013-2016 Pathfinder 3.5L(To 11/2015), [INFINITI]2014-2016 QX60 3.5L(From 06/2013;To 08/2013), 2013-2013 JX35.
  • Reference Number: FG1548, SP4092M, 170403JA0A, 170403KA1C, 170403KA1D, 170403KA1B, 170403KA1A, 170403KA1E, P77229M, 170403JT0C, 170403JT0D, USEP9187M, 4011007, M635790, TNKSP4092M, C0914M, B14113356TG, CFG1548.
  • Related Parts: ① Fuel Pump, ② Strainer.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20132014 - 20162013 - 20162013 - 20162013 - 20162013 - 2016
MakeINFINITIINFINITINissanNissanNissanNissan
ModelJX35QX60PathfinderPathfinderPathfinderPathfinder
TrimBaseBasePlatinumSSLSV
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note--
To 11/2015
To 11/2015
To 11/2015
To 11/2015

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump
