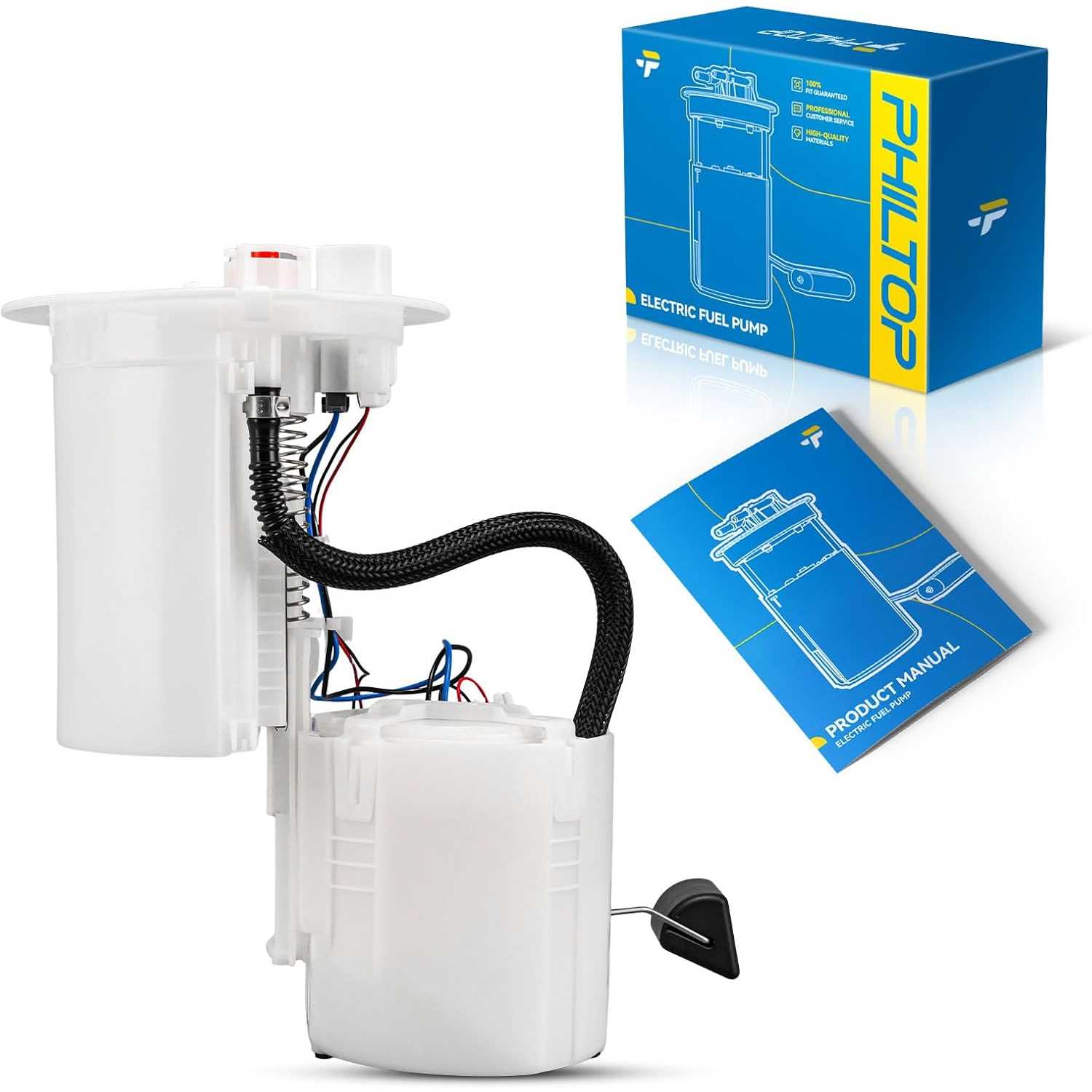

2010-2015 Toyota Prius 1.8L L4 | Fuel Pump Assembly | OE#8332047050/FG1173 - PHILTOP

2010-2015 Toyota Prius 1.8L L4 | Fuel Pump Assembly | OE#8332047050/FG1173 - PHILTOP

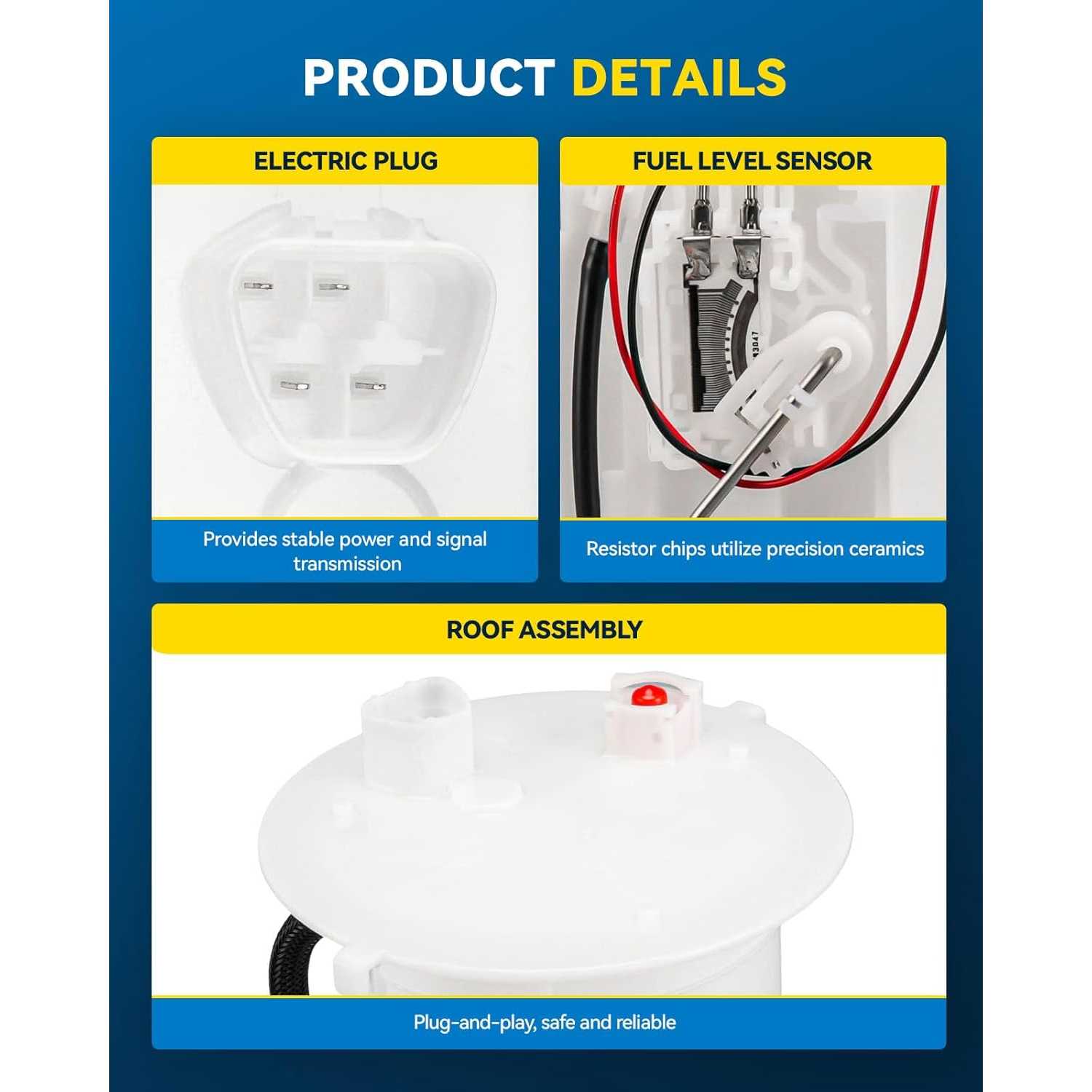

Carbon Commutator

Precision Ceramic Resistor

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2832FUP697FUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
No
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
408.0 Ω
Resistance Ohms Full
15.0 Ω
Average Flow Rating
10 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
94.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG1173
Warranty Period
2-Year
OE Number
8332047050,8332047080,7702047081,7702047080
Part Number
FG1173,SP9054M,P76758M,USEP21003M,USEP9005M,B15312578TG,C0731M,M2521030,DFG1173,2920938,TNKSP9054M,4010970

Highlights

  • Fitment: Compatible with [Toyota]2010-2015 Prius, 2012-2015 Prius Plug-In.
  • Reference Number: FG1173, SP9054M, 7702047081, P76758M, 7702047080, USEP21003M, TNKSP9054M, 8332047050, 8332047080, 2920938, 4010970, M2521030, B15312578TG, DFG1173, USEP9005M, C0731M.
  • Related Parts: ① Fuel Pump, ② Strainer.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2010 - 20112012 - 20152012 - 2015201520152012 - 20152012 - 20152012 - 2015
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelPriusPriusPriusPriusPriusPriusPriusPrius Plug-In
TrimBaseFiveFourOnePersona SeriesThreeTwoBase
Engine1.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L4
Note--------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Luis Zelaya

06/05/2026

Verified buyer

Exactamente lo que necesitaba, calzó a la perfección y el carro prendió
