2009-2014 Ford F-150 4.6L V8 | Fuel Pump Assembly | OE#9L3Z9A299E/FG1315 - PHILTOP

2009-2014 Ford F-150 4.6L V8 | Fuel Pump Assembly | OE#9L3Z9A299E/FG1315 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

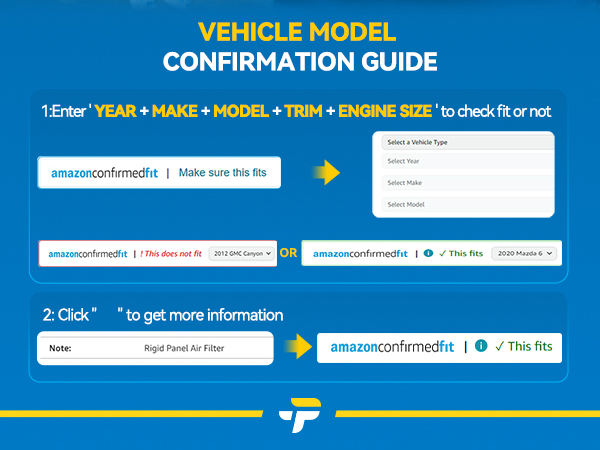

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5542FUP0846US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No

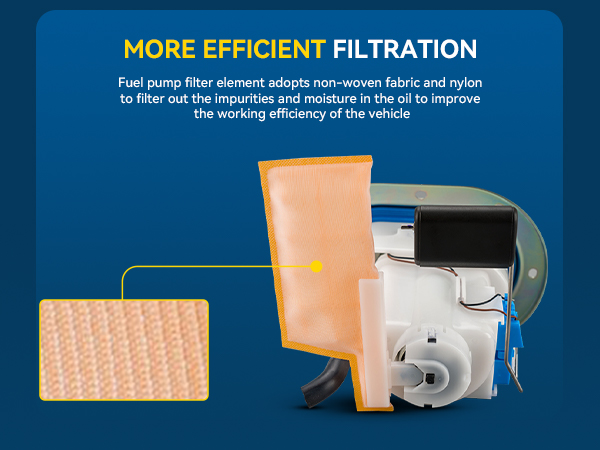

Strainer Included
Yes

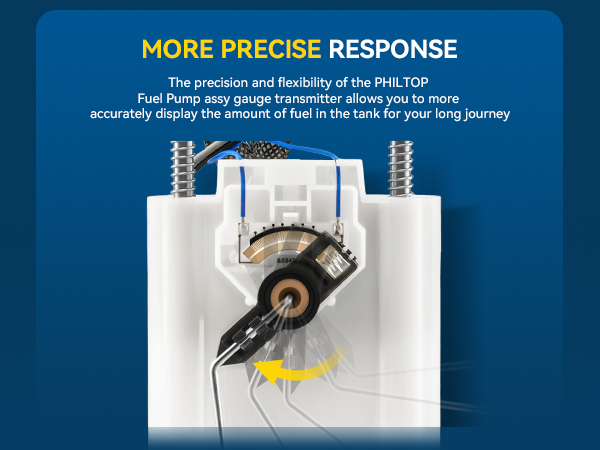

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
180.0 Ω
Resistance Ohms Full
10.0 Ω
Average Flow Rating
37 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
78.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

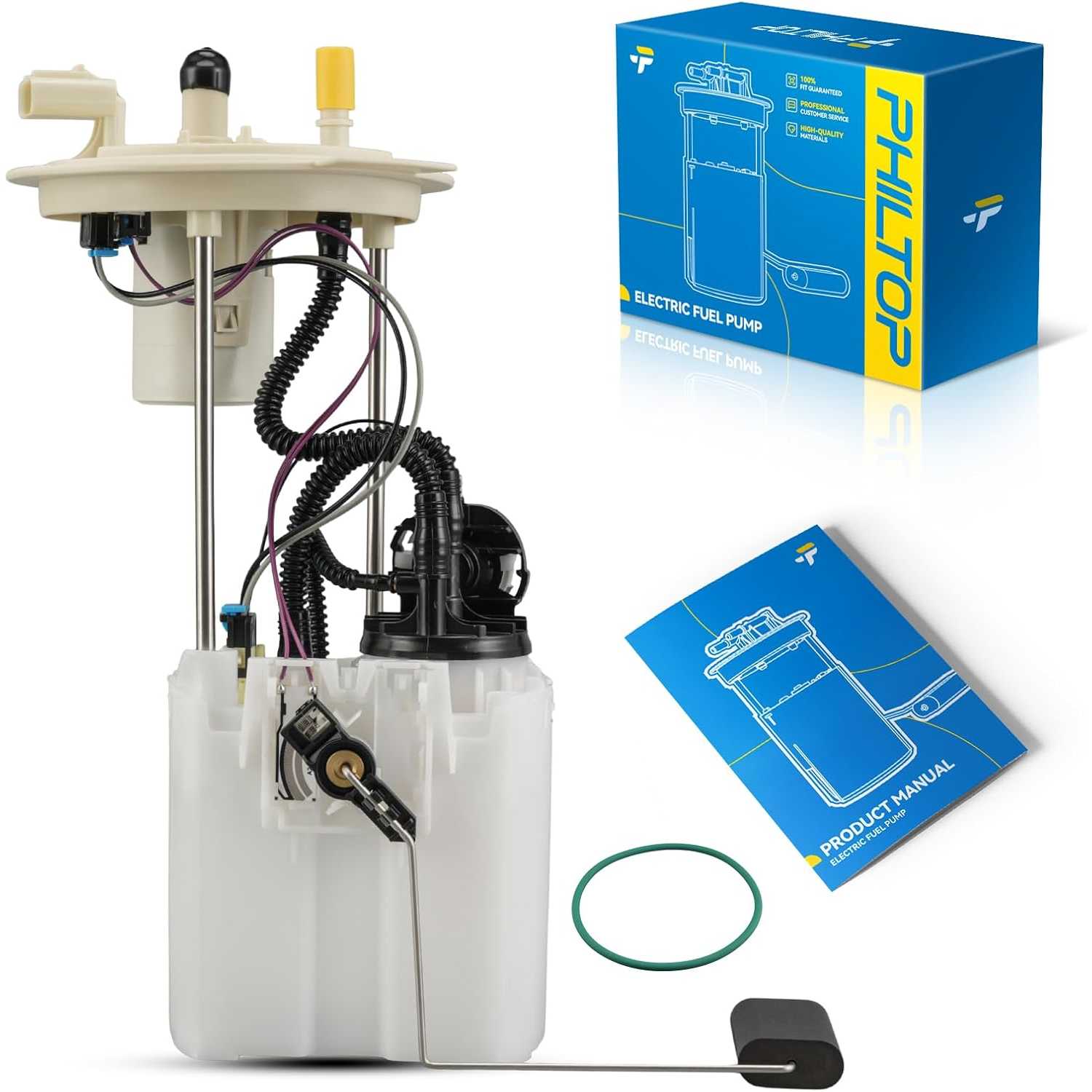

1x Fuel Pump Assembly - FG1315
Warranty Period
2-Year
OE Number
9L3Z9A299E,9L3Z9H307E
Part Number
FG1315,P76467M,SP2095M,USEP2541M,E2541M,F1552A,PS344,4010719,DFG1315,M3520829,PN3121,TU294,2920719,1234685,TNKSP2095M,B12112503TG,C0134M

Highlights

  • Fitment: Compatible with [Ford] 2009 F-150 King Ranch/Platinum, 2009 F-150 XL(WheelBase:163.0), 2009 F-150 5.4L(WheelBase:163.0), 2009 F-150 Crew Cab(BedLength:67.0/78.8; WheelBase:163.0), 2009 F-150 Extended Cab(BedLength:78.8/97.4; WheelBase:163.0), 2009 F-150 Standard Cab(BedLength:97.4; WheelBase:163.0), 2009-2010 F-150(WheelBase:145.0/157.0), 2010 F-150(WheelBase:163.0), 2011-2013 F-150 3.7/5.0L(WheelBase:145.0/157.0/163.0), 2014 F-150 FLEX(WheelBase:145.0/163.0), 2014 F-150 FLEX King Ranch/Platinum, 2014 F-150 Crew Cab/Standard Cab FLEX(WheelBase:157.0), 2014 F-150 FLEX FX4/XL/XLT(WheelBase:157.0), (with 26 Gallon Tank;without Extended Range Fuel Tank).
  • Reference Number: 9L3Z9H307E, E2541M, USEP2541M, 9L3Z9A299E, P76467M, F1552A, SP2095M, PN3121, PS344, 4010719, DFG1315, TU294, M3520829, FG1315, 2920719, 1234685, TNKSP2095M, B12112503TG, C0134M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring .
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20102011 - 201420102011 - 20142009 - 201020102011 - 20142009 - 20102011 - 20142009 - 20102011 - 20142009 - 20102011 - 20142009 - 20102011 - 20142011 - 20142009 - 20102011 - 20142009 - 20102011 - 20142009 - 20102011 - 20142009 - 2010
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150
TrimFX2FX2FX2FX4FX4Harley-Davidson EditionKing RanchKing RanchLariatLariatPlatinumPlatinumSTXSTXSTXXLXLXLXLXLTXLTXLTXLT
Engine4.6L V85.0L V85.4L V85.0L V85.4L V85.4L V85.0L V85.4L V85.0L V85.4L V85.0L V85.4L V83.7L V64.6L V85.0L V83.7L V64.6L V85.0L V85.4L V83.7L V64.6L V85.0L V85.4L V8
Note
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank
with 26 Gallon Tank;without Extended Range Fuel Tank

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

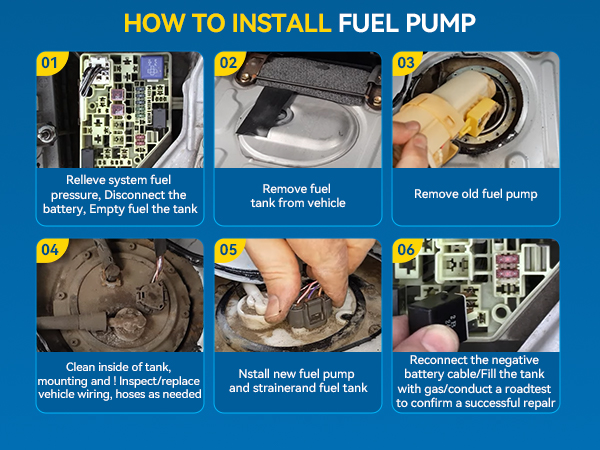

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.

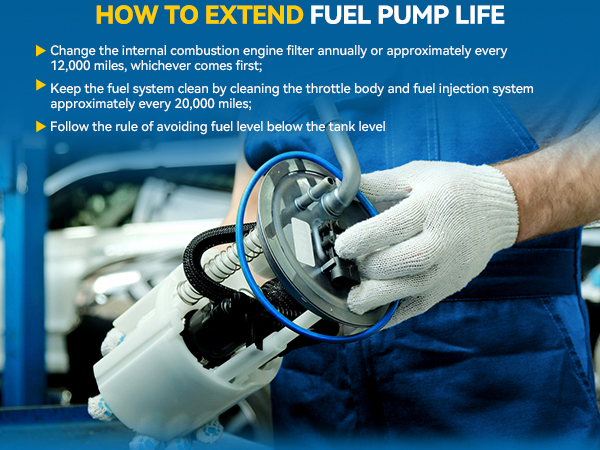

  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Bria Caldwell

03/16/2026

Verified buyer

Went in easy works great, great value
