2004-2006 Nissan Altima 2.5L L4/3.5L V6 | Fuel Pump Assembly | OE#17040ZA30A/P76169M - PHILTOP

2004-2006 Nissan Altima 2.5L L4/3.5L V6 | Fuel Pump Assembly | OE#17040ZA30A/P76169M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2614FUP056XUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No

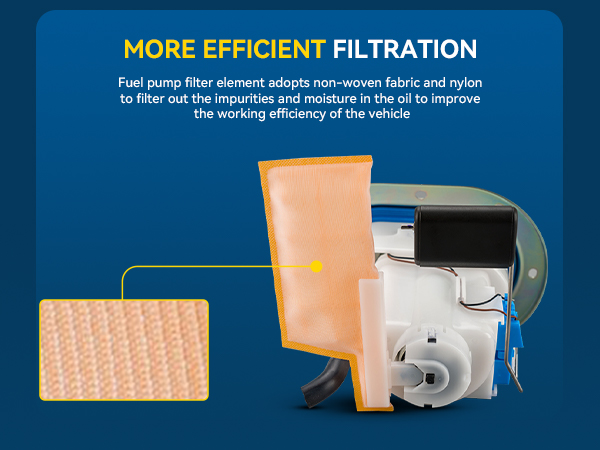

Strainer Included
Yes

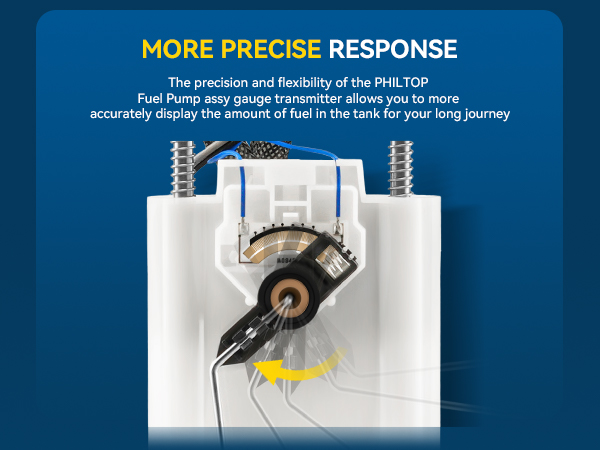

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
80.0 Ω
Resistance Ohms Full
5.0 Ω
Average Flow Rating
23 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
52.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

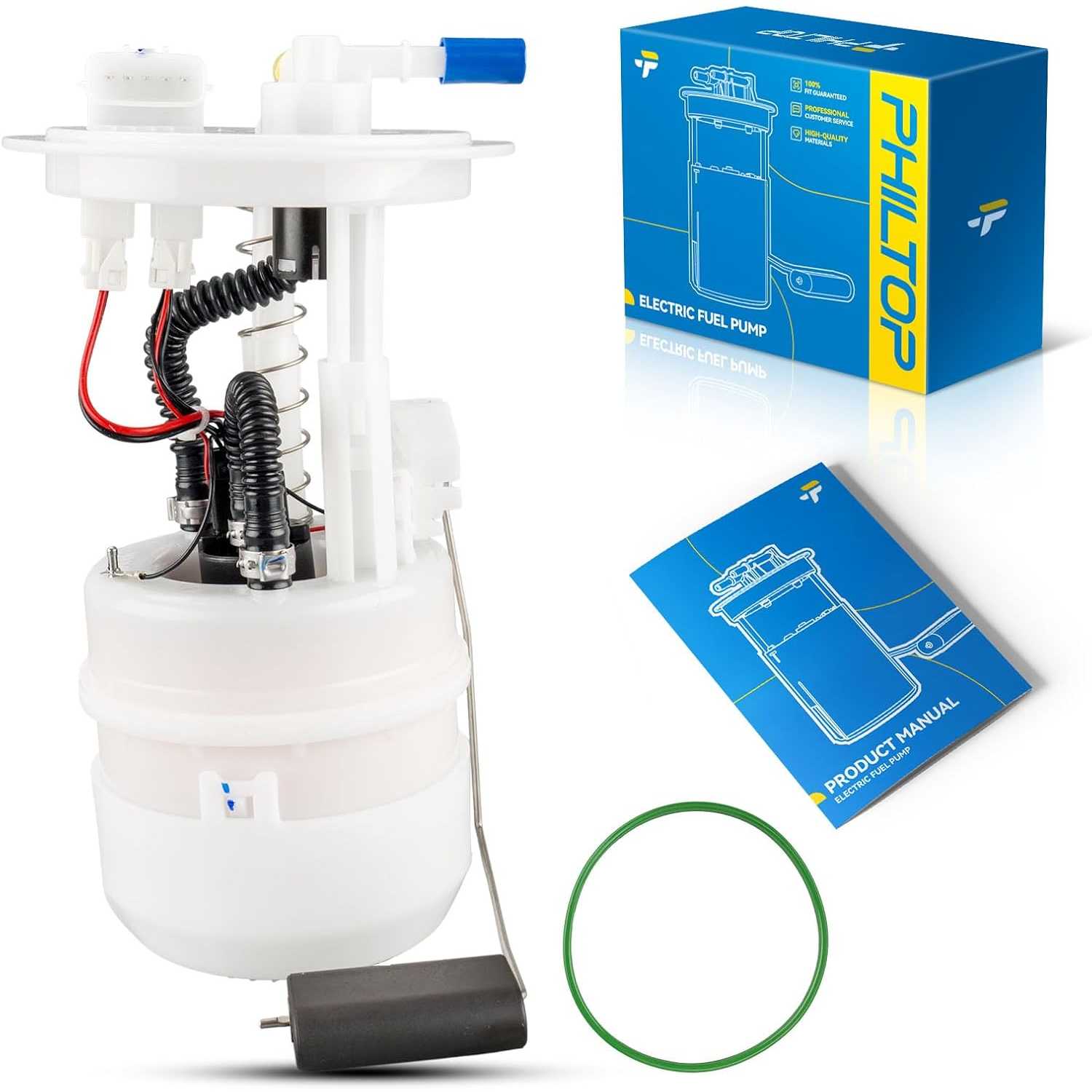

1x Fuel Pump Assembly - FG0987
Warranty Period
2-Year
OE Number
17040ZA30A,17040ZD80B,170409J300,170407Y000,17040ZB00A,170409J400
Part Number
P76169M,FG0987,SP4013M,5502010,USEP8545M,203GE,E8545M,150211,402P8545M,TU325,M2287394,PN3039,C0585M,4010486,CFG0987,MO417,2920472,1234732,830531,TNKSP4013M,B14111030TG

Highlights

  • (Direct Fit) - Direct replacement for worn fuel pump assembly, suitable for the following models: Altima 2004-2006 2.5L, 3.5L, Maxima 2004-2008 3.5L, Quest 2004-2009 3.5L
  • (OEM Number)--PHILTOP fuel pump meets OE standard, interchangeable with the following numbers: FG0987, 17040-7Y000, 17040-9J300, 17040-9J400, 17040-ZB00A, 17040-ZD80B, 203GE, 4010486, 550-2010, 67991, A27057, CFG0987, E8545M, M2287394, P76169M, SP4013M
  • (Premium Quality & Service)--One year hassle-free return and exchange. All plastic parts are made of imported high performance POM raw materials, and the module adopts the most mature fuel pump structure, which is ethanol resistant, more efficient and longer service life

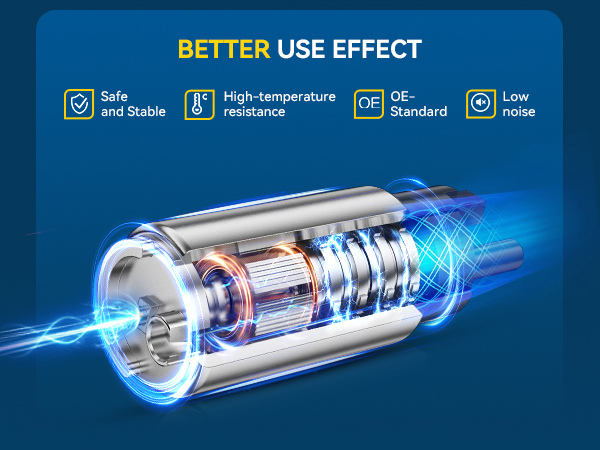

  • (Product Advantage)--PHILTOP fuel pumps generate noise as low as 48dB during operation and can operate stably in different media (e.g. gasoline, diesel, alcohol). The anti-electromagnetic interference level of fuel pump products reaches level 3. At the same time philtop fuel pump made 3500 hours life test, the test results show that the flow decay is less than 15%, so its long life is also a major advantage

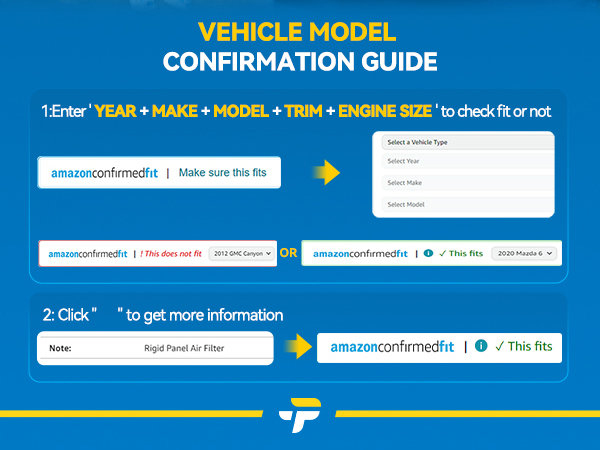

  • (Easy to install)--No need to buy other accessories, can be installed directly. Please confirm the year/make/model of the vehicle you are purchasing before purchasing. You can refer to the fitment description on the product detail page or use the "Suncentautoconfirmedfit" in the upper left corner of the link to confirm

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year200420062004 - 20062004 - 20062005 - 20062004 - 20062005 - 20062004 - 20082004 - 20082005 - 20092004 - 20092004 - 20092004 - 2009
MakeNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissan
ModelAltimaAltimaAltimaAltimaAltimaAltimaAltimaMaximaMaximaQuestQuestQuestQuest
TrimBaseBaseSSESE-RSLSLSESLBaseSSESL
Engine2.5L L42.5L L42.5L L43.5L V63.5L V62.5L L43.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note
without California Emissions System
without California Emissions System
without California Emissions System
without California Emissions System
without California Emissions System
without California Emissions System
without California Emissions System
------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

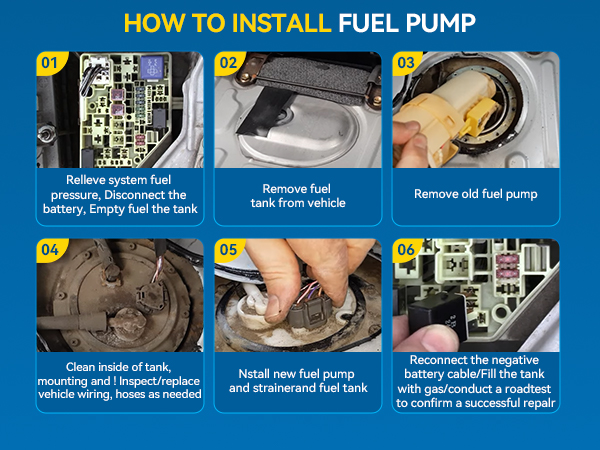

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.

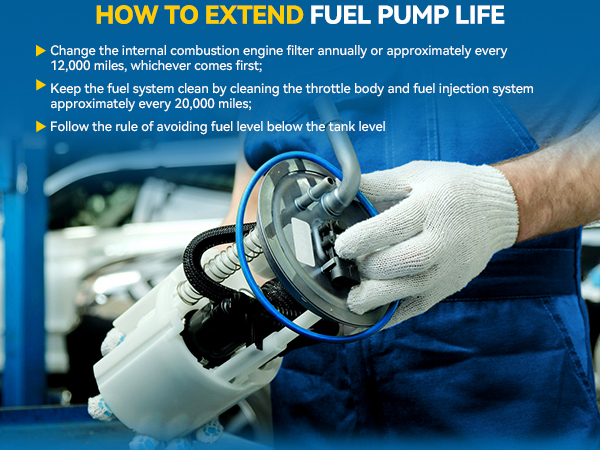

  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump
