1998-1999 Buick Century 3.1L V6 | Fuel Pump Assembly | OE#19180096/P74792M - PHILTOP

1998-1999 Buick Century 3.1L V6 | Fuel Pump Assembly | OE#19180096/P74792M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5155FUP2256US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes

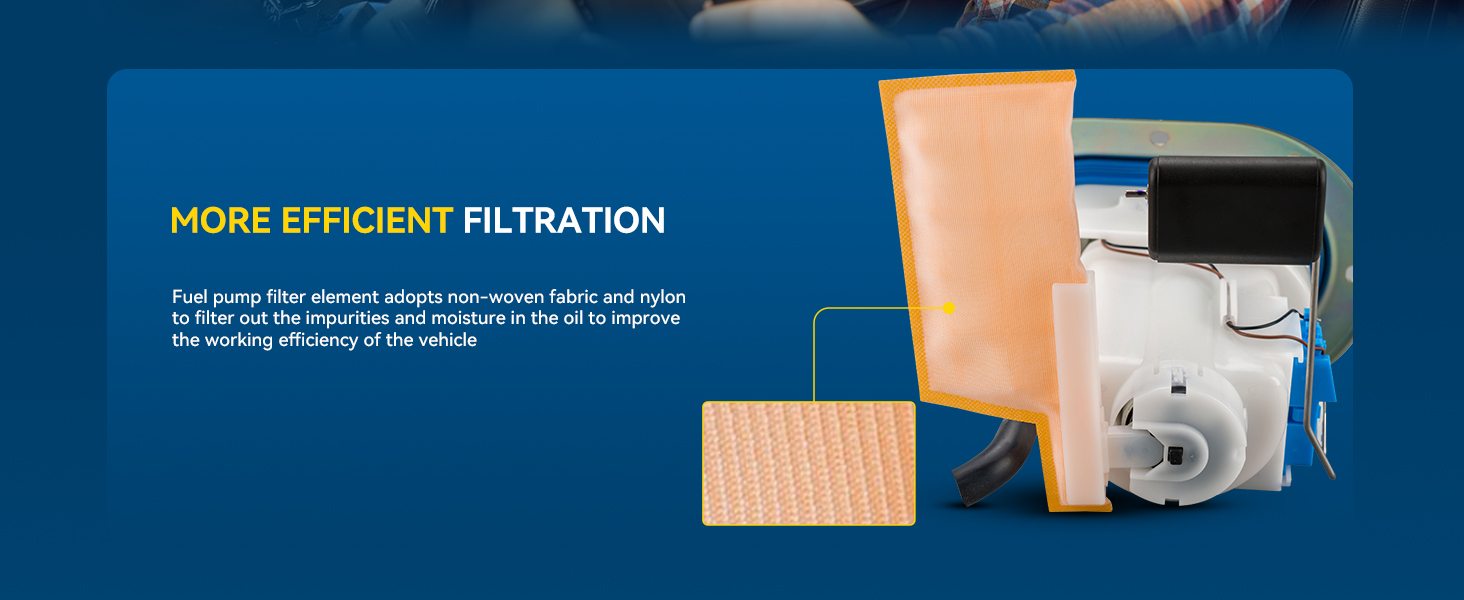

Strainer Included
Yes

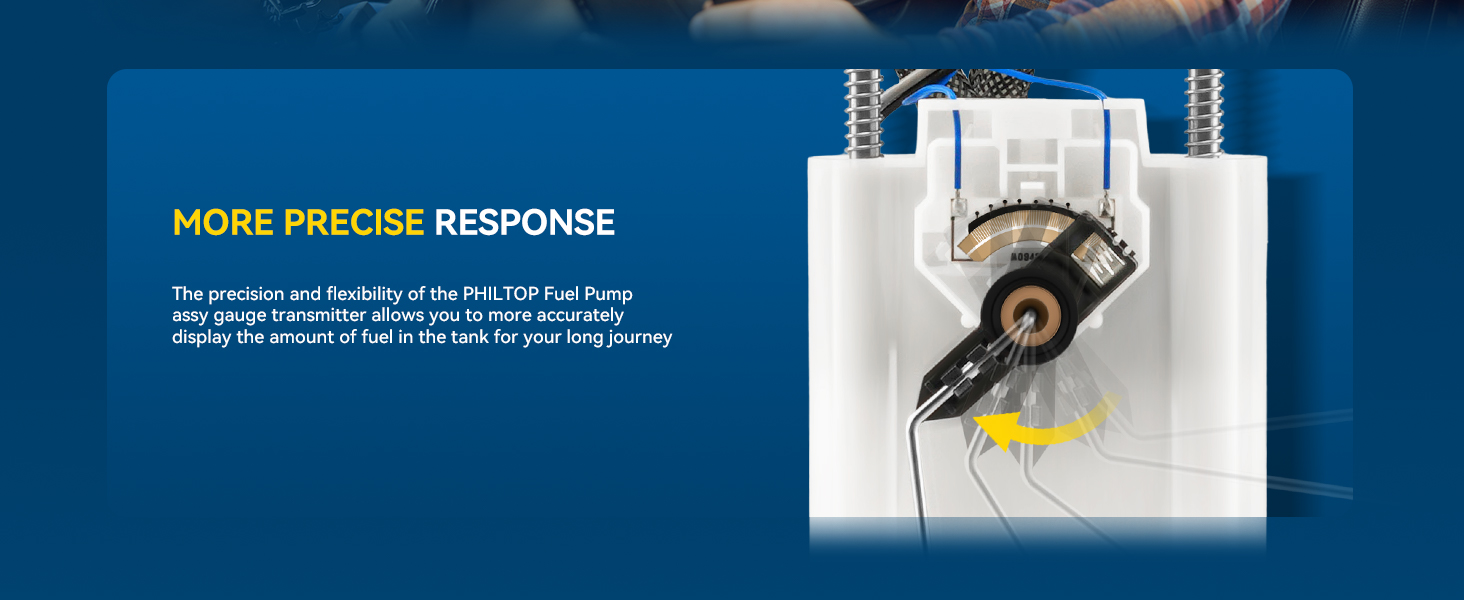

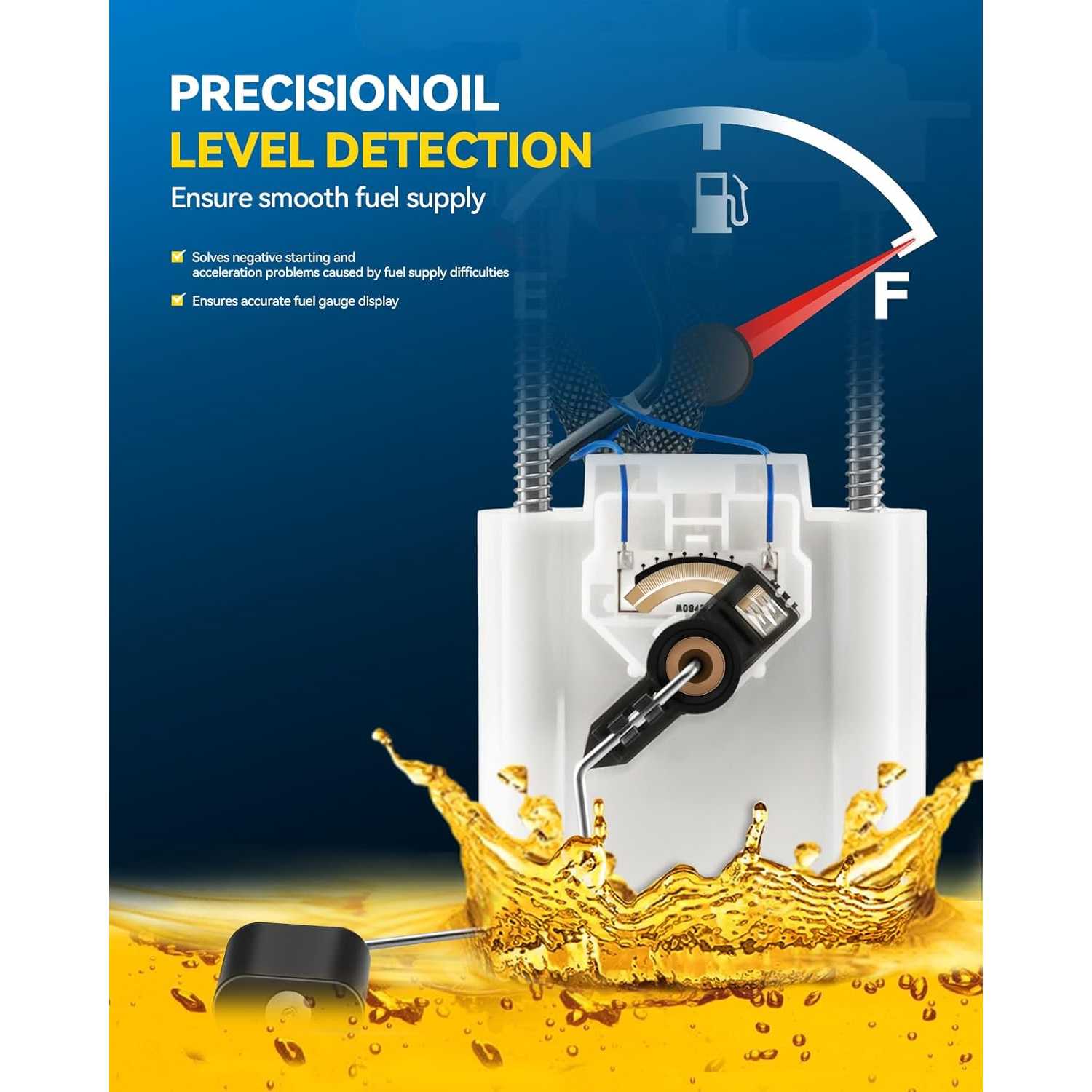

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
40.0 Ω
Resistance Ohms Full
250.0 Ω
Average Flow Rating
17 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
109.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
3
Outlet Type
Quick Connect

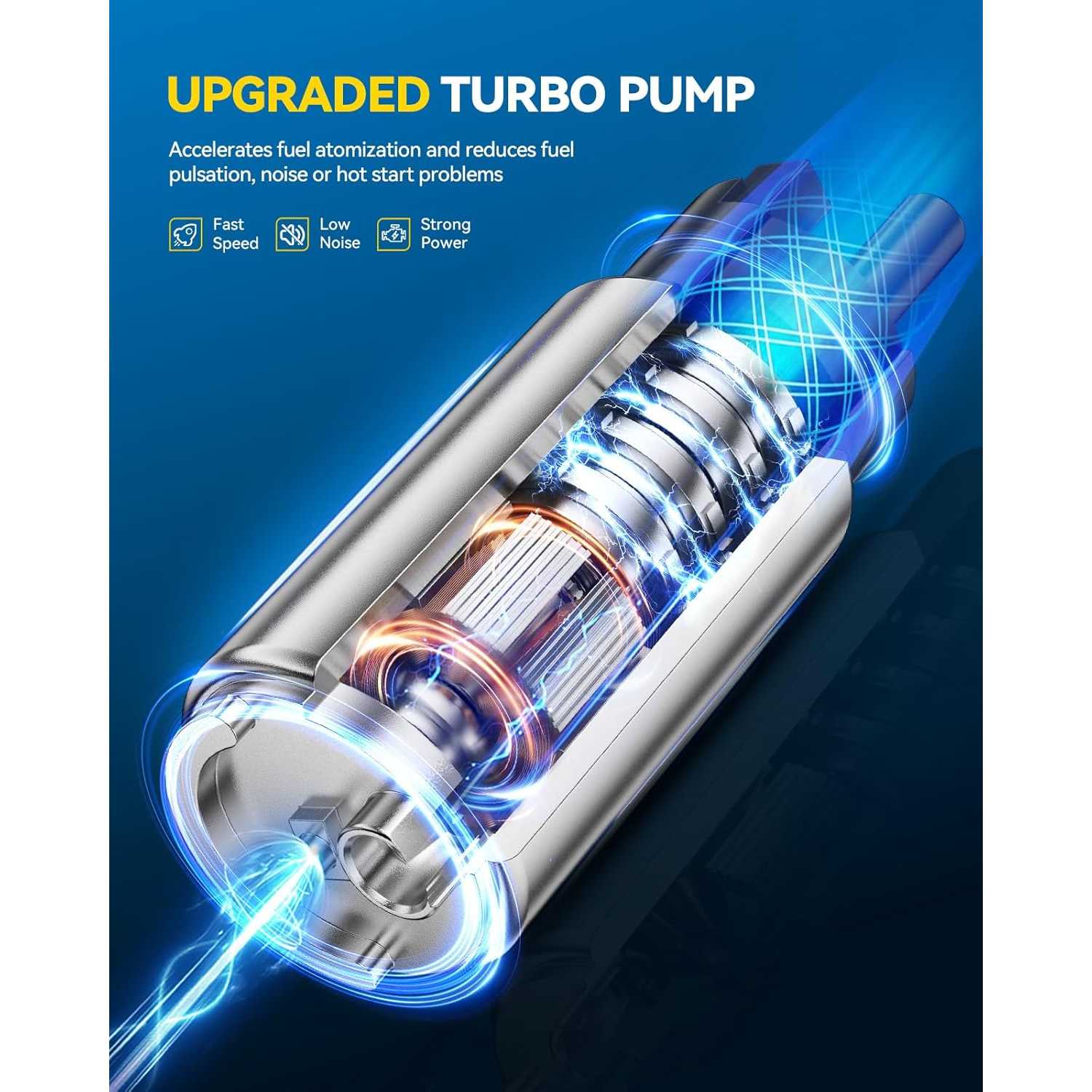

Pump Structure
Turbine Impeller
Items Included

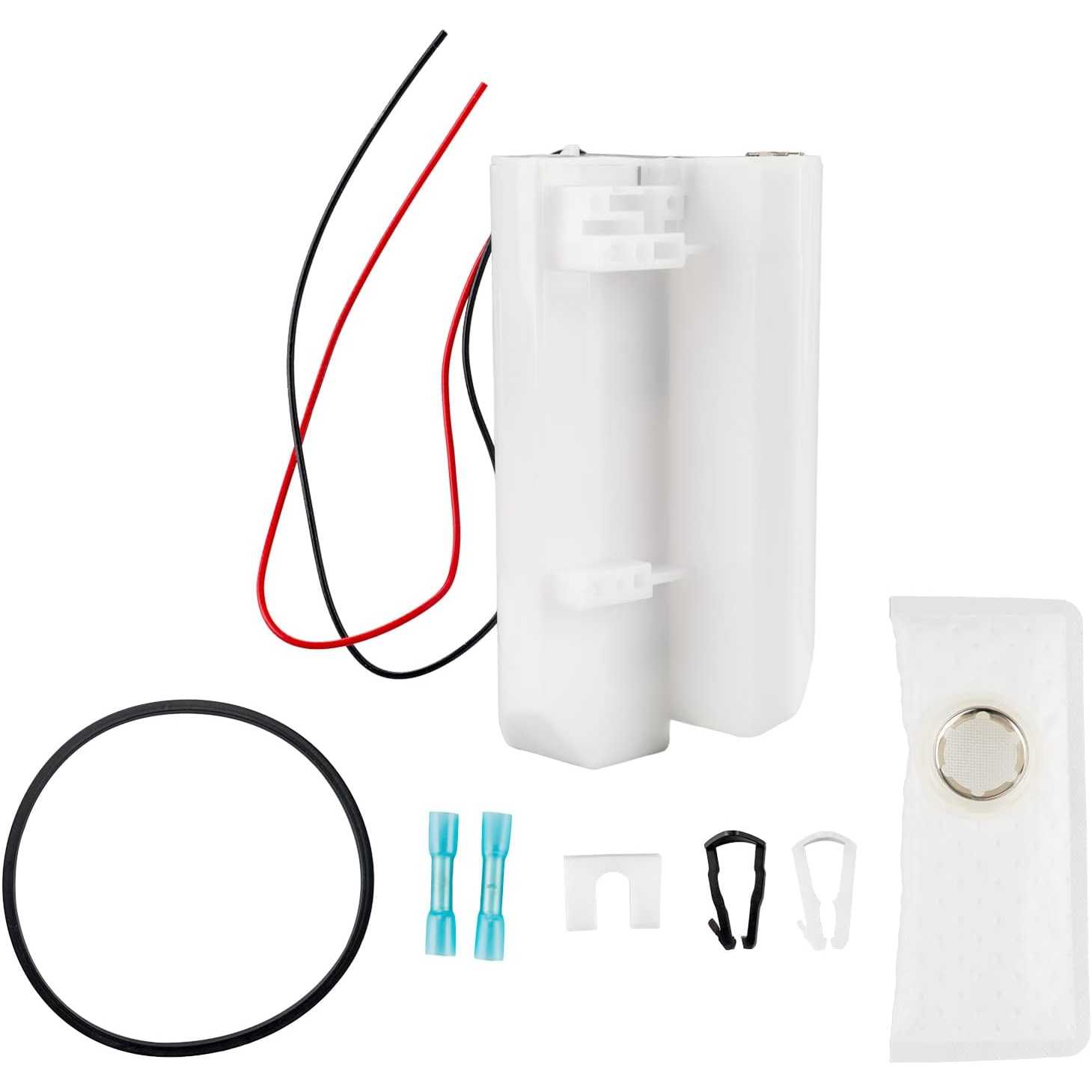

1x Fuel Pump Assembly - FG0156
Warranty Period
2-Year
OE Number
19180096,P1012M,25323831,19331288,19331279,25325701,19180107,25325702,25323833,25174048
Part Number
P74792M,FG0156,SP3537M,FG0151,9530033,5302090,TU410,USEP3537M,9535080,USEP3973M,129GE

Highlights

  • (Vehicle Fitment) Compatible with Ford F-150 1990–1996 (4.9L, 5.0L, 5.8L), F-250 1990–1996 (4.9L, 5.8L, 7.5L), F-250 HD 1997 (5.8L, 7.5L), and F-350 1990–1997 (4.9L, 5.8L, 7.5L). Engineered for a direct OE fit and reliable performance
  • (OEM Replacement) Replaces OEM part numbers: FG0199, E2064M, F6TZ-9A407-CA, F6TZ-9A407-CC, F4TZ-9A407-C, F4TZ-9A407-R, F0TZ-9A407-CA, FG0198, SP2007H, PFB-3, TU200, TU201, P74108. Meets or exceeds OE specifications

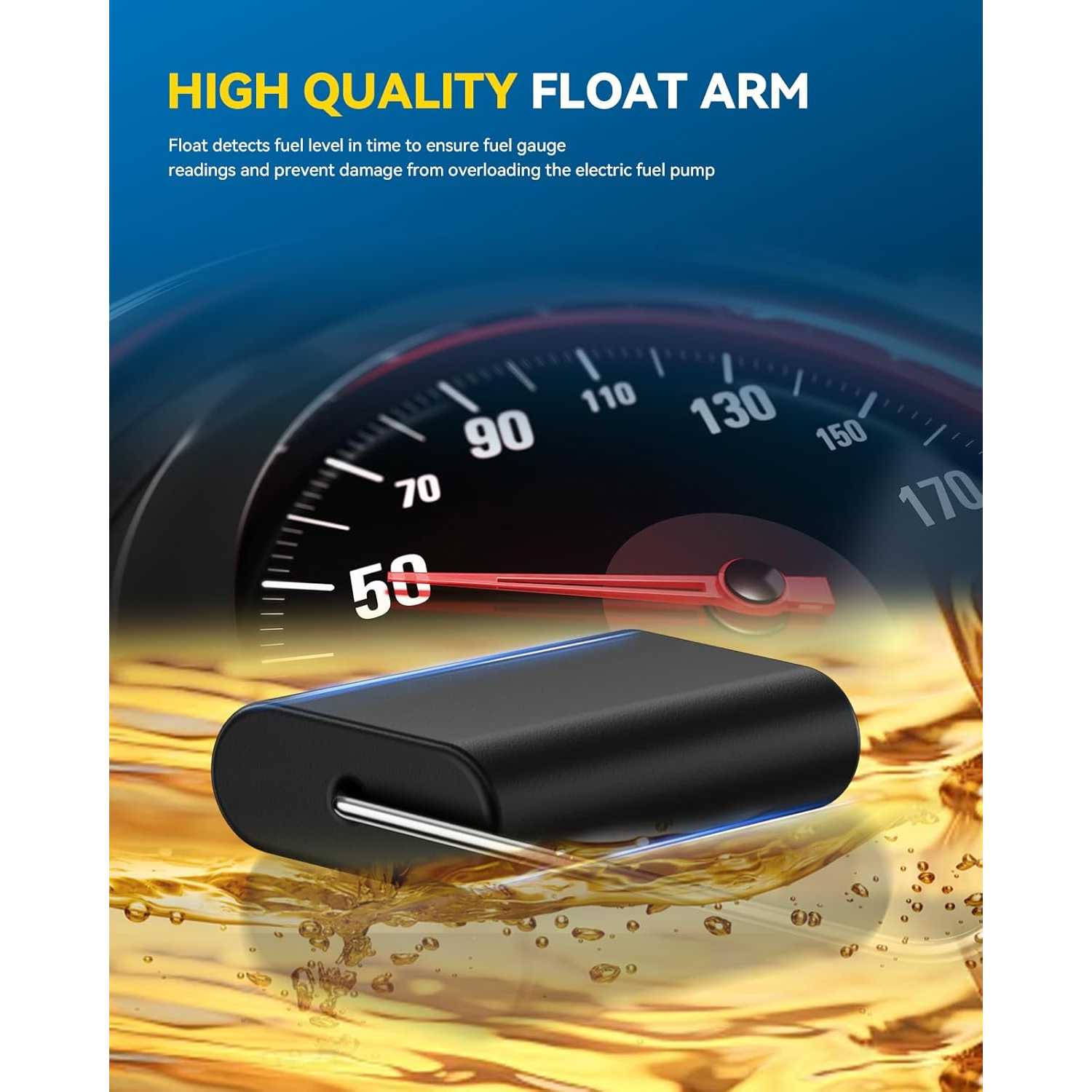

  • (Complete Assembly) This fuel pump module includes the fuel pump, sending unit, pressure sensor, float, and tank seal. Pre-assembled and ready for plug-and-play installation—no additional parts required
  • (Durable & Reliable) Built with high-performance POM plastic and corrosion-resistant materials. Designed for ethanol resistance and tested for over 3,500 hours of operation with less than 15% flow decay—ensuring long-lasting durability
  • (Easy Installation) No special tools needed. Please verify your vehicle’s year, make, and model before purchasing. Use the fitment guide on the product detail page or the “Suncentauto Confirmed Fit” tool to ensure proper compatibility

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1998 - 19991998 - 199919991998 - 199919981999 - 20001998 - 19991999 - 200019981999 - 200019991998 - 20001998 - 20001998 - 2000
MakeBuickBuickBuickBuickOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobilePontiacPontiacPontiac
ModelCenturyCenturyRegalRegalIntrigueIntrigueIntrigueIntrigueIntrigueIntrigueIntrigueGrand PrixGrand PrixGrand Prix
TrimCustomLimitedGSLSBaseGLGLGLSGLSGXGXGTSESE
Engine3.1L V63.1L V63.8L V63.8L V63.8L V63.5L V63.8L V63.5L V63.8L V63.5L V63.8L V63.8L V63.1L V63.8L V6
Note--------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

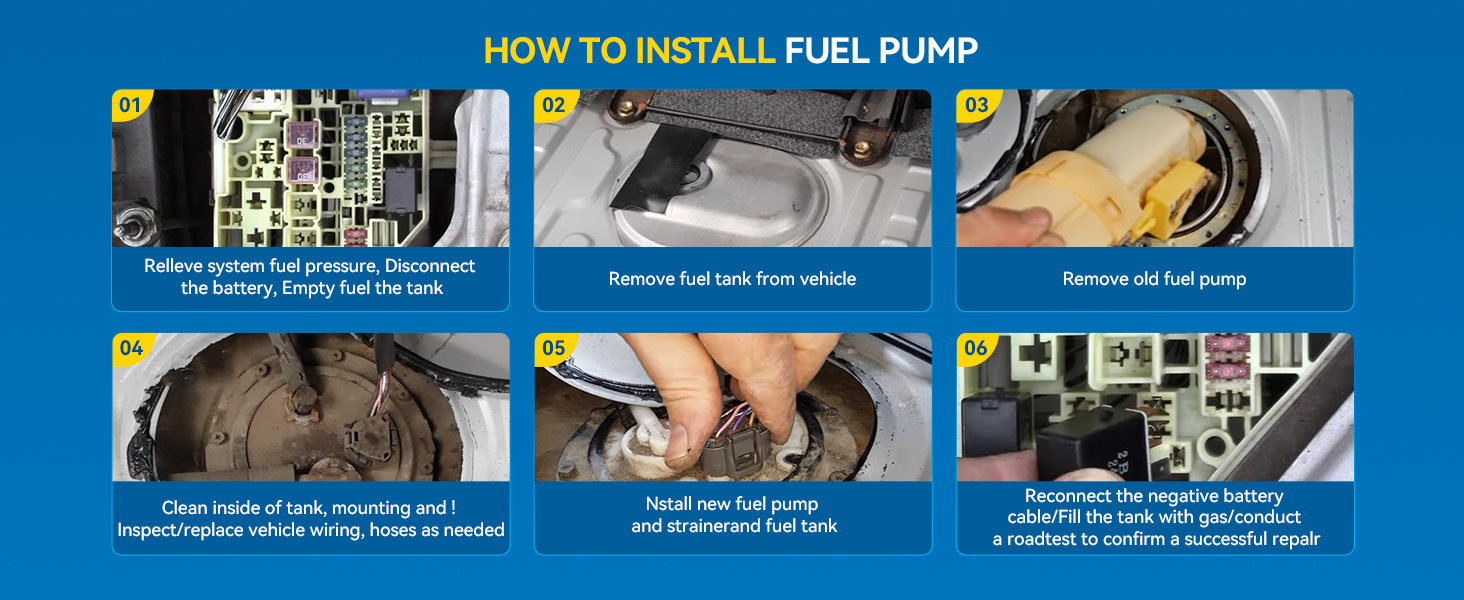

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

4.8/5

Based on 16 reviews

581%
419%
30%
20%
10%

Customer photos and videos

Gene Santos IIGene Santos II

03/16/2026

Verified buyer

Part arrived lightning quick as always, packed with care. Purchased this for a 00 Pontiac Grand Prix, one of my old time favorite cars growing up. But just like humans they break down after while and this particular time, the doc (master mechanic) prescribed a fuel pump.All In all it only took them about 35 min to swap out, fairly easy job. Once they were done, it had been so long since it drove smooth and fast again, it took some getting used to. Thank you PHILTOP!

Amazonian 9Amazonian 9

04/12/2026

Verified buyer

Works well maintains good fuel pressure and seems like good quality. It is a cost effective option for pumping fuel. It works and they're aren't any leaks.Disclaimer: I received this product as part of Amazon's Vine program in exchange for my opinion. This has not influenced this review.
