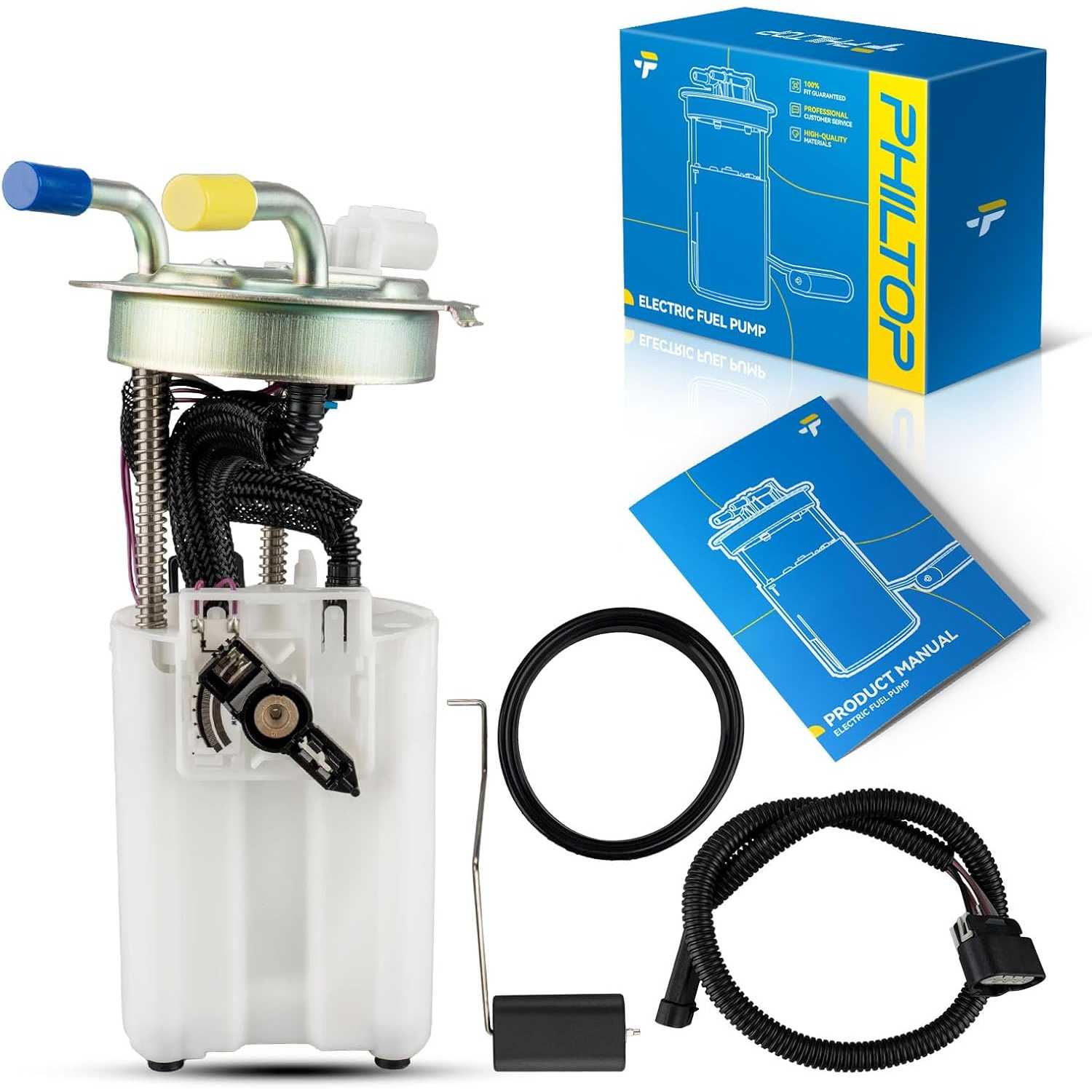

2002-2004 Chevrolet Trailblazer 4.2L | Fuel Pump Assembly | OE#15077623/FG0411 - PHILTOP

2002-2004 Chevrolet Trailblazer 4.2L | Fuel Pump Assembly | OE#15077623/FG0411 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5195FUP2214US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
40.0 Ω
Resistance Ohms Full
250.0 Ω
Average Flow Rating
30 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
112.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

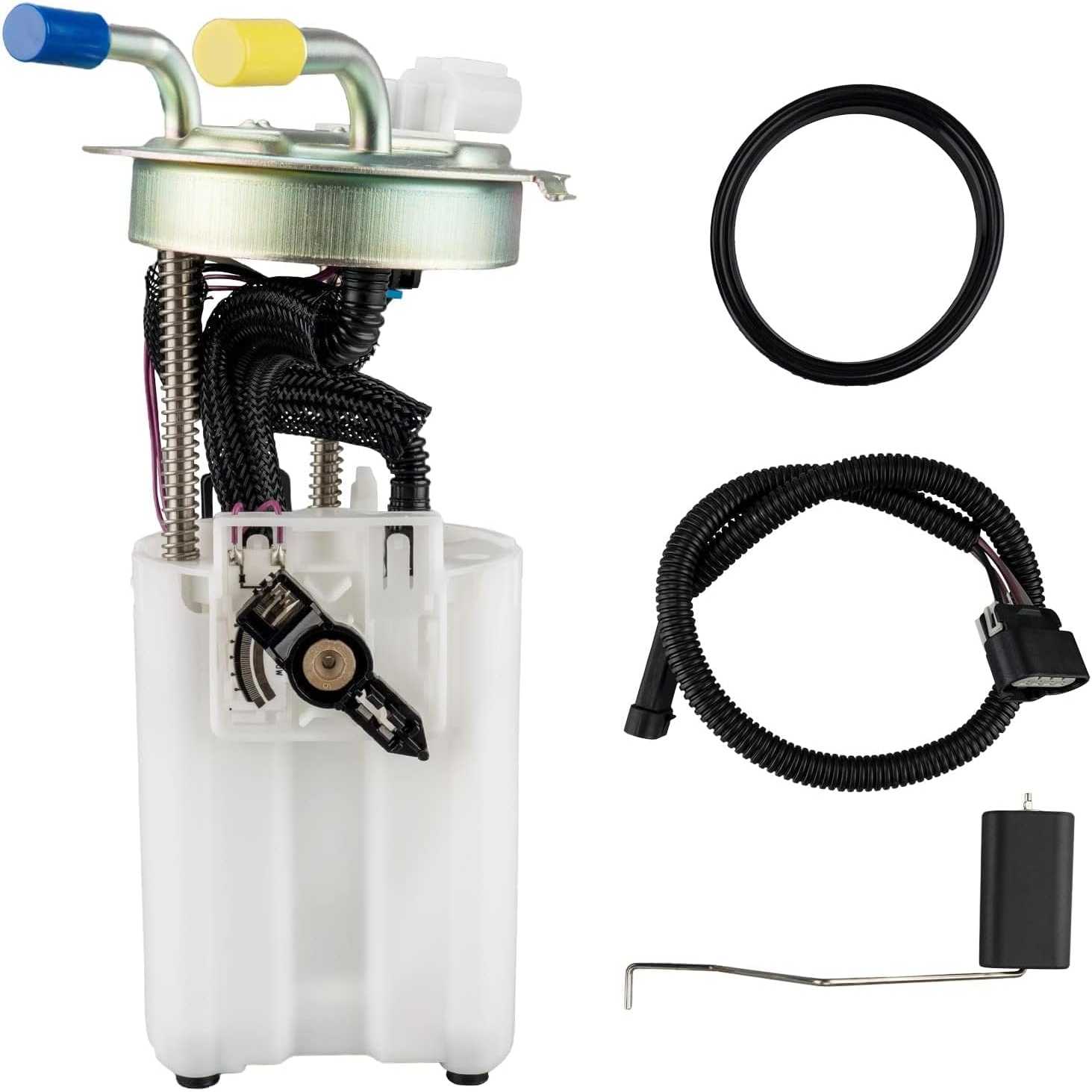

Items Included
1x Fuel Pump Assembly - FG0387
Warranty Period
2-Year
OE Number
15077623,19206124,15050444,19206120,8150504440,88965820,88966950,88966952,15013514,88965822,P1556M,P1557M,19206122
Part Number
FG0411,FG0387,P75053M,9535132,SP3549M,USEP3549M,5302110,SP3550M,9535134,009GE

Highlights

  • Fitment: Compatible with [Chevrolet] 2002-2004 Trailblazer, [GMC] 2002-2004 Envoy, [Oldsmobile] 2002-2004 Bravada, [Buick] 2004 Rainier.
  • Reference Number: 15077623, SP3550M, 88965822, 19206122, 19206124, 15050444, 19206120, 8150504440, FG0387, FG0411, P1556M, P1557M, P75053M, 9535132, 88965820, 88966950, SP3549M, 9535134, 88966952, 15013514, USEP3549M, 009GE, 5302110.

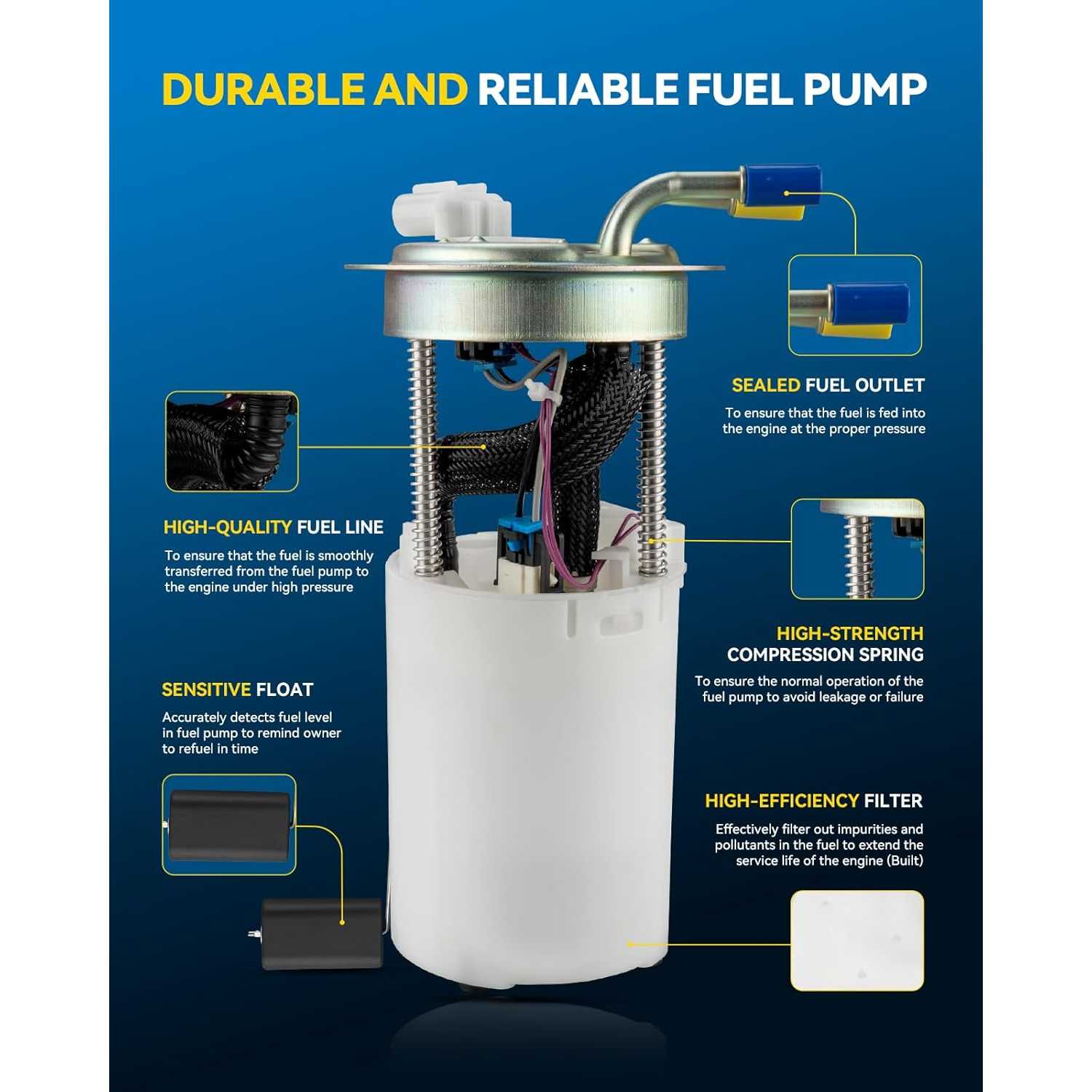

  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring .
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20042004200420042002 - 20042002 - 20042002 - 20032002 - 20042002 - 20042002 - 20042002 - 2004
MakeBuickBuickBuickBuickChevroletChevroletChevroletChevroletGMCGMCOldsmobile
ModelRainierRainierRainierRainierTrailblazerTrailblazerTrailblazerTrailblazerEnvoyEnvoyBravada
TrimCXLCXLCXL PlusCXL PlusLSLTLTZNorth FaceSLESLTBase
Engine4.2L L65.3L V84.2L L65.3L V84.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L6
Note-----------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump
