2005-2010 Honda Odyssey 3.5L V6 | Fuel Pump Assembly | OE#17045SHJA51/FG1456 - PHILTOP

2005-2010 Honda Odyssey 3.5L V6 | Fuel Pump Assembly | OE#17045SHJA51/FG1456 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4507FUP165JUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
780.0 Ω
Resistance Ohms Full
20.0 Ω
Average Flow Rating
34 GPH
In Tank or External
In Tank
Lock Ring Included
Yes
Material
Metal, Plastic
Maximum Pressure
57.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

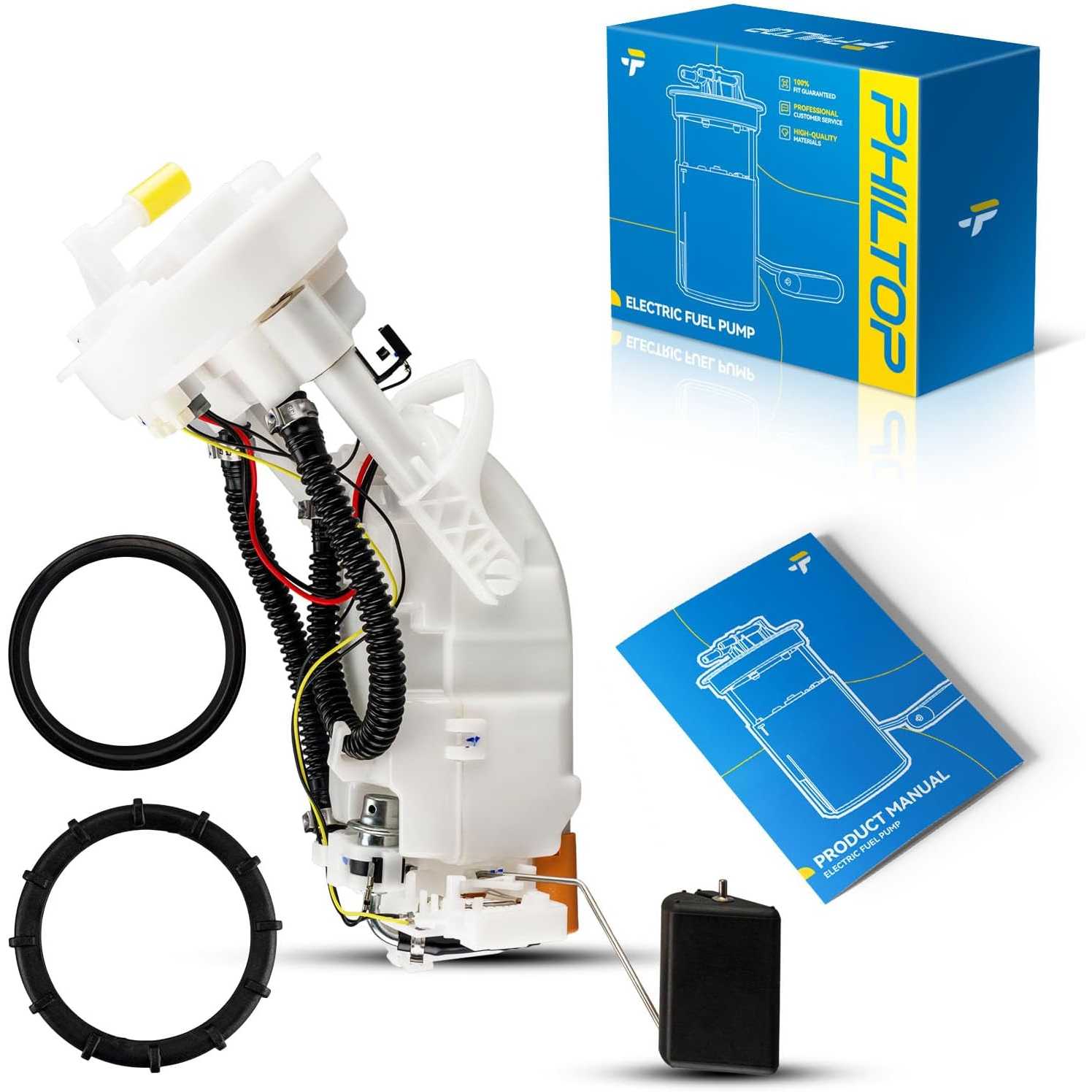

1x Fuel Pump Assembly - FG1456
Warranty Period
2-Year
OE Number
17045SHJA51,17052SHJA50,17052SHJA00,17045SHJA50,17045SHJA30
Part Number
FG1456,P76415M,SP8038M,USEP8692M,E8692M,FG1155,9500216,A30015,CFG1456,E9244M,4010546,2920629,69851,1234844,M635655,TNKSP8038M,B16111851TG,C0768M

Highlights

  • Fitment: Compatible with [Honda] 2005-2010 Odyssey.
  • Reference Number: 17045SHJA30, 17045SHJA51, 17052SHJA00, 17052SHJA50, E8692M, FG1155, 9500216, A30015, CFG1456, USEP8692M, E9244M, FG1456, P76415M, SP8038M, 4010546, 17045SHJA50, 2920629, 69851, 1234844, M635655, TNKSP8038M, B16111851TG, C0768M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.

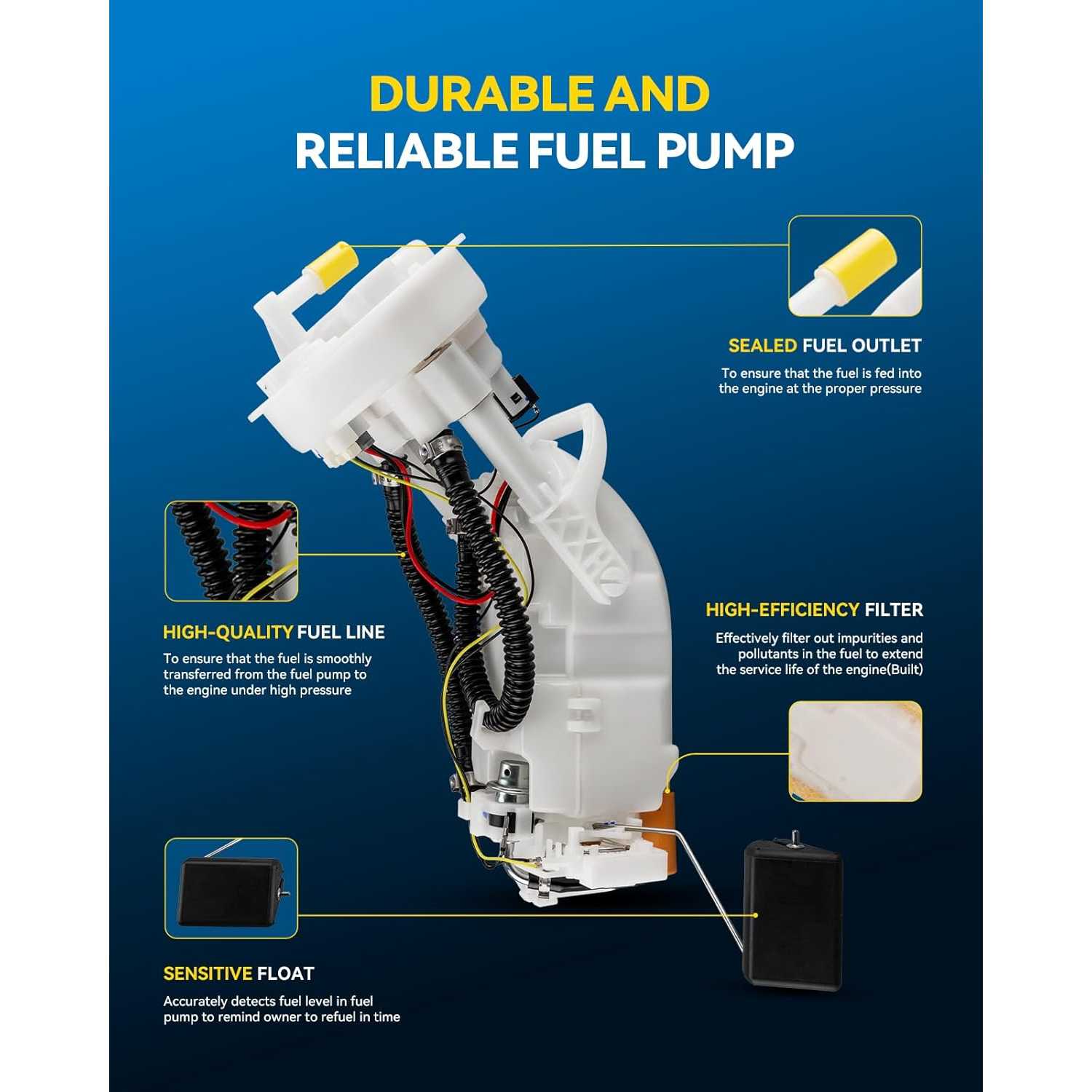

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20102005 - 20102005 - 20102005 - 2010
MakeHondaHondaHondaHonda
ModelOdysseyOdysseyOdysseyOdyssey
TrimEXEX-LLXTouring
Engine3.5L V63.5L V63.5L V63.5L V6
Note----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

4.9/5

Based on 15 reviews

593%
47%
30%
20%
10%

Customer photos and videos

C.C.G.C.C.G.

03/23/2026

Verified buyer

Satisfied with the performance it provides. Installation was straightforward, if you have some basic mechanical experience. It fit perfectly in the vehicle without any need for modifications. Smoother engine performance.Quality materials. It doesn’t feel cheap or flimsy. Manufacturer made a very well built part for your mini van.Overall, if you’re looking for a dependable replacement fuel pump and want something that works right the first time, this is a great choice. I would definitely recommend it.

Jacquelin c.Jacquelin c.

03/20/2026

Verified buyer

Instalé este conjunto de bomba de combustible eléctrica PHILTOP (FG1456) como reemplazo en una Honda Odyssey 2005-2010 y, hasta ahora, ha funcionado de manera adecuada para uso diario. El módulo viene completo, incluyendo el flotador y componentes necesarios, lo que facilita la instalación como reemplazo directo dentro del tanque de combustible. Este tipo de conjunto está diseñado para restaurar la presión y el flujo de combustible hacia el motor, algo esencial para un arranque estable y funcionamiento continuo. La construcción se siente adecuada para un reemplazo estándar, y este tipo de bombas suele incluir filtro interno para ayudar a mantener el sistema limpio y prolongar la vida útil. Viene con su manual de instalación su empaque está muy bien protegido. En general, es una opción funcional como reemplazo de la bomba de combustible, adecuada para restaurar el flujo de gasolina en vehículos compatibles.
